| output torque: | |
|---|---|
| power: | |
| roller material: | |
| drive head: | |
| Quantity: | |
DGDD50-H
RONWIN
HS Code: 8431390000

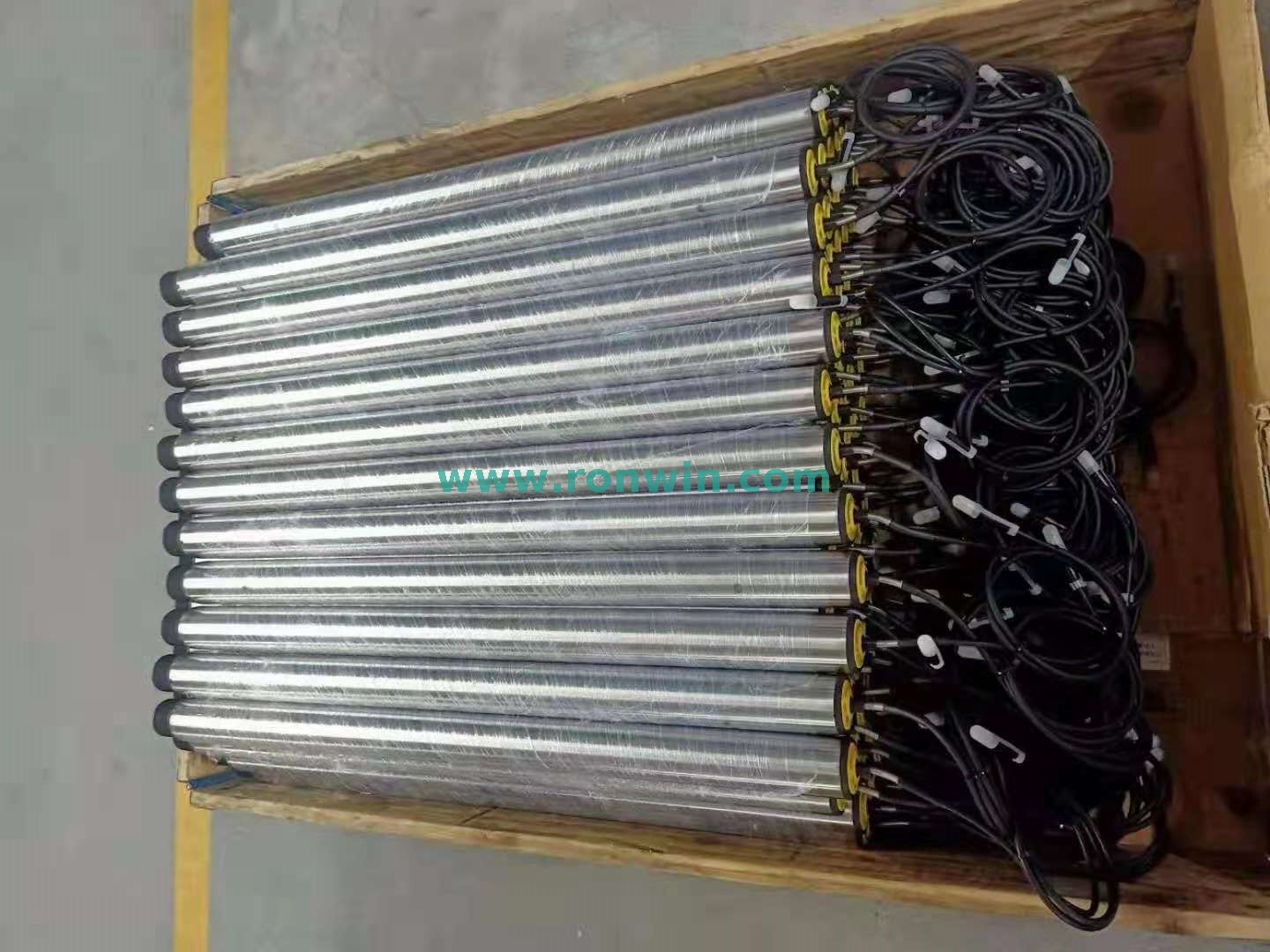

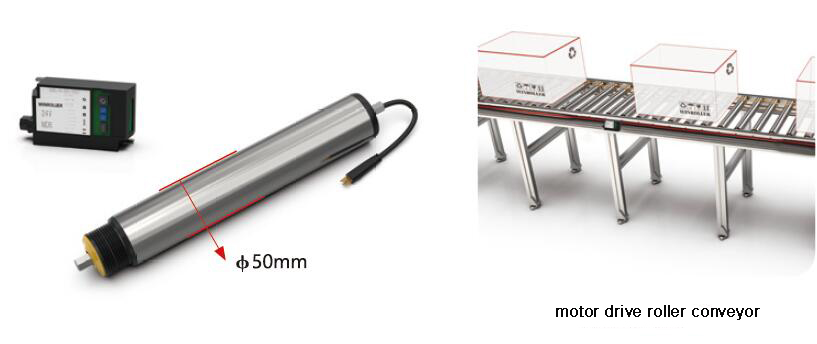

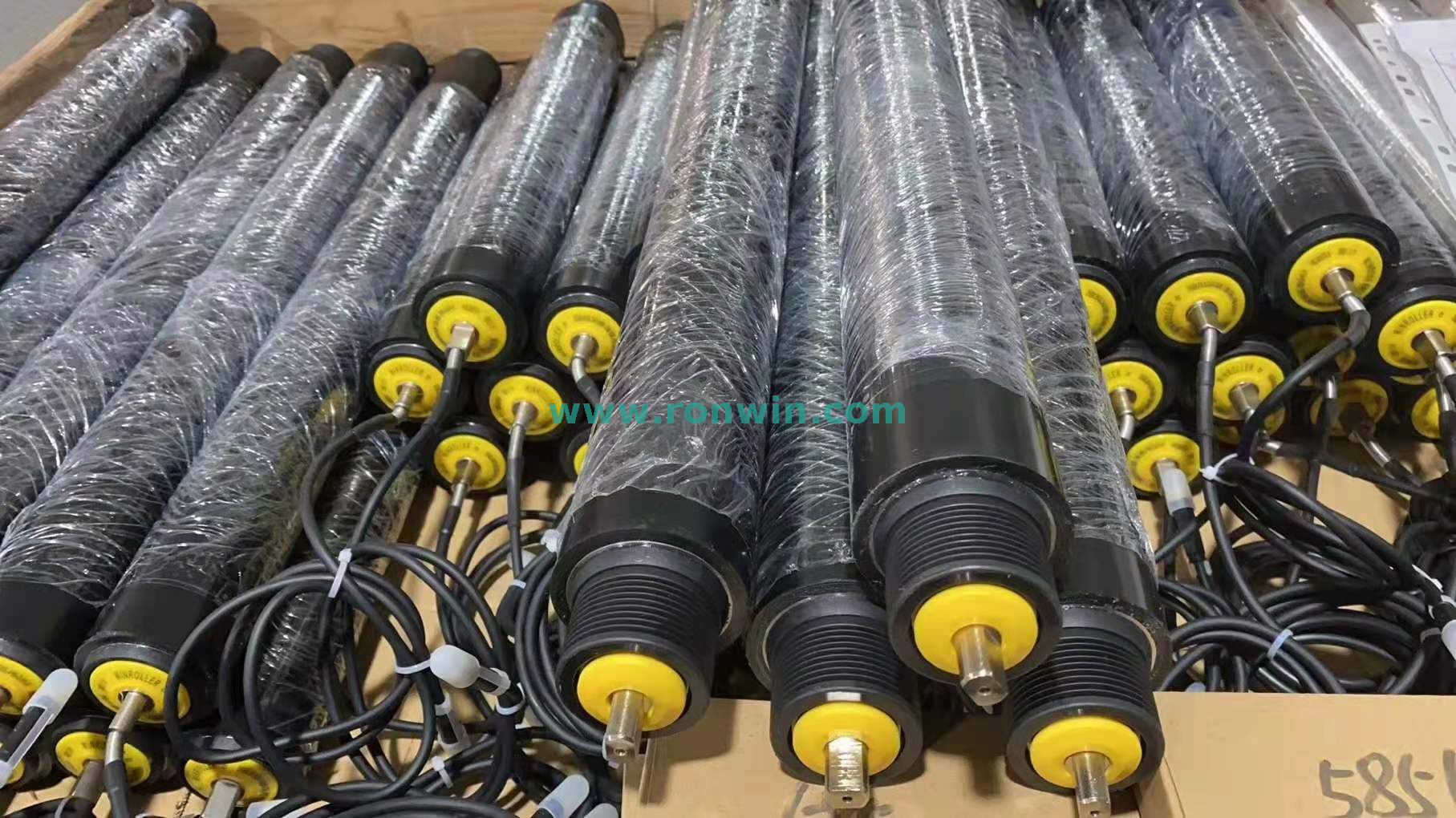

DGDD50-H Direct Driven Motor Roller for Linked Roller Conveyor
Hall External Rotor Brushless Motor
Voltage: DC24V/DC48V
Power: 23W-166W
Revolution: 150-1000rpm
Function: positive rotation, reverse rotation and speed regulation.
Motor Duty: S1
| Input Voltage | DC24V/DC48V | ||
|---|---|---|---|
| Rated Torque (N.m) | 0.5 | 1.0 | 1.5 |
| Rated Torque (N.m) | 1.5 | 3.0 | 4.5 |
| Revolution (rpm) | Power | ||
| S2: 750～S1: 1000 | 58 | 116 | 166 |
| S2: 600～S1: 800 | 46 | 93 | 133 |
| S2: 450～S1: 600 | 35 | 70 | 100 |
| S2: 300～S1: 400 | 23 | 45 | 65 |
| S1 Belt Conveyor Continous Transport Weight (KG) | 4 | 8 | 12 |
| S2 Belt Conveyor Continous Transport Weight (KG) | 8 | 16 | 24 |
| Controller | Must be matched with a special controller to use, can not be directly connected to the power supply. | ||
| Response | H: Hall M: Magnetic Encoder R: Resolver Synchro | ||

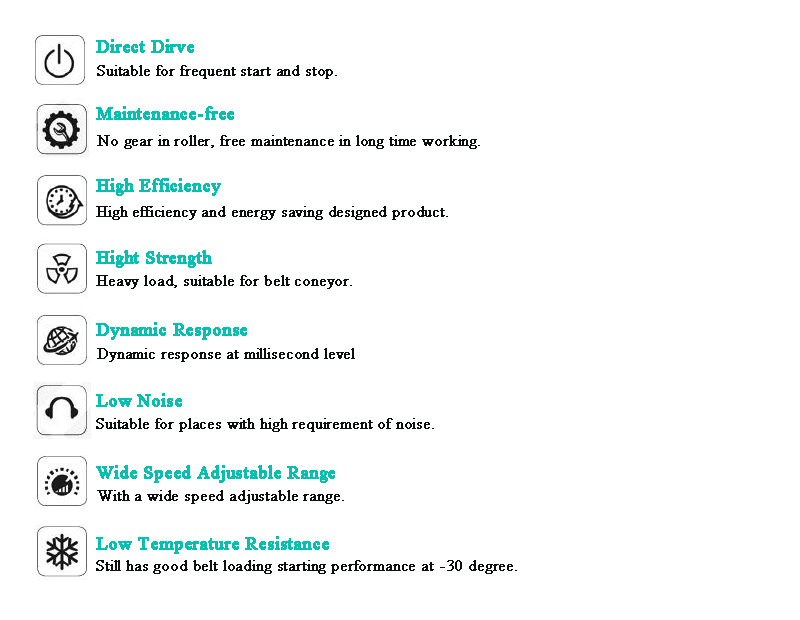

Advantages of DC Direct-Driven Motor Roller
Direct drive motor, without reduction gear, low noise, 3 times start torque, suiable for linear speed of above 30m/min.

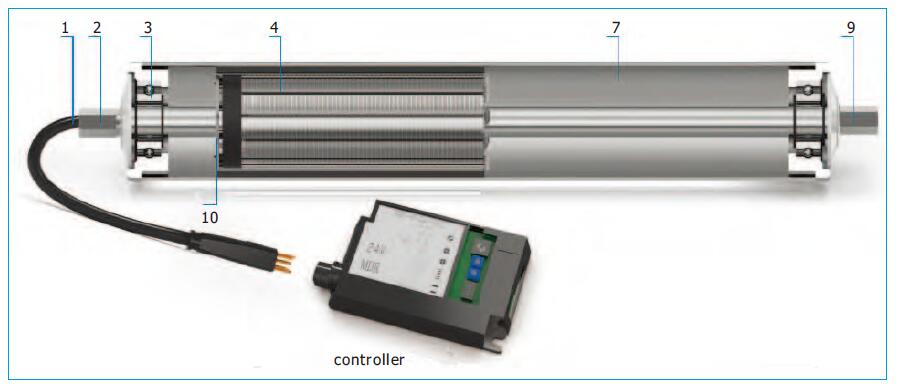

DC Direct-Driven Motor Roller-DGDD Corresponding Name of Parts
| 1. cable | 3. front bearing housing | 5. gear box | 7. tube wall | 9. end shaft |
| 2. outlet end shaft | 4. motor | 6. fixture | 8. rear bearing housing | 10. Hall chip |
