| Power: | |
|---|---|
| Voltage: | |
| roller material: | |
| drive head: | |
| tube shape: | |
| Quantity: | |
DGBL60
RONWIN
HS Code: 8431390000
Motor driven rollers are self-powered rollers integrated with a motor, gear reduction box and sensor. Therefore, the conveying system does not consider the motor, chain, intermediate shaft, or other auxiliary components. There is no need for an expensive gear reduction box, you just need to install the motor-driven roller on the conveyor rack, and connect the cable to the power supply, thenthe job is done. The conveying system is cleaner, denser, beautiful, safe and reliable.
Motor driven roller is widely applied in food processing, medical production, electronic assembly, airport logistics, postal services, distribution and various industries. It meets diversified and automatic needs of different industries.
DC24V/48V DGBL60 Gear Motor Driven Roller
Brief Introduction
Direct current motor driven roller is suitable for adjustable speed, light, medium load and heavy load.
Built in high efficiency direct current brushless gear reduction motor, match with controlller.

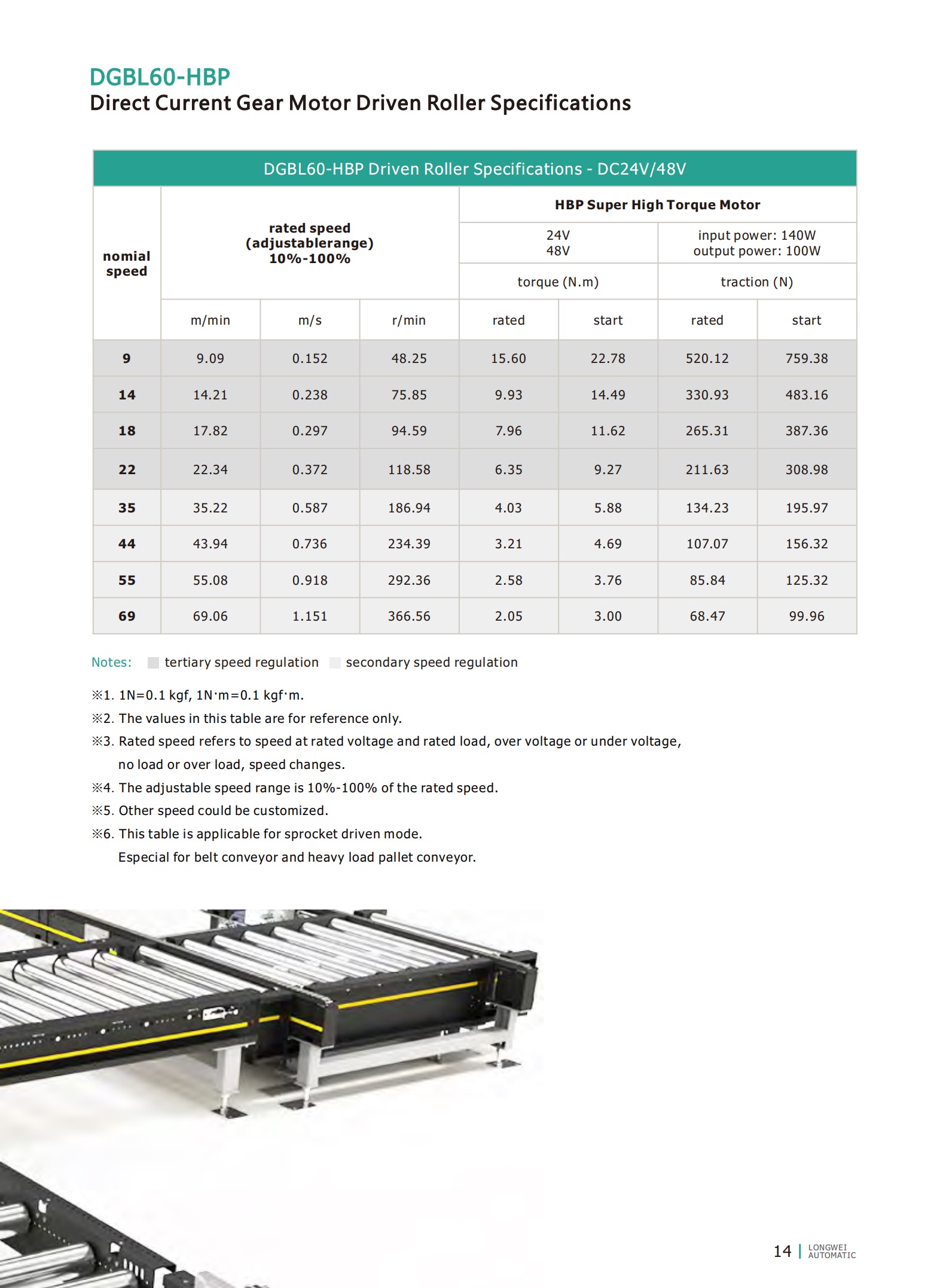

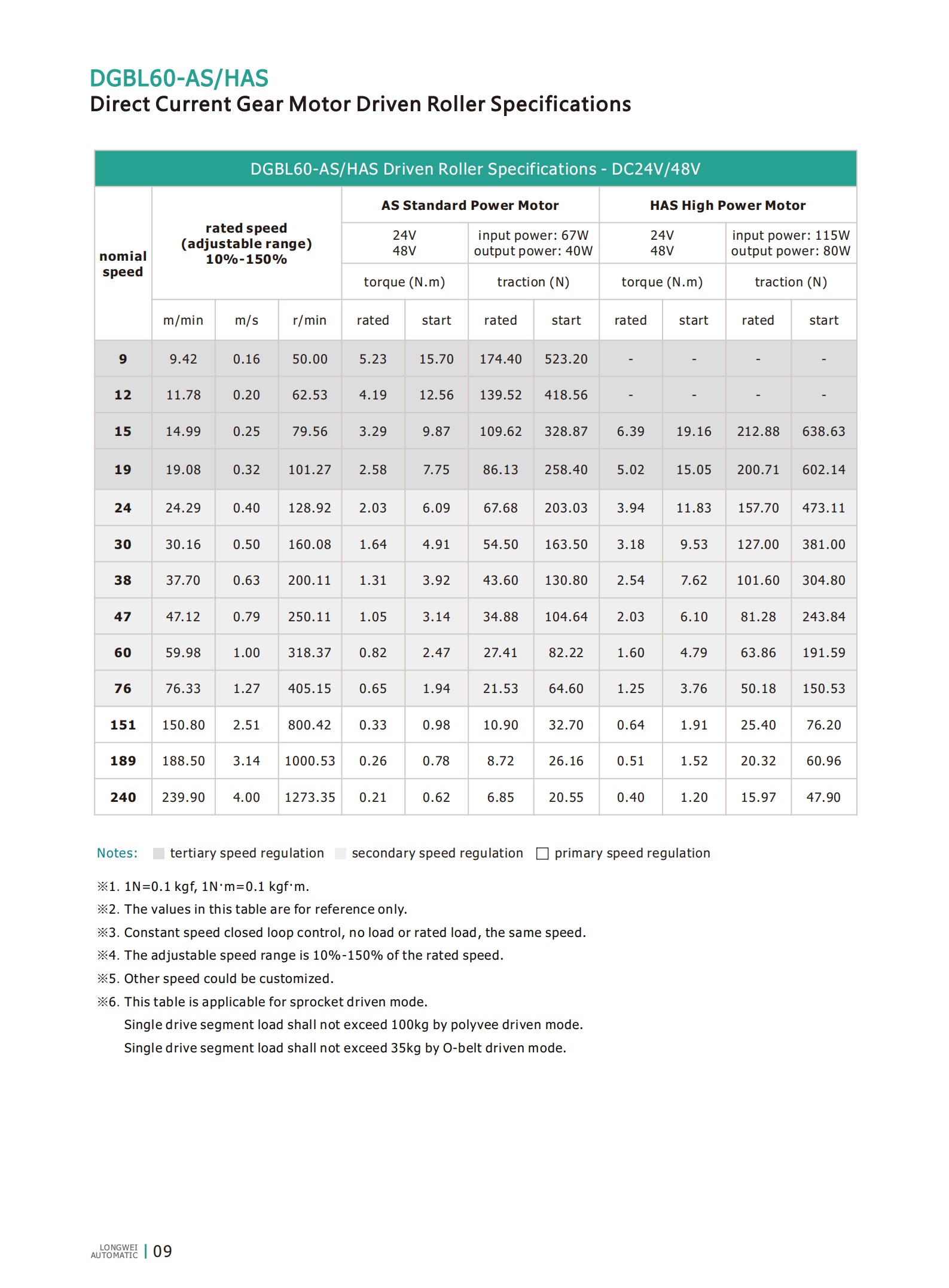

AS standard power motor, HAS high power motor and HBP super high torque motor are optional.
Adopts direct current 24V or 48V safety voltage.
Speed range 9-240m/min
Speed adjustable range 10%-150%.

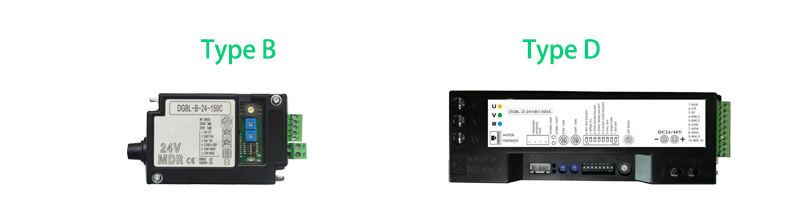

Multiple intelligent controller are adapted to realize IO control, ZPA functions and RS485, EtherCAT and internet interface.
Roller Material: galvanized steel or stainless steel, length is customized.

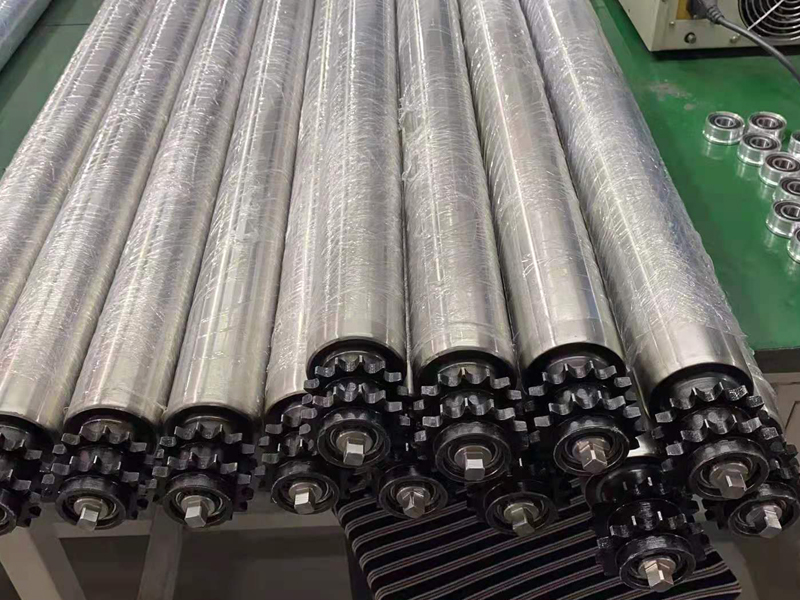

Roller can be grooved, or fix driven head like O-belt pulley, V type pulley, timing pulley, polyvee pulley or sprocket.
Simple installation, realize interlligent control.

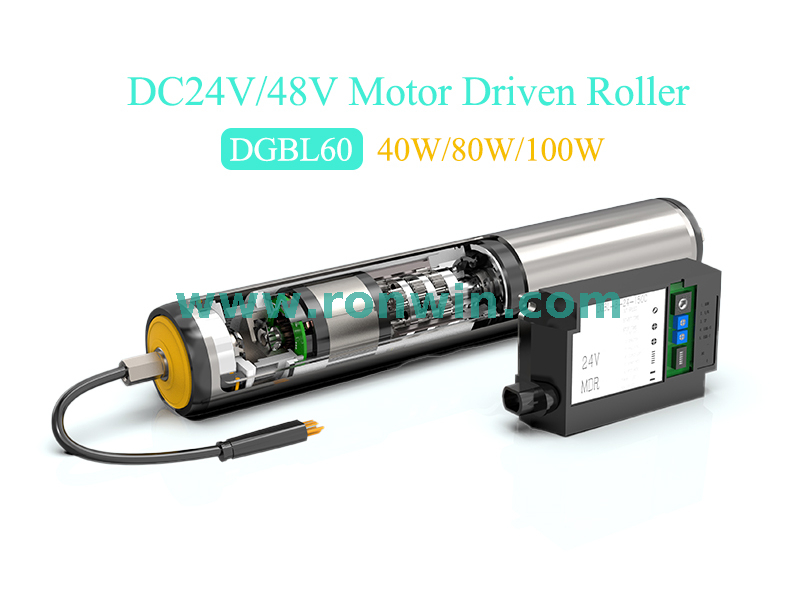

DC24V /48V Gear Motor Driven Roller-DGBL60 Corresponding Name of Parts
| 1. cable | 3. front bearing housing | 5. gear box | 7. tube wall | 9. end shaft |
| 2. outlet end shaft | 4. motor | 6. fixture | 8. rear bearing housing | 10. Hall chip |
Diagram of DGBL60 motor driven roller with different drive element.

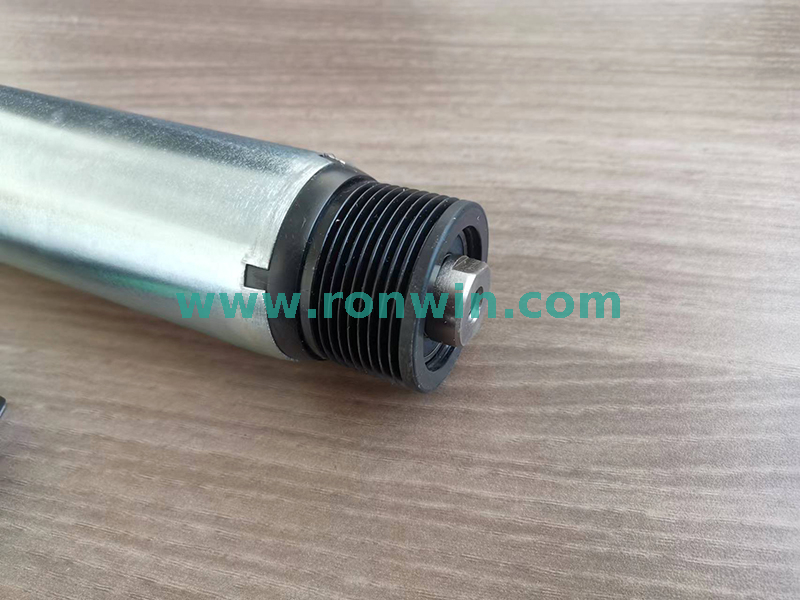

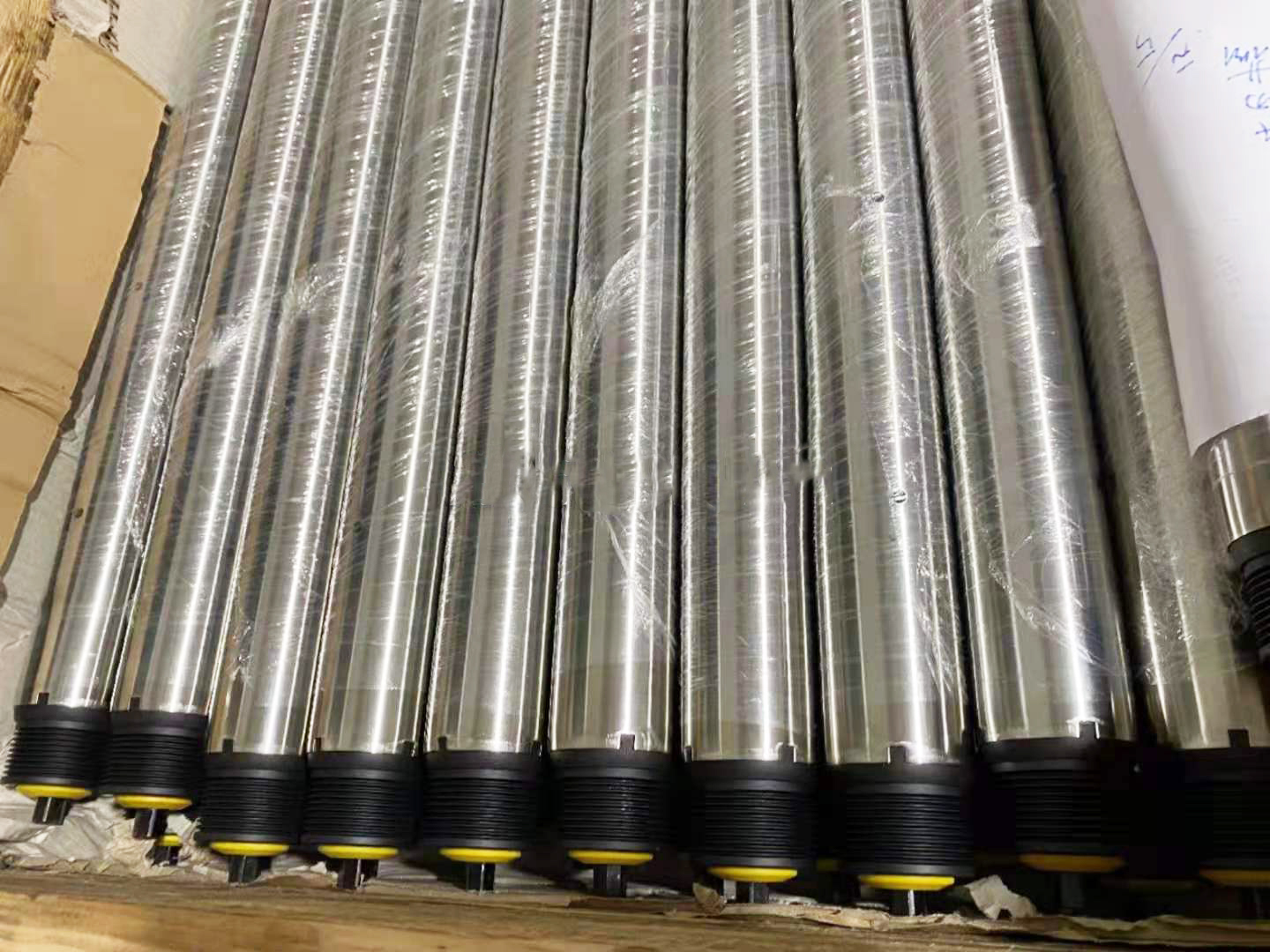

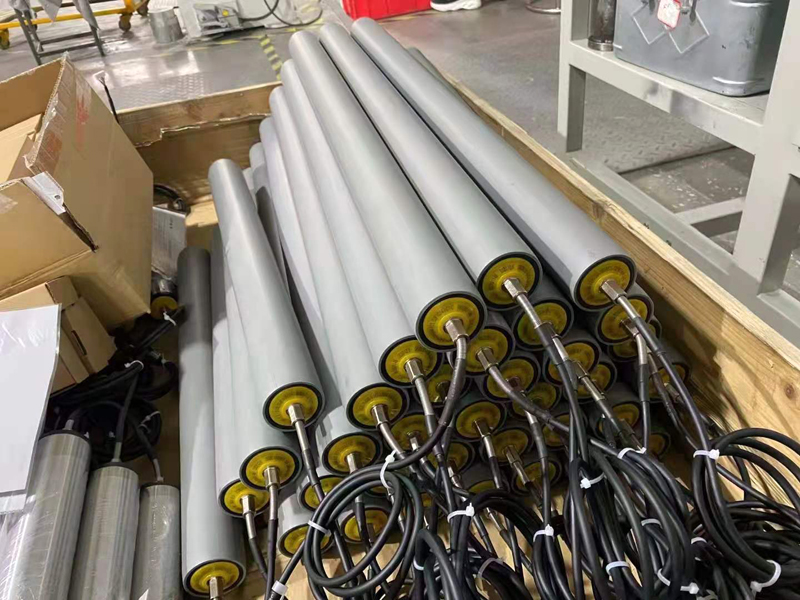

Poly-v pulley direct current galvanized steel motor driven roller

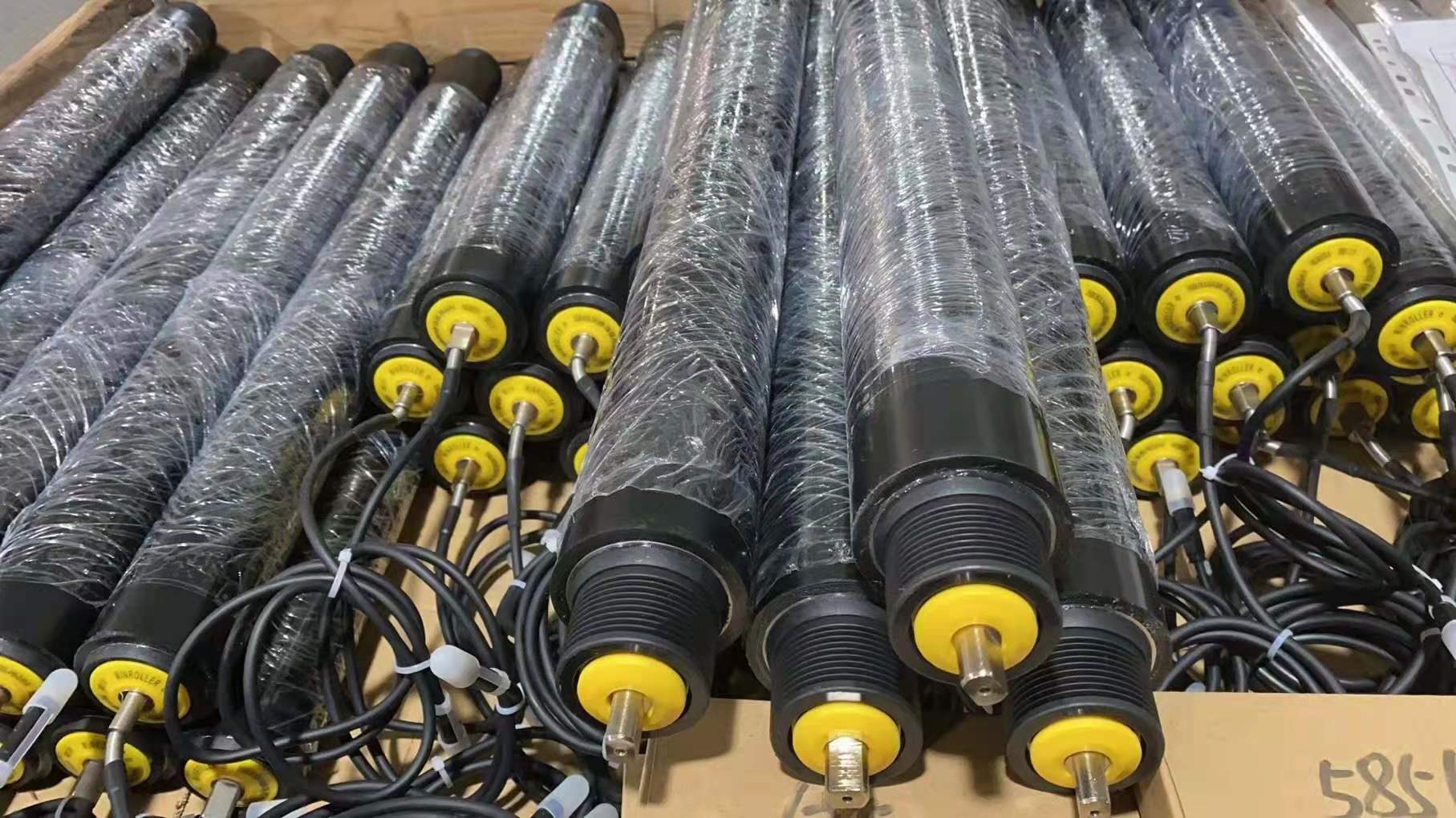

Poly-v pulley direct current steel motor driven roller with PU coating
Poly-v pulley direct current steel motor driven roller with PU coating
