Belt conveyors (tape conveyors) are fundamental logistics assets for automated material handling systems. Engineered to transport powder/granular materials (<100kg) and packaged goods, they enable high-efficiency assembly line operations across mining, manufacturing, and distribution sectors.
Core Technical Advantages
| Feature | Technical Specification | Operational Impact |
|---|
| High-Speed Transport | 0.8–4 m/s adjustable speed | 30–3,000 t/h throughput capacity |
| Incline/Decline Capability | 0°–90° slope (cleated/sidewall designs)
Vertical lift up to 500m | Enables multi-level material handling |
| Structural Flexibility | Horizontal, curved (R≥30D*), telescopic layouts | Space-optimized plant integration |
| Noise Reduction | <75 dB (ISO 4871 compliant) | Compatible with indoor/warehouse environments |
| Power Efficiency | 15–30% lower consumption vs. traditional roller conveyors | Reduced energy costs and carbon footprint |
Industry Applications with Belt Conveyors
1. Logistics Centers (Loading/Unloading)
Core Challenge: High-speed cargo transfer between trucks/containers
Product Solutions
| Product | Structure | Core Parameters | Applications |
|---|
| Movable Telescopic Conveyor | Telescopic + Mobile | Length: 8–16m, Belt Width: 500–800mm, Mobile Base, VFD Control | Parcel sorting, container loading |
| Fixed Telescopic Conveyor | Stationary Telescopic | Length: 5–20m, Max Extension: 10m, Height: 0.8–1.2m | Dock loading, warehouse transfer |

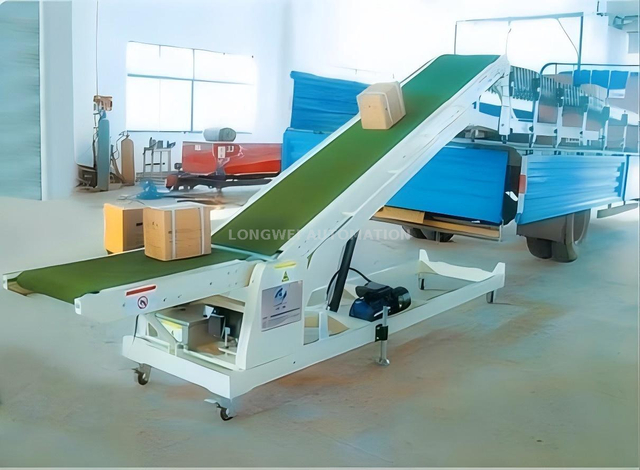

| Variable Amplitude Conveyor | Telescopic + Angle-Adj | Incline: 0°–28°, Length: 7–15m, Belt + Roller Combo | Mixed-load truck loading |
2. Assembly Line Manufacturing
Core Challenge: Static-sensitive component transport
Product Solutions
| Product | Structure | Core Parameters | Applications |
|---|
| Anti-static Conveyor | Horizontal + ESD-Safe | Resistance: 10⁶–10⁹ Ω, Width: 300–1200mm, Workbench Integration | PCB assembly, medical device manufacturing |
| Lift-Type Telescopic | Height-Adjustable | Lift Range: 0.5–1.5m, Belt Width: 400–600mm, Max Load: 50 kg/m | Multi-level assembly integration |
3. Bulk Material Handling
Core Challenge: High-volume transfer of powders/granules
Product Solutions
| Product | Structure | Core Parameters | Applications |
|---|
| Curved Belt Conveyor | Radial Turn | Radius: R ≥ 30D*, Angles: 30°/45°/90°, Capacity: 50–2000 t/h | Plant layout optimization, space-constrained transfer |
| Incline Belt Conveyor | Steep Slope | Max Incline: 30°, Cleated Belt, Anti-Rollback | Grain elevators, coal transfer |
| Horizontal Conveyor | Flat Profile | Length: 3–20m, Dust Covers, Bearing Life: 50,000 hrs | Cement plants, mining operations |
