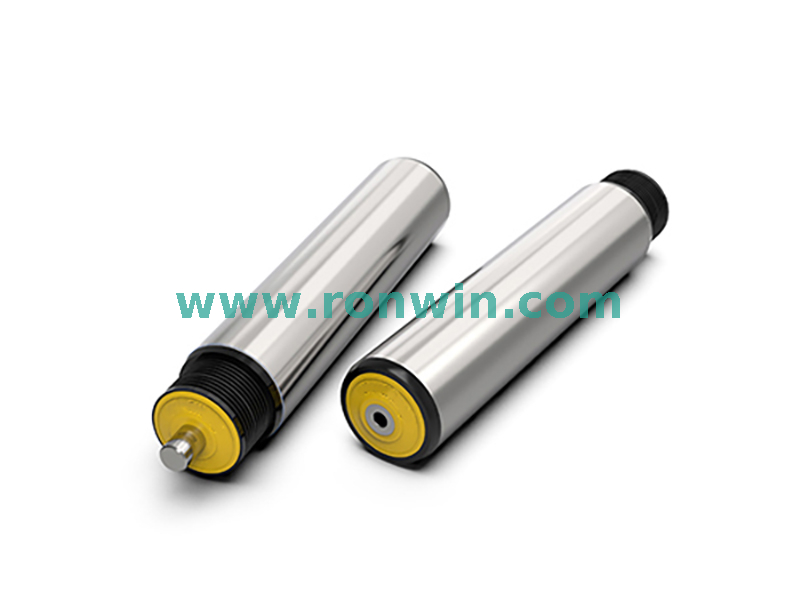

High Speed Poly-v Pulley Driven Roller for Box-typed Conveyor

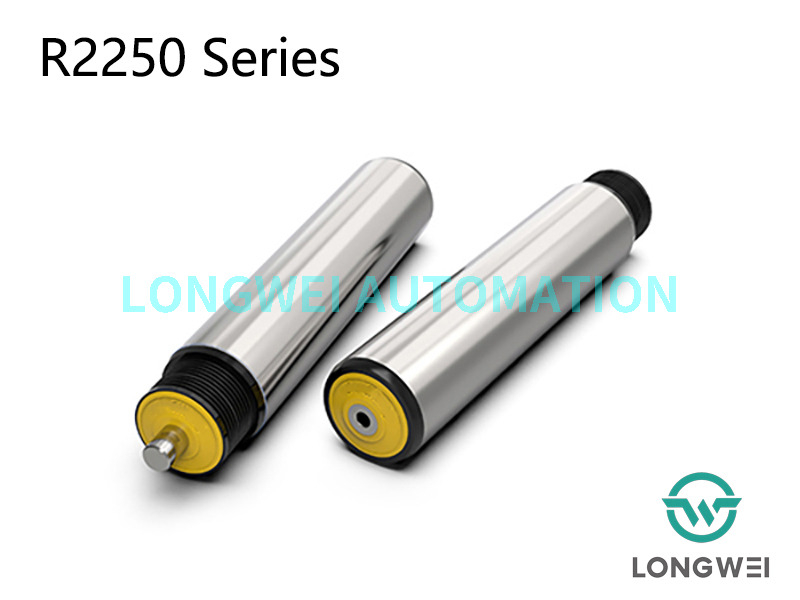

R2250 Series Polyvee Pulley Driven Roller

Application area

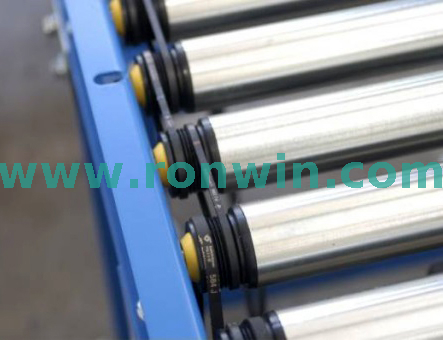

Internal driven conveyor systems, the poly-v pulley is fixed at the end of the roller which separates the driven area and the conveying area, precision ball bearing with polymer bearing housing, which makes the conveying smooth, high speed and low noisy. Widely applied in light-medium load conveyors to transport cases, carboards, containers, barrels or tires, it is the most popular kind of conveyor roller in case-packed goods transportation.

Heavy load capacity

The nine grooves at 2.34mm pitch of the polyvee pulley allows the use of 2-rib, 3-rib or 4-rib poly-v belt. Compare with a round belt, the use of a 2-rib belt allows transferring approximately twice the torque.

High speed and low noisy

Poly-v belt drive, precision ball bearing and polymer bearing housing which makes poly-v pulley driven roller has the advantages of smooth running, low noisy and high speed up to 120 m/min.

Good protection against dirt and water

The plastic end cap seal protect the bearing by providing excellent resistance to dust and splashed water.

Lateral loading

Standard configuration, the bearing housing with end cap and bearing is pressed into the tube and the tube ends are rounded, thereby allowing materials to be easily moved on from the side.

Technical data

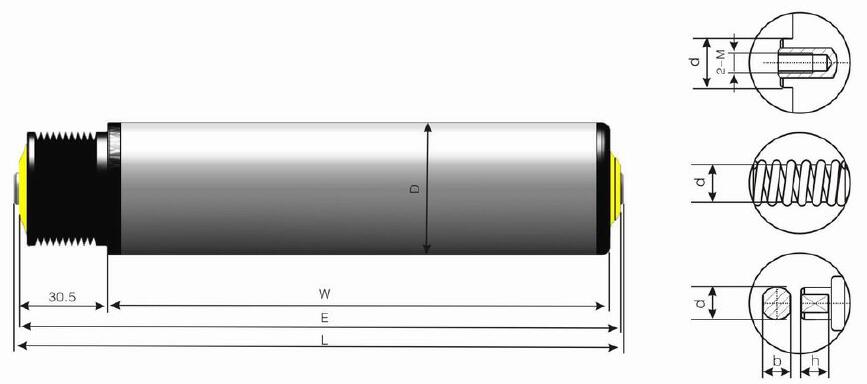

Diagram of R2250 Poly-v Wheel Driven Roller

Dimension of series R2250 polyvee driven conveyor roller with spring loaded installation

Dimension of series R2250 poly-v pulley roller with female thread installation

Polyvee belt selection

Polyvee belt selection is according to the roller pitch, speed and loading weight, please refer to the following chart.
