| Voltage: | |
|---|---|
| Power: | |
| Roller material: | |
| Drive head: | |
| Quantity: | |
DGAC76
RONWIN
HS Code: 8431390000

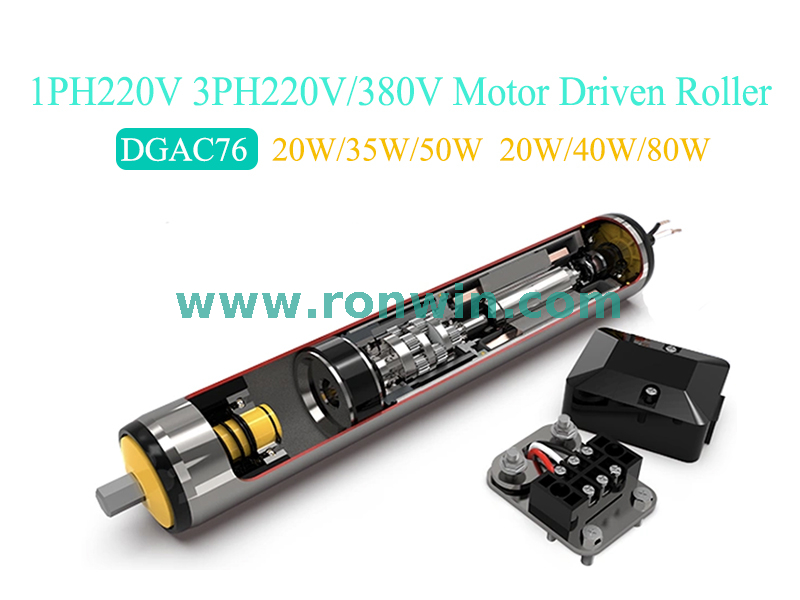

The Character & Advantage of DGAC76 Series Alternating Current Asynchronous Gear Reduction Motor Driven Roller
In particular for belt conveyors and pallet roller conveyors, the DGAC76 AC asynchoronous gear motor driven roller is suitable for big loads. high performance asynchronous gear reduction motor and a tough multistage planetary gear reduction motor built in. As regular type, HAS high power, and HBP super high torque motors, the output torque is optional. The maximum load is a pallet weighing 3000 kg. Simple control, applicable to standard industrial voltages such 1PH220V, 3PH220V, and 3PH380V, and only a mains power source is needed. The speed range is 2-52 m/min.

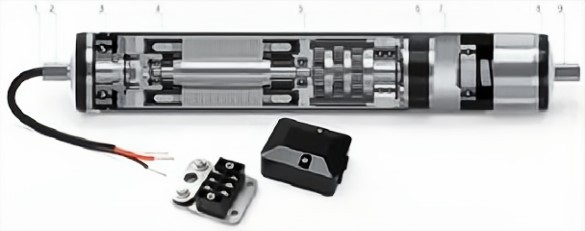

AC Gear Motor Driven Roller-DGAC76 Corresponding Name of Parts
| 1. cable | 2. outlet end shaft | 3. front bearing housing | 4. motor | 5. gear box |
| 6. holder | 7. tube wall | 8. rear bearing housing | 9. end shaft |
What is Motor Driven Roller?
Motor Driven Roller (MDR) is a self-powered roller by integrating the motor, gear reduction box and sensor and reasonably installing it into steel tube.
Thus the conveying system does not consider motor, chain, intermediate shaft or other auxiliary driving elements; No need for bulky gear reduction box. Just install the motor driven roller on the rack and connect the cable to the power supply, and the job is done. The conveying system is cleaner, denser, beautiful, safe and reliable.
Motor driven roller is widely applied in food processing, medical production, electronic assembly, airport logistics, postal services, distribution and various industries. It meets diversified and automatic needs of different industries.
The DC motor driven roller produced by our company is characterized by compact structure, stable operation, low noisy and large torque. Low voltage and built-in thermal protector makes it safe and reliable. The roller has a variety of driving mode, linear speed and dimensions for customers to choose.
The Character & Advantage of DGAC76 Series Alternating Current Asynchronous Gear Reduction Motor Driven Roller
In particular for belt conveyors and pallet roller conveyors, the DGAC76 AC asynchoronous gear motor driven roller is suitable for big loads. high performance asynchronous gear reduction motor and a tough multistage planetary gear reduction motor built in. As regular type, HAS high power, and HBP super high torque motors, the output torque is optional. The maximum load is a pallet weighing 3000 kg. Simple control, applicable to standard industrial voltages such 1PH220V, 3PH220V, and 3PH380V, and only a mains power source is needed. The speed range is 2-52 m/min.
AC Gear Motor Driven Roller-DGAC76 Corresponding Name of Parts
| 1. cable | 2. outlet end shaft | 3. front bearing housing | 4. motor | 5. gear box |
| 6. holder | 7. tube wall | 8. rear bearing housing | 9. end shaft |
What is Motor Driven Roller?
Motor Driven Roller (MDR) is a self-powered roller by integrating the motor, gear reduction box and sensor and reasonably installing it into steel tube.
Thus the conveying system does not consider motor, chain, intermediate shaft or other auxiliary driving elements; No need for bulky gear reduction box. Just install the motor driven roller on the rack and connect the cable to the power supply, and the job is done. The conveying system is cleaner, denser, beautiful, safe and reliable.
Motor driven roller is widely applied in food processing, medical production, electronic assembly, airport logistics, postal services, distribution and various industries. It meets diversified and automatic needs of different industries.
The DC motor driven roller produced by our company is characterized by compact structure, stable operation, low noisy and large torque. Low voltage and built-in thermal protector makes it safe and reliable. The roller has a variety of driving mode, linear speed and dimensions for customers to choose.
