| Voltage: | |
|---|---|
| Power: | |
| Roller material: | |
| Quantity: | |
DM138
RONWIN
HS Code: 8431390000

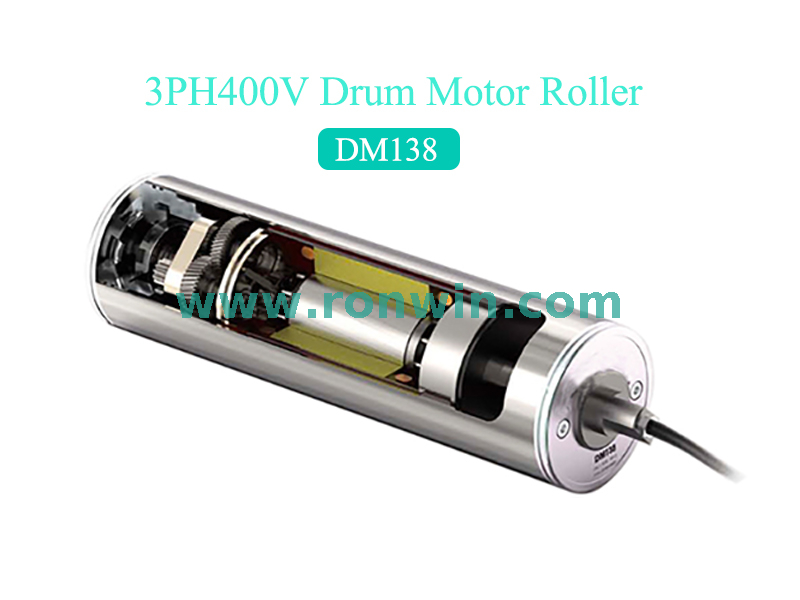

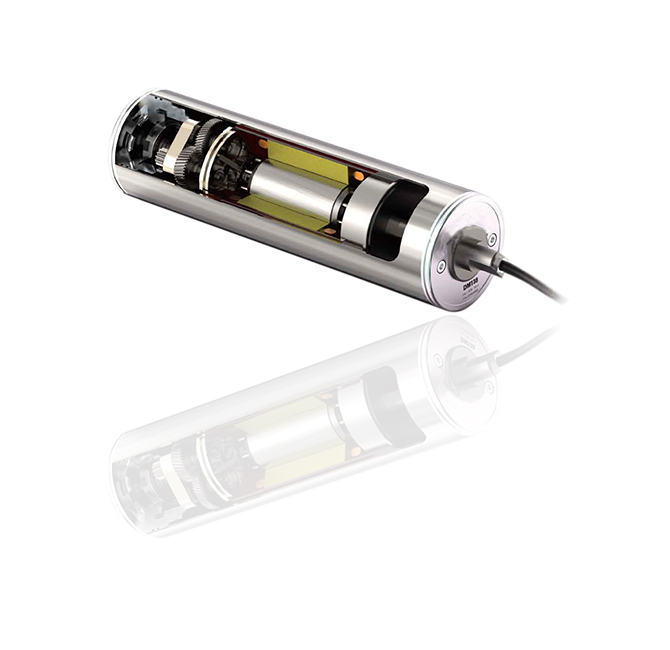

DM138 Belt Conveyor Drum Motor Roller
Light load and high-alloy steel gearbox drive. The pulley is an flexible assembly because of its wide range of power and speed. DM138 drum motor, which is famous for high power and smooth rotation, is mainly used in medium load belt conveyor. The maxnimum power is 1.10KW, it is widely applied in the field of airport luggage handling and food processing.
Features
Roller body: Standard roller body is made of mild steel with anti-slip knurling surface, coated with anti-rust oil. Food grade roller body is made of stainless steel #304.
Gear drive: Finished high-alloy steel gears ensure low noise during working. Die-case aluminum gearbox.
Motor: At 50Hz or 60Hz, it is suitable for various voltages around the world. Motor insulation class F. All motors with additional thermal protector. Motor oil immersion cooling. The standard length of the cable outlet is 1.2 meters.
Sealing class: Shaft end with double seal design, IP66/IP67.
Oiling: The drum motor roller has been oiled according to the standard before delivery. Change the oil every 5000 hours of operation.
Others: Horizontal installation. Speed and roller length are customized. Non-standard drum motor roller can be customized.
Applications
Security inspection machine.
Airport luggage handling Packing equipment.
Belt weighing conveyor.
Pharmaceutical industry.
Food processing.
Meat and poultry processing.
Postal sorting.
Agricultural products soring.
DM138 Belt Conveyor Drum Motor Roller
Light load and high-alloy steel gearbox drive. The pulley is an flexible assembly because of its wide range of power and speed. DM138 drum motor, which is famous for high power and smooth rotation, is mainly used in medium load belt conveyor. The maxnimum power is 1.10KW, it is widely applied in the field of airport luggage handling and food processing.
Features
Roller body: Standard roller body is made of mild steel with anti-slip knurling surface, coated with anti-rust oil. Food grade roller body is made of stainless steel #304.
Gear drive: Finished high-alloy steel gears ensure low noise during working. Die-case aluminum gearbox.
Motor: At 50Hz or 60Hz, it is suitable for various voltages around the world. Motor insulation class F. All motors with additional thermal protector. Motor oil immersion cooling. The standard length of the cable outlet is 1.2 meters.
Sealing class: Shaft end with double seal design, IP66/IP67.
Oiling: The drum motor roller has been oiled according to the standard before delivery. Change the oil every 5000 hours of operation.
Others: Horizontal installation. Speed and roller length are customized. Non-standard drum motor roller can be customized.
Applications
Security inspection machine.
Airport luggage handling Packing equipment.
Belt weighing conveyor.
Pharmaceutical industry.
Food processing.
Meat and poultry processing.
Postal sorting.
Agricultural products soring.
