DM82i
RONWIN
HS Code: 8431390000

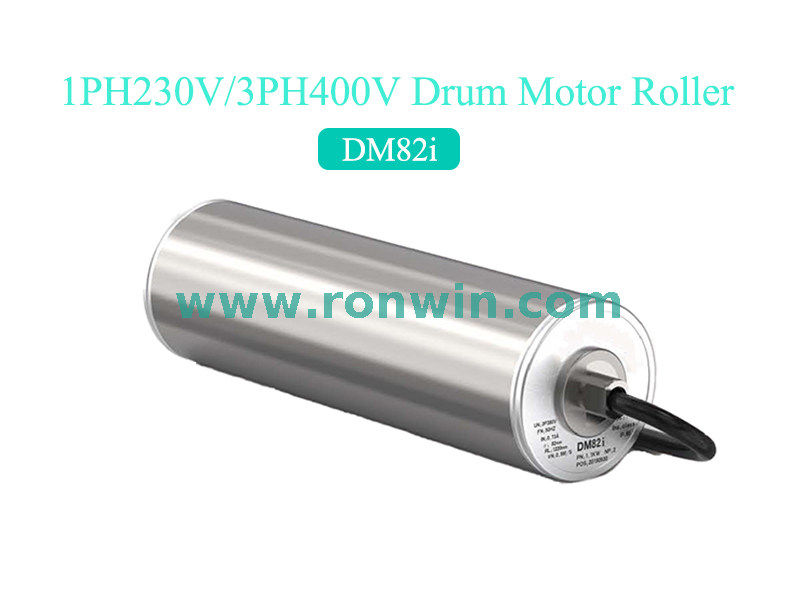

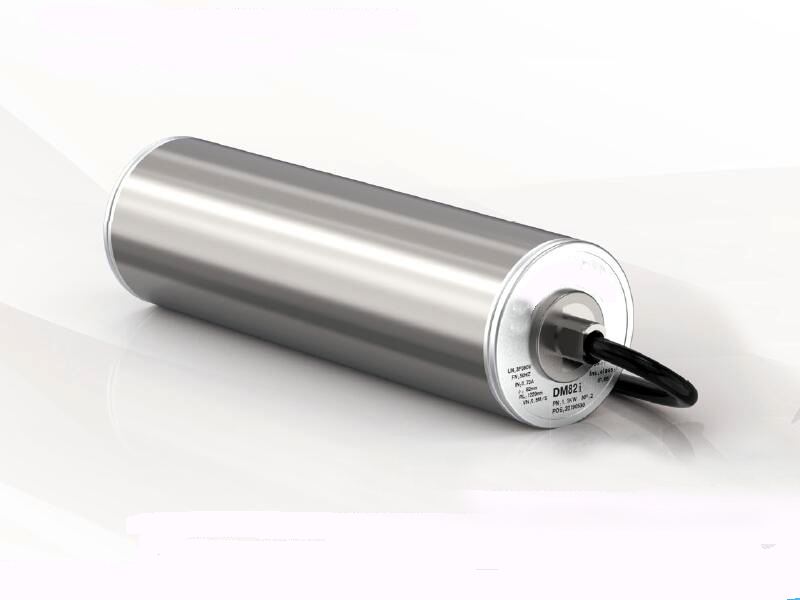

DM82i Belt Conveyor Drum Motor Roller
DM82i motor roller is the powerful drive pulley for smart & light duty conveyors. Drive light load, adopts high-alloy steel gearbox. Due to its strength, reliability and free maintenance, the pulley is ideal for smart infeed conveyors, packing equipment and transfer conveyors.
Features
Roller body: the typical roller body is made of mild steel, has a knurled surface to prevent slipping, and is coated with anti-rust oil. The food grade body of the roller is constructed of stainless steel #304.
Gear drive: high-alloy steel gears used in the gear drive ensure little working noise. aluminum gearbox with a die-case
Motor: It can run on a variety of voltages worldwide at 50Hz or 60Hz. Class F motor insulation. Each motor has a separate thermal protection. immersion cooling of motor oil. The cable outlet is 1.2 meters long on average.
Sealing class: shaft end double seal design, sealing class IP66/IP67.
Oiling: before delivery, the drum motor roller has been well greased. After 5000 hours of operation, the oil must be changed.
Others: horizontal installation. Customized roller length and speed. Customized drum motor rollers are available.
Applications
Small light duty conveyor
Light duty packing machine
Food processing
Supermarket checkout counter conveyor
Small security inspector.
