A Brake Roller is a specialized conveyor component designed to stop, control the speed, or accumulate items on a gravity or powered conveyor line. It functions as a controlled point of resistance within a system that otherwise allows free movement.
The primary purpose of a brake roller is to safely manage the movement and spacing of products where uncontrolled rolling or sliding (due to gravity or momentum) could cause damage, jams, or safety hazards. It brings precise control to non-powered or low-tension zones.
Brake rollers work by applying friction to the conveyor roller's rotating surface or shaft. There are two main implementation methods:

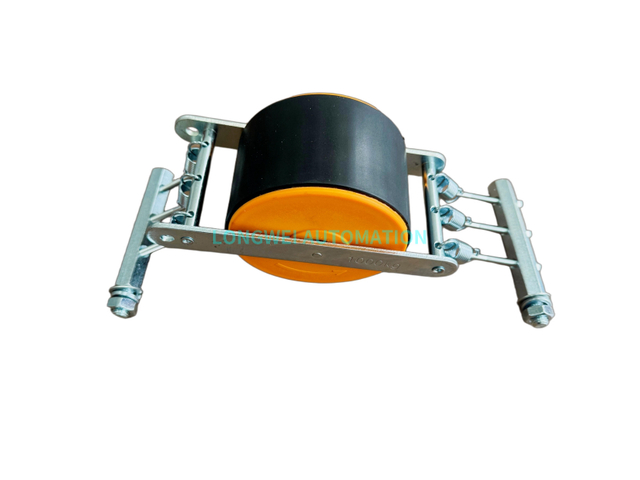

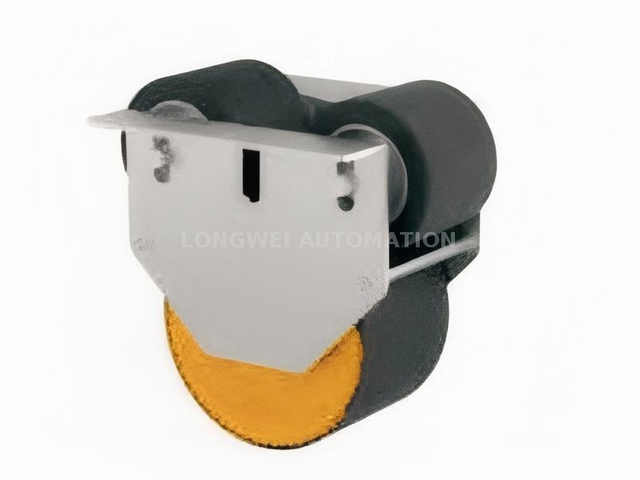

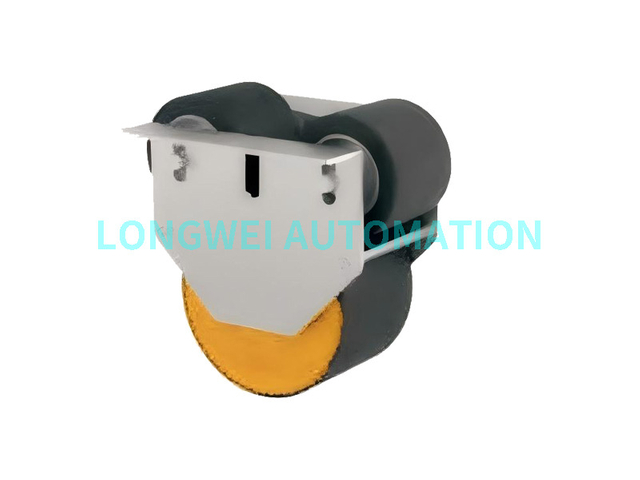

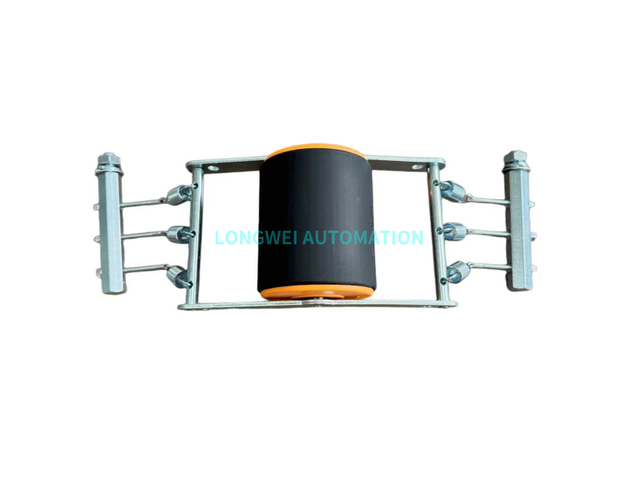

External Brake Unit (Most Common):
A modular braking device is clamped onto the shaft end of a standard conveyor roller (gravity roller or line shaft roller).
Principle: Inside the brake unit, internal friction discs or pads are pressed against the stationary housing. The adjustment knob controls the clamping force, which is transferred to the roller shaft, creating rotational resistance.
Key Feature: Adjustable. The braking force can be finely tuned by turning a knob, allowing operators to set the exact amount of "hold" needed for different product weights.
Integral Brake Roller (Motorized Roller with Brake):
The braking mechanism is built into a motorized drive roller (MDR).
Principle: Often an electromagnetic brake. When the motor is powered, the brake releases; when power is cut off, the brake automatically engages, locking the roller instantly. This provides zero-pressure accumulation and prevents coasting.
Brake rollers are critical in the following scenarios:
Inclined Conveyor Sections: Placed at intervals on gravity roller conveyors to prevent products from accelerating uncontrollably downhill and crashing into each other.
Accumulation Zones: Used in zero-pressure accumulation conveyors. Each zone's brake roller holds back products until the downstream zone is clear, preventing line pressure and product damage.
Sortation & Merging Lines: Controls the feed rate of products onto a main line or sorter, ensuring proper gapping and orientation.
Process Stations: Stops a product at a precise location for packing, labeling, inspection, or assembly.
Load Stabilization: Prevents heavy pallets or loads from rolling back on slight inclines.
Enhanced Safety: Prevents runaway products and uncontrolled collisions.
Product Protection: Eliminates line pressure and impact damage during accumulation.
Process Control: Enables precise positioning and regulated feed rates.
Flexibility: Adjustable models can be tuned on-site for different products.
Energy Efficiency (for MDRs): Integral brakes in motorized zones allow accumulation without constant power consumption.
Product Weight: The braking torque must be sufficient to hold the heaviest product on the maximum incline.
Adjustability vs. Fixed: Determine if on-the-fly adjustment is needed or if a fixed setting is sufficient.
Environment: Standard brakes are for clean, dry environments. Washdown or corrosive settings may require stainless steel or specially sealed units.
Integration: Must be compatible with the roller diameter, shaft size, and overall conveyor frame design.
Maintenance: External brake units may require periodic inspection and re-adjustment as friction materials wear.
