| output torque: | |
|---|---|
| power: | |
| roller material: | |
| drive head: | |
| Quantity: | |
DGDD67-H
RONWIN
HS Code: 8431390000

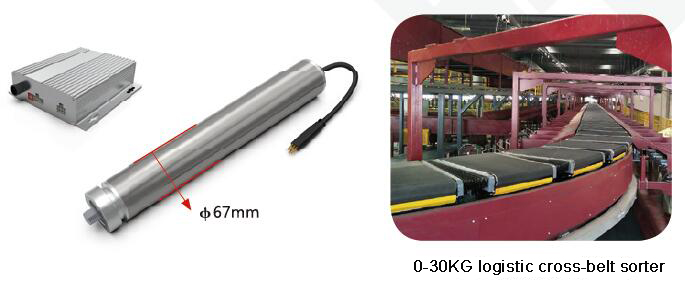

DGDD67-H Direct Driven Motor Roller as for Belt Conveyor Sorting Trolley (0-30KG)
Hall External Rotor Brushless Permanent Magnet Synchronous Motor
Voltage: DC48V
Power: 400W
Revolution: 300-750rpm
Communication: 485 CAN
Motor Duty: S2
V-type guide groove
Product Advantage: High-precision feed-in and feed-out, quick response, adjustable acceleration and deceleration, and suitability for parcels weighing 0 to 30 kg.
| Input Voltage | DC24V/DC48V | ||
|---|---|---|---|
| Rated Torque (N.m) | 4 | 6 | 8 |
| Rated Torque (N.m) | 12 | 18 | 24 |
| Revolution (rpm) | Power | ||
| S2: 750～S1: 1000 | 400 | 600 | 800 |
| S2: 600～S1: 800 | 320 | 480 | 640 |
| S2: 450～S1: 600 | 240 | 360 | 480 |
| S2: 300～S1: 400 | 160 | 240 | 320 |
| S1 Belt Conveyor Continous Transport Weight (KG) | 22 | 33 | 44 |
| S2 Belt Conveyor Continous Transport Weight (KG) | 44 | 66 | 88 |
| Controller | It cannot be linked directly to the power source; instead, it must be used in conjunction with a unique controller. | ||
| Response | H: Hall M: Magnetic Encoder R: Resolver Synchro | ||
Advantages of DC Direct-Driven Motor Roller
DC Direct-Driven Motor Roller-DGDD Corresponding Name of Parts
| 1. cable | 3. front bearing housing | 5. gear box | 7. tube wall | 9. end shaft |
| 2. outlet end shaft | 4. motor | 6. fixture | 8. rear bearing housing | 10. Hall chip |
