DGDD67
RONWIN
HS Code: 8431390000

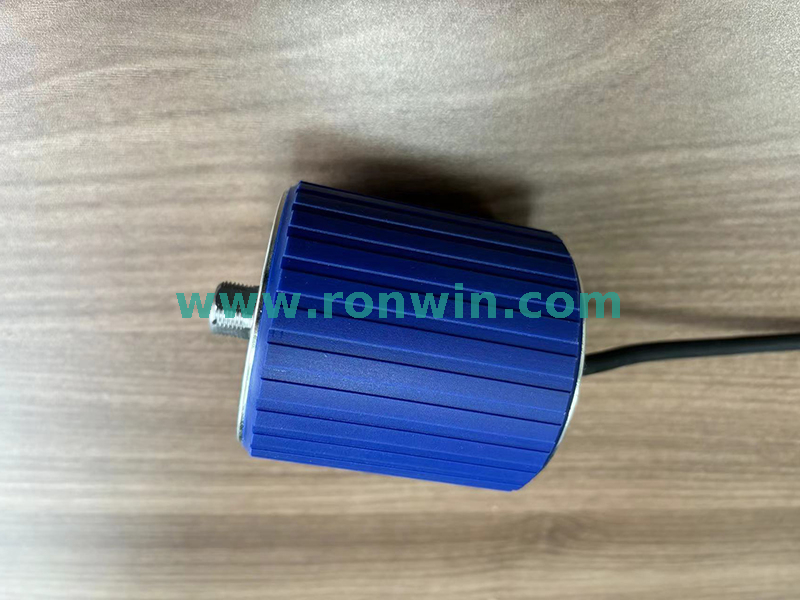

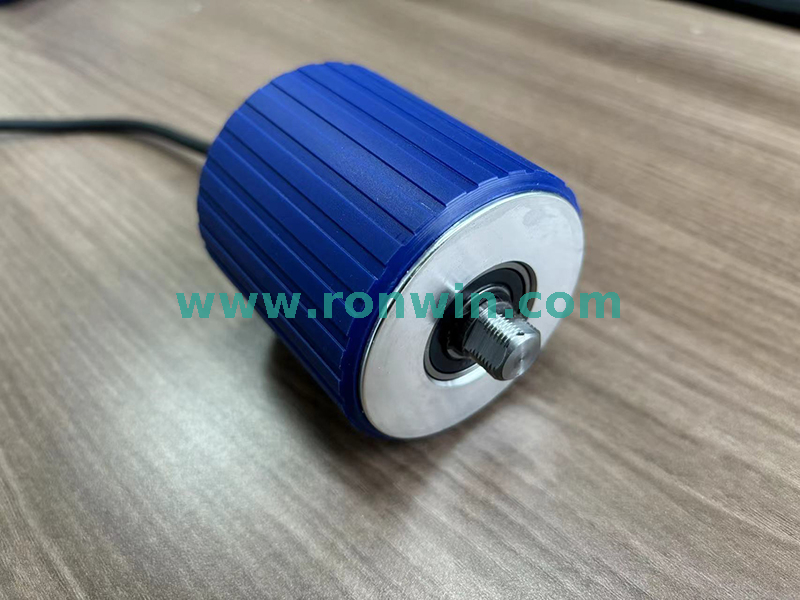

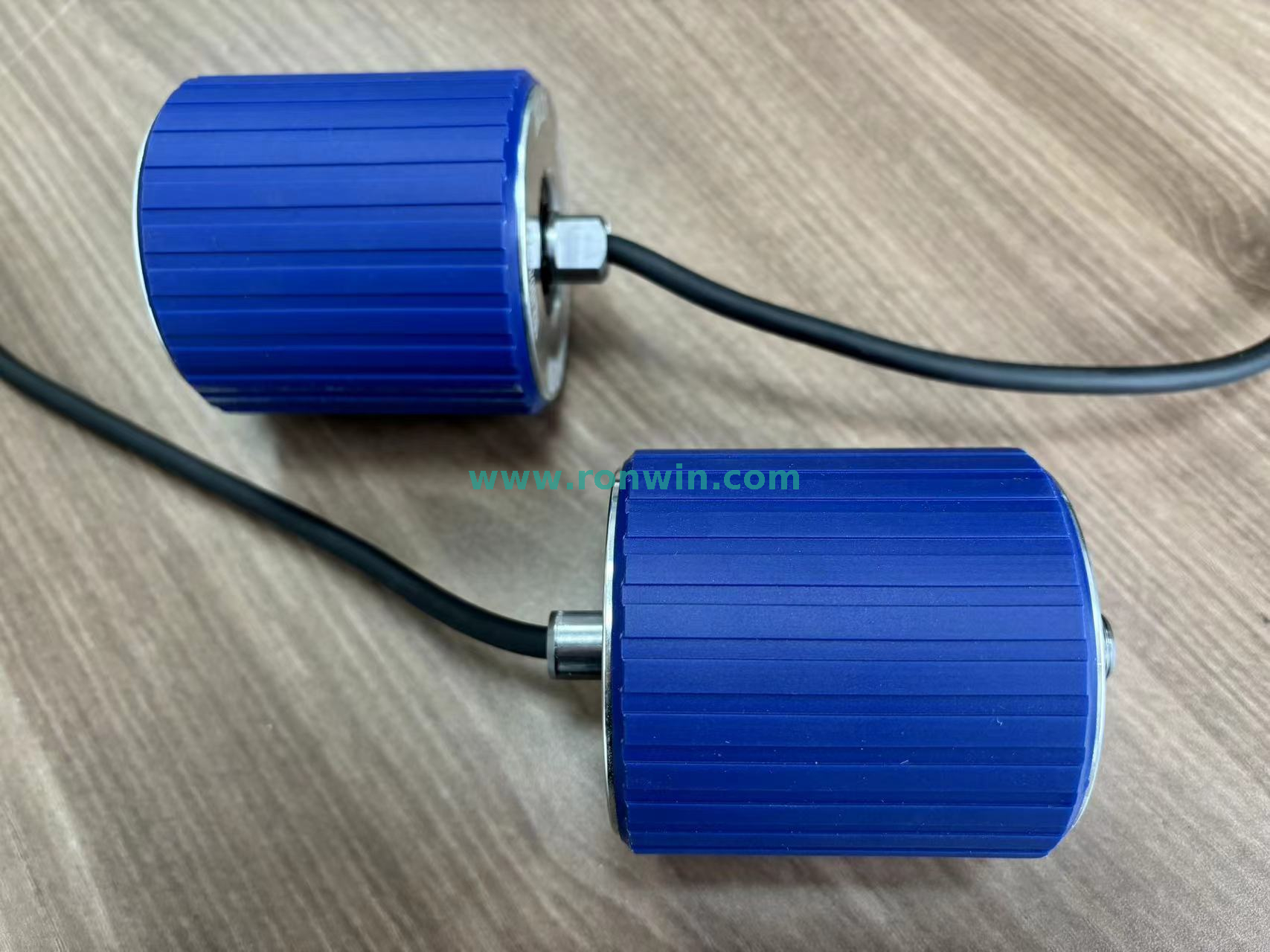

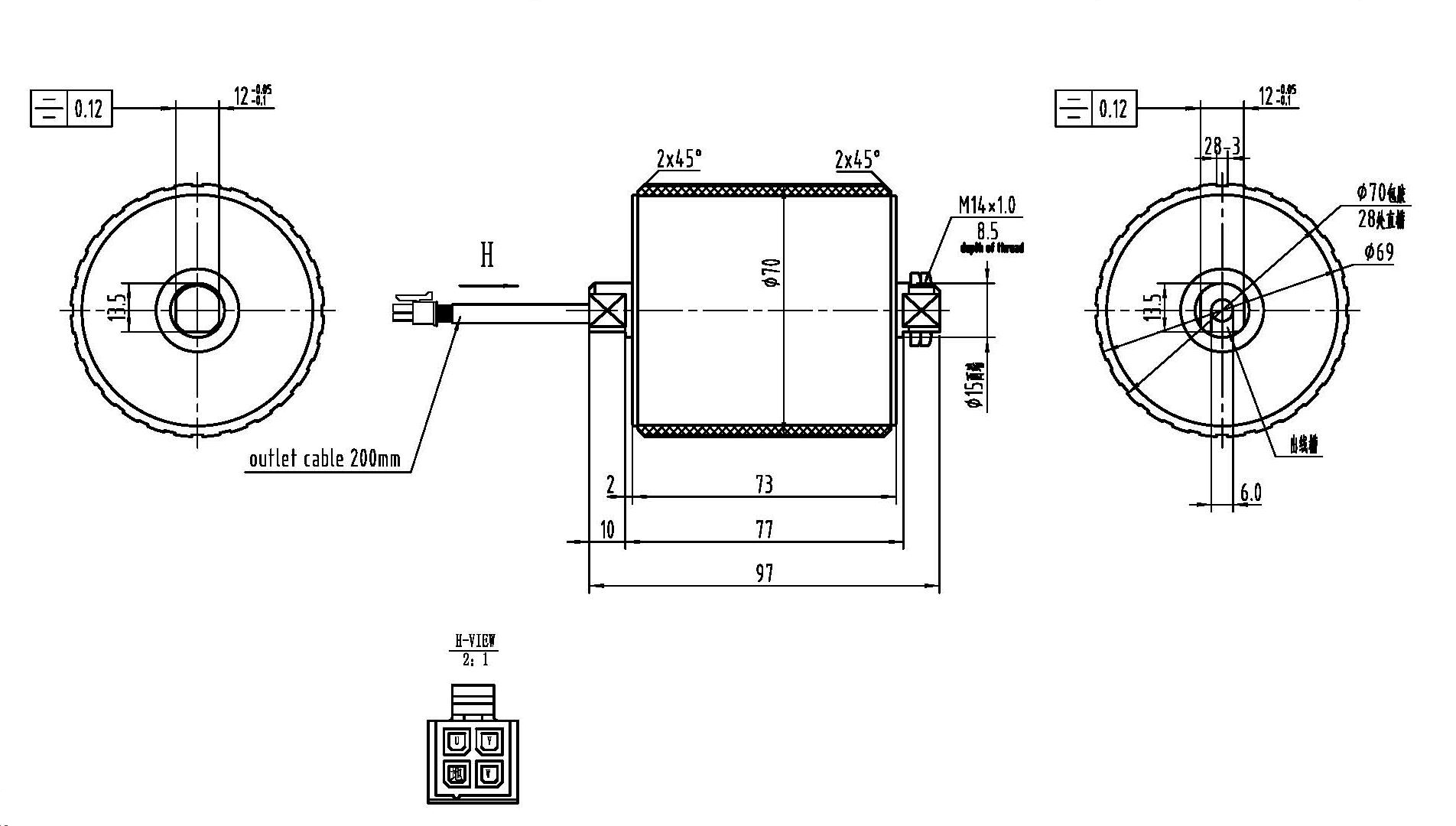

DC Direct-Driven Motor Roller-DGDD67 Standard Specifications
Speed range: 350-1000 rpm.
Input volotage: DC48V.
Rated torque:1N.m, max.torque:2N.m.
Rated current:1A, max.current:2A.
Rated output power:50W, max.output power:100W.
Rubber agging color:Panton 7687C royal hardness A85.
Roller outlet cable length:1000±20mm.

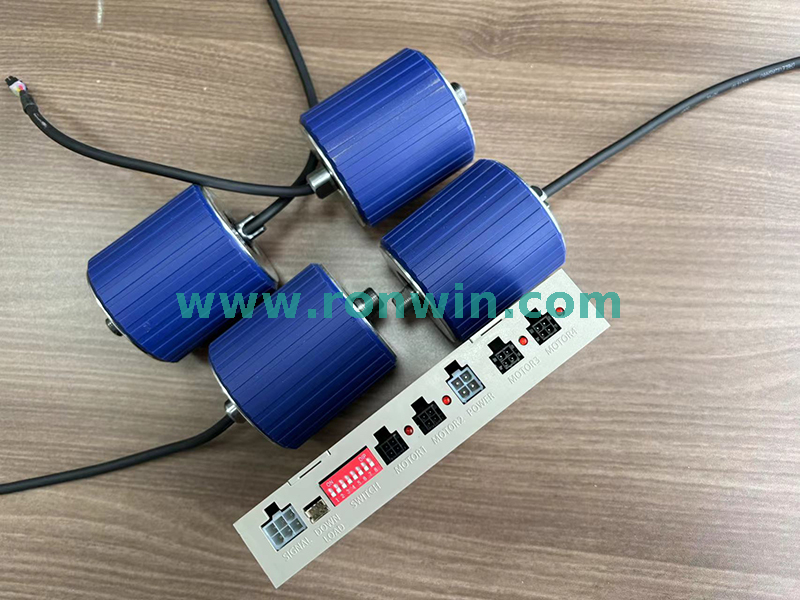

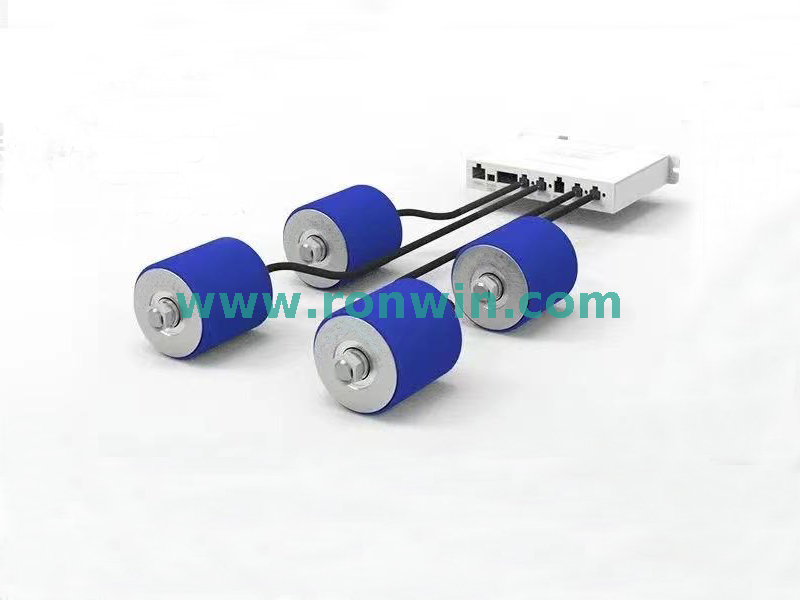

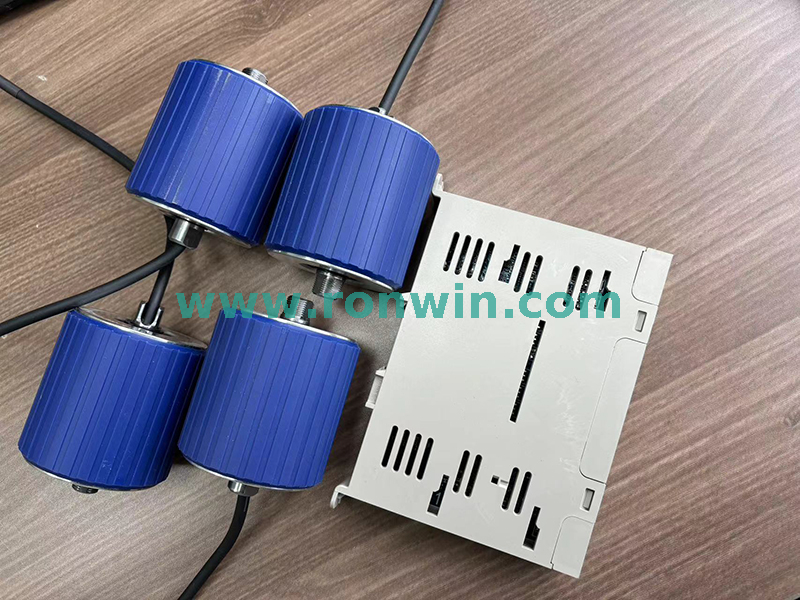

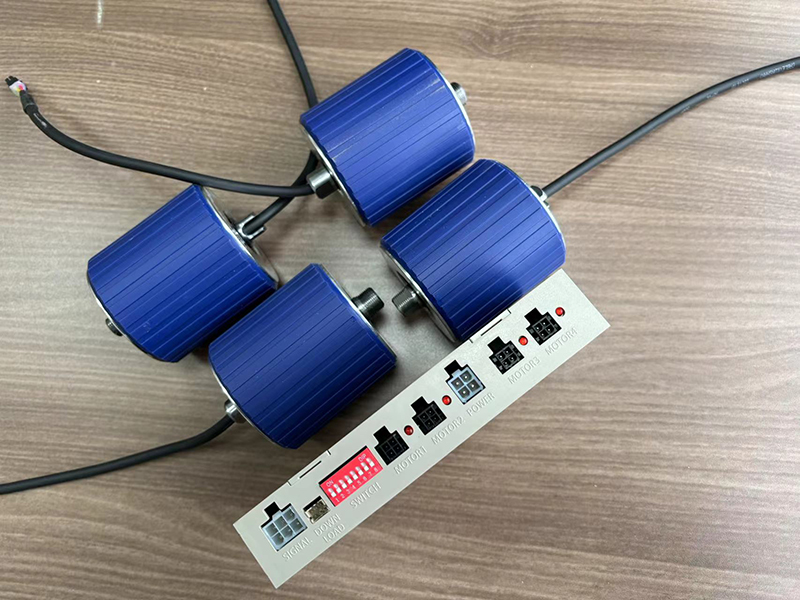

1 contorller drives 4 rollers.

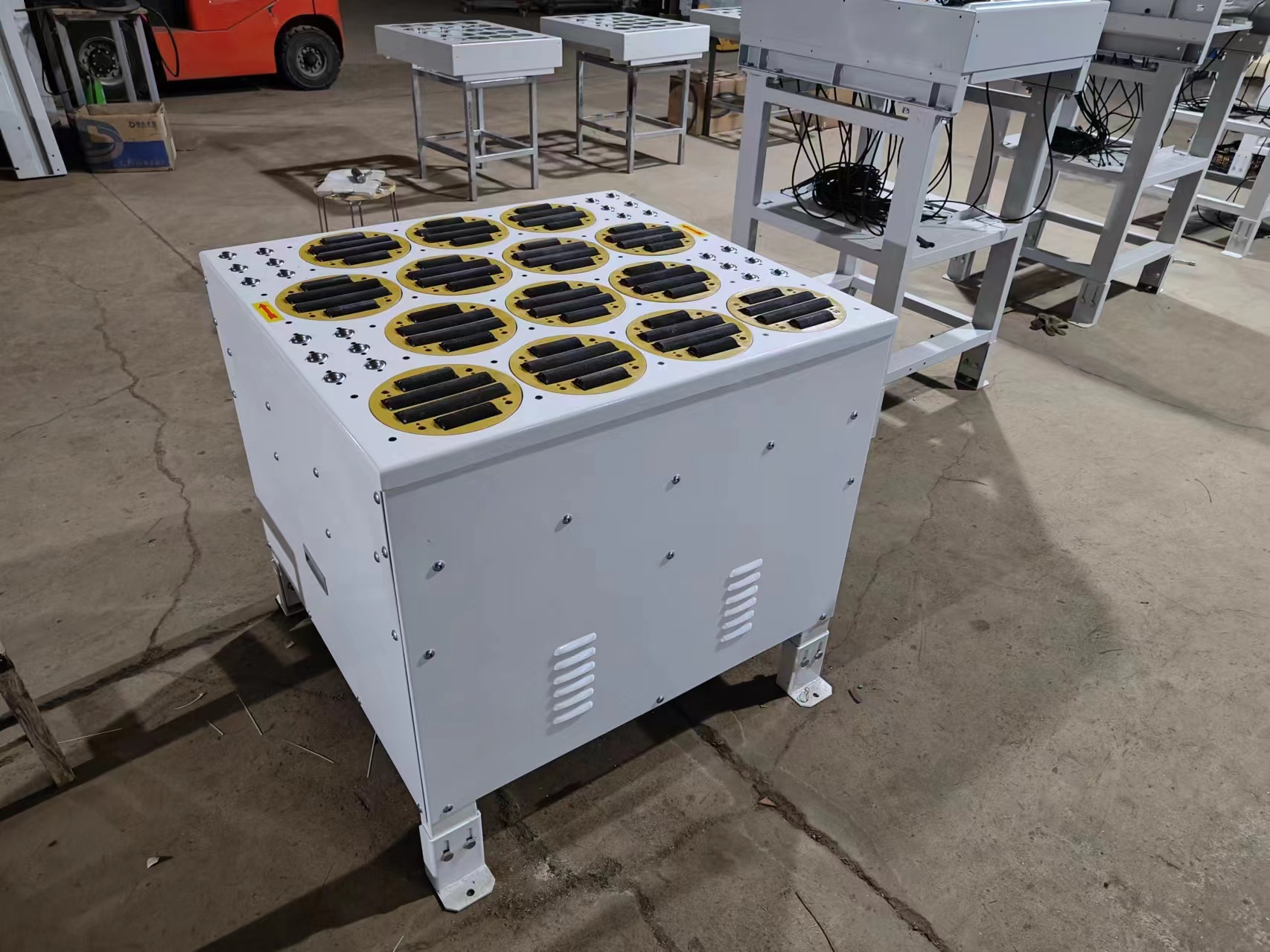

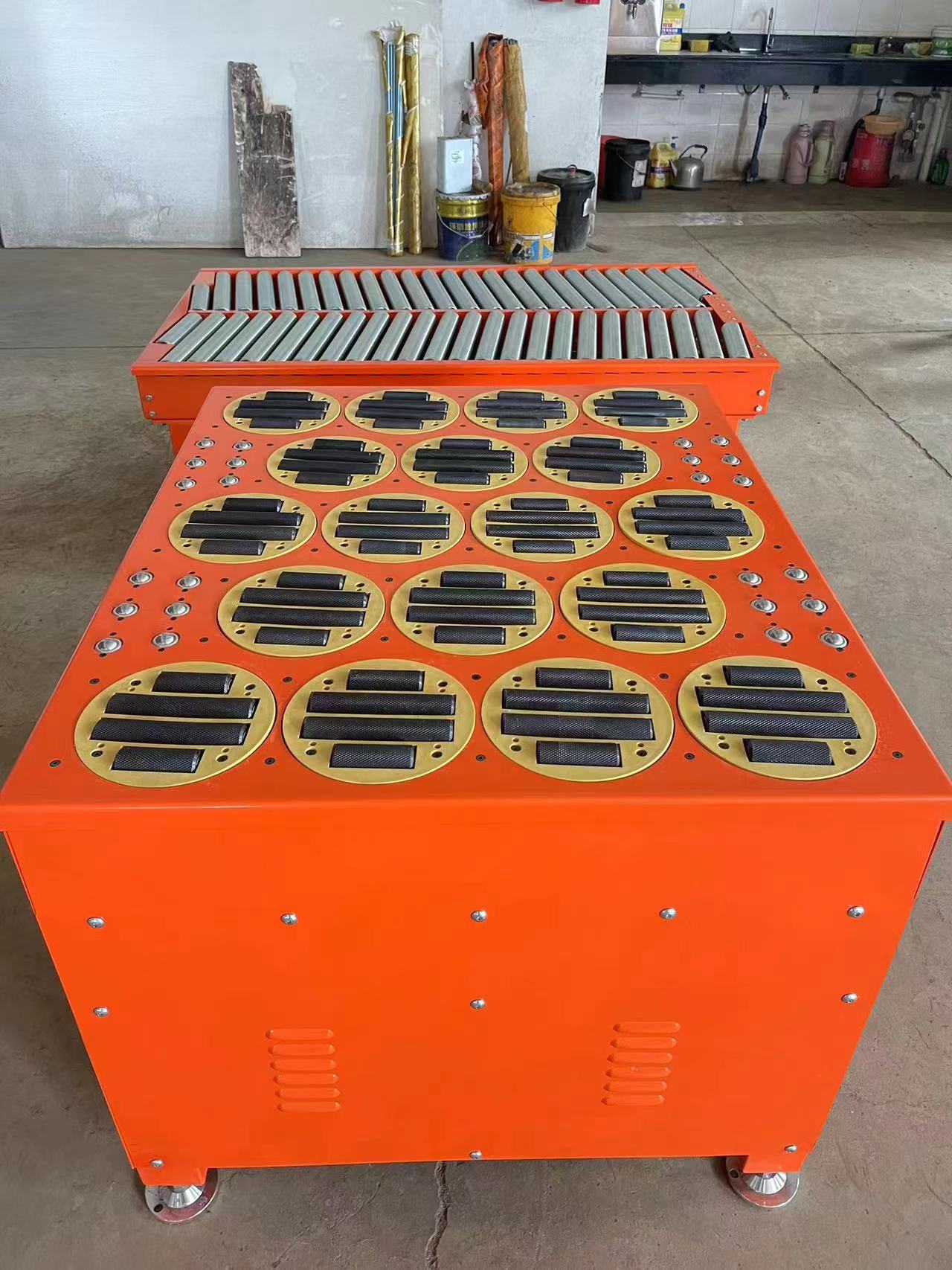

Introduction of Wheel Sorting Conveyor
The working principle of the balance wheel sorter is based on the high-precision movement of the balance wheel and the real-time monitoring and adjustment of the intelligent control system. The balance wheel is a precision rotating device that continuously rotates driven by an electric motor and is fine-tuned according to the instructions of the intelligent control system to ensure that each item can accurately fall into the corresponding sorting slot. The intelligent control system uses sensors, computer vision and other technologies to monitor the location and status of items in real time and sort them according to preset rules.
It has main features as below.
1. High efficiency: The balance wheel sorter can handle a large number of items and the sorting speed is very fast, which greatly improves work efficiency.
2. High accuracy: Due to the high-precision movement of the balance wheel and the real-time monitoring and adjustment of the intelligent control system, the sorting accuracy of items is very high.
3. High degree of automation: The entire sorting process is completely automated without manual intervention, reducing labor intensity.
4. Easy to maintain: The balance wheel sorter has a simple structure, is easy to maintain and maintain, and reduces maintenance costs.
It is widely applicated in the areas of logistics distribution center, manufacturing production lines, libraries and archives, laboratories and scientific research institutions: In laboratories and scientific research institutions, balance wheel sorters can be used for sample management, experimental data classification, etc.
