Tapered rollers enable accurate curve transportation by resolving differential linear speed challenges. Unlike conventional rollers, their engineered geometry ensures smooth cargo transition on bends—critical for logistics, mining, and automated systems.
The conical design creates a diameter-dependent linear velocity gradient:
Outer surface: Higher line speed (compensates for longer path on curve)
Inner surface: Lower line speed (matches shorter path on curve)
This gradient ensures synchronized cargo movement around bends.
Calculated Installation Angle
Roller axis is installed at a precise conical degree (tailored to curve radius).
Horizontal Contact Maintenance
Roller surface maintains continuous horizontal contact with cargo, preventing tilting.
Friction-Free Conveyance
Generatrix extension (line formed by roller surface) intersects the curve’s center point, enabling zero-friction transition through centrifugal force balancing.
Unlike straight rollers causing slippage/jamming on curves, our tapered rollers compensate for varying linear speeds:
Outer diameter = Higher linear speed
Inner diameter = Lower linear speed
Roller axis tilt + horizontal surface = Optimal alignment
Critical Design: Generatrix extension intersects circle center for zero-friction conveying.

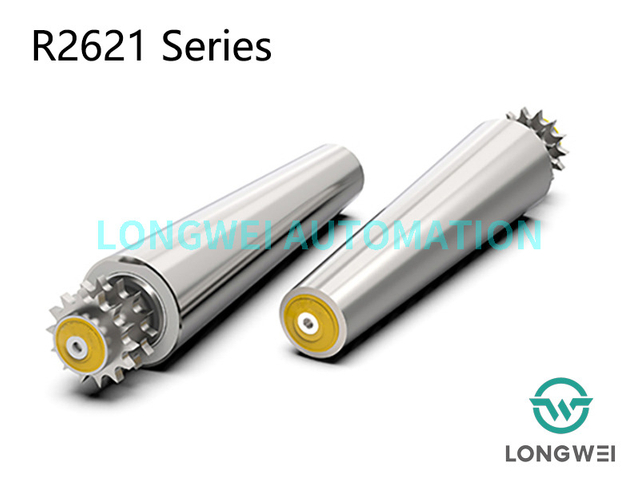

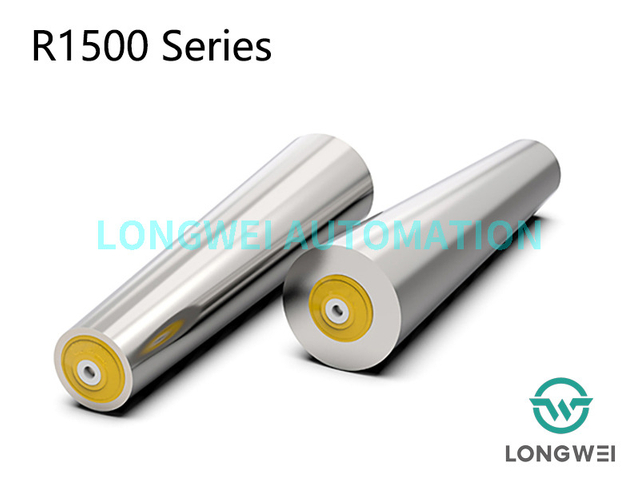

Material: 1.5-3mm carbon steel (Q235B/SS400) with zinc plating/powder coating
Max Load: 150-800kg (customizable)
Ideal for: Heavy-duty logistics, mining, automotive

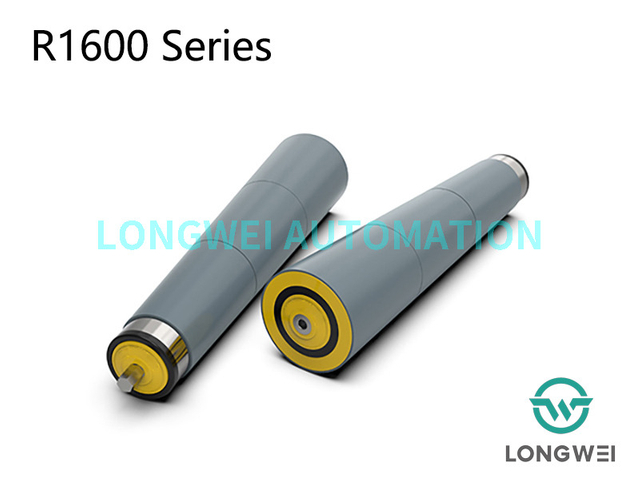

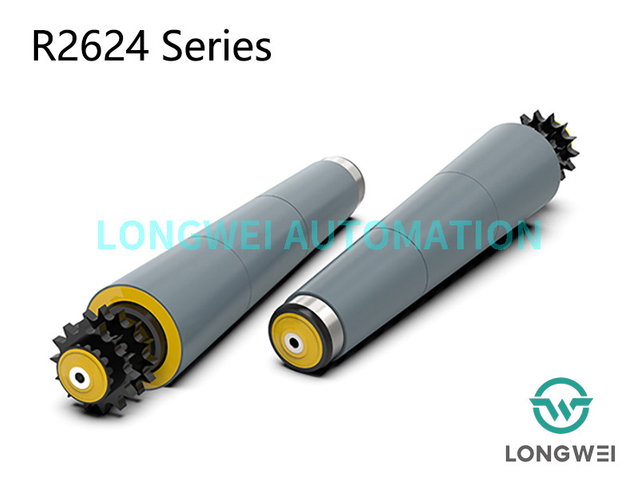

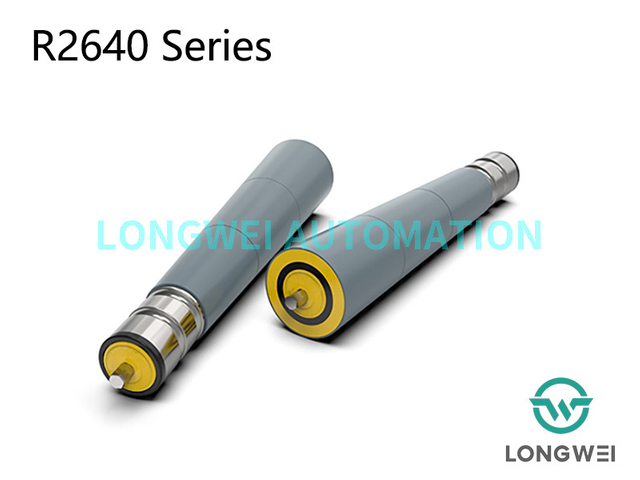

Sleeve Material: UHMW-PE/HDPE (FDA-compliant options)
Max Load: 50-300kg
Ideal for: Food processing, pharmaceuticals, packaging lines
Parameter | Welded Roller | Sleeve Roller |
---|---|---|
Diameter Range | 60-219mm | 50-114mm |
Length Range | 200-2500mm | 200-1800mm |
Max Speed | 2.5 m/s | 1.8 m/s |
Operating Temp. | -20°C to 80°C | -10°C to 70°C |
Bearings | Pre-lubricated C3 tolerance ball bearings (6200-6300 series) |
