DM113i
RONWIN
HS Code: 8431390000

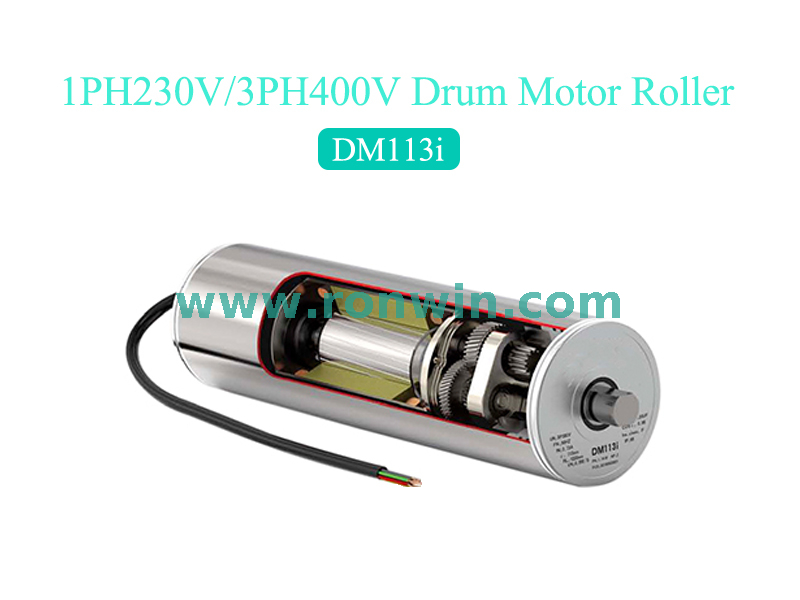

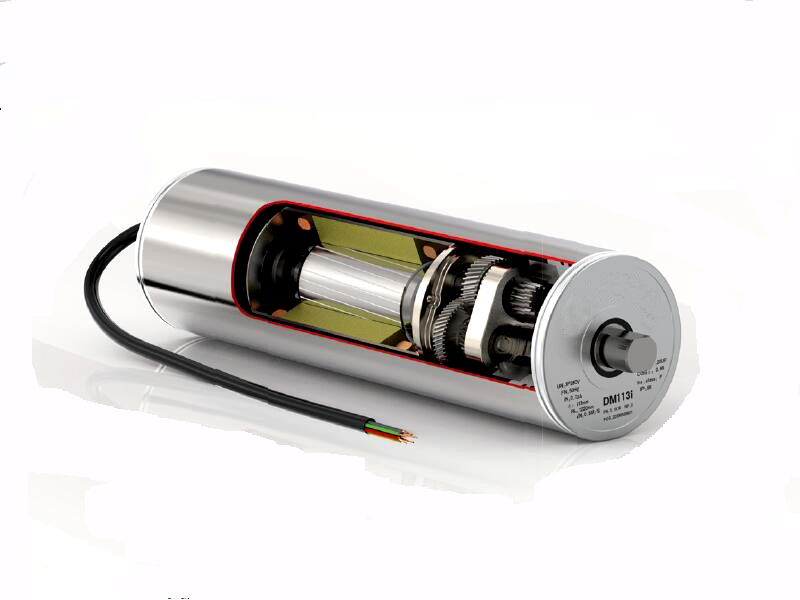

This powerful motorized drive roller, specifically designed for light and medium-duty belt conveyors, serves as a highly integrated and robust driving core. By housing the motor and reduction mechanism directly within the roller shell, it completely replaces traditional complex transmission structures such as external motors, reducers, chains, and belts. This design brings a revolutionary simplification, making it the ideal power solution for modern, compact, and efficient conveyor systems.
High Integration, Compact Structure
Feature: All drive components (motor, gears, bearings) are sealed inside the roller, forming a unified cylinder.
Advantage: Greatly saves installation space, resulting in a simpler conveyor design and a lighter overall structure. Particularly suitable for space-constrained applications.
Powerful Drive, Efficient Transmission
Feature: While suited for light/medium loads, its "power" is reflected in high torque output and an efficient transmission system. Often combines high-performance permanent magnet synchronous motors or AC motors with precision planetary gear reduction.
Advantage: High starting and running torque enable reliable driving of long-distance or inclined belt conveyors. High transmission efficiency with minimal energy loss makes it more energy-efficient than traditional external drives.
Easy Installation, Low Maintenance Costs
Feature: Installation is quick and straightforward—simply mount the roller onto the frame via bearing housings at both ends and connect the power.
Advantage: Significantly reduces installation time and labor costs. Eliminates daily maintenance associated with exposed transmission parts (e.g., chain lubrication, belt tensioning, replacement), lowering long-term maintenance costs and downtime risks.
Clean, Quiet, and Reliable Operation
Clean & Hygienic: No external grease contamination, complying with high hygiene standards in food, pharmaceutical, and other industries.
Quiet Operation: Noise levels are significantly lower than chain drives or external gear transmissions.
High Reliability: High protection rating (e.g., IP65/IP66) suits harsh environments like damp or dusty conditions, ensuring a long service life.
Feature: The fully enclosed structure prevents lubricant leakage and ingress of dust/moisture. Internal gears run in an oil-bath environment.
Advantage:
Precise Control & High Intelligence
Feature: Easily integrates with frequency inverters for soft starting, soft stopping, and stepless speed control. Some high-end models feature built-in electronic controllers supporting bus communication (e.g., PROFIBUS, EtherCAT) for precise speed control and monitoring (e.g., power, temperature).
Advantage: Soft start/stop protects the belt and goods, preventing jolts and spills; stepless speed adjustment allows flexible production line pacing; intelligent monitoring enables predictive maintenance.
This "powerful motorized drive roller" excels in numerous fields requiring light to medium-duty belt conveying, thanks to its outstanding performance and simplicity:
Unit Handling Logistics Conveyors: Transporting cartons, totes, parcels, etc. Commonly used in sorting lines within e-commerce warehouses and express distribution centers.
Food & Beverage Industry: Conveying packaged foods and beverage cases. Its clean, contamination-free nature is ideal for food production environments and supermarket distribution centers.
Packaging & Production Lines: Integrated into automated packaging lines, connecting case sealers, coders, strapping machines, etc., enabling smooth and controlled material flow.
Airport Baggage Handling Systems: Used for baggage conveyor belts behind check-in counters, requiring stable, quiet, and reliable operation.
Light Manufacturing: Transporting components or finished products between workstations on assembly lines for electronics, small appliances, etc.
Inclined Conveying: Thanks to its strong torque, it reliably drives belt conveyors for ascending or descending slopes at certain angles.
The excellent powerful motor driven roller for high strength light & medium duty belt conveyors.
Drive light load, adopts finished high-alloy steel gearbox and high precision assembly. The conveyor pulley is suitable for the conveyors with special requirement of small space, low noisy and high power.
Roller pipe: normally the standard roller body is made of mild steel with anti-slip knurling surface treatment, coated with anti-rust oil, stainless steel #304 is for food grade applications.
Gear drive: die-case aluminum gearbox, finished high-alloy steel gears ensure low noise during working.
Motor: it is suitable for various voltages around the world at 50Hz or 60Hz,. The insulation of the motor roller is class F. All motors with additional thermal protector. Motor oil immersion cooling. The standard length of the cable outlet is 1.2 meters.
Sealing class: double seal design shaft end, IP66/IP67.
Oiling: the drum motor roller has been filled oil according to the standard in the factory. Change the oil every 5000 hours of operation.
Others: horizontal installation. Speed and roller length are customized. Non-standard drum motor roller can be customized
Small conveyors, high cyclic working load.
Airport check-in conveyor.
Packing equipment.
Powered belt weighing conveyor.
Pharmacological treatment.
Food processing.
Steel or plastic modular belt conveyor applications.
In conclusion, this powerful motorized drive roller for light and medium-duty belt conveyors is not merely a simple drive component. It represents a complete solution embodying simplified design, efficient drive, and intelligent control. By internalizing complex structures, it delivers core value to users through space savings, easy installation, simple maintenance, and reliable operation, making it the preferred drive element for modern conveyor systems pursuing efficiency, compactness, and intelligence.
