DGAC60
RONWIN
HS Code: 8431390000

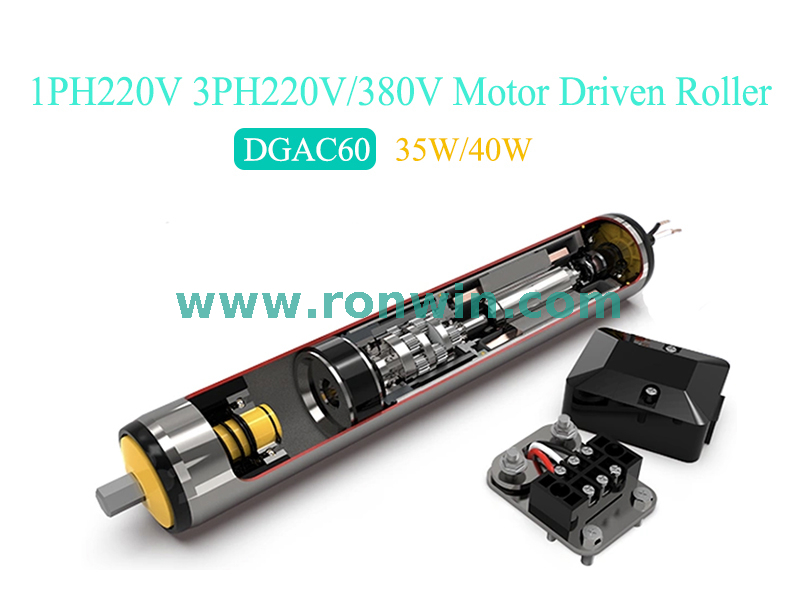

DGAC60 Series Alternating Current Asynchronous Gear Reduction Motor Driven Roller
Main Features
The DGAC60 alternating current roller operated by an asynchoronous gear motor can handle low, medium, and heavy loads.
high-performance asynchronous gear reduction motor integrated.
output options for motors with AS standard power, HAS high power, and HBP super high torque.
Design of the winding protection motor allows for prolonged blockage without burning down (except HBP type).
Simple control, applicable to standard industrial voltages such 1PH220V, 3PH220V, and 3PH380V, and only a mains power source is needed.
The three-phase motor's speed range is 25Hz to 65Hz, and it can be controlled by a frequency converter (only for 3PH220V).
The speed range is 2-70 m/min.
Zinc-plated steel or stainless steel rollers with configurable lengths are available.
The drive head of the roller may be grooved, or it may be a timing pulley, poly-V pulley, round belt pulley, V-belt pulley, or sprocket.
Easy to mount and simple to install.

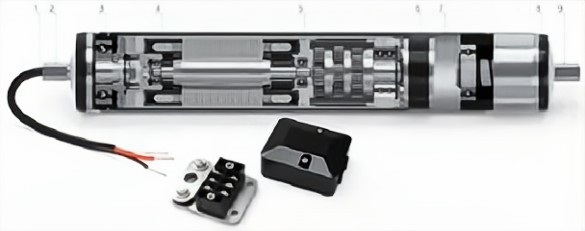

1PH220V, 3PH220V/380V- Gear Motor Driven Roller - DGAC60 Corresponding Name of Parts
| 1. cable | 2. outlet end shaft | 3. front end bearing housing | 4. motor | 5. gear box |
| 6. holder | 7. pipe wall | 8. rear end bearing housing | 9. end shaft |
DGAC60 Series Alternating Current Asynchronous Gear Reduction Motor Driven Roller
Main Features
The DGAC60 alternating current roller operated by an asynchoronous gear motor can handle low, medium, and heavy loads.
high-performance asynchronous gear reduction motor integrated.
output options for motors with AS standard power, HAS high power, and HBP super high torque.
Design of the winding protection motor allows for prolonged blockage without burning down (except HBP type).
Simple control, applicable to standard industrial voltages such 1PH220V, 3PH220V, and 3PH380V, and only a mains power source is needed.
The three-phase motor's speed range is 25Hz to 65Hz, and it can be controlled by a frequency converter (only for 3PH220V).
The speed range is 2-70 m/min.
Zinc-plated steel or stainless steel rollers with configurable lengths are available.
The drive head of the roller may be grooved, or it may be a timing pulley, poly-V pulley, round belt pulley, V-belt pulley, or sprocket.
Easy to mount and simple to install.
1PH220V, 3PH220V/380V- Gear Motor Driven Roller - DGAC60 Corresponding Name of Parts
| 1. cable | 2. outlet end shaft | 3. front end bearing housing | 4. motor | 5. gear box |
| 6. holder | 7. pipe wall | 8. rear end bearing housing | 9. end shaft |
