| output torque: | |
|---|---|
| power: | |
| roller material: | |
| drive head: | |
| Quantity: | |
DGBL50
RONWIN
HS Code: 8431390000
The Character & Advantage of Direct Current Poly-V Pulley Drum Motor Roller

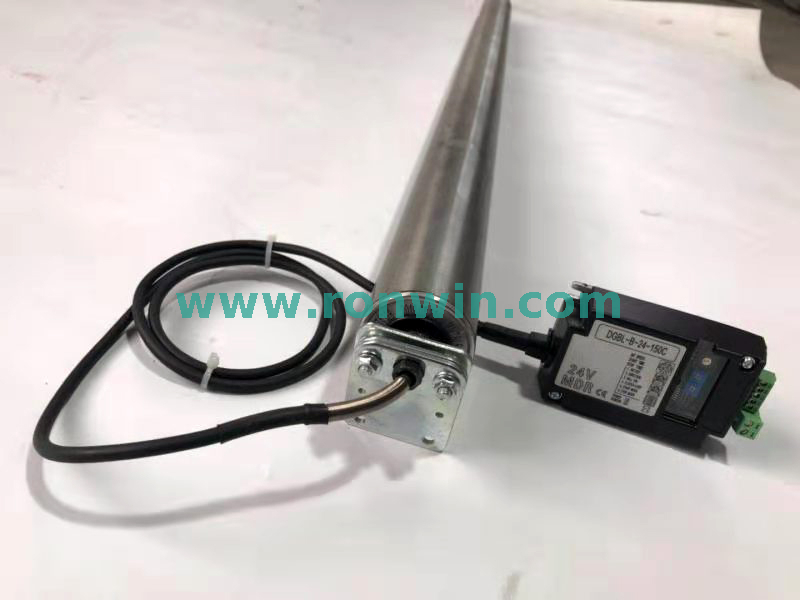

The DGBL50 motor driven roller is appropriate for medium and light loads with adjustable speed.
Direct brushless gear reduction motor built-in with excellent efficiency, matched use with controller.
Output torque is optional; it comes in regular and high power types.
Either DC48V or DC24V as the safety voltage.
Adjustable speed range of 10%–150%, 0.5–95 m/min.
To implement IO control, ZPA functionality, and RS485, MODBUS, Ethernet connectivity, several clever controllers have been modified.
Galvanized steel, stainless steel, and custom roller lengths are available.

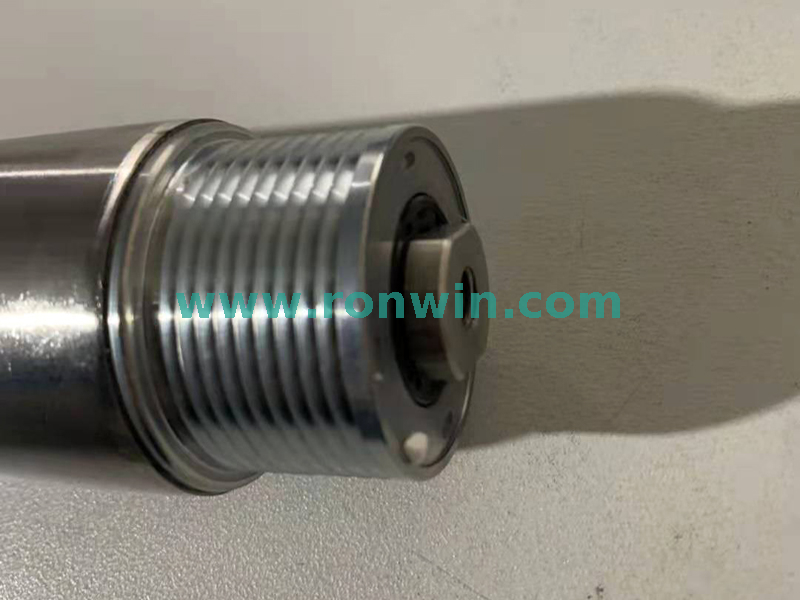

The roller may have grooves or be equipped with a sprocket, poly-v pulley, timing pulley, or O-belt pulley.
For heavy loads and fast transport, an aluminum poly-vee pulley is preferable than a plastic one.
For intelligent control, a simple installation is required.

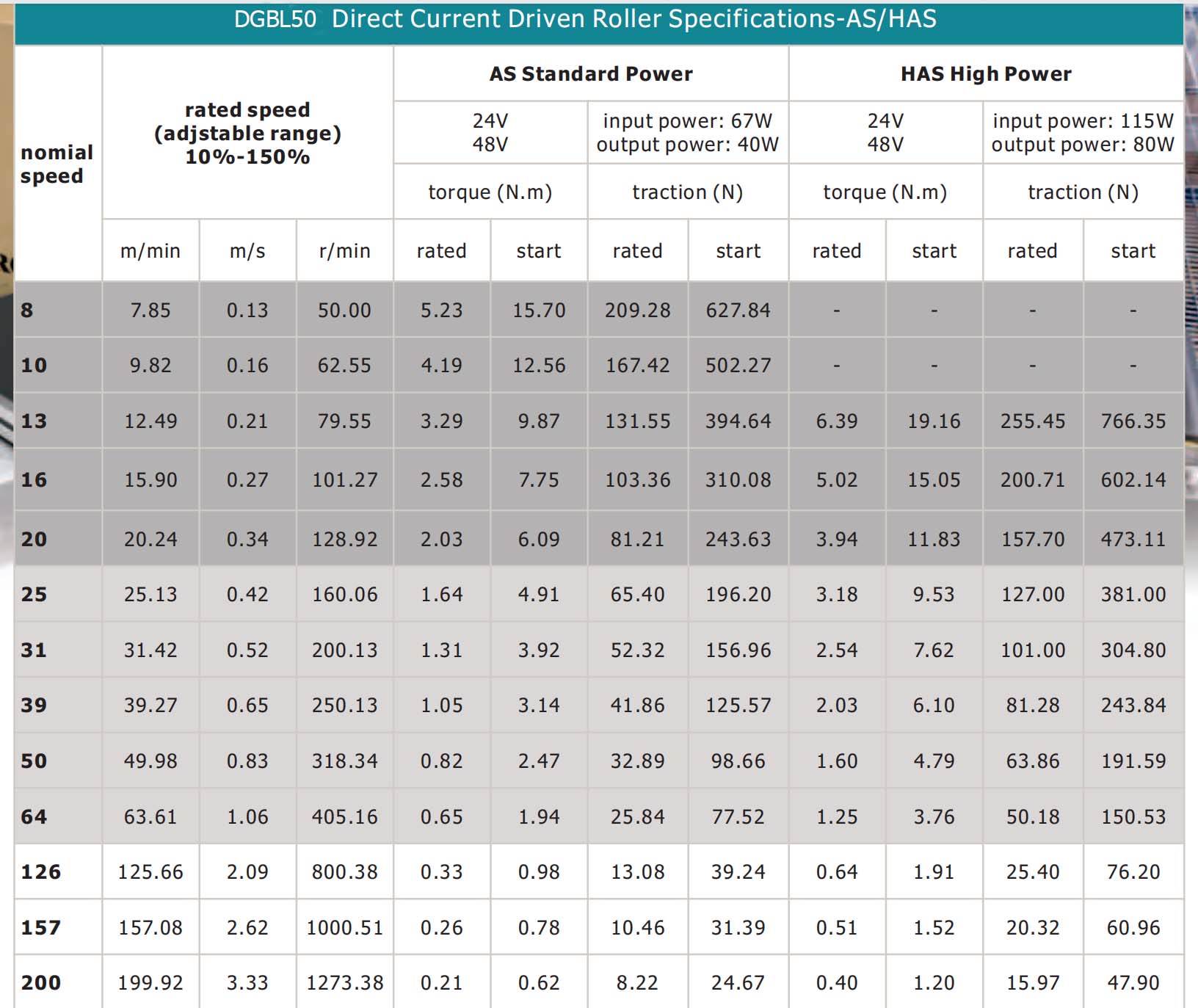

DGBL50 Direct Current Gear Motor Driven Roller Specifications
Notes:
1. 1N=0.1 kgf, 1N·m=0.1 kgf·m；
2. The values in this table are for reference only
3. Constant speed closed loop control, no load or rated load, the same speed
4. The adjustable speed range is 10%-100% of the rated speed;
5. This table is applicable for sprocket driven mode;
Single drive segment load shall not exceed 100kg by polyvee driven mode.
Single drive segment load shall not exceed 35kg by O-belt driven mode.
DC Gear Motor Driven Roller-DGBL50 Corresponding Name of Parts
| 1. cable | 3. front bearing housing | 5. gear box | 7. tube wall | 9. end shaft |
| 2. outlet end shaft | 4. motor | 6. fixture | 8. rear bearing housing | 10. Hall chip |
