DGAC50
RONWIN
HS Code: 8431390000

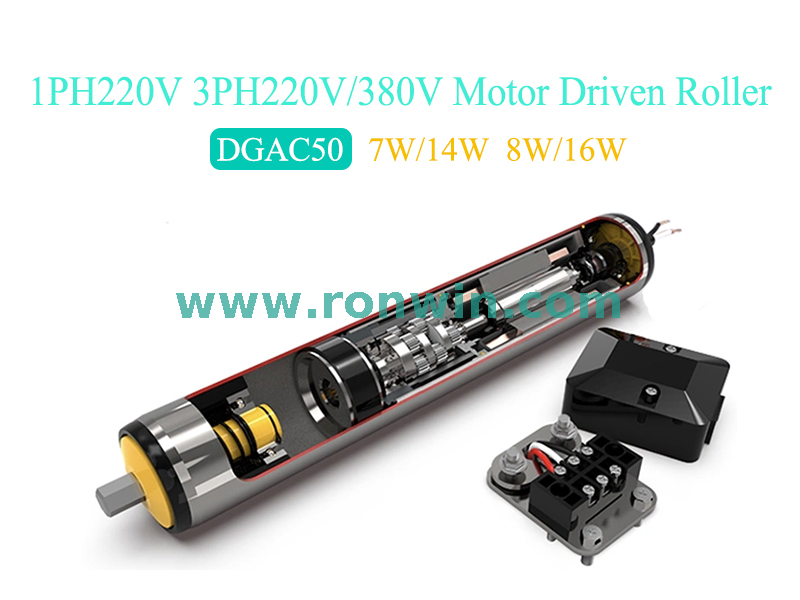

DGAC50 Series Alternating Current Asynchronous Gear Reduction Motor Driven Roller
Main Features
DGAC50 AC asynchoronous gear motor driven roller is applicable to light and medium load.
Build-in asynchronous gear reduction motor.
Output torque of AS standard type and HAS high power motor are optional.
Winding protective motor design, can be blocked for a long time without burn down.
Applicable to common industrial voltage such as 1PH220V, 3PH220V and 3PH380V, simple control and the only requirement being a mains power supply.
The three-phase motor can be regulated by frequency converter, the speed range is 25Hz to 65Hz (only for 3PH220V).
The adjustable speed range 2-52m/min.

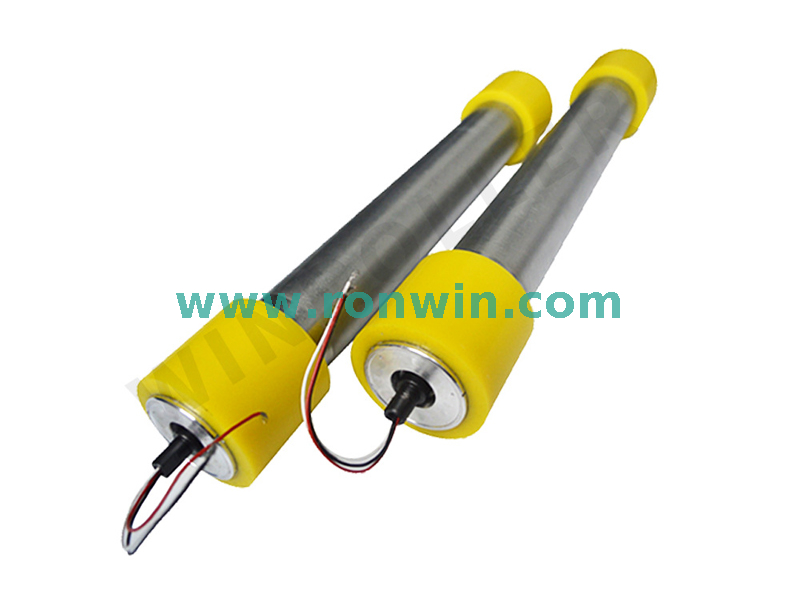

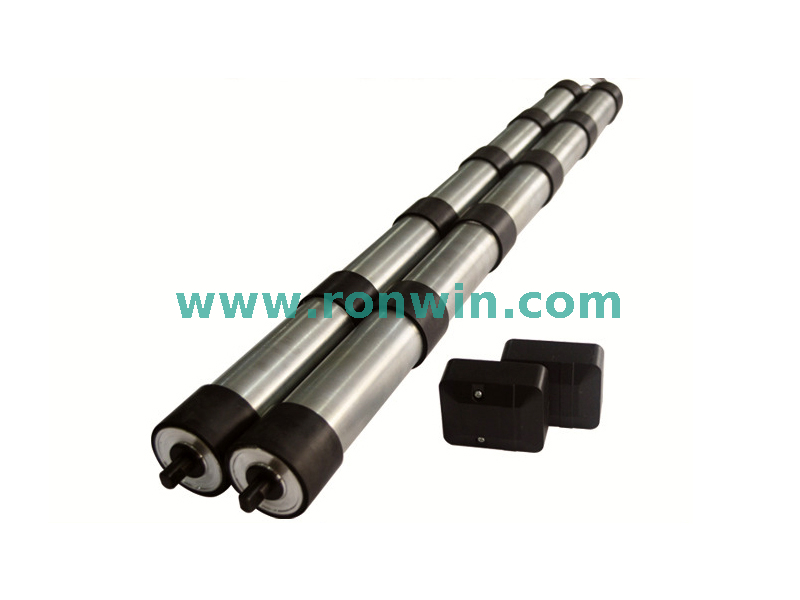

Roller material: zinc-plated steel, stainless steel, length is customzied.
Roller can be grooved, or with drive head like round belt pulley, V-belt pulley, timing pulley, poly-v pulley or sprocket.
Easy to mount, cost effective.

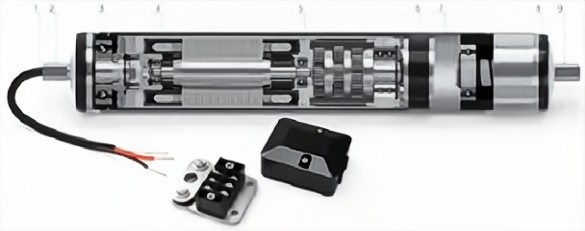

1PH220V, 3PH220V/380V- Gear Motor Driven RollerDGAC50 Corresponding Name of Parts
| 1. cable | 2. outlet end shaft | 3. front end bearing housing | 4. motor | 5. gearbox |
| 6. holder | 7. pipe wall | 8. rear end bearing housing | 9. end shaft |
DGAC50 Series Alternating Current Asynchronous Gear Reduction Motor Driven Roller
Main Features
DGAC50 AC asynchoronous gear motor driven roller is applicable to light and medium load.
Build-in asynchronous gear reduction motor.
Output torque of AS standard type and HAS high power motor are optional.
Winding protective motor design, can be blocked for a long time without burn down.
Applicable to common industrial voltage such as 1PH220V, 3PH220V and 3PH380V, simple control and the only requirement being a mains power supply.
The three-phase motor can be regulated by frequency converter, the speed range is 25Hz to 65Hz (only for 3PH220V).
The adjustable speed range 2-52m/min.
Roller material: zinc-plated steel, stainless steel, length is customzied.
Roller can be grooved, or with drive head like round belt pulley, V-belt pulley, timing pulley, poly-v pulley or sprocket.
Easy to mount, cost effective.
1PH220V, 3PH220V/380V- Gear Motor Driven RollerDGAC50 Corresponding Name of Parts
| 1. cable | 2. outlet end shaft | 3. front end bearing housing | 4. motor | 5. gearbox |
| 6. holder | 7. pipe wall | 8. rear end bearing housing | 9. end shaft |
