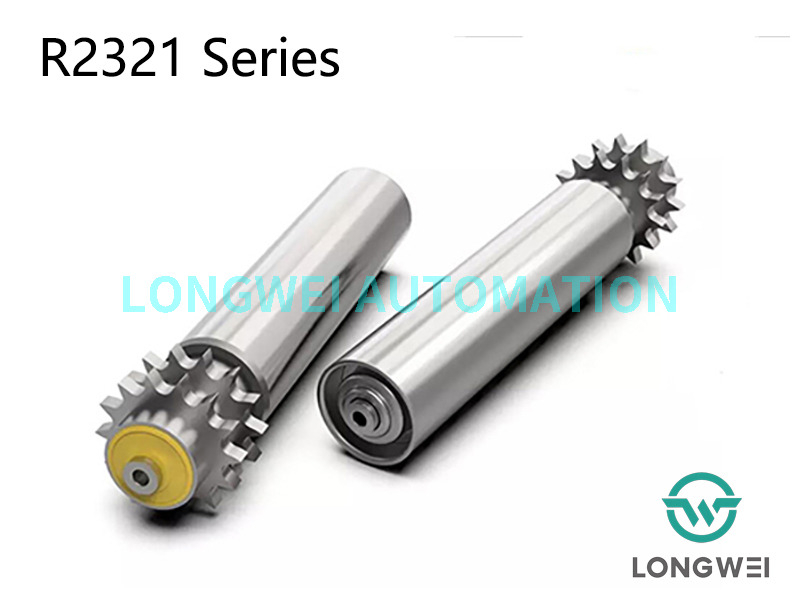

Series R2321 Heay Load Double-row Steel Sprocket Conveyor Roller
Area of application
The most popular heavy load driven conveyor roller to transport large items within the internal unit, such as pallets, steel containers, wheels, barrels, and containers.
Capability for heavy loads
Precision ball bearings are pushed firmly into steel bearing housings for optimal endurance and to fulfill the requirements of the transportation of heavy load pallets. Steel sprocket is permanently welded to roller steel tube.
A greater variety of job environments
The entire steel material of the roller, which offers a range of operating environmental conditions, is also available. The roller can be used for light, medium, or heavy transportation in both high and low temperatures.
Loading laterally
In the standard arrangement, the tube ends are rounded and the bearing housing, end cap, and bearing are pressed into the tube.
Technical data
General technical data | |
Max. load capacity | 450 KGS |
Max. conveyor speed | 30 m/min |
Temperature range | −30 to +80 °C |
Material | |
Tube | Carbon steel, stainless steel |
Shaft | Antirust oil coated steel, Zinc-plated steel, Stainless steel |
Bearing housing | steel |
Bearing | Precision ball bearing |
Drive Element | |
Single/double row sprocket | Zinc-plated steel, black oxidation |
Design versions | |
End cap | Polypropylene, yellow/grey |
Surface treatment | Zinc-plated, chrome-plated |
Tube sleeves | PP sleeve, PU sleeve |
Lagging | Rubber, PU |

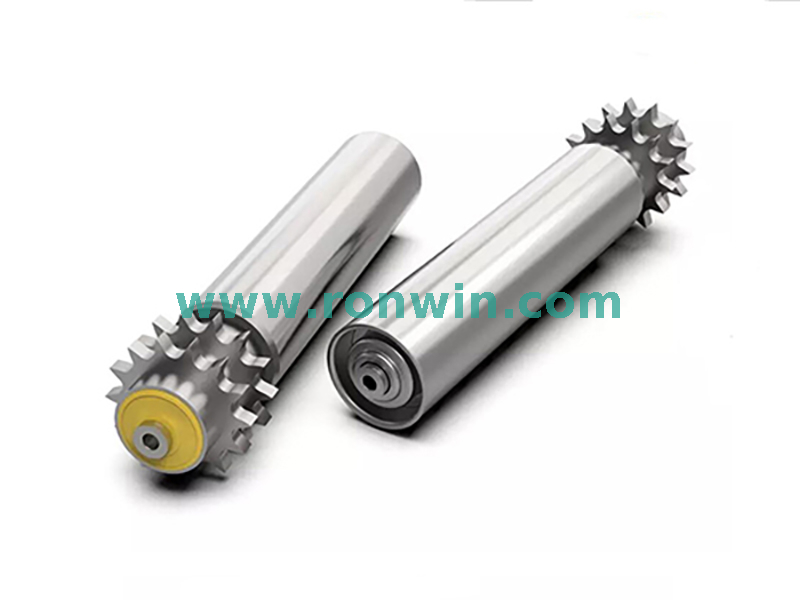

Diagram of R2321 Double-row Steel Sprocket Conveyor Roller
Dimension of series R2321 heavy duty steel driven conveyor roller with female thread installation
Tube Material | D × T | Shaft | L | Sprocket |
Steel, stainless steel | 50×1.5 | Φ12 | L=W+62 | 08B11T |
Steel, stainless steel | 50×1.5 | Φ15 | L=W+63 | 08B14T |
Steel, stainless steel | 60×2.0 | Φ12/Φ15 | L=W+63 | 08B14T |
Steel, stainless steel | 76×3.0 | Φ15 | L=W+63 | 08B14T |
Steel, stainless steel | 76×3.0 | Φ20 | L=W+69 | 10A13T |
Steel | 80×3.0 | Φ20 | L=W+69 | 10B15T |
Steel | 89×3.0 | Φ20 | L=W+69 | 10B15T |
Load capacity of series R2321 heavy load pallet conveyor roller with screw-connected installation

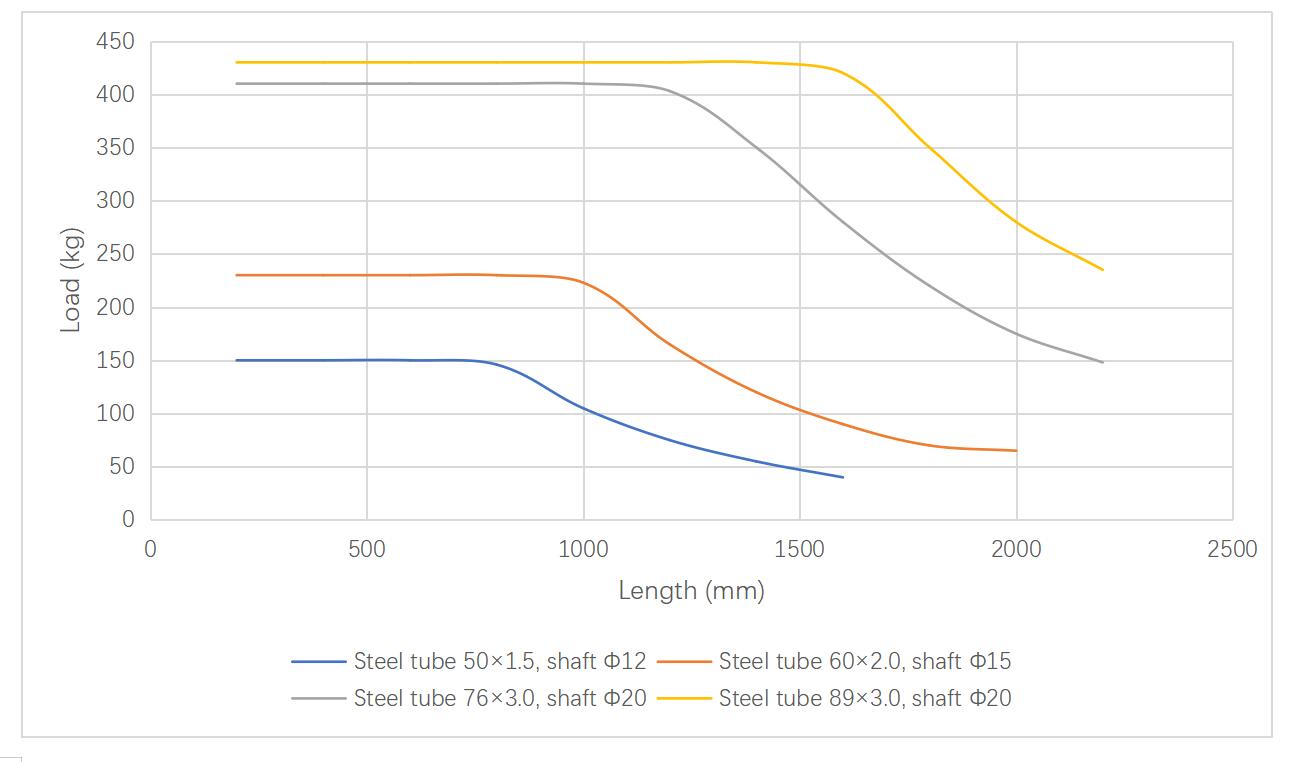

The load capacity chart shows the static load capacity of the roller for a uniformly distributed load refers to a temperature range of −30 to +80 °C.
Valid for the following shaft designs: female thread or male thread.

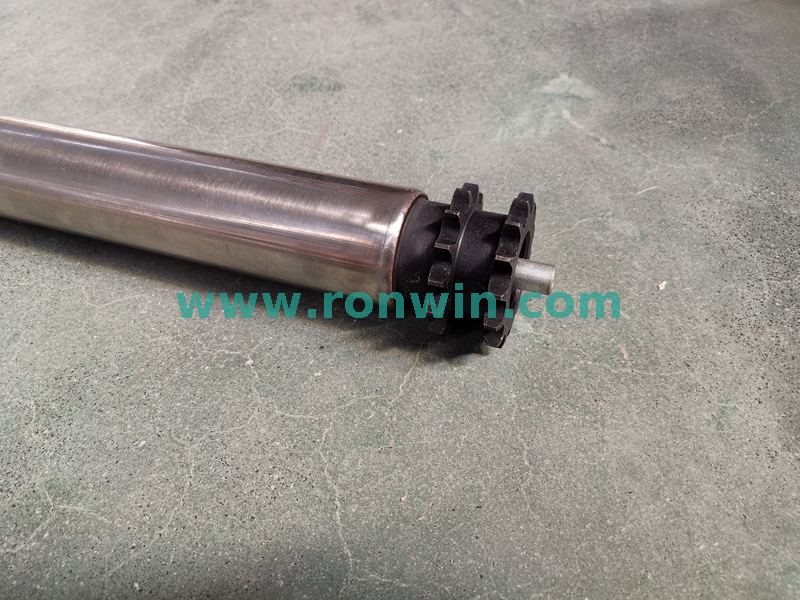

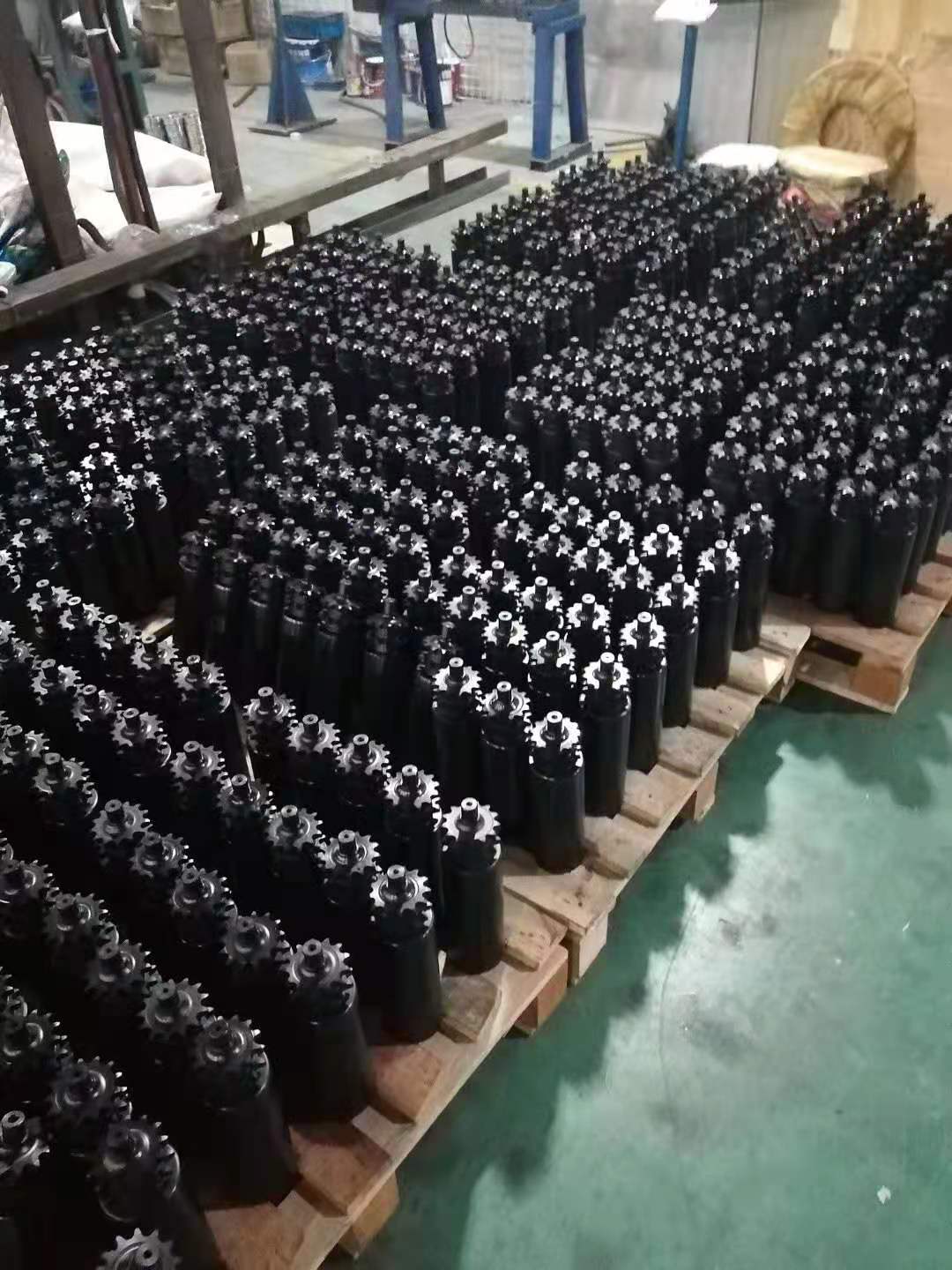

Product Photograph
Welded steel flange
Steel flange and tube are welded together make it strong and durable, steel and stainless steel are available.
Locked flange
The flange is locked on the tube by bolt make it flexible for different types and sizes of pallets. Steel, stainless steel, aluminum alloy and plastic material are available.
Series R2321 Heay Load Double-row Steel Sprocket Conveyor Roller
Area of application
The most popular heavy load driven conveyor roller to transport large items within the internal unit, such as pallets, steel containers, wheels, barrels, and containers.
Capability for heavy loads
Precision ball bearings are pushed firmly into steel bearing housings for optimal endurance and to fulfill the requirements of the transportation of heavy load pallets. Steel sprocket is permanently welded to roller steel tube.
A greater variety of job environments
The entire steel material of the roller, which offers a range of operating environmental conditions, is also available. The roller can be used for light, medium, or heavy transportation in both high and low temperatures.
Loading laterally
In the standard arrangement, the tube ends are rounded and the bearing housing, end cap, and bearing are pressed into the tube.
Technical data
General technical data | |
Max. load capacity | 450 KGS |
Max. conveyor speed | 30 m/min |
Temperature range | −30 to +80 °C |
Material | |
Tube | Carbon steel, stainless steel |
Shaft | Antirust oil coated steel, Zinc-plated steel, Stainless steel |
Bearing housing | steel |
Bearing | Precision ball bearing |
Drive Element | |
Single/double row sprocket | Zinc-plated steel, black oxidation |
Design versions | |
End cap | Polypropylene, yellow/grey |
Surface treatment | Zinc-plated, chrome-plated |
Tube sleeves | PP sleeve, PU sleeve |
Lagging | Rubber, PU |
Diagram of R2321 Double-row Steel Sprocket Conveyor Roller
Dimension of series R2321 heavy duty steel driven conveyor roller with female thread installation
Tube Material | D × T | Shaft | L | Sprocket |
Steel, stainless steel | 50×1.5 | Φ12 | L=W+62 | 08B11T |
Steel, stainless steel | 50×1.5 | Φ15 | L=W+63 | 08B14T |
Steel, stainless steel | 60×2.0 | Φ12/Φ15 | L=W+63 | 08B14T |
Steel, stainless steel | 76×3.0 | Φ15 | L=W+63 | 08B14T |
Steel, stainless steel | 76×3.0 | Φ20 | L=W+69 | 10A13T |
Steel | 80×3.0 | Φ20 | L=W+69 | 10B15T |
Steel | 89×3.0 | Φ20 | L=W+69 | 10B15T |
Load capacity of series R2321 heavy load pallet conveyor roller with screw-connected installation
The load capacity chart shows the static load capacity of the roller for a uniformly distributed load refers to a temperature range of −30 to +80 °C.
Valid for the following shaft designs: female thread or male thread.
Product Photograph
Welded steel flange
Steel flange and tube are welded together make it strong and durable, steel and stainless steel are available.
Locked flange
The flange is locked on the tube by bolt make it flexible for different types and sizes of pallets. Steel, stainless steel, aluminum alloy and plastic material are available.
Diagram of R2321 Steel Double-row Sprocket Conveyor Roller
Diagram of R2321 Steel Double-row Sprocket Conveyor Roller
Dimensions & Material of R2321 Double-row Steel Sprocket Conveyor Roller
dia.×T | shaft dia. | female thread | sprocket | A | B | material | |
single sprocket | double sprocket | ||||||
Φ38×1.2 | Φ12 | L=W+41 | L=W+63 | 08B11T | 17 | 22 | steel, stainless steel |
Φ50×1.5 | Φ12/Φ15 | L=W+41 | L=W+63 | 08B14T | 17 | 22 | steel, stainless steel |
Φ60×2.0 | Φ12/Φ15 | L=W+41 | L=W+63 | 08B14T | 17 | 22 | steel, stainless steel |
Φ76×3.0 | Φ15/Φ20 | L=W+45 | L=W+70 | 10A13T | 20 | 25 | steel, stainless steel |
Φ76×3.0 | Φ15/Φ20 | L=W+45 | L=W+70 | 10A13T | 20 | 25 | steel, stainless steel |
Φ80×3.0 | Φ20 | L=W+45 | L=W+70 | 10B15T | 20 | 25 | steel |
Φ89×3.0 | Φ20 | L=W+45 | L=W+70 | 10B15T | 20 | 25 | steel |
Φ89×4.0 | Φ20 | L=W+45 | L=W+70 | 10B15T | 20 | 25 | steel |
Dimensions & Material of R2321 Double-row Steel Sprocket Conveyor Roller
dia.×T | shaft dia. | female thread | sprocket | A | B | material | |
single sprocket | double sprocket | ||||||
Φ38×1.2 | Φ12 | L=W+41 | L=W+63 | 08B11T | 17 | 22 | steel, stainless steel |
Φ50×1.5 | Φ12/Φ15 | L=W+41 | L=W+63 | 08B14T | 17 | 22 | steel, stainless steel |
Φ60×2.0 | Φ12/Φ15 | L=W+41 | L=W+63 | 08B14T | 17 | 22 | steel, stainless steel |
Φ76×3.0 | Φ15/Φ20 | L=W+45 | L=W+70 | 10A13T | 20 | 25 | steel, stainless steel |
Φ76×3.0 | Φ15/Φ20 | L=W+45 | L=W+70 | 10A13T | 20 | 25 | steel, stainless steel |
Φ80×3.0 | Φ20 | L=W+45 | L=W+70 | 10B15T | 20 | 25 | steel |
Φ89×3.0 | Φ20 | L=W+45 | L=W+70 | 10B15T | 20 | 25 | steel |
Φ89×4.0 | Φ20 | L=W+45 | L=W+70 | 10B15T | 20 | 25 | steel |
