R2214
RONWIN
HS Code: 8431390000

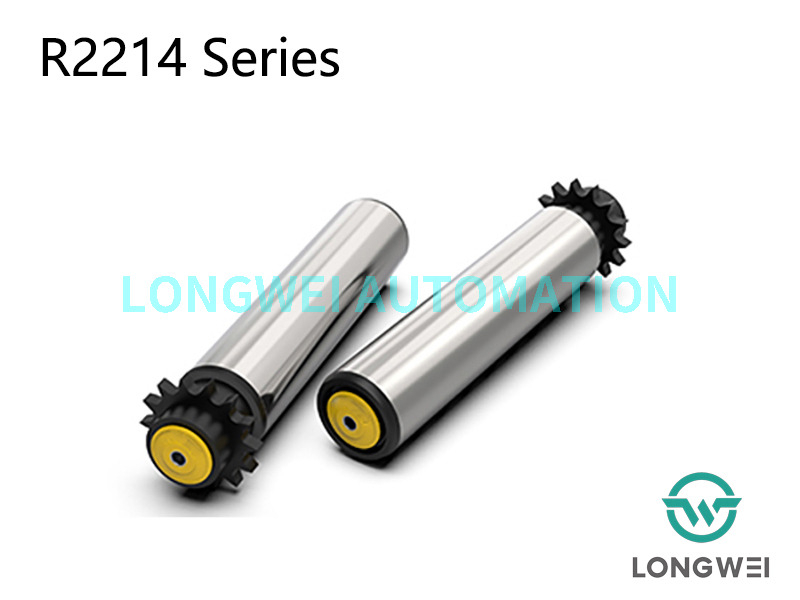

Character & Advantage of R2214 Single-row Polymer Sprocket Chain Driven Roller
Compare to traditional steel sprocket, R2214 series conveyor roller adopts high performance single-row polyamide sprocket as the roller driving element, the operating noise is relative lower.
The bearing unit, which is very significant, is made up of a precision ball bearing, polymer bearing housing, and end cap. It is not only for attractive looks, but also for a smooth and silent operation.
The end cap of roller resists dust and water splash well in working environment.
Normally the weight of convey goods is no more than 150kg.
The roller working temperature range is from -5℃ to +40℃.

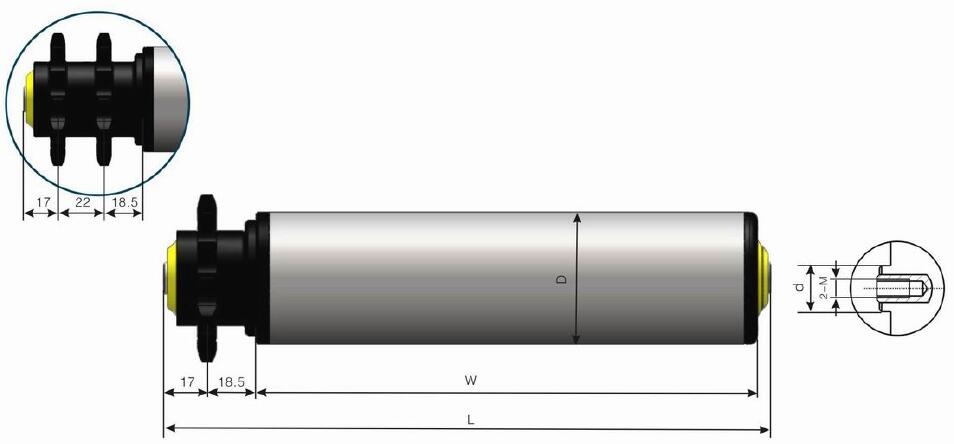

Diagram of R2214 Single-row Polymer Sprocket Roller
Dimension of series R2214 polymer single-row sprocket chain driven roller with female thread installation
Tube Material | D × T | Shaft | L | Sprocket |
Steel, stainless steel | 50×1.5 | Φ12/Φ15 | L=W+41 | 08B14T |
Steel, stainless steel | 60×2.0 | Φ12/Φ15 | L=W+41 | 08B14T |
