| Material: | |
|---|---|
| Mounting Method: | |
| Surface Treatment: | |
| Shaft Type: | |
| Quantity: | |
R2411
RONWIN
HS Code: 8431390000

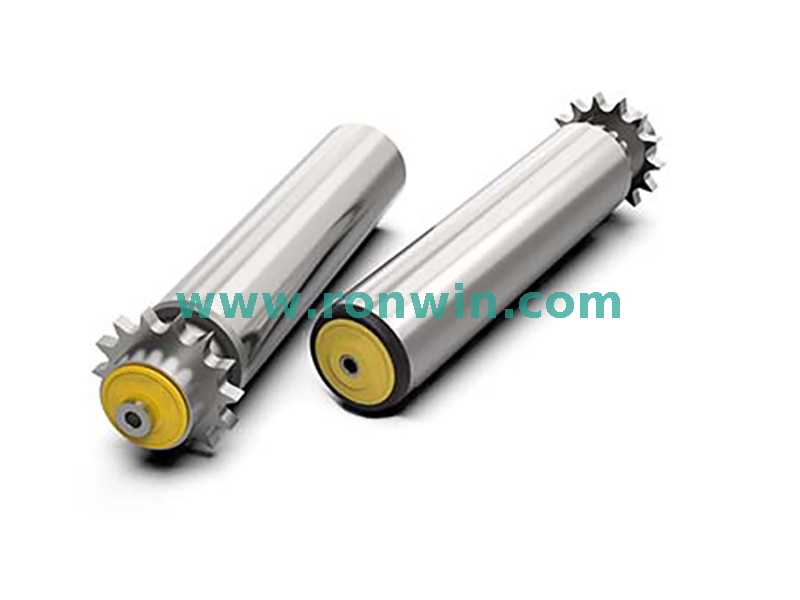

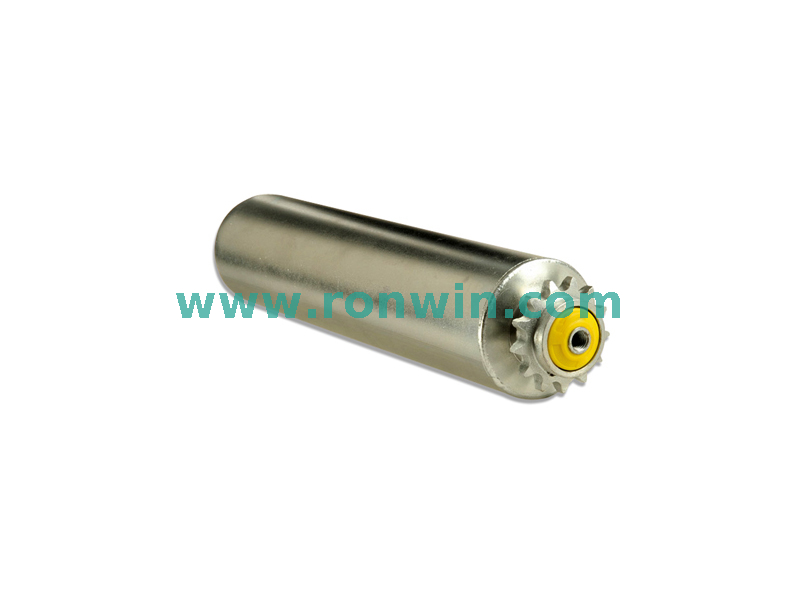

Character & Advantage of Series R2411 Medium Duty Single-row Steel Sprocket Conveyor Roller
Steel sprocket welded with roller tube, makes the conveyor roller capable to transmit higher torque, and meet the request of transportation of medium or heavy duty load.
Precision ball bearing, polymer housing, and end cap form the roller bearing unit which is very important. It is not only for good looking, but also further more for the smooth and quiet running.
The end cap of roller resists dust and water splash well in working environment.
Temperature range -5℃ to +40℃.
Diagram of R2411 Medium Duty Single-row Steel Sprocket Conveyor Roller
Dimension of series R2411 single-row steel sprocket conveyor roller with female thread installation
Tube Material | D × T | Shaft | L | Sprocket |
Steel, stainless steel | 50×1.5 | Φ12/Φ15 | L=W+41 | 08B14T |
Steel, stainless steel | 60×2.0 | Φ12/Φ15 | L=W+41 | 08B14T |
Steel, stainless steel | 76×3.0 | Φ20 | L=W+37 | 10B13T |
Steel | 80×3.0 | Φ20 | L=W+37 | 10B13T |
Character & Advantage of Series R2411 Medium Duty Single-row Steel Sprocket Conveyor Roller
Steel sprocket welded with roller tube, makes the conveyor roller capable to transmit higher torque, and meet the request of transportation of medium or heavy duty load.
Precision ball bearing, polymer housing, and end cap form the roller bearing unit which is very important. It is not only for good looking, but also further more for the smooth and quiet running.
The end cap of roller resists dust and water splash well in working environment.
Temperature range -5℃ to +40℃.
Diagram of R2411 Medium Duty Single-row Steel Sprocket Conveyor Roller
Dimension of series R2411 single-row steel sprocket conveyor roller with female thread installation
Tube Material | D × T | Shaft | L | Sprocket |
Steel, stainless steel | 50×1.5 | Φ12/Φ15 | L=W+41 | 08B14T |
Steel, stainless steel | 60×2.0 | Φ12/Φ15 | L=W+41 | 08B14T |
Steel, stainless steel | 76×3.0 | Φ20 | L=W+37 | 10B13T |
Steel | 80×3.0 | Φ20 | L=W+37 | 10B13T |
