R2311
RONWIN
HS Code: 8431390000

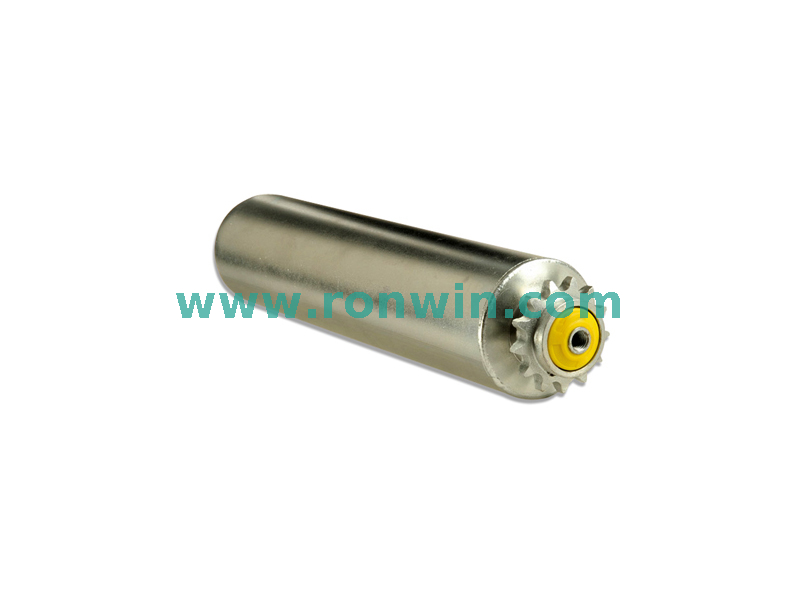

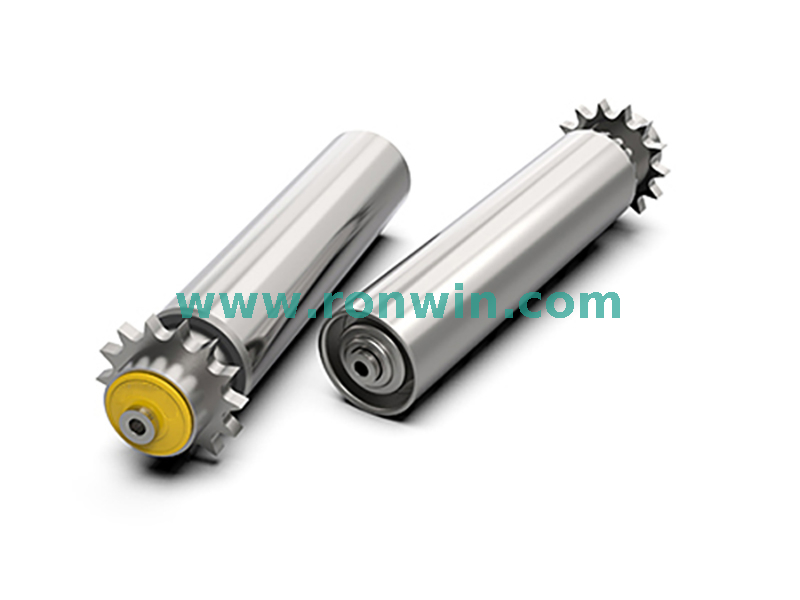

Series R2311 Heavy LoadSingle-row Steel Sprocket Pallet Roller

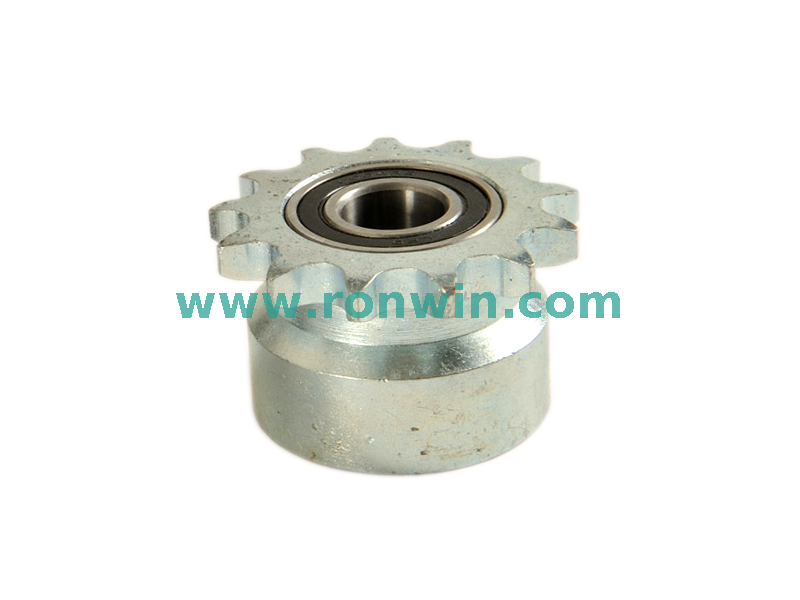

Steel sprocket welded to steel tube allows the roller to transmit more torque and meet the requirement of transporting heavy duty load pallets.
Precision ball bearings are fixed by impact in steel housings, making them tighter and more durable than polymer bearing units.
The working environment requirements of the sprocket chain driven roller are not stringent; it can function effectively in both hot and low temperatures.
In a working setting, the roller's end cap resists dust and water splashes well.
Working temperature range: -20°C to +40°C.
Diagram of Series R2311 Heavy Load Single-row Steel Sprocket Roller
Dimension of series R2311 heavy load steel sprocket conveyor roller with female thread installation
Tube Material | D × T | Shaft | L | Sprocket |
Steel, stainless steel | 50×1.5 | Φ12 | L=W+40 | 08B11T |
Steel, stainless steel | 50×1.5 | Φ15 | L=W+41 | 08B14T |
Steel, stainless steel | 60×2.0 | Φ12/Φ15 | L=W+41 | 08B14T |
Steel, stainless steel | 76×3.0 | Φ15 | L=W+41 | 08B14T |
Steel, stainless steel | 76×3.0 | Φ20 | L=W+44 | 10A13T |
Steel | 80×3.0 | Φ20 | L=W+44 | 10B15T |
Steel | 89×3.0 | Φ20 | L=W+44 | 10B15T |
