Double-row Polymer Sprocket Accumulating Conveyor Roller

Material:	Mild Steel Stainless Steel
Mounting Method:	female thread
Surface Treatment:	zinc plate Chrome plate rubber lagging PVC sleeve
Shaft Type:	round hexagonal
Availability:

Quantity:



Inquire Add to Basket

Model:
R3224
Brand:
RONWIN
Code:
HS Code: 8431390000

Product Description

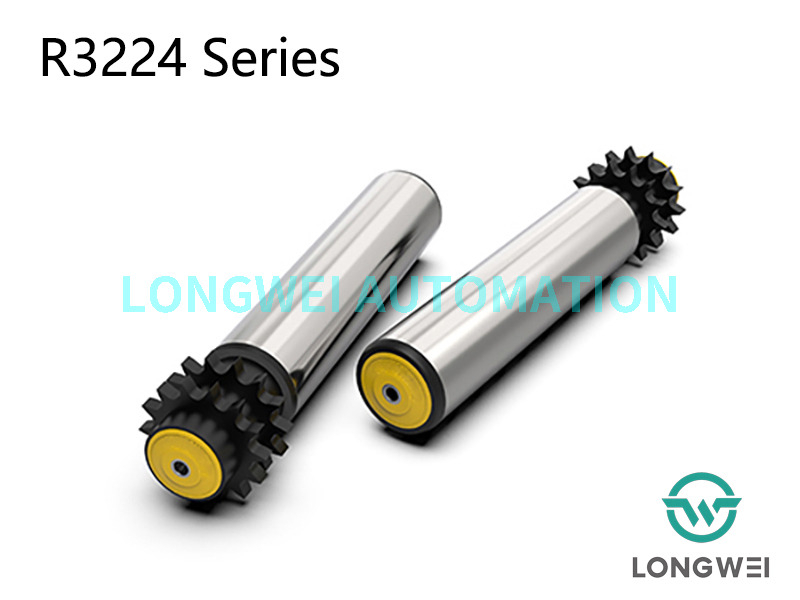

Series R3224 Polymer Double-row Sprocket Accumulating Roller

Area of application

Interior conveying and handling systems for accumulating units, such as light-weight cardboard and containers. Also appropriate for use in the packing sector and for the implementation of buffer sections.

Smooth operation and minimal noise

The roller has the advantages of smooth running and minimal noise thanks to the use of a polyamide sprocket as the driving head, precision ball bearing, and polymer bearing housing.

Loading laterally

The bearing housing, end cap, and bearing are pushed into the tube in the standard design, and the tube ends are rounded to make it simple to transport materials from the side.

Dependable defense against dirt and water

The end cap seal's construction safeguards the bearing by offering superior resistance to splashed water and dust.

Technical data

General technical data
Max. load capacity	25 KGS
Max. conveyor speed	30 m/min
Temperature range	−5 to +40 °C
Material
Tube	Carbon steel, stainless steel
Shaft	Antirust oil coated steel, Zinc-plated steel, Stainless steel
Bearing housing	Polyamide, black
End cap	Polypropylene, yellow/grey
Bearing	Precision ball bearing
Drive Element
Single/double row sprocket	Polyamide, black
Design versions
Surface treatment	Zinc-plated, chrome-plated
Tube sleeves	PP sleeve, PU sleeve
Lagging	Rubber, PU
