| Material: | |
|---|---|
| Mounting Method: | |
| Surface Treatment: | |
| Shaft Type: | |
| Quantity: | |
R2224
RONWIN
HS Code: 8431390000

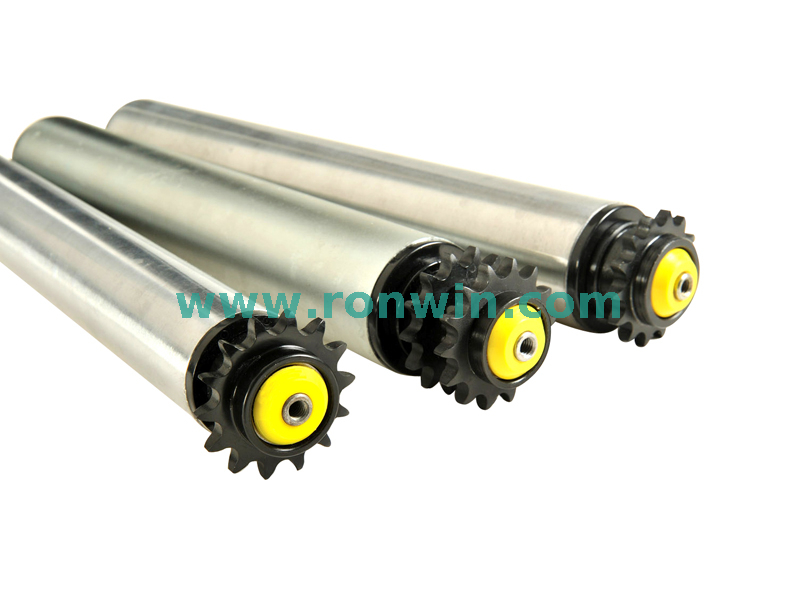

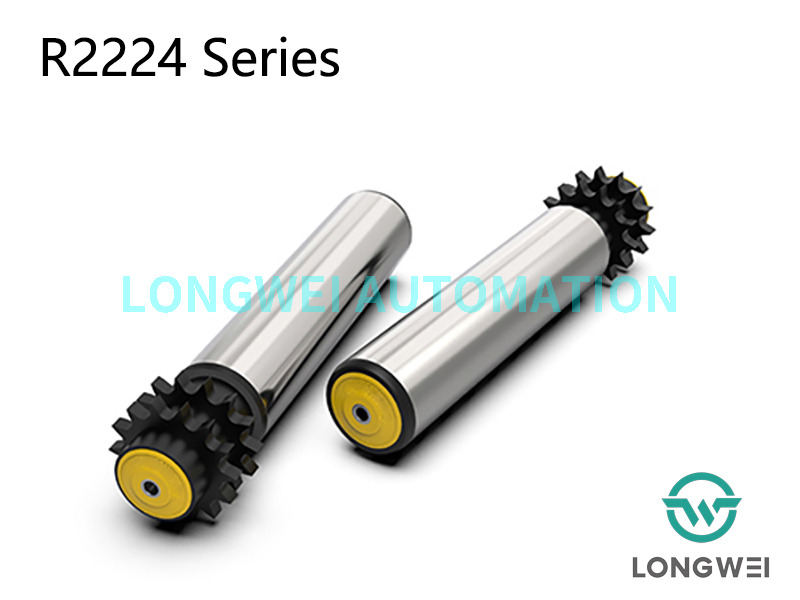

Series R2224 Double-row Polymer Sprocket Chain Driven Roller
Application area
R2224 series double-row polymer sprocket conveyor roller is for internal unit handling conveying systems, mainly applied in medium load roller conveyors to transport cases, carboards, containers, barrels or tires.
Smooth running and low noisy
Using the polymer sprocket as the drive head of roller, precision ball bearing and polymer bearing housing which makes the roller has the advantages of smooth running and low noisy.
Lateral loading
Standard configuration, the bearing housing with end cap and bearing is pressed into the tube and the tube ends are rounded, thereby allowing materials to be easily moved on from the side.
Good protection against dirt and water
The design of the roller end cap seal protects the bearing by providing excellent resistance to dust and splashed water.
Technical data
| General technical data | |
| Max. load capacity | 150 KGS |
| Max. conveyor speed | 30 m/min |
| Temperature range | −5 to +40 °C |
Material | |
| Tube | Carbon steel, stainless steel |
| Shaft | Antirust oil coated steel, Zinc-plated steel, Stainless steel |
| Bearing housing | Polyamide, black |
| End cap | Polypropylene, yellow/grey |
| Bearing | Precision ball bearing |
Drive Element | |
Double row sprocket | Polyamide, black |
| Design versions | |
| Surface treatment | Zinc-plated, chrome-plated |
Tube sleeves | PP sleeve, PU sleeve |
| Lagging | Rubber, PU |
Diagram of R2224 Double-row Polymer Sprocket Conveyor Roller
Dimension of series R2224 polymer sprocket steel conveyor roller with female thread installation
Tube Material | D × T | Shaft | L | Sprocket |
Steel, stainless steel | 50×1.5 | Φ12/Φ15 | L=W+63 | 08B14T |
Steel, stainless steel | 60×2.0 | Φ12/Φ15 | L=W+63 | 08B14T |
