R2421
RONWIN
HS Code: 8431390000
The R2421 medium-duty double-row steel sprocket conveyor roller is a standardized conveying component with reliable structure and excellent performance, specifically designed for industrial chain-driven conveyor lines. This product incorporates a precision bearing assembly and a dual-sealing structure, ensuring efficient transmission while delivering smooth and quiet operation.
Precision Ball Bearings: Ensure low-resistance and high-precision operation.
Polymer Bearing Housing: Provides excellent corrosion resistance and structural stability.
End-Cap Seal Design: Effectively protects against dust and splash water ingress, extending bearing service life.
Press-Fit Assembly Process: The bearing components are precisely pressed into the roller tube, ensuring a robust overall structure.

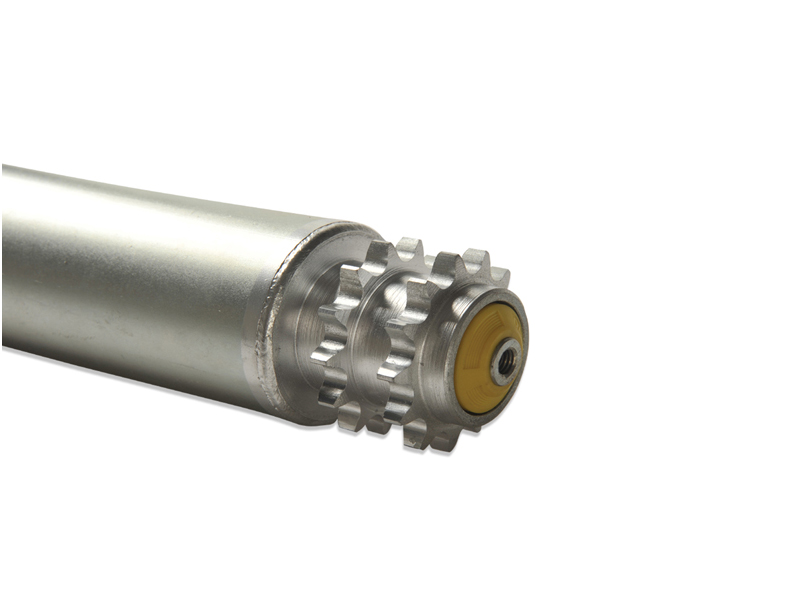

Welded Double-Row Steel Sprocket Structure: Steel sprockets welded to a steel roller tube, delivering superior torque transmission capability.
Roller End Radius Treatment: Facilitates smooth lateral transfer of materials.
All-Steel Construction: Meets strength requirements for medium-load transportation.
| General technical data | |
| Max. load capacity | 160 KGS |
| Max. conveyor speed | 30m/min |
| Temperature range | −5 to +40 °C |
| Material | |
| Tube | Carbon steel, stainless steel |
| Shaft | Antirust oil coated steel, Zinc-plated steel, Stainless steel |
| Bearing housing | Polymide, black |
| End cap | Polypropylene, yellow/grey |
| Bearing | Precison ball bearing |
| Drive element | |
| double row sprocket | Zinc-plated steel, black oxidation |
| Design versions | |
| Surface treatment | zinc-plated, chrome-plated |
| Tube sleeves | PP sleeve, PU sleeve |
| Lagging | Rubber, PU |

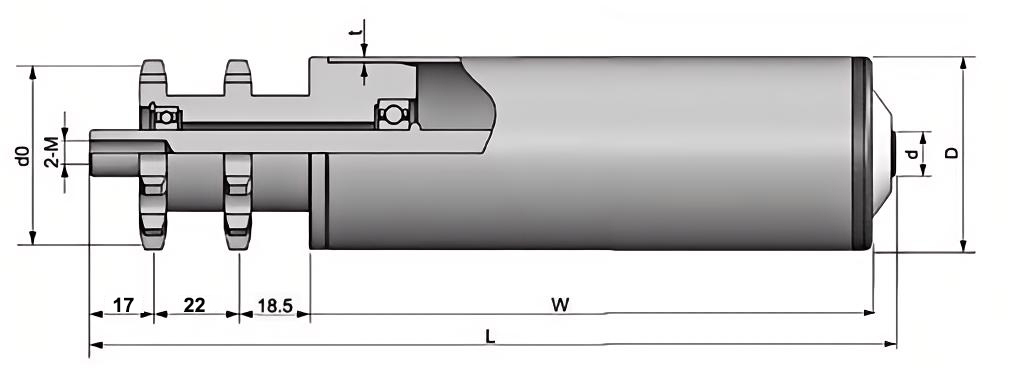

Tube Material | D × T | Shaft | L | Sprocket |
Steel, stainless steel | 38×1.5 | Φ12/Φ15 | L=W+63 | 08B11T |
Steel, stainless steel | 50×1.5 | Φ12/Φ15 | L=W+63 | 08B14T |
Steel, stainless steel | 60×2.0 | Φ12/Φ15 | L=W+63 | 08B14T |
High Torque Transmission: The double-row steel sprocket design offers stronger drive performance compared to single-row or plastic sprockets.
High Durability: All-steel construction and sealing protection ensure long-term reliable operation in industrial environments.
Smooth and Quiet Operation: Precision bearings and optimized design reduce operational noise.
Excellent Protection Performance: The sealing system effectively resists dust and splash water.
The R2421 series rollers are primarily suitable for medium-load roller conveyor systems, with typical application scenarios including:
Internal unit material handling systems
Carton and cardboard transport lines
Container and drum material conveying
Tire conveyor lines
Container transfer systems

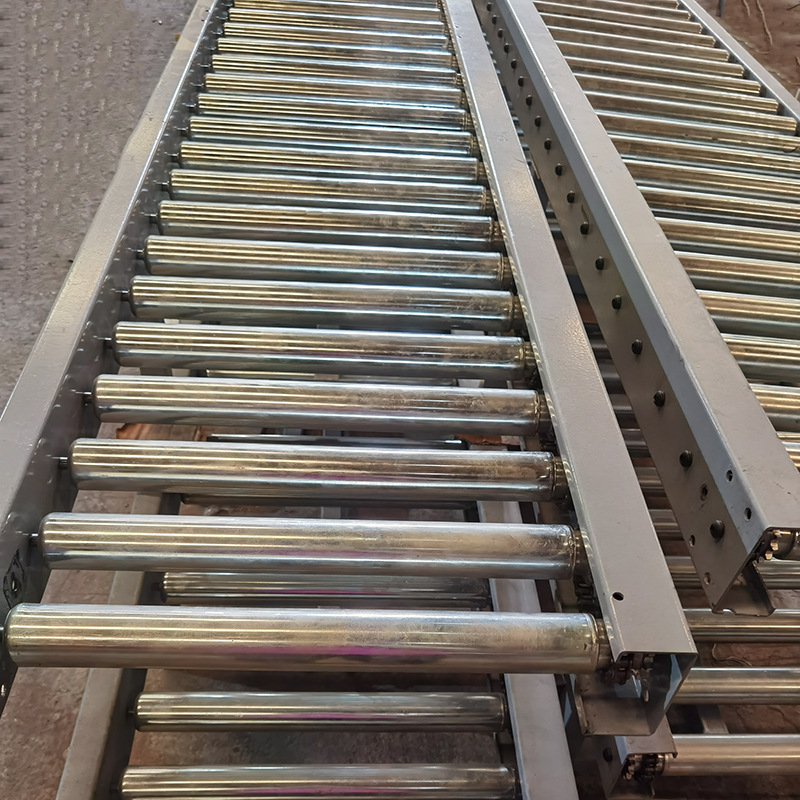

Sprocket Driven Roller Conveyor

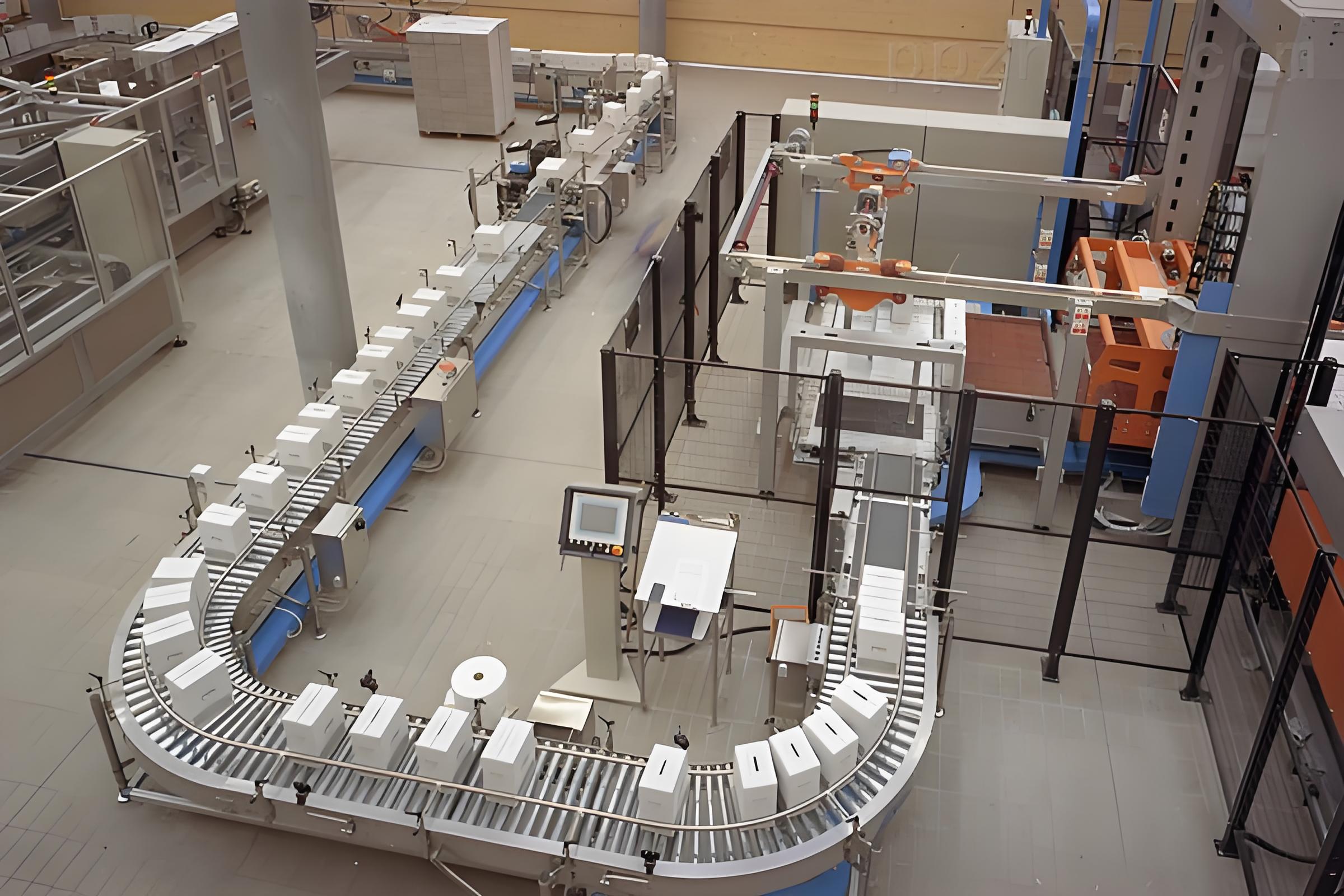

Case Packed Roller Conveyor System
As a core component for industrial chain-driven conveyor lines, the R2421 series rollers provide an ideal choice for users to build reliable and efficient medium-duty powered roller conveyor systems. Their double steel sprocket design excels in transmission performance and durability, making them particularly suitable for industrial applications with high demands for conveying reliability and load capacity.
Product Positioning: Core transmission component for medium-load, chain-driven conveyor systems.
Design Philosophy: Reliable and durable, efficient transmission, strong environmental adaptability.
