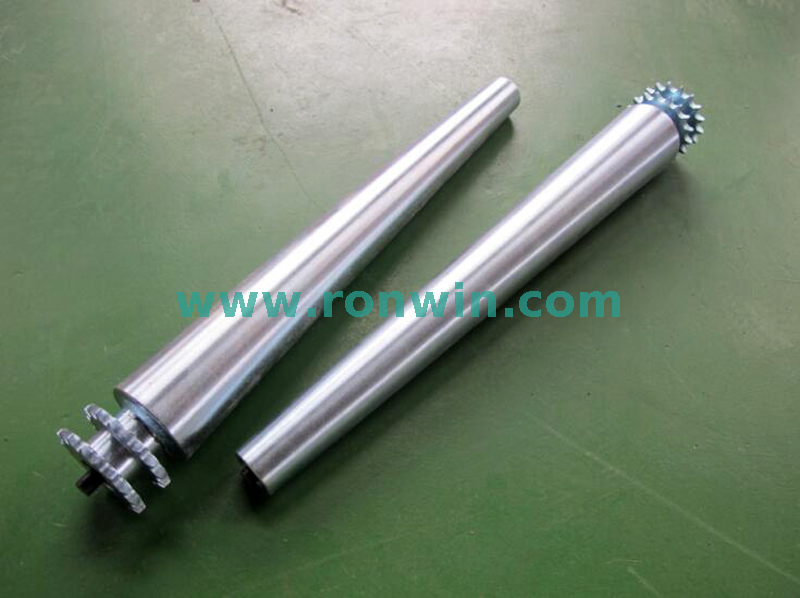

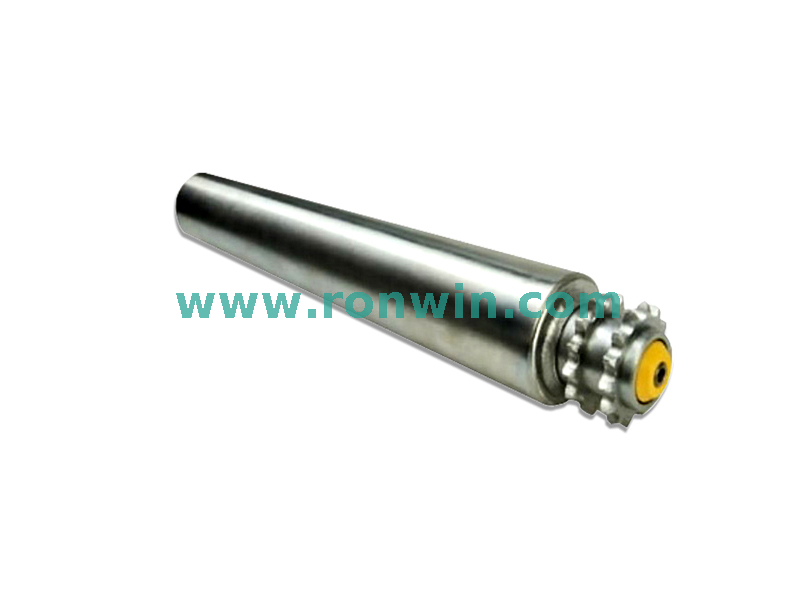

Zinc-plated Sprocket Chain Driven Heavy Load Conical Conveyor Roller

Material:
Mounting Method:
Surface Treatment:
Shaft Type:
Availability:
Quantity:
  • TP521
  • RONWIN
  • HS Code: 8431390000

Character & Advantage of TP521 Steel Sprocket Tapered Conveyor Roller

  1. Steel sprocket welded with tube, make it capable to transmit higher torque, and meet the request of transportation of heavy duty load.

  2. The requirement of working environment is not high, it can work well both in high and low temperature.

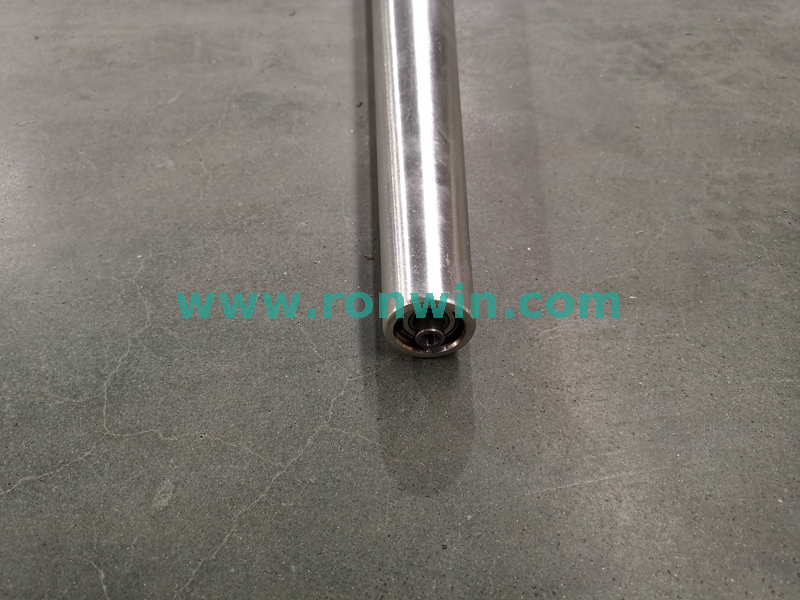

  3. The end cap of roller resists dust and water splash well in working environment.

  4. Standard conical degree is 3.6°, other degrees could be customized.

  5. For better function of curve running, its sprocket teeth thickness is smaller than standard data.

  6. Normally the weight of convey goods is no more than 200kg.

  7. Temperature range -10℃ to +80℃.


Diagram of TP521 Steel Sprocket Tapered Conveyor RollerTP521 Steel Sprocket Tapered Roller

Dimensions & Material of TP521 Steel Sprocket Tapered Conveyor Roller

dia.×Tshaft dia.female threadsprocketmaterial
Φ38×1.2Φ12/11hexL=W+6208B14Tsteel, zinc-plated
Φ42×1.5Φ12/11hexL=W+6208B14Tsteel, zinc-plated
Φ50×1.5Φ12/Φ15/11hexL=W+6208B14Tsteel, zinc-plated


D1conical degreeD2
W=200W=300W=400W=500W=600W=700
Φ383.6°Φ50.6Φ56.9Φ63.2Φ69.5Φ75.8Φ82.1
Φ423.6°Φ54.6Φ60.9Φ67.2Φ73.5Φ79.8Φ86.1
Φ503.6°Φ62.6Φ68.9Φ75.2Φ81.5Φ87.8Φ94.1
