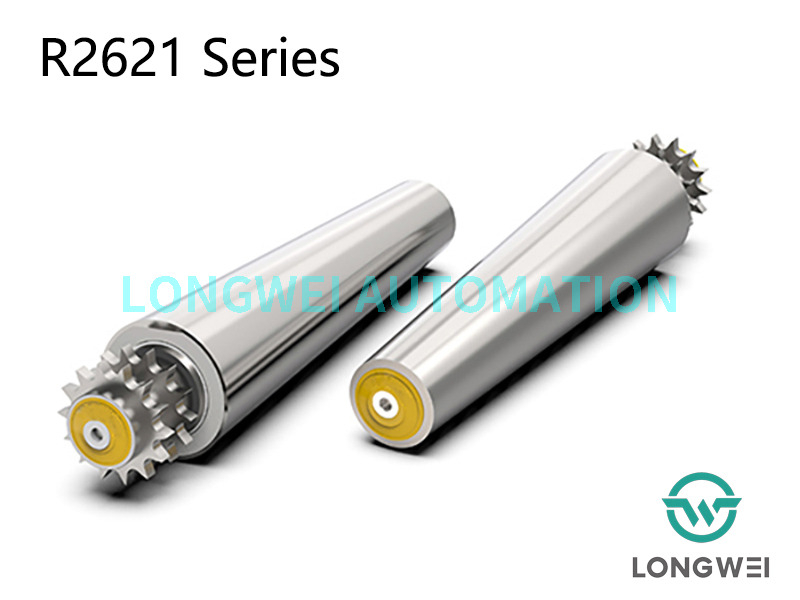

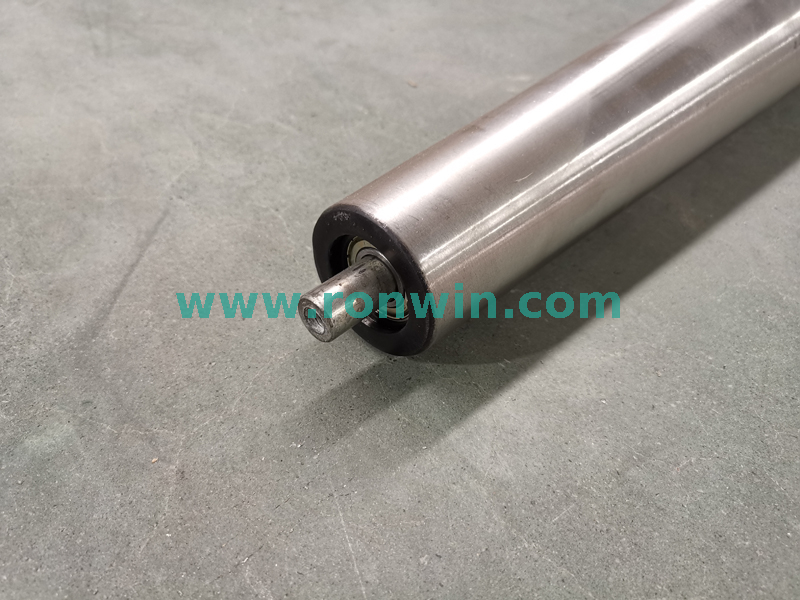

Series R2621 Steel Sprocket Tapered Roller
Application area
Curved section of internal unit handling conveying systems, steel tapered rollers are driven by chain. Matched with straight steel sprocket rollers to integrate box conveyor line. Mainly applied in heavy load conveyors to transport cases, containers, pallets or barrels.

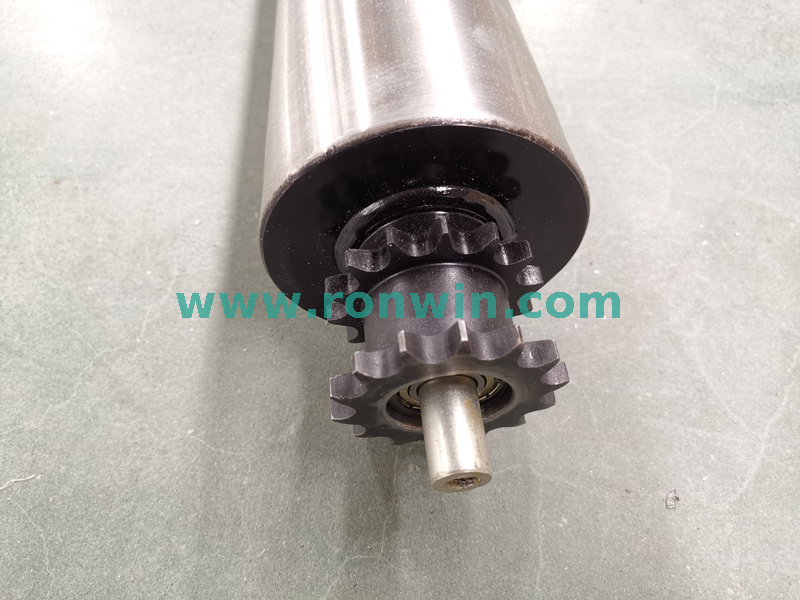

Heavy load capacity
Roller body is welded by steel plate in a certain conical degree, steel sprocket is welded with roller body, make it capable to transmit higher torque, and meet the request of transportation of heavy duty.
Wider range of working environment
Steel roller body and steel sprocket, steel bearing housing with steel precision ball bearing which allowed the roller can works in both high and low temperature.
Good protection against dirt and water
The end cap of roller resists dust and water splash well in working environment.
Technical data
| General technical data | |
| Max. load capacity | 200 KGS |
| Max. conveyor speed | 30 m/min |
| Temperature range | −30 to +80 °C |
Material | |
| Tube | Carbon steel, stainless steel |
| Shaft | Antirust oil coated steel, Zinc-plated steel, Stainless steel |
| Bearing housing | Steel |
| Bearing | Precision ball bearin |
Drive Element | |
Double row sprocket | Zinc-plated steel, black oxidation, 08B14 |
| Design versions | |
| End cap | Polypropylene, yellow/grey |
| Surface treatment | Zinc-plated, chrome-plated |
| Lagging | Rubber, PU |
Diagram of R2621 Series Steel Sprocket Tapered Conveyor Roller
Dimension of series R2621 with female threaded installation
Tube Material | D × T | Shaft | L | Sprocket |
Steel, zinc-plated | 38×1.2 | Φ12/hex 11 | L=W+63 | 08B14T |
Steel, zinc-plated | 42×1.5 | Φ12/hex 11 | L=W+63 | 08B14T |
Steel, zinc-plated | 50×1.5 | Φ12/Φ15/hex 11 | L=W+63 | 08B14T |
D1 | Conical Degree | D2 | |||||
W=200 | W=300 | W=400 | W=500 | W=600 | W=700 | ||
Φ38 | 3.6° | Φ50.6 | Φ56.9 | Φ63.2 | Φ69.5 | Φ75.8 | Φ82.1 |
Φ42 | Φ54.6 | Φ60.9 | Φ67.2 | Φ73.5 | Φ79.8 | Φ86.1 | |
Φ50 | Φ62.6 | Φ68.9 | Φ75.2 | Φ81.5 | Φ87.8 | Φ94.1 | |
