Cuved Conveyor Light Duty Gravity Tapered Sleeve Roller

Material:	Mild Steel
Mounting Method:	female thread spring loaded
Surface Treatment:	zinc plate PP tapered sleeve
Shaft Type:	round hexagonal
Availability:

Quantity:



Inquire Add to Basket

Model:
R1600
Brand:
RONWIN
Code:
HS Code: 8431390000

Product Description

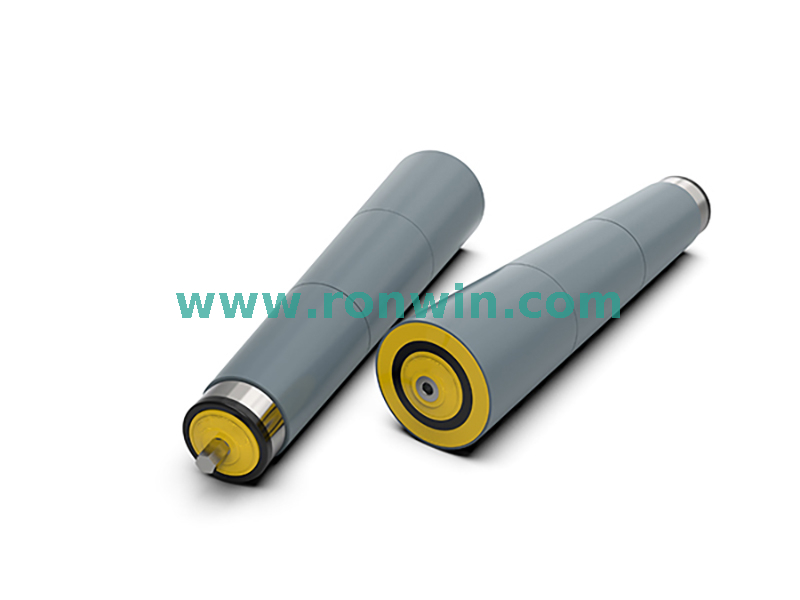

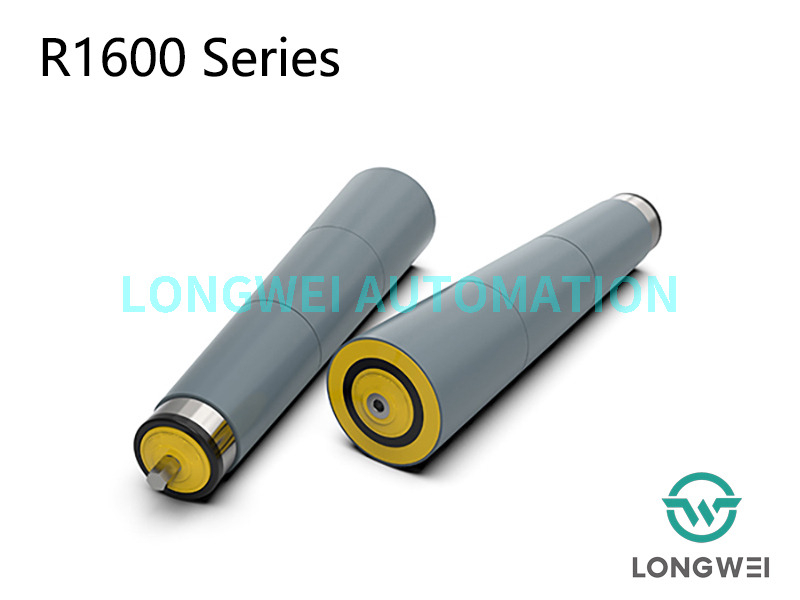

Series R1600 Gravity Tapered Sleeve Roller

Application area

Conveyor systems for Indoor gravity conveyors or push conveyors with manual power or on slopes. Unit goods handling such as transport of cartons, boxes or containers. Especially suited for light and medium load cost-efficient implementation of curved gravity roller conveyors or spiral roller conveyors. Widely applied in workshop, warehouse and logistic center.

Light weight

Based on the R1200 series universal gravity roller, coated by a polypropylene tapered sleeve, it is in light weight and easy to start-up, abrasion low noisy and shockproof, the most important is the short delivery time and lower cost compare to R1500 series gravity tapered steel roller.

Smooth & quiet running

The end bearing assembly consists of a precision ball bearing, a polymer housing and end cap seal. Combined they provide an attractive smooth and quiet running roller.

Dustproof and waterproof

The plastic end cap protect the bearing by providing excellent resistance to dust and splashed water.

Technical data

General technical data
Max. load capacity	50 KGS
Max. conveyor speed	30 m/min
Temperature range	−5 to +40 °C
Material
Tube	Carbon steel, stainless steel
Tube sleeves	PP sleeve, grey/black
Shaft	Antirust oil coated steel, Zinc-plated steel, Stainless steel
Bearing housing	Polyamide, black
End cap	Polypropylene, yellow/grey
Bearing	Precision ball bearing
Design versions
Surface treatment	Zinc-plated, chrome-plated
Standard conical degree	3.6°
