| Power: | |
|---|---|
| Voltage: | |
| roller material: | |
| drive head: | |
| tube shape: | |
| Quantity: | |
DGBL38
RONWIN
HS Code: 8431390000
A motor drive roller (also called a motorized roller or driven roller) is a type of roller used in conveyor systems that integrates an electric motor directly inside the roller. Unlike traditional conveyor systems where an external motor drives the rollers via belts or chains, a motor drive roller has a built-in motor, making the system more compact, efficient, and easier to maintain.
Key Features of Motor Drive Rollers
Built-in Motor – The motor is housed inside the roller, eliminating the need for external drive components.
Direct Drive Mechanism – Power is transmitted directly to the roller, reducing energy loss and improving efficiency.
Modular Design – Easy to install and replace, reducing downtime.
Low Maintenance – Fewer moving parts (no belts, chains, or gears) mean less wear and tear.
Quiet Operation – Reduced noise compared to traditional conveyor drives.
Customizable Speeds – Some models allow speed control via variable frequency drives (VFDs) or controllers.
Common Applications
Conveyor systems in logistics, warehousing, and manufacturing.
Packaging and sorting lines (e.g., in e-commerce fulfillment centers).
Food processing and pharmaceutical industries (where hygiene and cleanliness are critical).
Assembly lines in automotive and electronics industries.

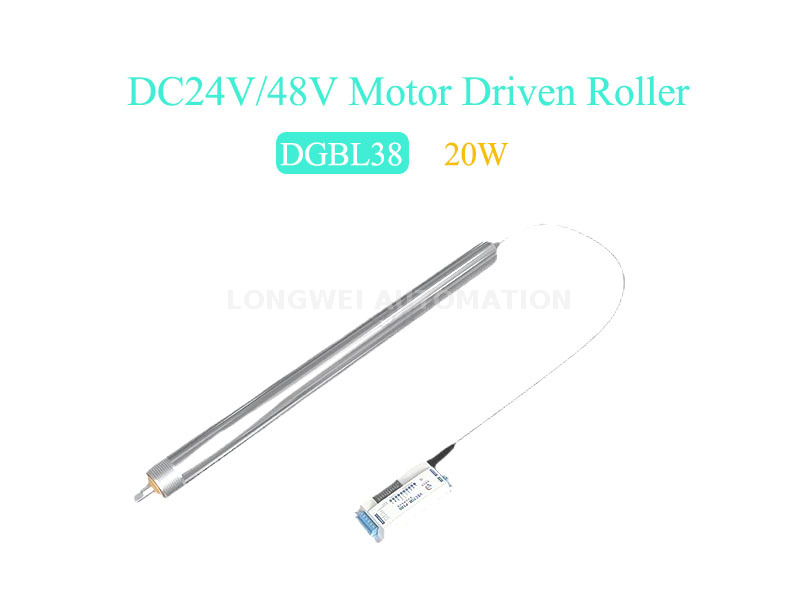

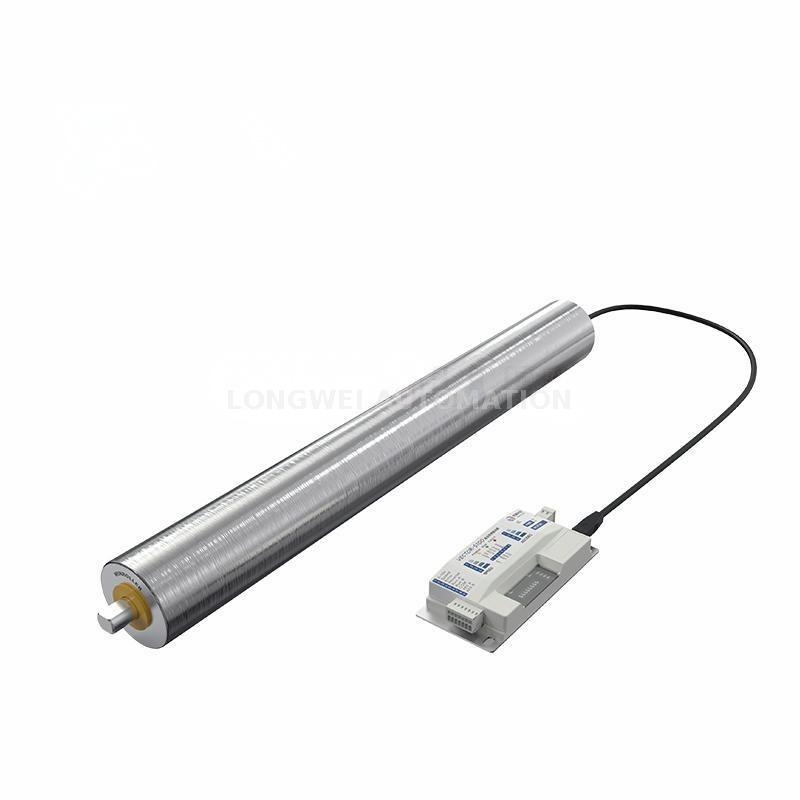

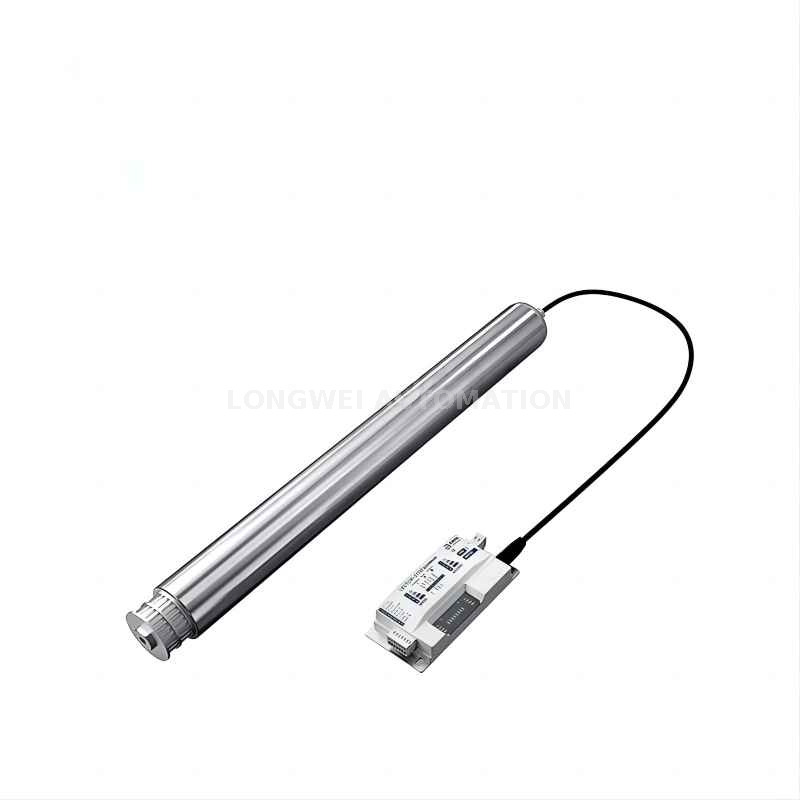

DC24V/48V DGBL38 Gear Motor Driven Roller
Brief Introduction
Specially designed for speed regulation and medium-to-light load scenarios, outstanding performance and stable operation.
High-Efficiency Energy-Saving Power Core: Equipped with a built-in DC brushless geared motor, ensuring high efficiency, energy savings, and long-lasting durability. Paired with a dedicated controller for precise speed control.
Safe Voltage Design: Operates on a safe voltage of 24VDC or 48VDC, guaranteeing reliable and secure usage without concerns.
Wide Speed Range: Adjustable speed from 0.8-79 m/min, with a broad speed regulation range of 12%-130%, meeting diverse needs across different scenarios.
Smart Control with Strong Compatibility: Compatible with multiple intelligent controllers, enabling effortless IO control for convenient operation and high-level intelligence.
Premium Roller Body Material: Roller body options include zinc-plated carbon steel or stainless steel, ensuring robustness and durability. Length can be customized for flexible adaptation.
Versatile Linkage Design: Supports grooved roller and can be fitted with Poly-v pulley, V-pulley, and other linkage components to meet various transmission needs and enhance work efficiency.
Easy and Smart Installation: Simple and convenient setup, paired with an intelligent control system for smooth, efficient, and stable operation.
DC24V /48V Gear Motor Driven Roller-DGBL38 Corresponding Name of Parts
| 1. cable | 3. front bearing housing | 5. gear box | 7. tube wall | 9. end shaft |
| 2. outlet end shaft | 4. motor | 6. fixture | 8. rear bearing housing | 10. Hall chip |

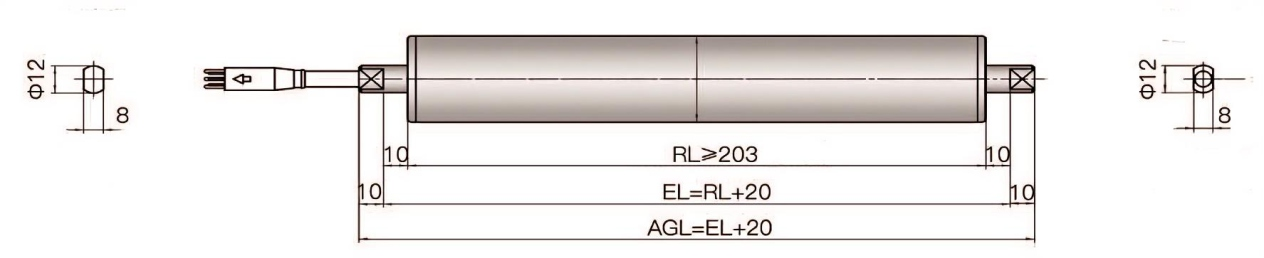

Dimensions
Specification

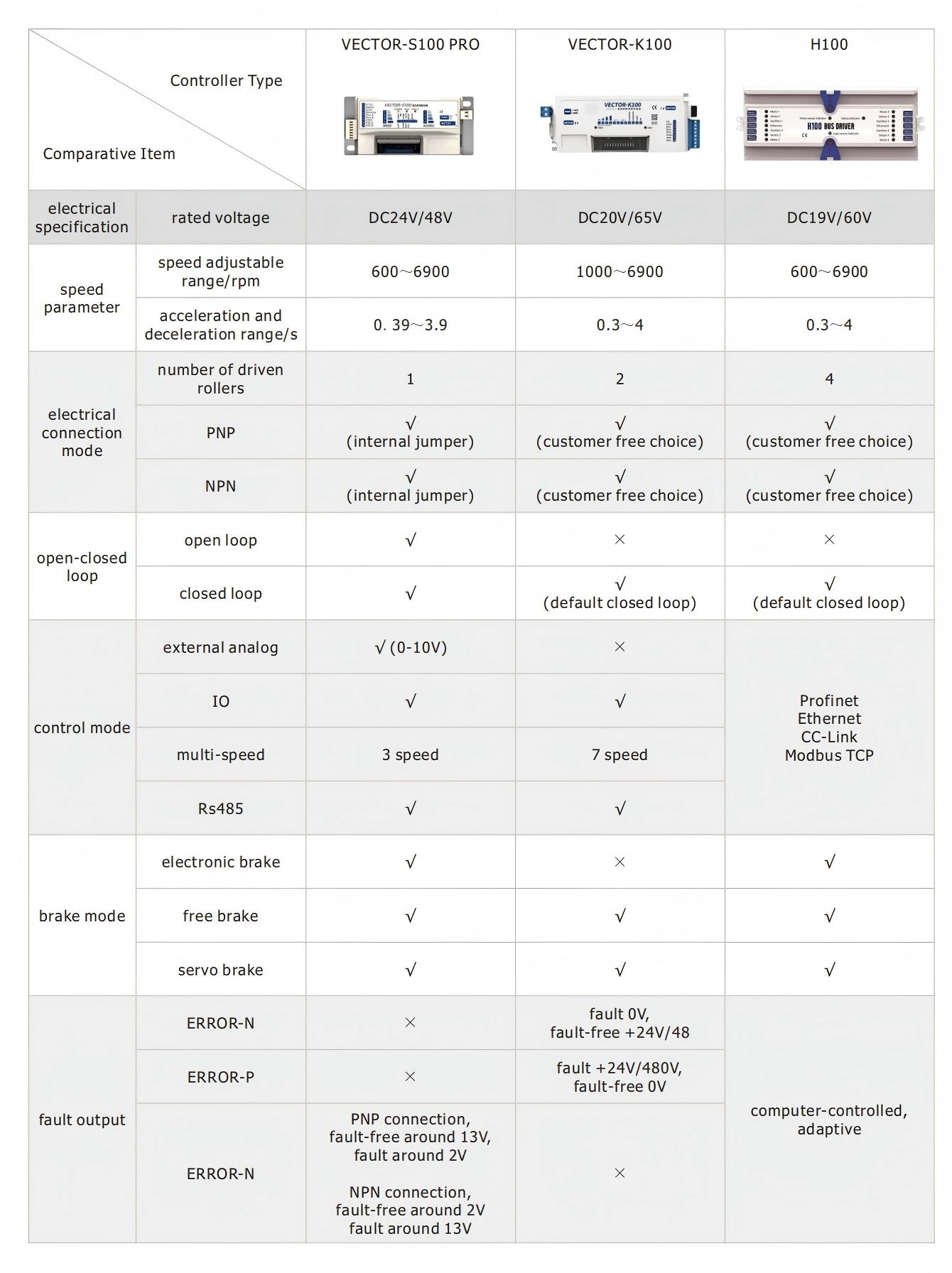

Intelligent Control Drive

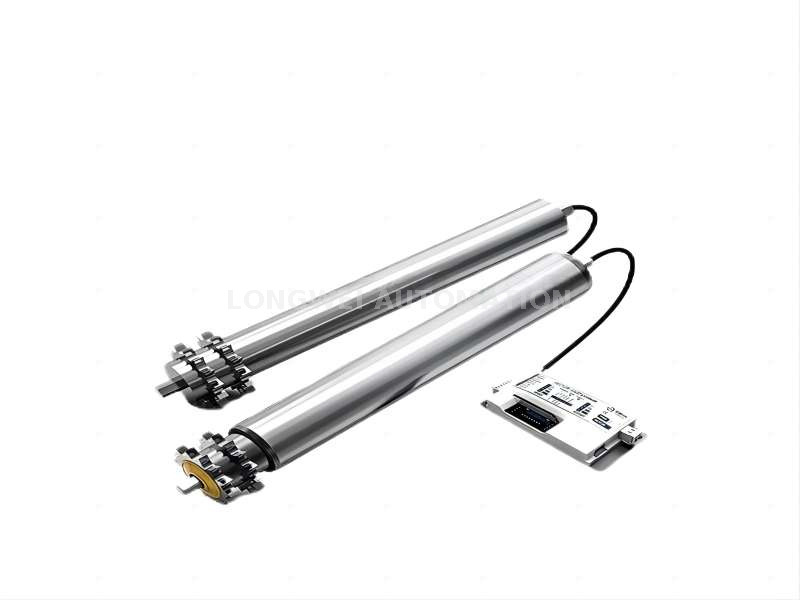

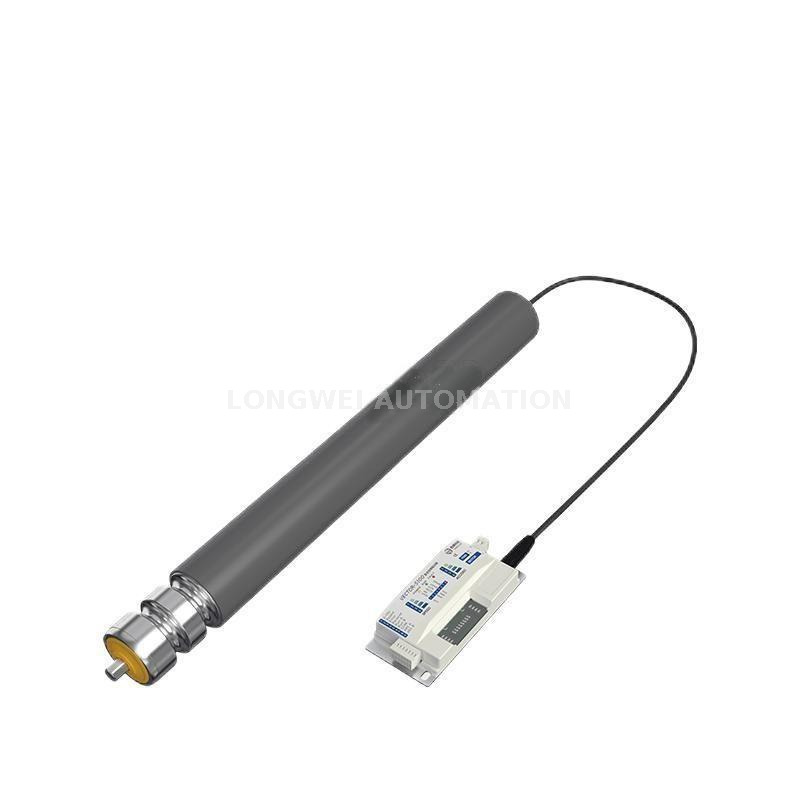

Some Pictures of Customized Motor Driven Roller
poly-v pulley belt driven galvanized steel motor driven roller with controller
steel poly-v pulley galvanized steel motor driven roller
plastic poly-v pulley steel motor driven roller
poly-v pulley tapered motor driven roller with new controller
