SR210 Series Single Sprocket Chain Driven Roller Conveyor
Applications & Features
SR210 series single sprocket chain driven roller conveyor is applicable to the indoor delivery of all kinds of goods be packed in boxes, bags and pallets. Bulk materials, small items or irregular items require on pallet or in turnover box to delivery.
All rollers are driven by a ring chain, the chain is working in a specially-made guide rail, gear motor is mounted in the middle of conveyor, it has features of large conveying capacity, light and fast running and low noisy, etc.

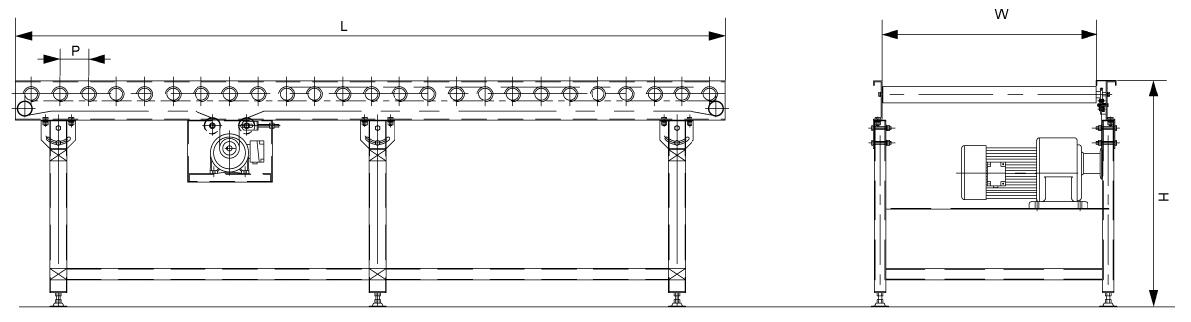

Model no. -rack inner width(W)-rack height(H)-rack length(L)-roller diameter(D)-roller pitch(P)- conveying speed(m/min)
Order no. example(unit mm): SR210-600-800-3000-60-100-10
| Specifications (unit: mm) | |
|---|---|
| roller diameter | 50, 60, 76, 80, 89 |
| roller pitch | 75, 100, 150 |
| rack length | max. 20 meters |
| rack inner width | 500, 600, 700, 800, 900, 1000, 15000 or on customer's request |
| rack height | 500-1500, suggest 500 min. |
| rack material | steel folded-plate, Aluminium profile |
| support leg material | rectagular steel tube, Aluminium profile |
| conveying speed | max. 30m/min, speed is adjustable |
| motor power | 0.37kw, 0.55kw, 0.75kw, 1.5kw |

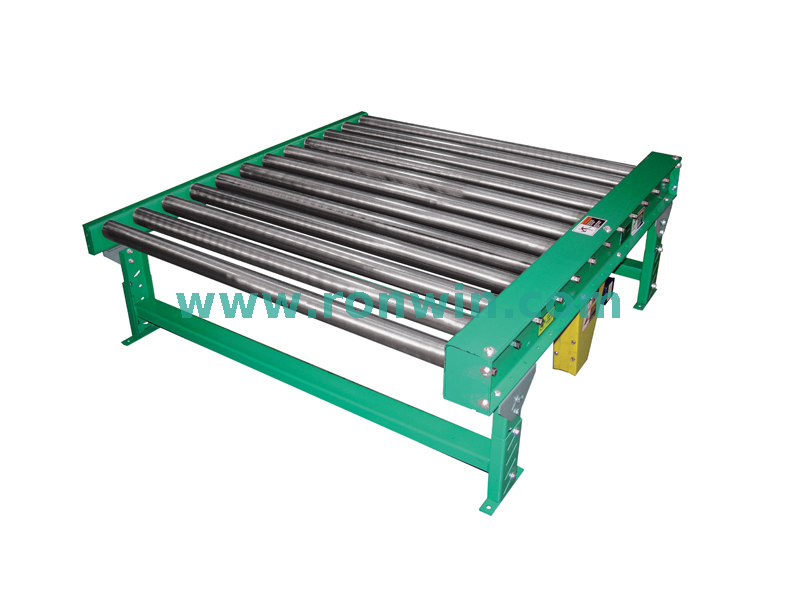

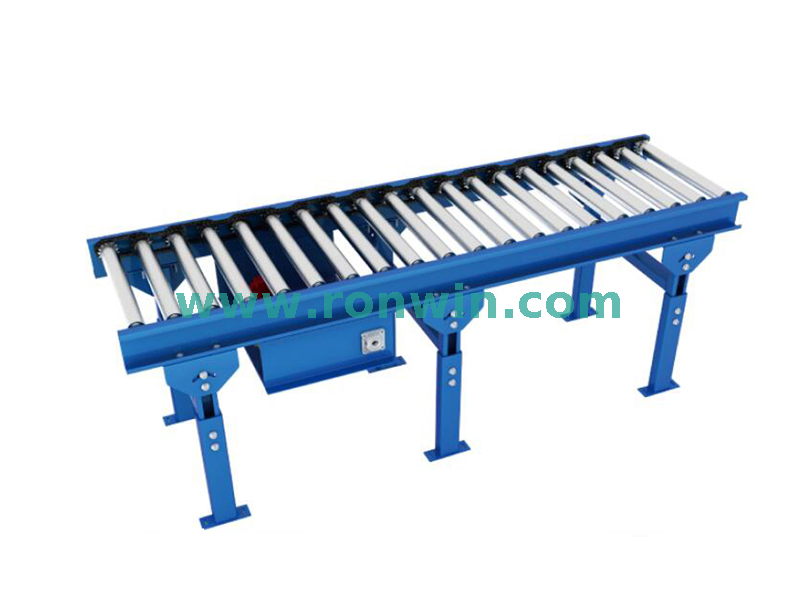

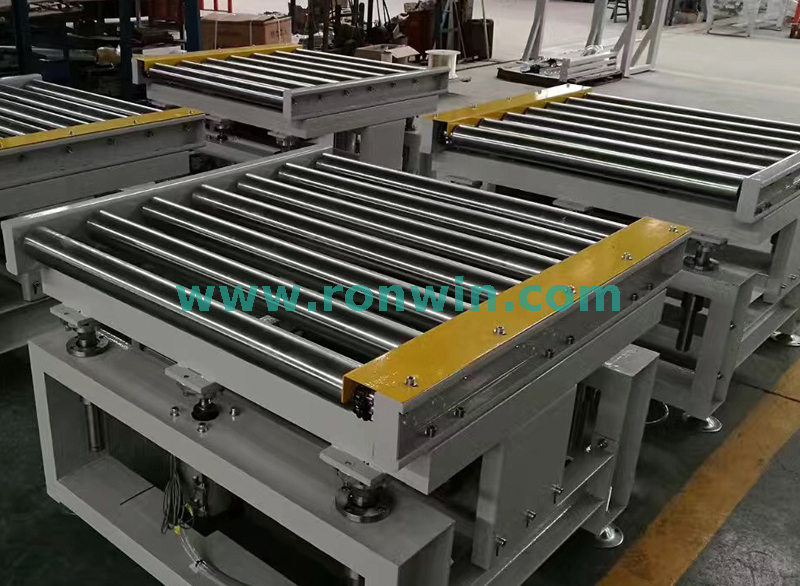

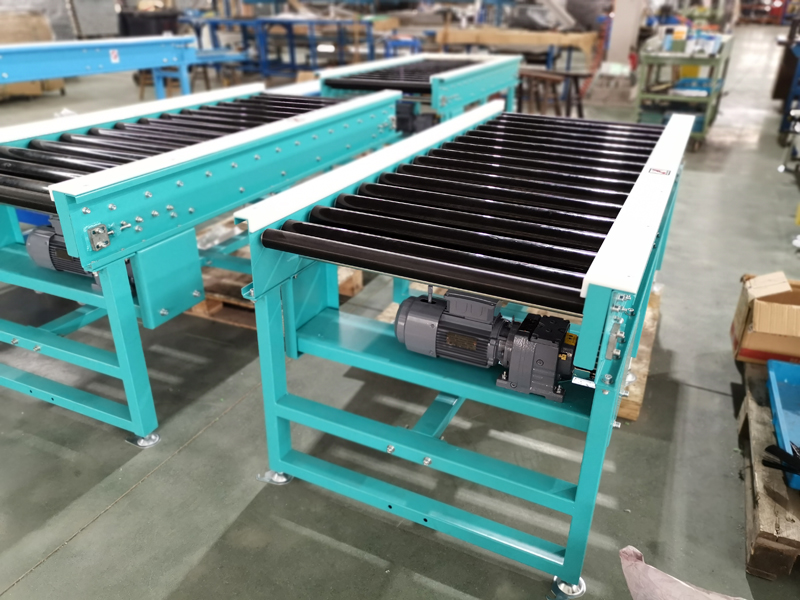

Some product pictures or applications
