SR400
RONWIN

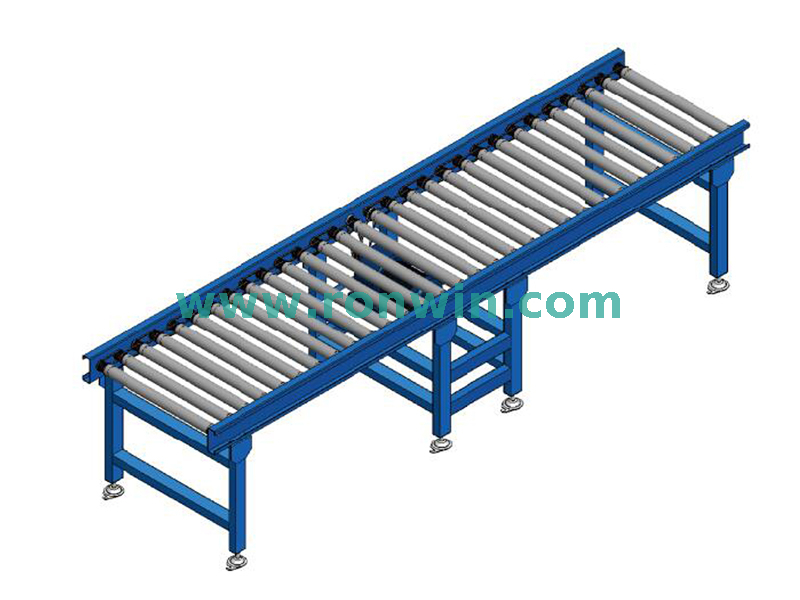

SR400 Toothed Belt Driven Roller Conveyor
Toothed pulley roller conveyor is applicable to the delivery of any type of product, whether it be in a box, a bag, or a pallet. Little, irregular, or bulky products must be delivered on a pallet or in a turnover box.
Toothed belt driving combines the benefits of chain, sprocket, and belt driving. It could ensure precise transmission ratio. It benefits from fast conveyance, minimal noise, and strong abrasion resistance. The center distance requirements are more strict, yet the production and installation precision requirements are quite high.
Model no. -rack inner width(W)-rack height(H)-rack length(L)-roller diameter(D)-roller pitch(P)- conveying speed(m/min)
Order no. example (unit mm): SR400-600-700-5000-50-100-20
| Specifications (unit: mm) | |
|---|---|
| roller diameter | 50, 60 |
| roller pitch | 75, 100, 150 |
| rack length | max. 20 meters |
| rack inner width | 500, 600, 700, 800, 900, 1000, 15000 or on customer's request |
| rack height | 500-1500, suggest 500 min. |
| rack material | steel folded-plate, Aluminium profile |
| support leg material | rectagular steel tube, Aluminium profile |
| conveying speed | max. 30m/min, speed is adjustable |
| motor power | 0.37kw, 0.55kw, 0.75kw, 1.5kw |

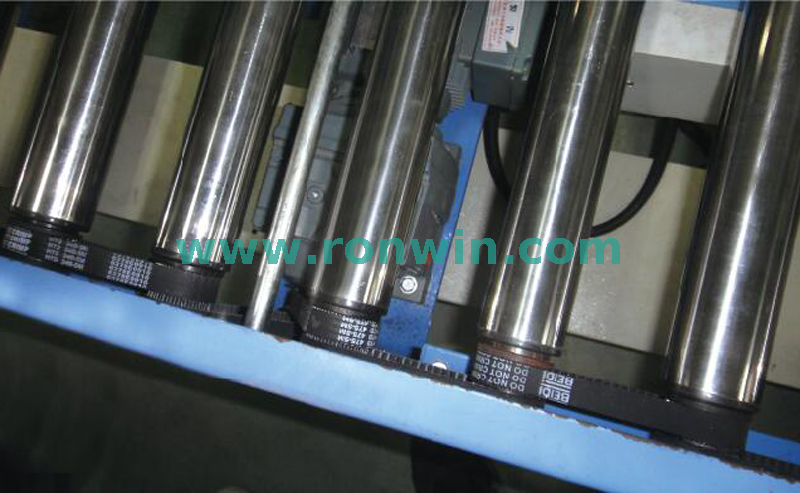

Some product pictures or applications
