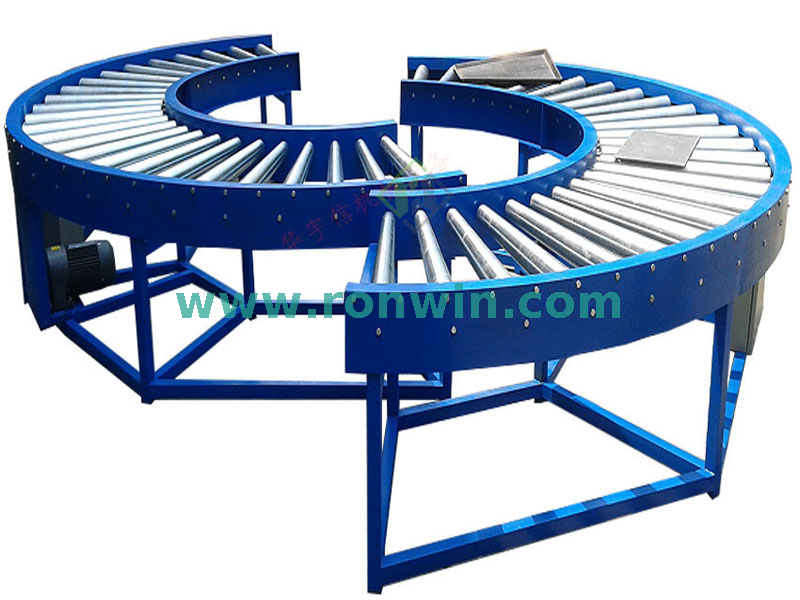

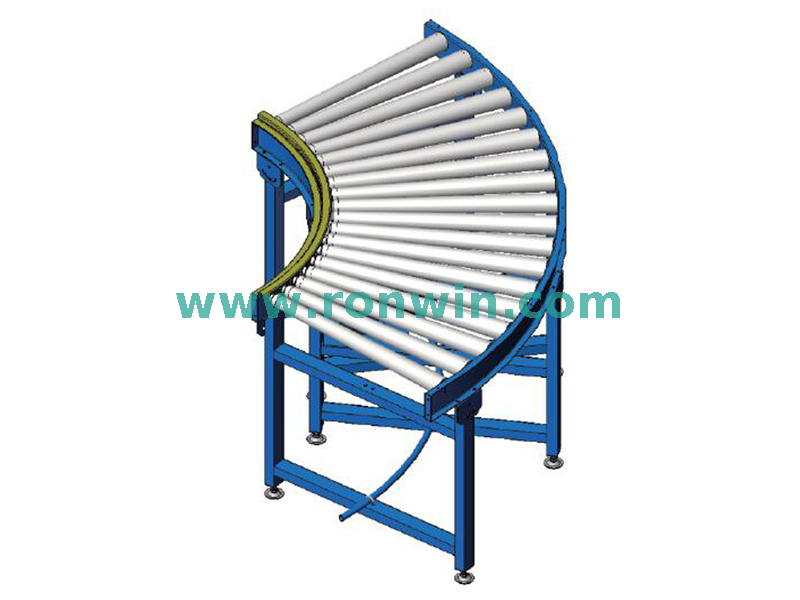

CR210 Single Sprocket Driven Curved Roller Conveyor
Application: The essential piece of equipment in a conveyor system that allows you to angle the conveying direction. Tapered rollers are typically used on curved roller conveyors. Applicable to delivery of all kinds of goods be in boxes, bags and pallets. Bulk materials, small items or irregular items require on pallet or in turnover box to delivery.
Features: All rollers are driven by a ring chain, the chain is working in a specially-made guide rail, motor is mounted in the middle, it has features of large conveying capacity, light and fast running, accumulation effect and low noisy, etc.

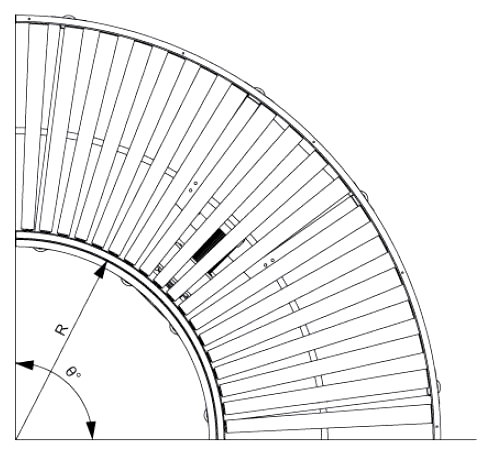

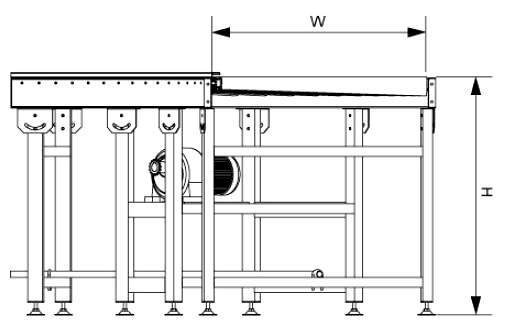

Model no. -rack inner width(W)-rack height(H)-turning radius(R)-turning angle(°)
Order no. example(unit mm): CR210-800-700-900-90
| Specifications (unit: mm) | |
|---|---|
| roller diameter | 50 (small end) |
| turning inside radius | suggest 900 |
| turning angle | 45°, 60°, 90° |
| roller included angle | ≤5° |
| rack inner width | 500, 600, 700, 800, 900, 1000, 1500 |
| rack height | 500-1500 |
| rack material | steel folded-plate |
| support leg material | rectagular steel tube |
| conveying speed | max. 25m/min, speed is adjustable |
| motor power | 0.37kw, 0.55kw, 0.75kw, 1.5kw |

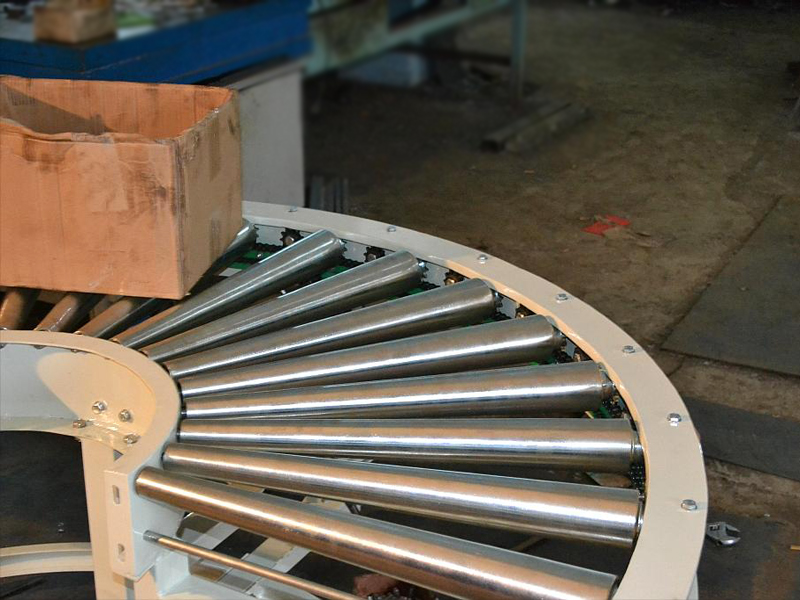

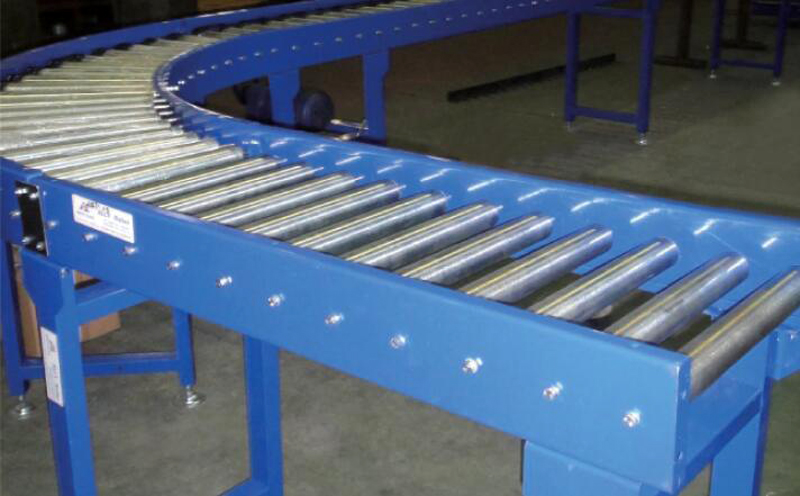

Some product pictures or applications
