SR220
RONWIN

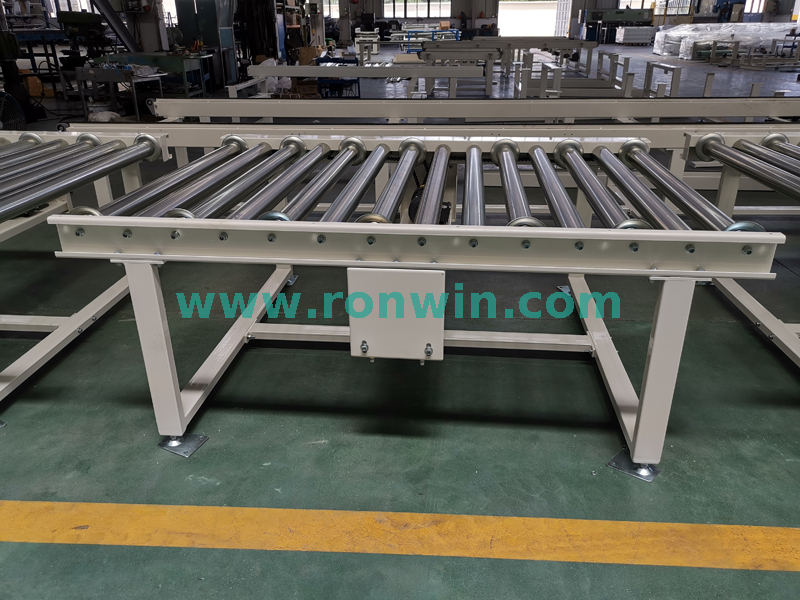

SR220 Double Sprocket Chain Driven Roller Conveyor
Application: Applicable to the delivery of any type of commodity, whether it is in a box, a bag, or a pallet. Little, irregular, or bulky products must be delivered on a pallet or in a turnover box.
Features: It is two chains serially operated and has the ability to achieve a range of collinear flow transmissions due to its huge conveying capacity and stability.

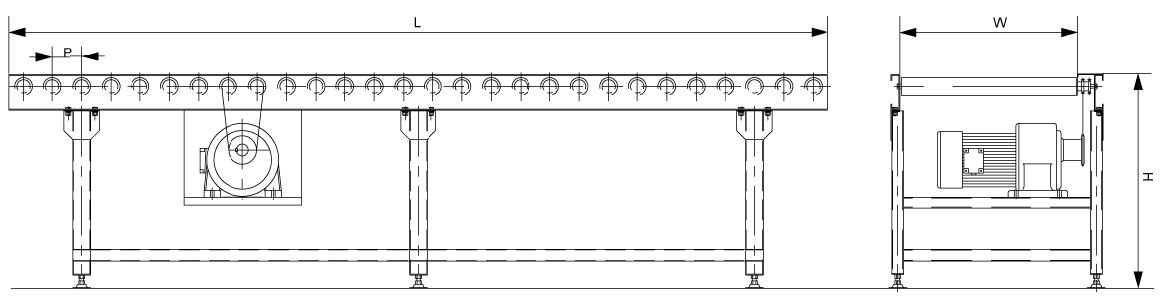

Model no. -rack inner width(W)-rack height(H)-rack length(L)-roller diameter(D)-roller pitch(P)- conveying speed(m/min)
Order no. example(unit mm): SR220-700-800-5000-76-111-15
| Specifications (unit: mm) | |
|---|---|
| roller diameter | 50, 60, 76, 80, 89 |
| roller pitch | 101.5, 111, 127 |
| rack length | max. 10 meters |
| rack inner width | 500, 600, 700, 800, 900, 1000, 15000 or on customer's request |
| rack height | 500-1500, suggest 500 min. |
| rack material | steel folded-plate, Aluminium profile |
| support leg material | rectagular steel tube, Aluminium profile |
| conveying speed | max. 30m/min, speed is adjustable |
| motor power | 0.37kw, 0.55kw, 0.75kw, 1.5kw |

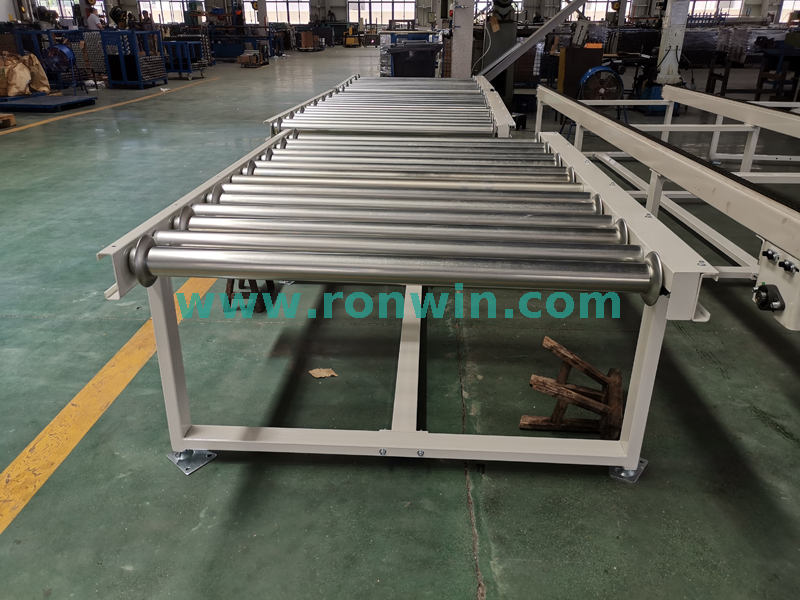

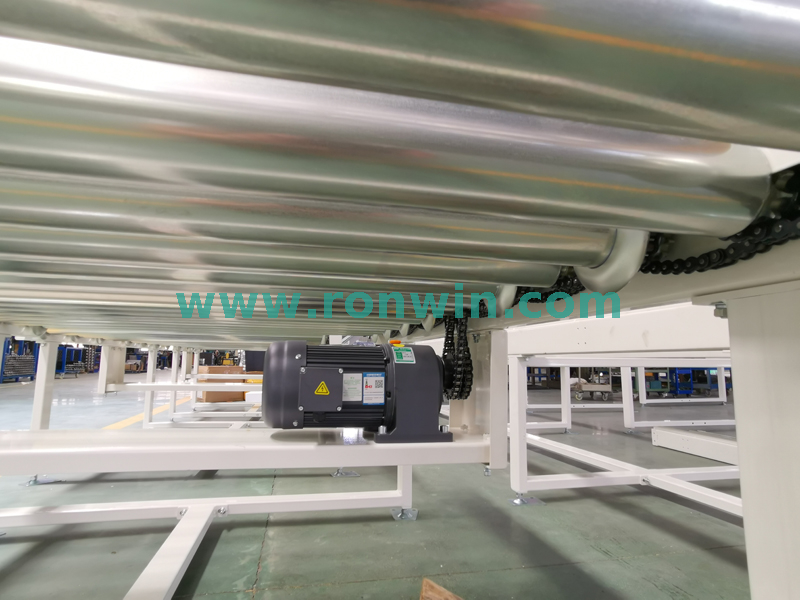

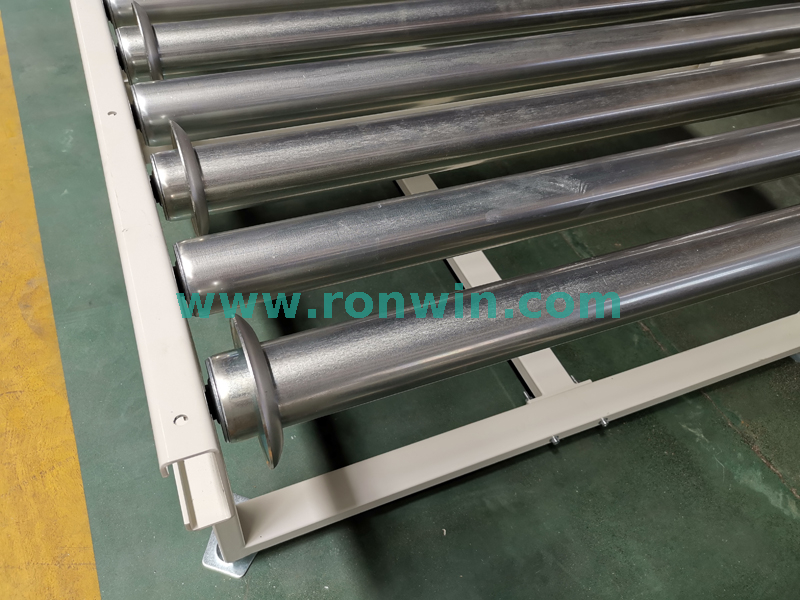

In house test

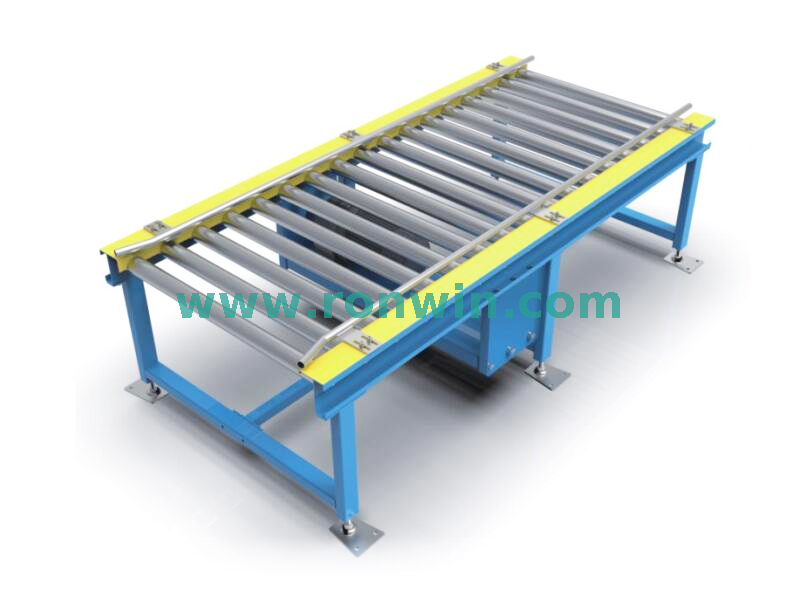

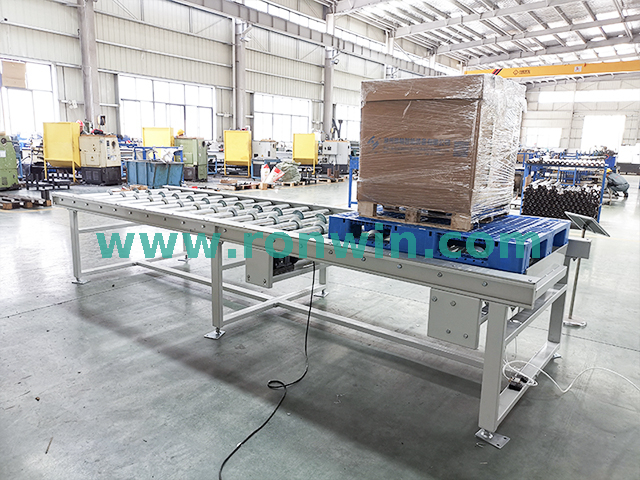

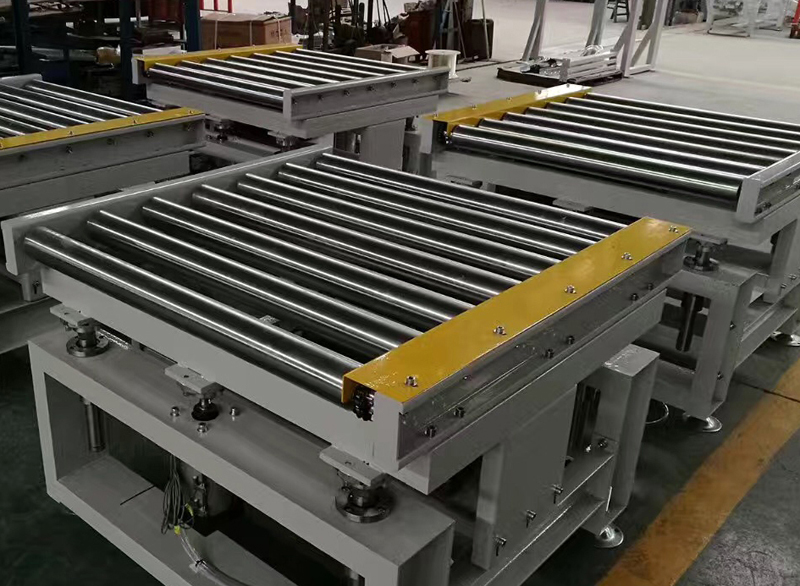

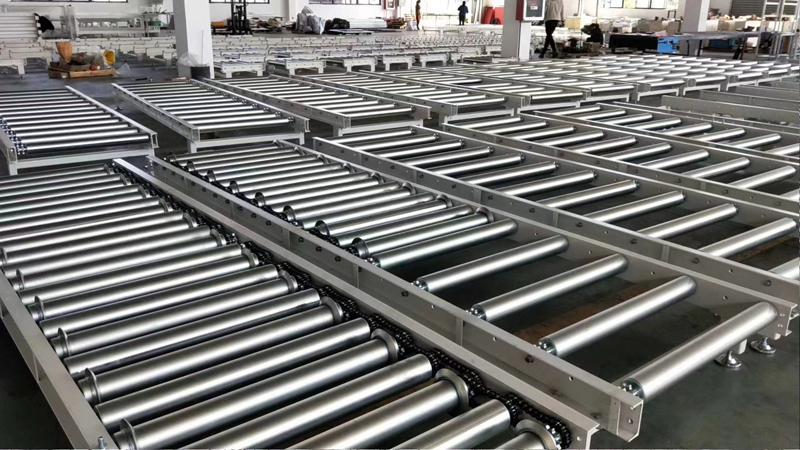

Some product pictures or applications

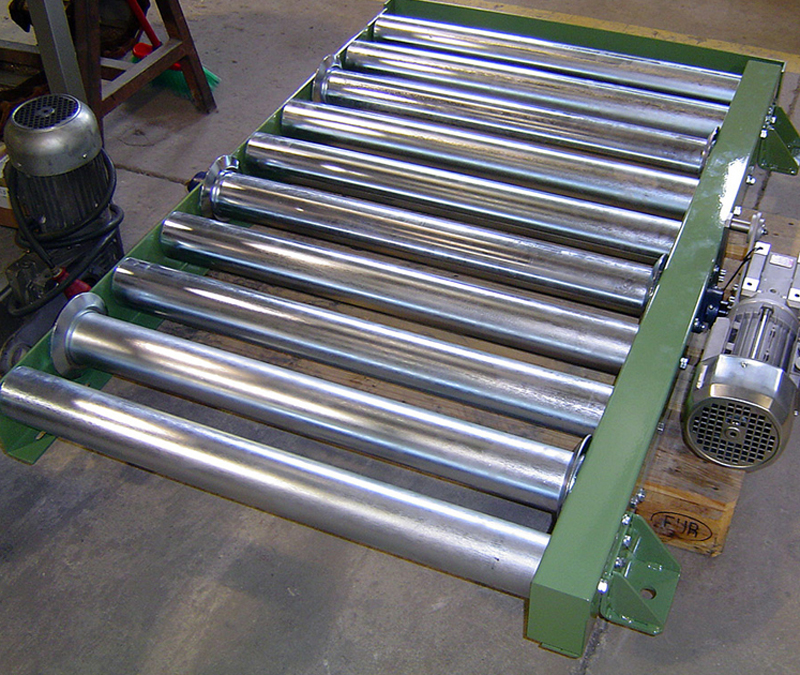

SR220 Double Sprocket Chain Driven Roller Conveyor
