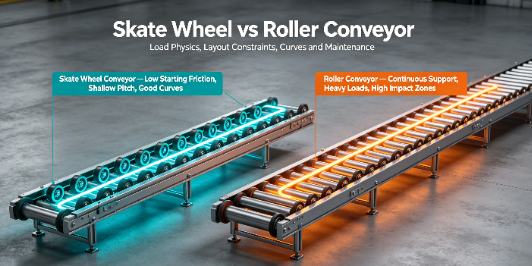

Choosing the correct unpowered material handling system depends entirely on the physical characteristics of the conveyed load and the facility layout. Gravity conveyor systems play a critical role in reducing operational bottlenecks across distribution centers and manufacturing plants. They minimize material handling energy demands, serving as zero-power alternatives to motorized belt systems. Selecting the wrong conveyor type stalls product flow on the warehouse floor. It damages inventory through wheel bite on soft packages. It causes excessive maintenance downtime when components fail under improper loads. It wastes vertical space due to incorrect pitch requirements over long runs. We will compare a skate wheel conveyor vs roller conveyor across load physics, facility layout constraints, and system integration to drive an evidence-based procurement decision.
Load Surface Dictates the System: A Skate Wheel Conveyor requires rigid, flat-bottomed loads (like firm cartons or totes) to prevent surface indentation, while roller conveyors distribute weight evenly, accommodating irregular, soft, or rimmed bottoms.
Pitch and Gravity Constraints: Skate wheel systems possess lower starting friction, requiring significantly less decline pitch to initiate and maintain product flow compared to roller systems.
Curve Tracking Superiority: The independent rotation of individual wheels on a skate wheel conveyor naturally tracks packages through curves without the need for expensive tapered rollers.
Durability and Versatility: Roller conveyors offer superior structural integrity for high-impact loading zones and can be engineered across a wider spectrum of duty classes (light, medium, and heavy-duty).
Table of Contents
A Skate Wheel Conveyor relies on a series of staggered, independent wheels mounted on steel or aluminum axles within a rigid frame. These wheels rotate freely on unground ball bearings or simple bushing setups. They provide a highly responsive conveying surface. The mechanical structure minimizes the contact surface area between the conveyor bed and the package bottom. This minimal contact results in exceptionally low rotational inertia. Low inertia translates directly to less rolling resistance and extremely low starting friction. Packages begin moving with minimal gravitational force or manual effort.
Manufacturers construct these wheels from various materials to suit specific operational environments. Steel wheels offer high durability and wear resistance for standard warehouse applications, typically featuring a zinc-plated finish to resist mild corrosion. Aluminum wheels reduce the overall weight of the conveyor bed, making them ideal for temporary, mobile, or expandable accordion setups used in shipping docks. Polymer or nylon wheels provide quieter operation and resist corrosion in damp environments. The staggered arrangement ensures continuous support for rigid items while allowing each wheel to spin independently based on the load's movement dynamics. Axle spacing usually ranges from 1.5 inches to 3 inches, depending on the required wheel density for the specific package size.
A roller conveyor utilizes full-width cylindrical tubes spanning the entire width of the conveyor frame. These tubes mount on spring-loaded hex axles, locking securely into the side channels to prevent rotation of the axle itself. The fundamental physics of a roller system rely on continuous transverse support. The roller contacts the entire width of the conveyed item simultaneously. This distributed support prevents materials from sagging, deforming, or catching between moving parts during transit.
Roller systems come in multiple variations to handle diverse industrial tasks. Gravity rollers rely solely on the decline pitch or manual pushing to move products. Powered or live rollers integrate drive belts, chains, or motorized internal components to automate product flow. Facilities specify varying tube gauges and bearing types based on the application. Light-duty aluminum rollers handle small packages, while heavy-gauge steel rollers with precision ABEC-1 bearings support massive industrial components. Tube diameters typically range from 1.375 inches for lightweight applications up to 2.5 inches or larger for pallet handling. The continuous surface area makes these systems highly adaptable to irregular loads, wire baskets, and items with uneven weight distribution.
Understanding weight thresholds prevents catastrophic system failure on the warehouse floor. A standard skate wheel system handles light-to-medium duty applications exclusively. Engineers typically restrict these systems to loads under 100 pounds per linear foot. Exceeding this limit causes immediate mechanical stress. The concentrated point loads on individual wheels can deform the wheel bearings or crush the wheel housing. Heavy loads also risk bending the 5/16-inch axles, leading to jammed wheels and stalled product flow. You must calculate both the static weight of the product and the dynamic forces exerted during movement, especially during accumulation where packages bump into one another.
Roller conveyors provide unmatched versatility regarding weight capacity. You can engineer these systems specifically for light-duty, medium-duty, or extreme heavy-duty applications. Heavy-duty roller systems easily support loaded wooden pallets, large steel drums, and heavy manufacturing castings. The full-width steel tubes distribute the downward force evenly across the axle and the frame. By increasing the wall thickness of the roller tube (e.g., moving from 18-gauge to 11-gauge steel) and utilizing heavy-duty 11/16-inch hex axles, a roller conveyor can support thousands of pounds per linear foot without structural deflection. This makes them mandatory for heavy manufacturing and cross-docking operations.
Package bottom shape is a key factor when choosing between skate wheel and roller conveyors. Skate wheel conveyors work best with rigid, flat-bottomed items such as cartons, plastic totes, and wooden crates, with enough wheels supporting the package to prevent stalling or wheel bite. Soft or uneven bottoms can sink between the wheels and become damaged. Roller conveyors provide continuous support across the package, making them better suited for polybags, sacks, drums, and other soft or irregular loads. For smooth movement, at least three rollers should generally support the package at all times.
Skate wheel conveyors are less suitable for high-impact loading because dropped heavy items concentrate force on a few wheels, which can bend axles, damage bearings, or break polymer wheels. They are better suited to controlled loading of lighter products. Roller conveyors distribute impact across strong steel rollers and frames, making them more suitable for drop zones, forklift loading areas, and heavy-duty sorting stations. For demanding applications, thick-walled steel rollers and heavy-duty bearings can provide greater durability and longer service life.
Gravity conveyors need the correct slope to keep packages moving at a safe speed. Skate wheel conveyors require less slope because their lightweight wheels have low starting resistance, typically using about 1.5–2 inches of decline per 10 feet for standard boxes. Roller conveyors generally require a steeper slope of around 3–5 inches per 10 feet because the heavier rollers need more force to start moving. The exact slope depends on load weight, roller material, and bearing type, making skate wheel conveyors especially useful for long runs or facilities with limited vertical space.
Conveyor Type | Typical Load Weight | Required Pitch (per 10 ft) | Elevation Drop over 100 ft |
|---|---|---|---|
Skate Wheel (Light Duty) | 10 - 30 lbs | 1.5 inches | 15 inches |
Skate Wheel (Medium Duty) | 30 - 50 lbs | 2.0 inches | 20 inches |
Roller (Light Duty Aluminum) | 20 - 50 lbs | 3.0 inches | 30 inches |
Roller (Medium Duty Steel) | 50 - 150 lbs | 4.0 inches | 40 inches |
Roller (Heavy Duty Steel) | 150+ lbs | 5.0+ inches | 50+ inches |
Skate wheel conveyors handle curves efficiently because each wheel rotates independently, allowing the outer wheels to move faster than the inner wheels and helping packages stay centered through turns. Standard roller conveyors have more difficulty with curves because full-width rollers rotate at the same speed across the conveyor, which can cause packages to shift or rotate. Tapered rollers are often used on roller conveyor curves to improve package tracking and ensure smoother movement around corners.
Skate wheel conveyors work well for sorting, diverting, and temporary packaging lines because their low rolling resistance allows operators to move boxes easily between stations. Roller conveyors are better suited for automated packaging equipment such as wrappers, strappers, and case sealers because they provide a continuous, stable surface. This helps sensors detect packages accurately and ensures smooth transfers into automated machines, reducing the risk of jams or sensor errors.
Skate wheel and roller conveyors have different maintenance needs. A damaged skate wheel is quick and easy to replace, but exposed axles can collect stretch wrap, tape, and other debris, causing wheels to jam and requiring regular cleaning. Roller conveyors take slightly more effort to repair because the entire roller must be replaced, but their strong steel tubes and enclosed bearings are more durable and less likely to collect debris, making them more reliable in busy or messy warehouse environments.
Both systems offer exceptional zero-power energy savings compared to motorized belt conveyors. By utilizing gravity and manual force, facilities drastically reduce their electrical consumption and carbon footprint. However, environmental constraints impact performance. In washdown environments or facilities with extreme temperature fluctuations, material selection is paramount. Polymer skate wheels or stainless steel rollers resist corrosion, but you must specify the correct bearing grease. Standard grease thickens in freezing temperatures, increasing rolling resistance and stalling gravity flow in cold storage facilities.
Operational noise levels also influence system selection. Skate wheels generate distinct acoustic profiles. At high speeds, the multiple independent moving parts create a continuous rattling noise. The metal-on-metal contact between steel wheels and axles amplifies this sound, which can become fatiguing in large facilities. Roller conveyors generally operate much more quietly. The continuous tubes and enclosed precision bearings produce a low hum, improving the acoustic environment for warehouse personnel working adjacent to the lines for extended shifts.
Deploy a skate wheel system when your operational parameters align with lightweight, rigid packaging. This system maximizes efficiency under specific conditions.
Lightweight uniform boxes, rigid plastic totes, and solid cartons.
Limited vertical space requiring shallow decline pitch for gravity flow.
Complex facility layouts demanding multiple curves and directional changes.
Temporary or expandable shipping lines utilizing flexible accordion conveyors.
Manual push-lines where operators require minimal physical effort to move product queues.
Select a roller system when durability, heavy loads, and irregular packaging dominate your material handling requirements.
Heavy or variable-weight loads, including loaded pallets and steel drums.
Soft, irregular package bottoms, polybags, and poorly sealed cartons.
High-impact loading zones and forklift interaction areas.
Environments requiring future integration with powered or motorized drive systems.
Automated sorting stations demanding continuous, stable load transfers.
Modern material handling rarely relies on a single technology. Engineering a mixed system leverages the strengths of both conveyor types. You can design a layout that utilizes heavy-duty roller conveyors in the loading and impact zones. Once the package stabilizes and exits the drop zone, the system transitions to a skate wheel setup for the long gravity run. This hybrid approach absorbs the initial shock with steel rollers, then capitalizes on the low pitch requirements and superior curve tracking of the skate wheels for the remainder of the journey.
Follow these steps to integrate a hybrid system effectively:
Identify the primary impact zones where operators load products onto the line.
Install heavy-gauge steel roller conveyors in these specific impact zones to absorb shock.
Calculate the transition point where the package achieves stable forward momentum.
Connect the roller section to a skate wheel conveyor using a flush mounting bracket to prevent tripping the package.
Utilize skate wheel sections for all subsequent curves and long gravity runs to conserve vertical space.
Feature | Skate Wheel Conveyor | Roller Conveyor |
|---|---|---|
Load Support | Point contact (requires rigid, flat bottoms) | Continuous transverse support (handles soft/irregular bottoms) |
Weight Capacity | Light to medium duty (typically <100 lbs/ft) | Light to extreme heavy duty (handles pallets) |
Pitch Requirement | Low (1.5" - 2" per 10 feet) | High (3" - 5" per 10 feet) |
Curve Tracking | Excellent (differential rotation keeps items centered) | Requires specialized tapered rollers to prevent skewing |
Impact Resistance | Low (prone to bent axles and shattered wheels) | High (steel tubes absorb heavy drop impacts) |
Debris Susceptibility | High (tape and wrap easily tangle in exposed axles) | Low (enclosed bearings resist entanglement) |
The choice between a skate wheel system and a roller system is a strict engineering calculation. It relies entirely on load bottom integrity, product weight, available decline pitch, and automation integration requirements. You must eliminate skate wheels immediately if you convey bags or soft-bottomed items. Conversely, you should eliminate rollers if you need to move light boxes through multiple tight curves with minimal vertical drop.
Take the following steps to finalize your system design:
Conduct a physical flow test using your facility's specific packaging to check for wheel bite or tracking issues.
Audit your proposed floor plan to calculate the exact vertical drop available for gravity pitch.
Identify all high-impact loading zones and specify heavy-gauge steel rollers for those specific sections.
Consult a material handling integrator to verify the transition points between different conveyor types.
A: Standard skate wheels are restricted to light and medium loads. While heavy-duty steel wheels exist, concentrated point loads from heavy items risk severe axle deflection. Dropping heavy items onto individual wheels causes bearing failure. For heavy loads, roller systems provide necessary structural support.
A: Skate wheels possess significantly less rotational mass than full-width steel tubes. This low inertia results in minimal starting friction. Packages overcome rolling resistance instantly, allowing the system to maintain product flow on a much shallower decline angle.
A: No. Standard pallets require heavy-duty roller conveyors. Pallets possess uneven bottom boards, protruding nails, and massive weight. Skate wheels will catch between the pallet slats, causing the load to jam instantly and destroying the conveyor axles.
A: Skate wheels perform exceptionally well on curves. Each wheel spins independently on its axle. The outer wheels spin faster than the inner wheels, creating a differential action that naturally keeps packages centered without requiring specialized tapered components.
A: You must calculate the correct decline pitch to prevent excessive speed. Install side guardrails on long runs and curves. Ensure you select a conveyor width that provides adequate clearance for your widest package dimensions.
A: Yes. Engineers frequently design hybrid systems. You can install heavy-duty rollers in forklift loading zones to absorb impact, then transition the line to skate wheels for long gravity runs and curves to conserve vertical space.
