Selecting the wrong material handling system creates chronic production bottlenecks or leads to unnecessary capital depreciation from over-engineered automation. Facility managers and industrial engineers must balance immediate throughput requirements, precise product control needs, and facility footprint against capital expenditure and maintenance complexity. The core problem boils down to evaluating whether a non-motorized system can handle the required volume or if automated pacing is strictly necessary to meet operational targets. Deciding between these two primary conveyor types requires a deep understanding of your facility's specific load profiles and workflow dynamics. It is not a binary choice of one being universally better than the other. Instead, it involves a strategic alignment of mechanical capabilities with your exact operational demands. You will learn how to evaluate throughput, assess load characteristics, and determine the precise automation requirements that dictate the right equipment choice for your warehouse or manufacturing plant.
Cost vs. Control Trade-off: Gravity systems offer significantly lower CapEx, zero energy consumption, and minimal maintenance costs but sacrifice product spacing, precise positioning, and incline capabilities.
Application Specificity: Powered roller conveyors are mandatory for zero-pressure accumulation, precise automated routing, and incline transport, whereas a gravity roller conveyor excels in manual assembly stations, packing lines, and short-distance staging.
Modularity vs. Permanence: Gravity systems offer high flexibility and easy reconfiguration, whereas powered systems are typically fixed assets requiring electrical and software integration.
Hybrid Viability: Most optimized facilities utilize a hybrid approach, deploying powered zones for critical transport and gravity zones for end-of-line accumulation or manual intervention.
Table of Contents

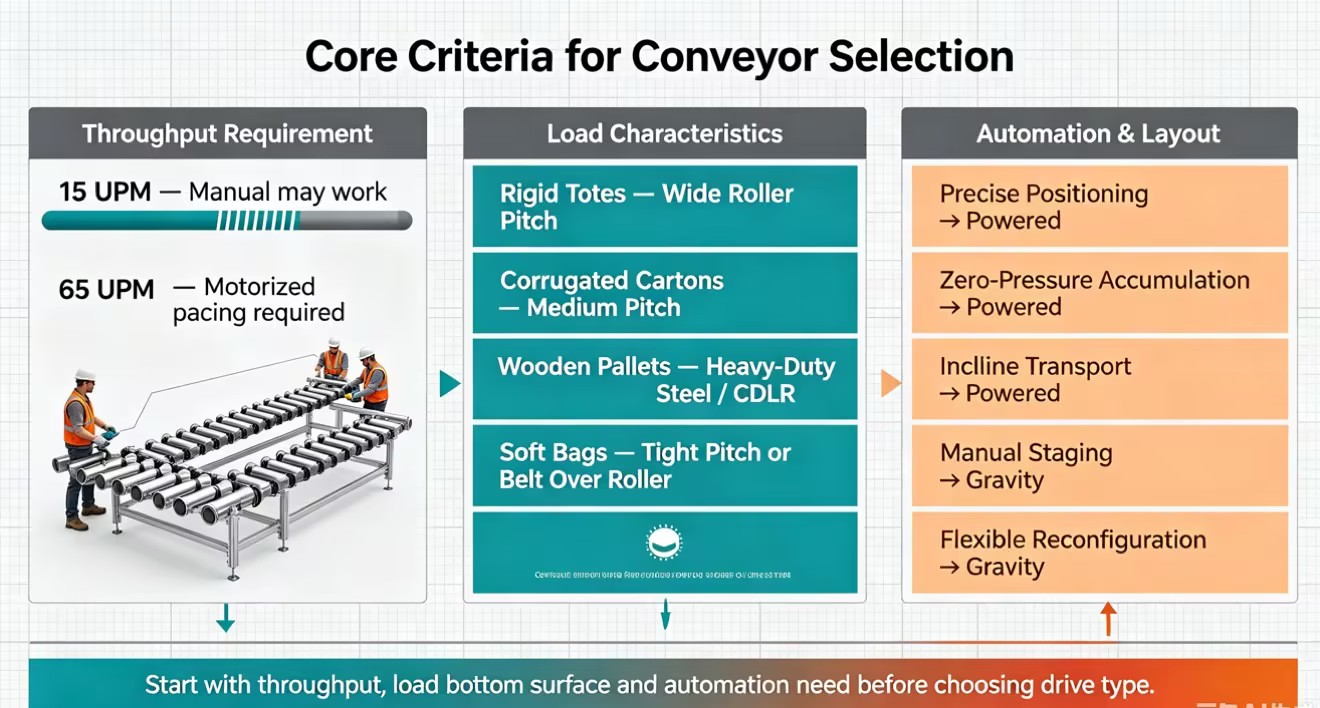

Every successful material handling project begins with a rigorous evaluation of operational data. You cannot select the right equipment without first defining the exact parameters of what you are moving and how fast it needs to move. Engineers look at several core criteria to determine the mechanical requirements of a conveyor line. We rely on hard data from the warehouse floor rather than assumptions.
Throughput targets directly dictate the necessity for automated pacing. We measure this in units per minute (UPM) or cases per hour. High-volume distribution centers pushing thousands of cartons an hour require consistent, motorized speed to prevent jams. Manual or gravity-fed flow simply cannot sustain high UPM targets without causing severe bottlenecks. When your volume demands exceed the physical capacity of operators to manually push or catch products, motorized systems become a strict requirement. For example, a line processing 15 cartons per minute might function perfectly with manual intervention. Scale that up to 65 cartons per minute, and human operators will fail to keep pace, leading to immediate line backups.
The physical properties of your product determine the roller pitch, diameter, and drive force necessities. Heavy pallets require thick steel rollers and robust chain drives. Fragile electronics need smooth, controlled acceleration to prevent internal damage. The bottom surface material of your load also plays a massive role. Rigid plastic totes glide easily over skate wheels. Corrugated cardboard boxes might deform or catch if the roller pitch is too wide. You must match the mechanical design of the conveyor bed to the specific footprint and weight distribution of your heaviest and lightest loads.
To illustrate how load types dictate equipment choices, consider the following operational parameters:
Load Type | Bottom Surface | Recommended Roller Pitch | Conveyor Suitability |
|---|---|---|---|
Plastic Totes | Rigid, flat | Wide (3 to 4 inches) | Excellent for non-motorized skate wheels or rollers. |
Corrugated Cartons | Semi-rigid, prone to moisture damage | Medium (2 to 3 inches) | Requires close roller spacing to prevent bottom sagging. |
Wooden Pallets | Uneven, heavy | Narrow, heavy-duty steel | Strictly requires motorized chain-driven systems. |
Bagged Goods | Soft, conforming | Very tight or belt-over-roller | Poor fit for bare rollers; requires belt support. |
Modern warehouses rely heavily on downstream automation. Robotic palletizers, inline barcode scanners, and automated strapping machines require exact product positioning. Downstream equipment must receive items at specific intervals and in precise orientations. Only motorized systems can provide this level of indexing. If your workflow involves scanning labels on the fly or merging multiple lanes into a single sorter, you need the sensor-driven control that motorized rollers provide. You cannot expect a non-motorized decline to feed a high-speed sortation shoe with the millimeter precision required to prevent catastrophic jams.
Available floor space and elevation changes heavily influence system viability. Moving products up an incline requires mechanical power. Moving them down a long decline requires careful speed control to prevent dangerous collisions. Environmental factors also dictate equipment choices. Facilities dealing with heavy dust, extreme temperatures, or strict washdown requirements must select components rated for those specific conditions. Motorized systems introduce electrical components that require specialized housing in harsh environments, whereas non-motorized frames can often withstand rugged conditions with fewer modifications.
Non-motorized systems form the backbone of many manual material handling operations. They are beautifully simple in their engineering, relying entirely on physics and human interaction rather than electricity and programmable logic controllers. We see these deployed extensively in areas where human operators dictate the pace of work.
The physics of non-powered movement rely strictly on a calculated decline angle or manual operator force. Products move across free-spinning rollers or skate wheels mounted within a metal frame. Engineers calculate the necessary pitch based on the weight of the product and the friction of the roller bearings. A heavier box requires a shallower pitch to maintain a safe speed, while a lighter box needs a steeper angle to overcome initial static friction. When installed flat, these systems require operators to physically push the materials from one station to the next.
These systems excel in highly specific, localized applications. Manual assembly lines utilize them to allow workers to push products to the next station at their own pace. Packing and shipping stations use them to stage completed orders before loading. Temporary staging areas benefit greatly from their modularity. Expandable and flexible versions are standard equipment for truck loading and unloading, allowing workers to stretch the line directly into the trailer. For these applications, a Gravity Roller Conveyor provides exceptional utility without the need for complex electrical integration.
The simplicity of non-motorized movement introduces distinct operational limitations. The most significant drawback is the complete lack of speed control. On long declines, heavy products can accelerate to dangerous speeds, risking severe product collision and damage. Furthermore, these systems cannot move products up inclines. They lack the ability to space products evenly or position them precisely for automated scanners. Relying on manual pushing for heavy loads over flat sections also introduces significant ergonomic risks, potentially leading to operator fatigue and musculoskeletal injuries.
When throughput demands outpace manual capabilities, motorized systems take over. These conveyors introduce mechanical drives, sensors, and logic controllers to automate the flow of materials across the facility floor. We install these when the operation demands strict pacing and zero human intervention during transit.
Engineers utilize several distinct drive mechanisms depending on the load. We categorize these based on how the mechanical force transfers to the rollers.
Motorized Driven Roller (MDR): These systems use internal 24V DC motors housed directly within specific rollers. MDR systems operate quietly, consume less energy, and allow for highly granular zone control.
Chain-Driven Live Roller (CDLR): These use heavy-duty chains and sprockets connected to an AC motor. We use CDLR as the standard choice for moving massive loads like loaded wooden pallets or heavy steel drums.
Belt-Driven Live Roller (BDLR): These utilize a motorized belt running beneath the rollers to create friction and drive the load forward. They offer a reliable solution for medium-weight cartons and varied load sizes.
Motorized systems dominate scenarios requiring strict product control. Zero-pressure accumulation (ZPA) is a primary use case. ZPA divides the conveyor into distinct zones equipped with photo-eye sensors. The system logic ensures that products never touch each other, preventing damage during accumulation. Automated sorting, high-speed merging lanes, and precise indexing for robotic picking all demand motorized drives. Additionally, any long-distance transportation across a massive distribution center or movement between different elevation levels requires mechanical power.
The advanced capabilities of motorized systems come with notable trade-offs. They require a significantly higher initial capital expenditure. They consume continuous electrical energy and rely on robust electrical infrastructure throughout the facility. Some drive types, particularly CDLR, generate high noise levels that can impact the working environment. Most importantly, these systems require specialized maintenance personnel. Troubleshooting a programmable logic controller (PLC) or replacing a burned-out drive motor demands technical expertise that simple non-motorized frames do not require.
Understanding the exact differences between these two technologies dictates facility planning. A direct technical comparison reveals how each system impacts your operational efficiency, maintenance schedules, and facility adaptability. Analyzing the gravity roller conveyor vs powered roller conveyor dynamic helps engineers allocate capital effectively.
Non-motorized systems present a very low barrier to entry. The upfront hardware and installation costs are minimal because they consist solely of frames, rollers, and supports. Operating expenses are virtually zero since they consume no electricity and require very few replacement parts. Motorized systems require a substantial initial investment. You must purchase motors, sensors, wiring, and control panels. The OpEx is also higher due to continuous energy consumption, routine replacement of wear parts like belts and chains, and the higher labor rates of specialized maintenance technicians.
Control is the primary differentiator. Non-motorized systems offer uncontrolled, physical-contact accumulation. Products slide down a decline and physically bump into one another until the line backs up. This back-pressure can crush fragile items. Motorized systems utilize sensor-driven, non-contact zone control. The logic controller tracks every carton, stopping individual zones to maintain a set gap between products. This zero-pressure accumulation is mandatory for handling fragile goods or feeding automated packaging machinery.
Warehouses frequently change layouts to accommodate new product lines. Non-motorized frames offer exceptional flexibility. You can unbolt sections, move them across the floor, and reassemble them in hours without calling an electrician. Motorized installations are rigid, fixed assets. Moving a motorized line requires disconnecting high-voltage power, rerouting communication cables, reprogramming the PLC, and conducting extensive testing. Once a motorized system is bolted down, it generally stays there.
Facilities prioritizing green initiatives often lean toward non-motorized options where possible. They are zero-power, eco-friendly assets that generate very little noise. Motorized systems carry a distinct electrical demand and acoustic footprint. However, modern MDR technology significantly mitigates these issues compared to traditional AC motors. MDR systems employ run-on-demand logic, meaning the rollers only spin when a product is actively moving through that specific zone, drastically reducing both energy consumption and ambient warehouse noise.
Installing a non-motorized line is a straightforward mechanical task. Maintenance involves basic visual inspections, clearing debris, and occasionally replacing a seized bearing. If a single roller fails, the line usually keeps running. Motorized systems involve complex integration. Installation requires mechanical fitters, electricians, and software programmers working in tandem. Maintenance is highly technical. If a main drive motor fails or a PLC faults, the entire line stops, creating immediate and costly operational downtime.
Modern logistics rely on data. Motorized systems integrate seamlessly with Warehouse Management Systems (WMS) and Warehouse Execution Systems (WES). They feed real-time tracking data back to the central server, enabling dynamic routing, automated sorting, and precise inventory tracking. Non-motorized frames remain isolated physical assets. They cannot communicate with the WMS, meaning product tracking relies entirely on manual barcode scanning by human operators at designated workstations.
Feature / Capability | Non-Motorized Systems | Motorized Systems |
|---|---|---|
Initial CapEx | Low | High |
Energy Consumption | Zero | Moderate to High |
Product Control | None (Physical contact) | Precise (ZPA, Indexing) |
Incline Capabilities | No (Declines or flat only) | Yes (Can move loads upward) |
Layout Flexibility | High (Easily reconfigured) | Low (Fixed electrical assets) |
WMS/WES Integration | None | High (Real-time data tracking) |
Deploying material handling equipment requires careful planning to avoid operational disruptions. Engineers must mitigate the risks of both under-equipping a high-volume facility and over-spending on unnecessary technology. We approach this by mapping out the exact physical path the product takes from receiving to shipping.
A common mistake in facility design is deploying motorized equipment for simple point-A-to-point-B transfers. You must identify when a non-motorized frame is sufficient. If operators are manually loading boxes at one end of a 10-foot span and manually unloading them at the other, installing motors and sensors wastes capital. Reserve automated systems for areas where throughput speed, precise routing, or elevation changes strictly demand mechanical intervention. Keep simple workflows simple.
The most efficient warehouses rarely rely on a single technology. Engineering logic dictates combining both systems to maximize efficiency and control spending. Use motorized lines for the main transport arteries, high-speed sorters, and incline sections. Deploy non-motorized frames for spurs, reject lanes, manual packing workstations, and end-of-line accumulation. This hybrid approach ensures you only pay for automation where it provides a measurable operational advantage.
Safety protocols differ drastically between the two technologies. Motorized systems introduce severe pinch points, entanglement hazards, and electrical risks. OSHA compliance requires strict guarding around drive chains, emergency stop pull cords along the entire line, and rigorous lockout/tagout procedures for maintenance. Non-motorized systems eliminate electrical hazards but introduce musculoskeletal risks. Relying on operators to manually push heavy loads across flat sections can lead to severe ergonomic injuries over time. You must evaluate the physical strain on your workforce when designing manual push lines.
Conduct a comprehensive facility layout audit to map out available floor space and necessary elevation changes.
Calculate the exact dimensions, weight, and bottom surface characteristics of your heaviest and lightest loads.
Define your required units-per-minute throughput targets for peak operational hours.
Consult with a systems integrator to design a hybrid layout that optimizes capital expenditure and operational flow.
A: While some heavy-duty frames can technically be retrofitted with motorized rollers, drive belts, and sensors, it is rarely recommended. The labor costs of drilling frames, mounting brackets, and routing cables usually exceed the cost of buying new equipment. It is almost always more cost-effective and reliable to purchase a purpose-built motorized section.
A: The standard rule of thumb for a decline angle is typically 1.5 to 5 inches of drop per 10 feet of run. The exact pitch depends entirely on the carton weight, the bottom material of the load, and the friction of the specific roller bearings used in the system.
A: Motorized systems are strictly required for precise product positioning. They utilize sensors and logic controllers to stop products at exact locations. This precision is necessary for indexing products into robotic palletizers, automated strapping machines, or inline barcode scanners.
A: Zero-pressure accumulation (ZPA) is a motorized system divided into independent zones. Photo-eye sensors detect product presence. The system logic stops individual zones to ensure that products never physically touch each other, preventing damage during line backups.
A: They carry distinct risks for fragile goods. On long declines, products can accelerate uncontrollably and collide with other items at the bottom of the line. Motorized systems with zone control are generally much safer for handling delicate or fragile inventory.
A: No mechanical system is entirely maintenance-free. While they lack motors and wiring, they still require routine preventative maintenance. Technicians must conduct visual checks for seized roller bearings, verify frame alignment, and clear any debris that could impede roller movement.
