| Material: | |
|---|---|
| Model Number: | |
| Quantity: | |
11
LONGWEI
HS Code: 8431390000

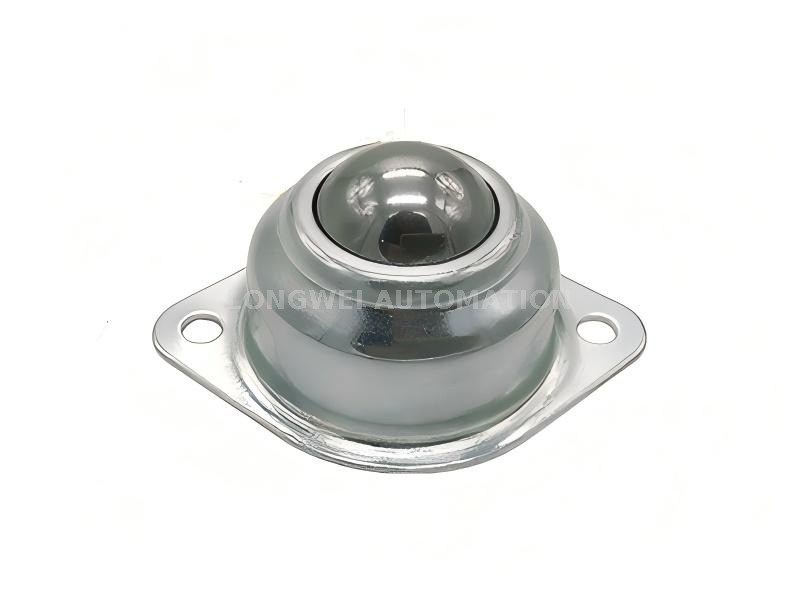

Instant Omni‑Directional Movement: Allowing loads to glide freely in any direction, ball transfer units outperform fixed or directional conveyors in flexibility and ergonomics.
Durable Under Heavy Loads: Built for industrial environments, these units sustain substantial loads, with heavy-duty models designed for high-impact and dusty conditions.
Low Maintenance, High Throughput: With built-in seals and self-cleaning features, these ball transfer units are ideal for workflows demanding minimal downtime and reliable performance.

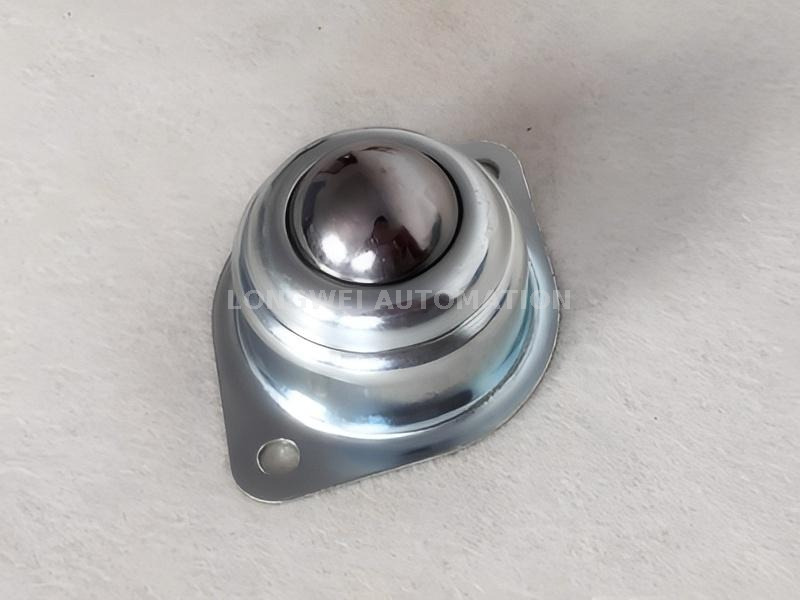

Our ball transfer unit is engineered with a compact, low‑profile housing that maximizes floor clearance while delivering exceptional load capacity—ideal for heavy‑duty material handling systems.
Each ball transfer unit incorporates a precision-engineered knife‑edge seal around the load ball. This design minimizes contamination and ensures smooth, long-lasting omni‑directional operation. No felt seal standard.

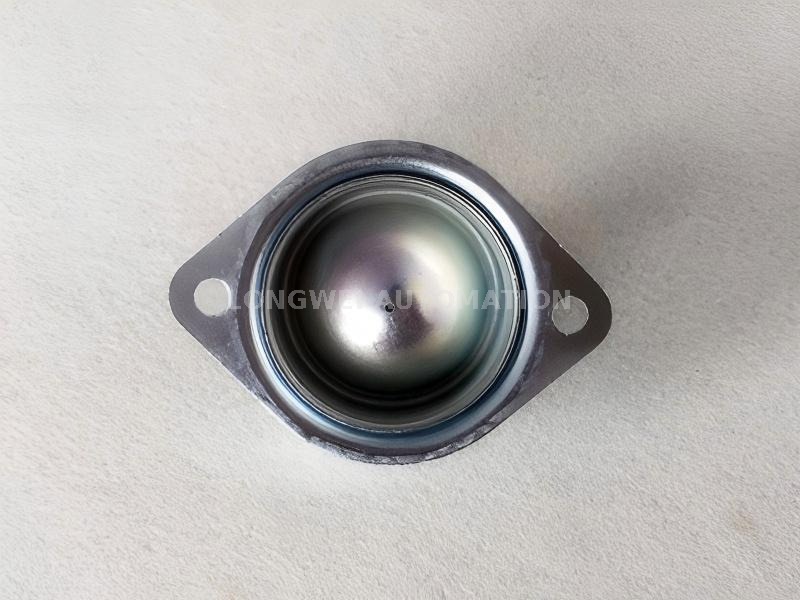

Featuring an integrated dirt exit hole, the ball transfer unit actively expels debris and grit during use. This keeps internal bearing surfaces cleaner and extends maintenance intervals.

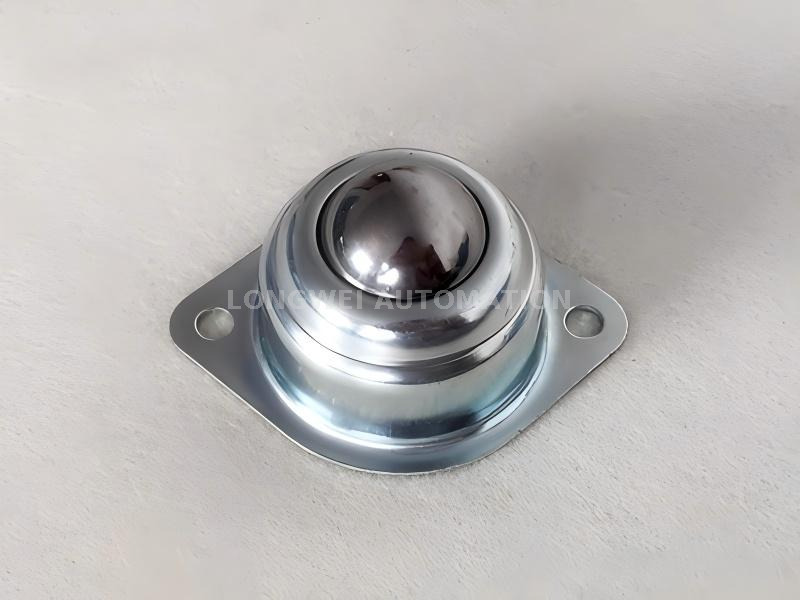

The base is designed for secure drill‑hole mounting, allowing easy and robust installation via bolts or screws. Just mounting holes with the recommended radius and the unit seats flawlessly.
Size Options:
Available in a comprehensive range of dimensions to cater to various industrial requirements, ensuring that users can select the most appropriate size for their specific machinery and operational setup.
| ref no. | material | loading capacity (kg) | weight (g) | |
| suggest | max. | |||

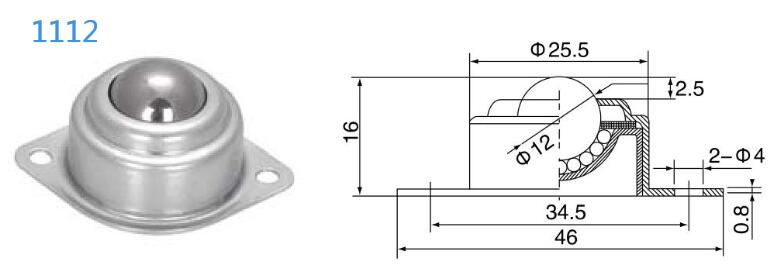

| 1112 | CS/CS | 7 | 10 | 25 |
| PL/CS | 3 | 5 | 21 | |
| SS/SS | 5 | 8 | 25 | |
| PL/SS | 3 | 50 | 21 | |
| ref no. | material | loading capacity (kg) | weight (g) | |
| suggest | max. | |||

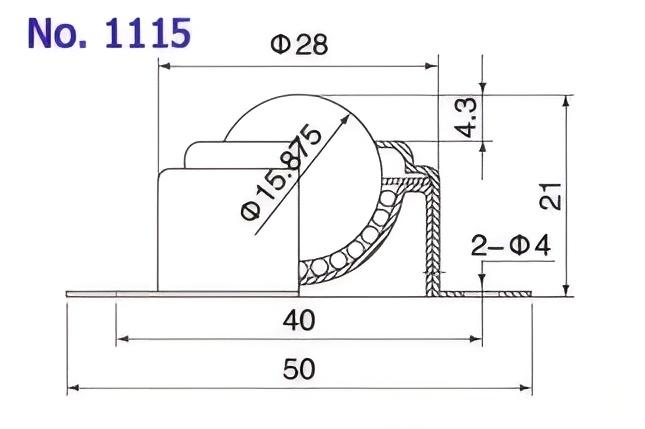

| 1115 | CS/CS | 10 | 15 | 40 |
| PL/CS | 5 | 10 | 30 | |
| SS/SS | 8 | 10 | 40 | |
| PL/SS | 5 | 10 | 30 | |
| ref no. | material | loading capacity (kg) | weight (g) | |
| suggest | max. | |||

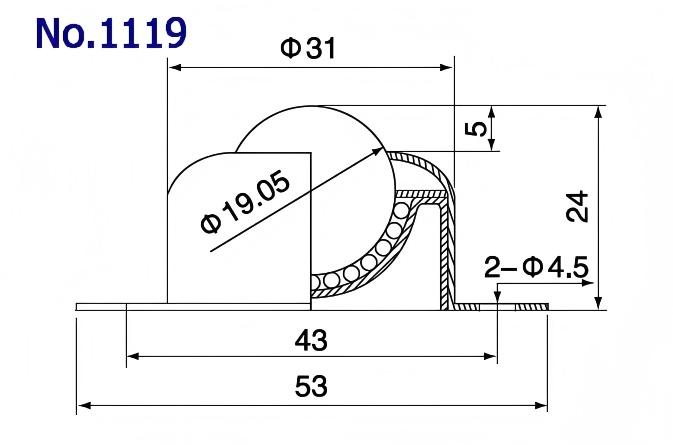

| 1119 | CS/CS | 20 | 25 | 70 |
| PL/CS | 10 | 15 | 35 | |
| SS/SS | 16 | 20 | 70 | |
| PL/SS | 10 | 15 | 35 | |
| ref no. | material | loading capacity (kg) | weight (g) | |
| suggest | max. | |||

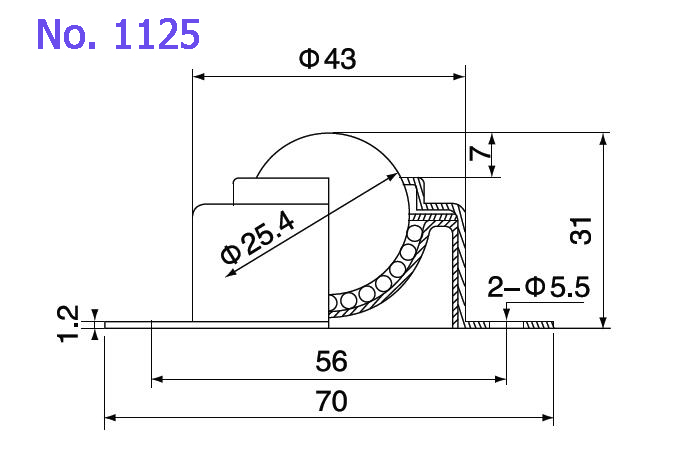

| 1125 | CS/CS | 25 | 30 | 140 |
| PL/CS | 12 | 18 | 80 | |
| SS/SS | 15 | 20 | 140 | |
| PL/SS | 12 | 18 | 80 | |
| ref no. | material | loading capacity (kg) | weight (g) | |
| suggest | max. | |||

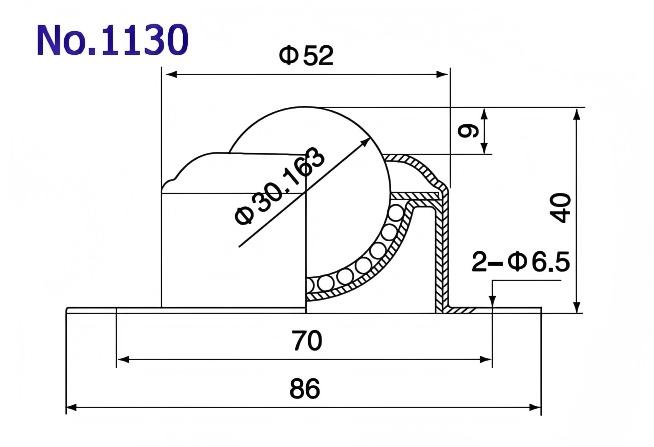

| 1130 | CS/CS | 40 | 50 | 230 |
| PL/CS | 20 | 25 | 135 | |
| SS/SS | 30 | 40 | 230 | |
| PL/SS | 20 | 25 | 135 | |

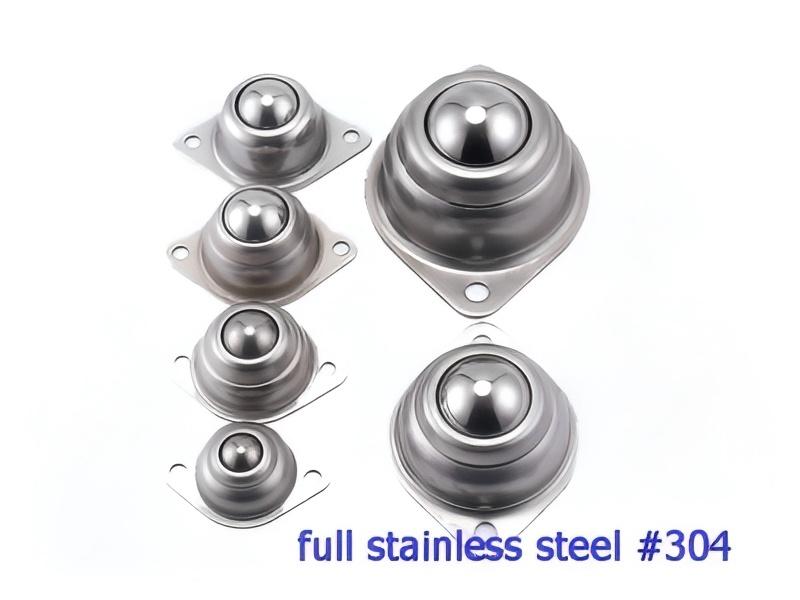

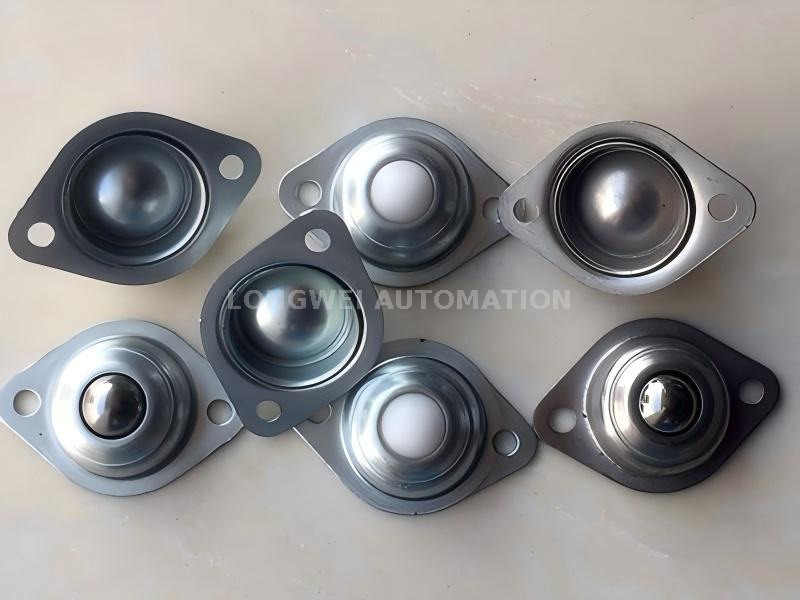

Our ball transfer units offer diverse alternative sizes and materials. The full stainless steel #304 caster components vary in size for multiple applications. Ball transfer unit brackets, some galvanized, come in different sizes and mounting hole designs. The bearing steel ball in steel housing and nylon ball with steel housing components also hint at size and material options. These alternatives ensure you can find the perfect ball transfer units for your specific needs.
Bearing Steel Ball: Features excellent hardness and high-precision surface finish, ensuring minimal friction and long-term reliability even in high-speed applications.
Steel Housing: Combines robustness with an aesthetically pleasing appearance, offering enhanced corrosion resistance through advanced surface treatment processes.
The steel housing is designed to be easy to install and maintain, with a sleek appearance that enhances the visual appeal of machinery.
The ball transfer unit also offers excellent energy efficiency and noise reduction properties, contributing to a quieter and more efficient working environment.
Available in a range of sizes tailored to different load capacities and operational requirements, with compact designs suitable for space-constrained applications.
Precision Engineering: Ideal for use in environments requiring high accuracy and minimal wear, such as in the manufacturing of precision instruments and automotive components.
Industrial Automation: Perfect for automated assembly lines where consistent performance and durability are critical, ensuring seamless operation with reduced maintenance needs.
Heavy-Duty Material Handling: Suited for applications involving frequent movement of heavy loads, such as in steel mills and foundries, where reliability under harsh conditions is essential.
A cost-effective, high-performance alternative to conventional ball transfer units, providing superior durability and reliability at a competitive price point.
With its exceptional quality and versatile design, this product is positioned to meet the demanding needs of various industries while offering significant value for money.
Full Stainless Steel #304 Construction: Combines exceptional corrosion resistance with excellent mechanical properties, making it suitable for use in harsh environments, including those with high humidity or exposure to chemicals.
High-Temperature Performance: Can operate effectively in environments with elevated temperatures, maintaining structural integrity and functionality where other materials might fail.
Easy to Clean and Sanitize: The smooth, non-porous surface of the stainless steel makes it ideal for applications requiring high standards of hygiene, such as in food processing and pharmaceutical manufacturing.
Food and Beverage Industry: Perfect for use in conveyor systems and material handling equipment where cleanliness and resistance to corrosion from food acids and cleaning agents are essential.
Pharmaceutical Manufacturing: Ideal for applications where contamination must be minimized, and equipment must withstand frequent, rigorous cleaning and sanitization processes.
Outdoor and Industrial Environments: Suited for use in outdoor settings or industrial applications where exposure to the elements or corrosive substances is a concern.
Designed for easy installation with standard mounting hardware, reducing setup time and complexity.
Requires minimal maintenance, with regular cleaning often being sufficient to maintain performance and longevity.
A premium, reliable choice for industries requiring high standards of material handling solutions, offering a combination of durability, hygiene, and performance that is hard to match with alternative materials.
With its versatile design and superior material properties, this 304 stainless steel ball transfer unit is positioned to meet the most demanding industrial and commercial applications while ensuring long-term reliability and minimal downtime.

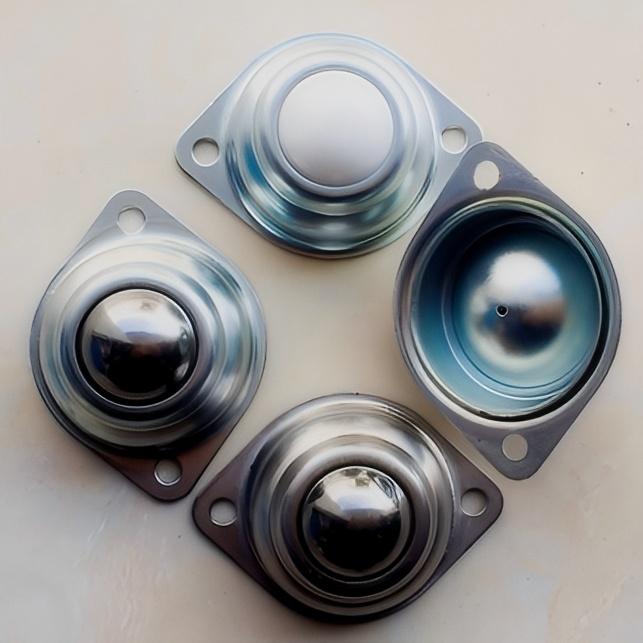

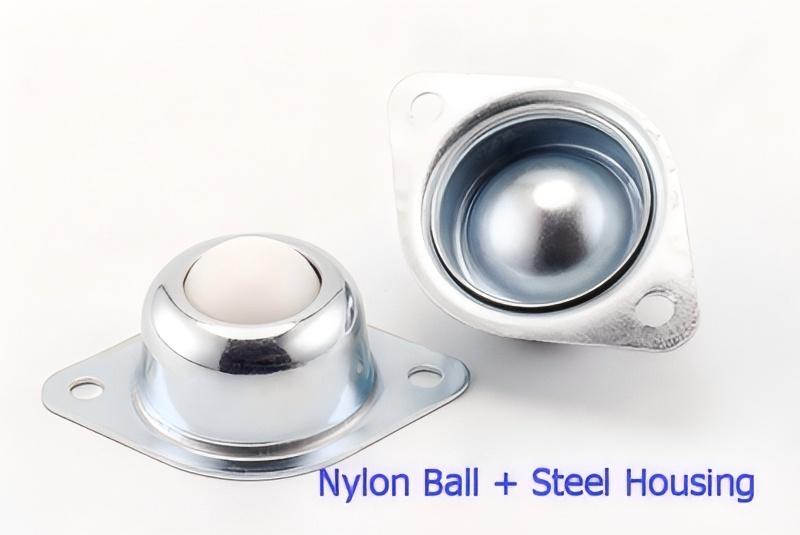

Nylon Ball: Combines exceptional durability with a low coefficient of friction, enabling smooth and efficient rolling motion. Its high load-bearing capacity ensures reliable performance even under heavy loads.
Steel Housing: Offers robust structural integrity and superior corrosion resistance, protecting the internal mechanisms and prolonging the lifespan of the ball transfer unit.
Industrial Automation: Perfect for use in automated production lines where precise and reliable material transfer is critical, ensuring seamless integration into automated systems.
Precision Instrumentation: Ideal for applications requiring delicate handling and precise movement, such as in the assembly of sensitive electronic components.
Logistics and Warehousing: Enhances the efficiency of conveyor systems and material handling equipment, facilitating the smooth transport of goods in busy warehouse environments
