Optional Material and Dimensions Round Flange Fixing Ball Transfer Unit

Material:
carbon steel
stainless steel
nylon
Model Number:
1212
1216
1219
1222
1225
1230
1238
Availability:
Quantity:
Inquire Add to Basket

  • 12
  • RONWIN
  • HS Code: 8431390000

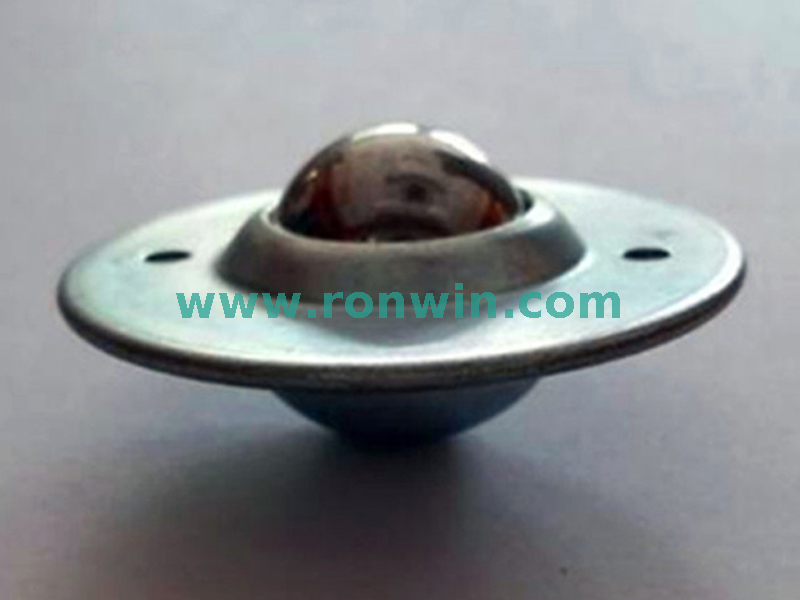

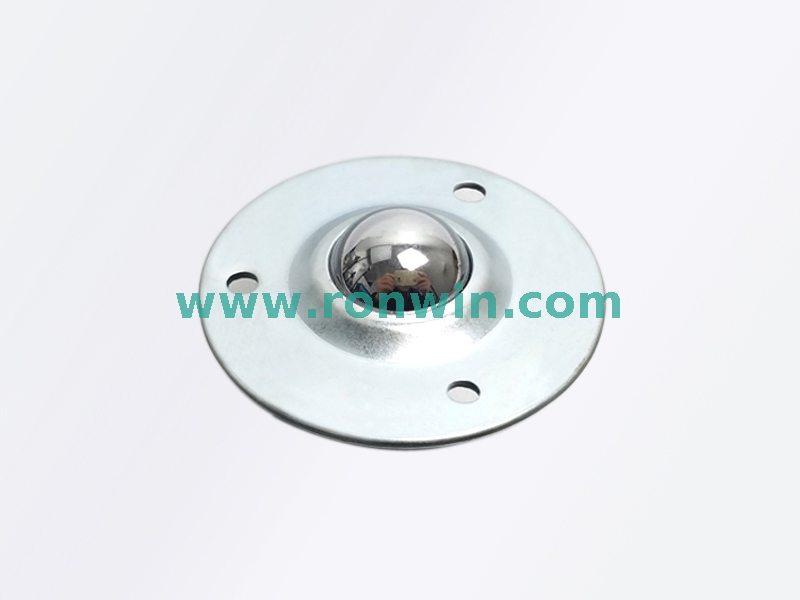

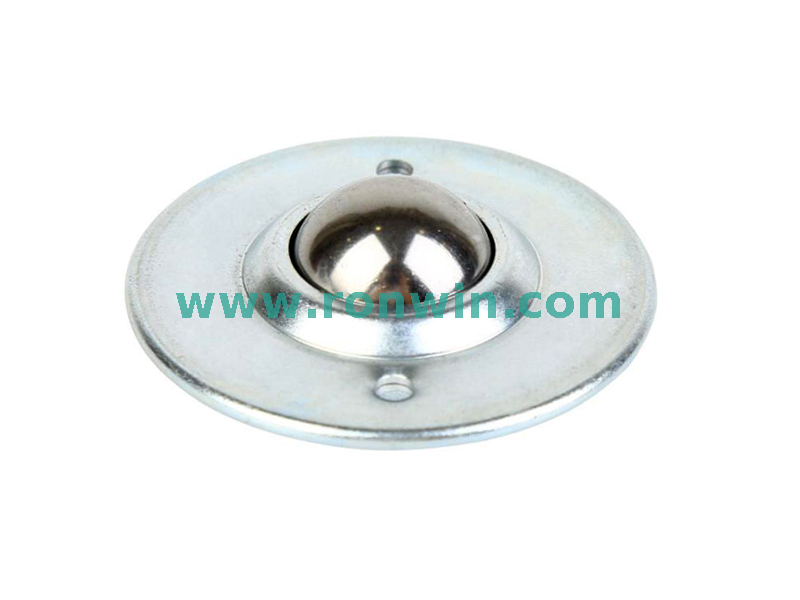

Round Flange Fixing Ball Trasfer Unit

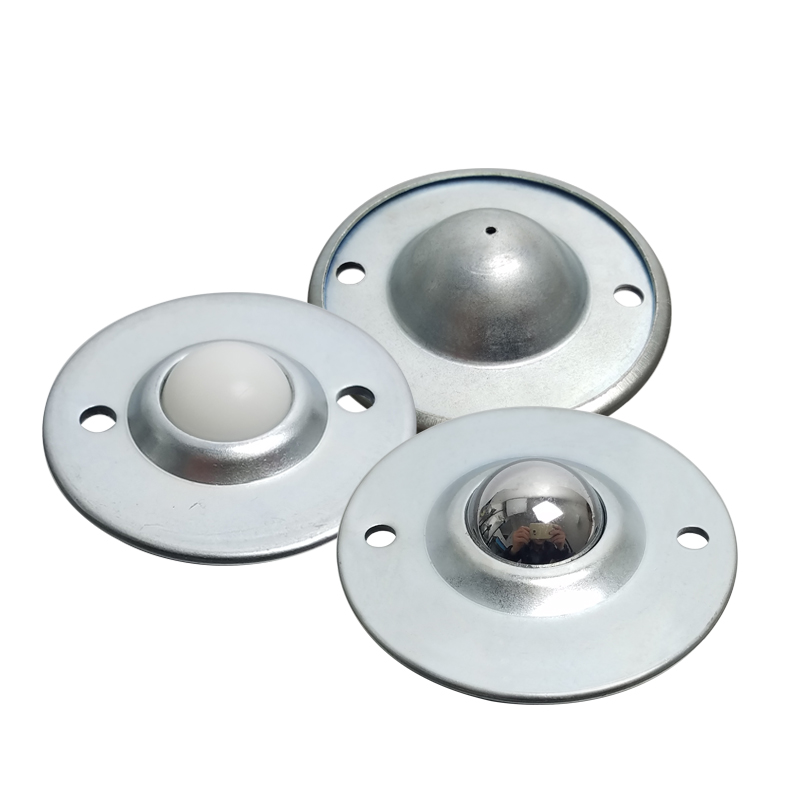

multiple material ball bearing transfer unit


1212-1238

Features:

  • General purpose.

  • Low profile, dirt exit hole.

  • Much dimensions is optional.


Specifications:

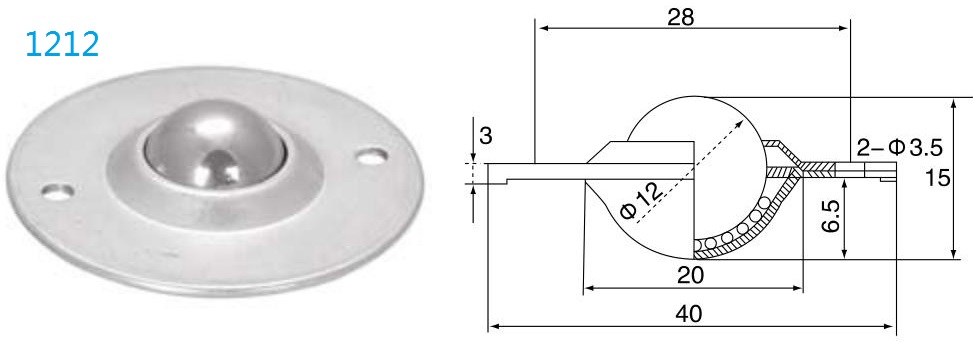

1212 flange fixing ball transfer unit

ref no. material loading capacity (kg) weight (g)
suggest max.
1212 CS/CS 8 10 31
PL/CS 4 5 25
SS/SS 6 8 31
PL/SS 4 5 25

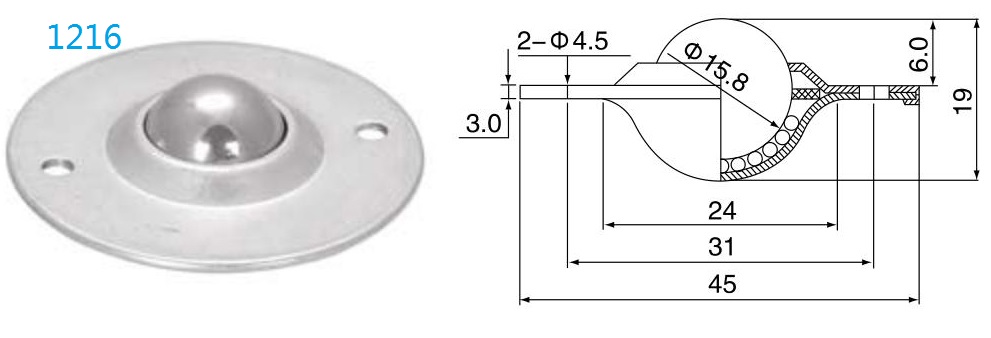

ball transfer unit

ref no. material loading capacity (kg) weight (g)
suggest max.
1216 CS/CS 10 15 45
PL/CS 5 8 35
SS/SS 8 10 45
PL/SS 5 8 35

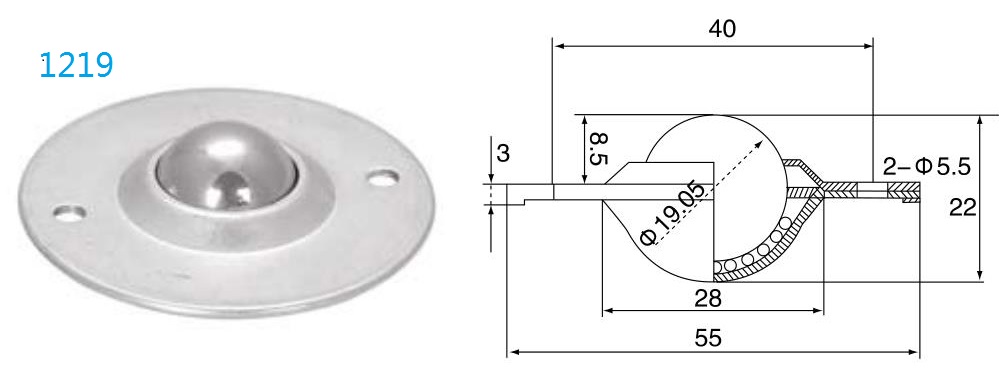

hole fixing ball transfer unit

ref no. material loading capacity (kg) weight (g)
suggest max.
1219 CS/CS 15 20 70
PL/CS 7 10 50
SS/SS 10 15 70
PL/SS 7 10 50

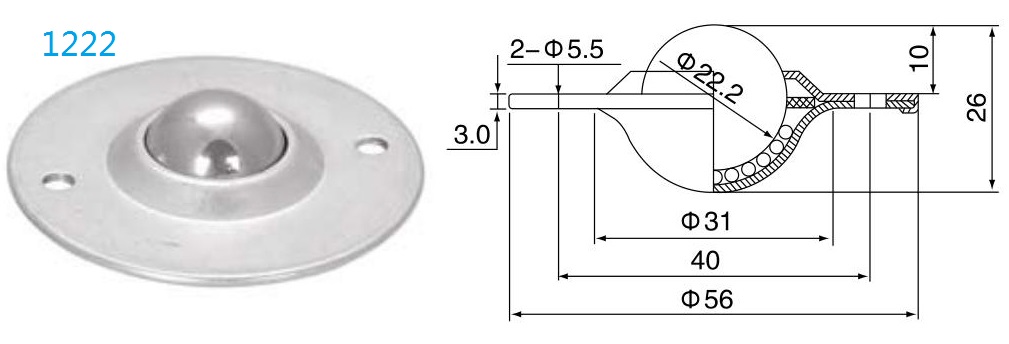

Round Flange Fixing Ball Transfer Unit

ref no. material loading capacity (kg) weight (g)
suggest max.
1222 CS/CS 20 25 100
PL/CS 10 15 60
SS/SS 15 20 100
PL/SS 10 15 60

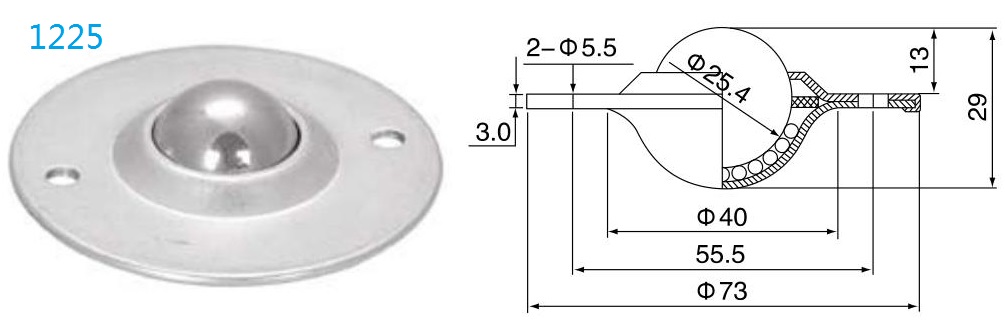

Round Flange Fixing Ball Transfer Unit

ref no. material loading capacity (kg) weight (g)
suggest max.
1225 CS/CS 25 30 140
PL/CS 12 18 85
SS/SS 20 25 140
PL/SS 12 18 85

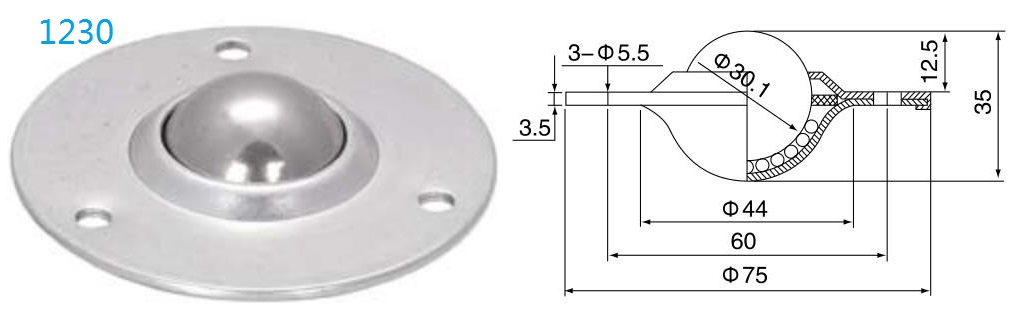

Round Flange Fixing Ball Transfer Unit

ref no. material loading capacity (kg) weight (g)
suggest max.
1230 CS/CS 35 45 220
PL/CS 17 20 120
SS/SS 25 35 220
PL/SS 17 20 120

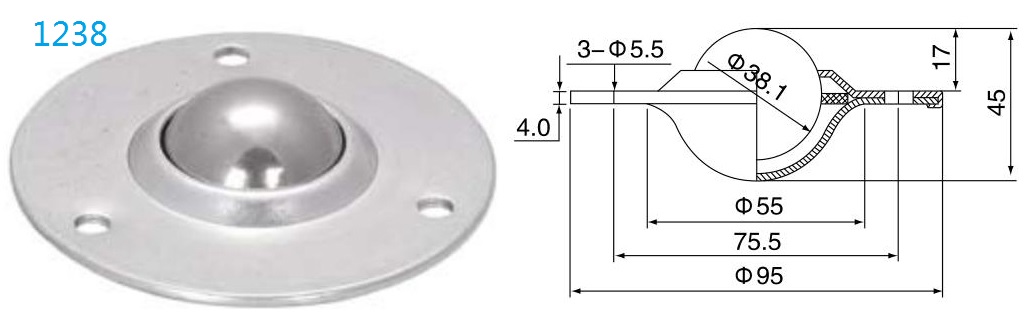

Round Flange Fixing Ball Transfer Unit

ref no. material loading capacity (kg) weight (g)
suggest max.
1238 CS/CS 45 55 430
PL/CS 20 25 350
SS/SS 30 40 430
PL/SS 20 25 350

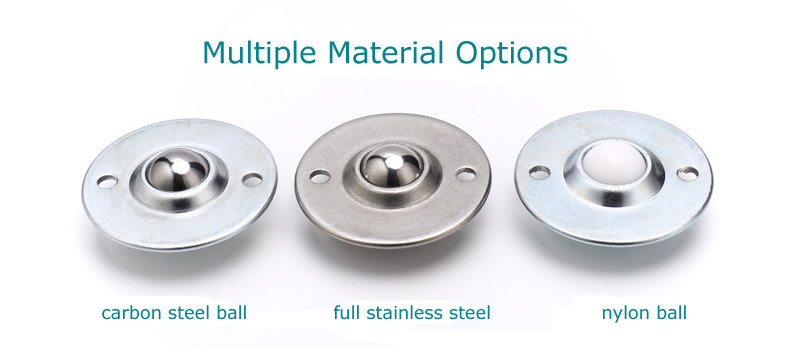

Optional Material

steel ball transfer unit

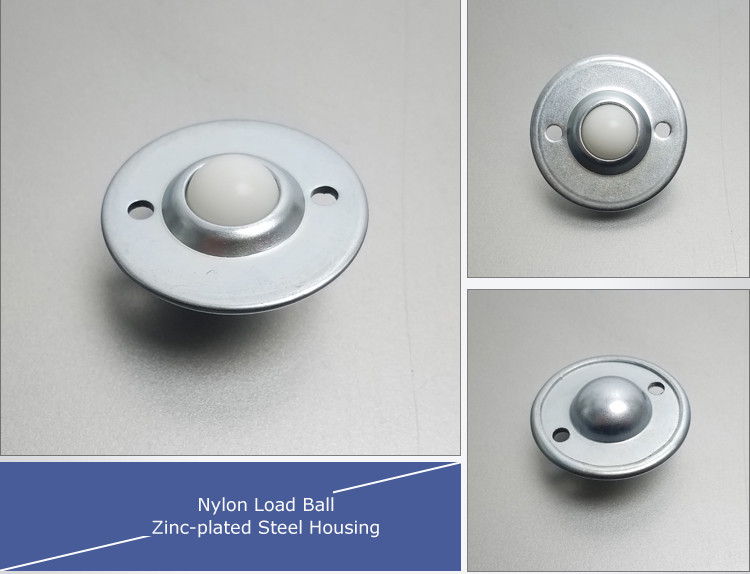

plastic ball transfer unit

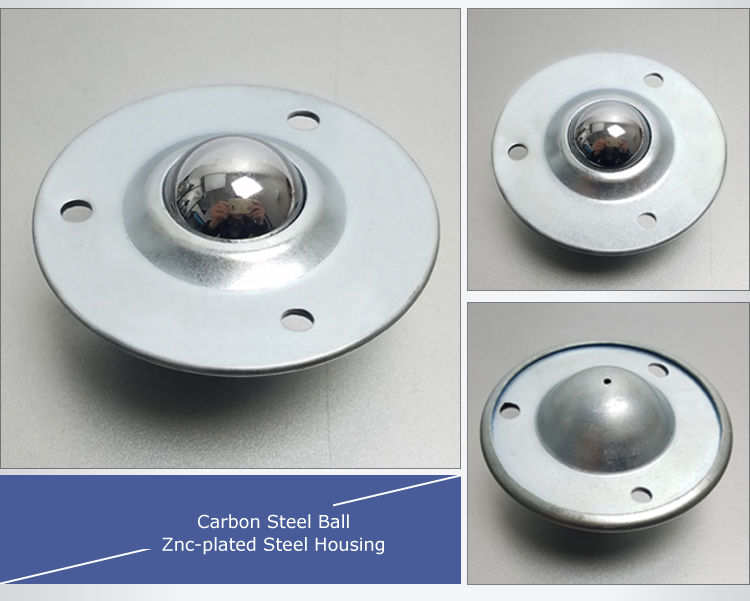

carbon steel ball transfer unit

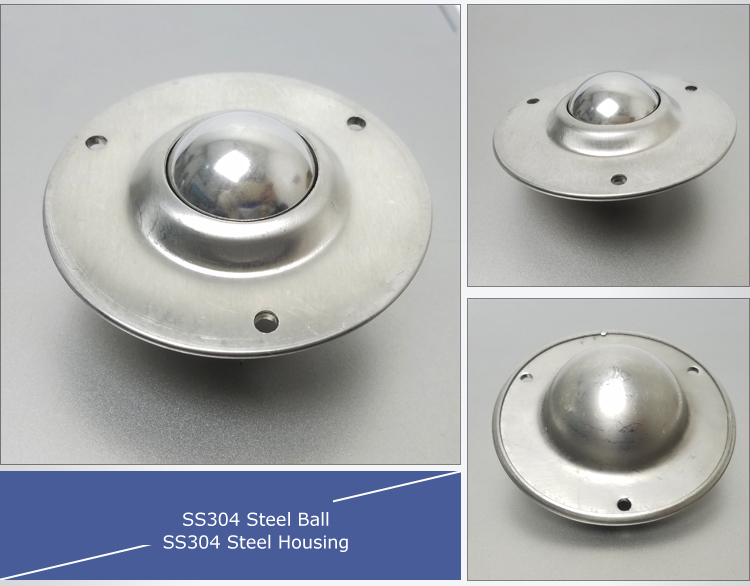

stainless steel ball transfer unit

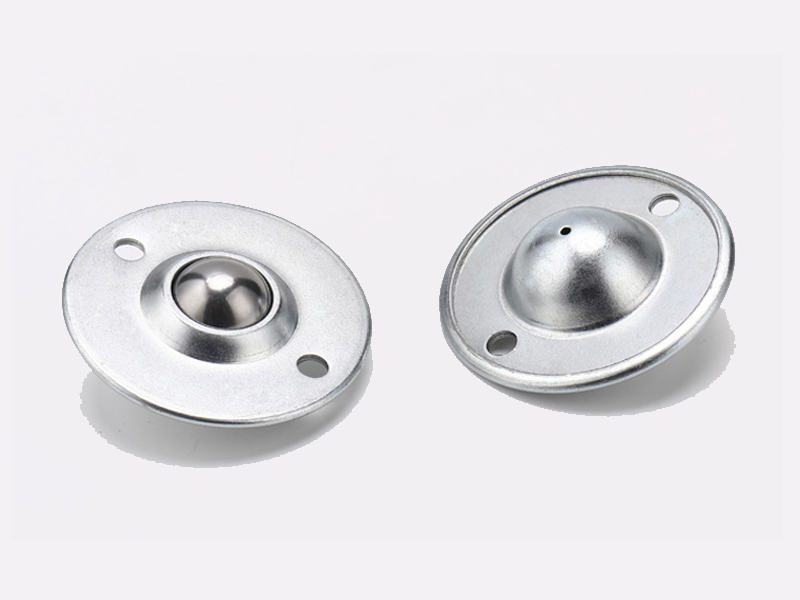

drain hole ball transfer unit
