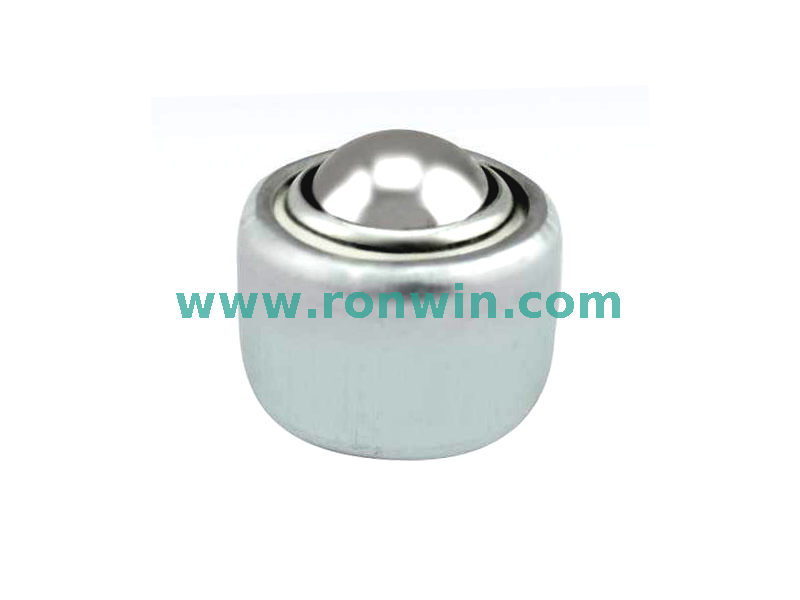

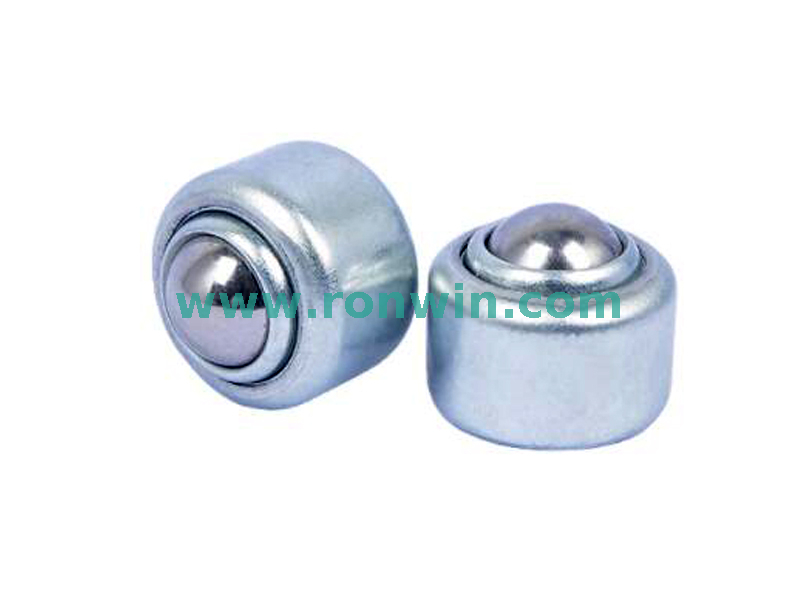

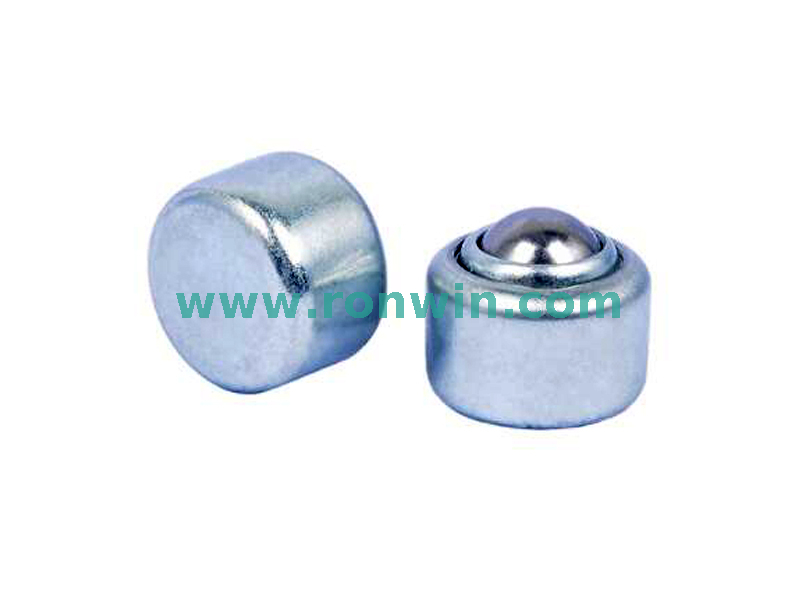

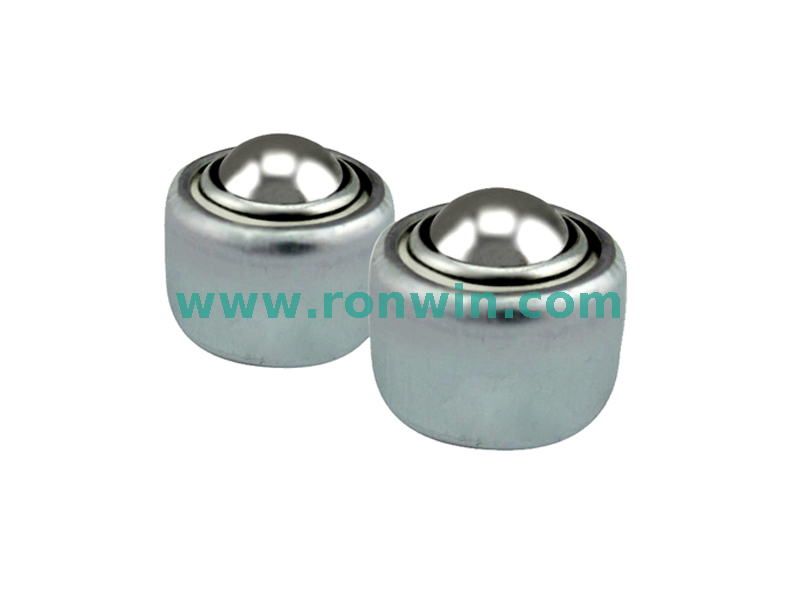

Plain Drop-in Fitting Flangeless Ball Transfer Unit Internal Spring

Material:
Model Number:
Availability:
Quantity:
  • 15
  • RONWIN
  • HS Code: 8431390000

Drop-in Fitting Flangeless Ball Transfer Unit


1212-1215

Features: cylindrical plain body, drop-in fitting, internal spring can lower the impact force.


Specifications:

spring load ball transfer unit

ref no. material loading capacity (kg) weight
suggest max.
1512 CS/CS 5 8 20
PL/CS 2.5 3.5 17
SS/SS 3 5 20
PL/SS 2.5 3.5 17


spring load ball transfer unit

ref no. material loading capacity (kg) weight
suggest max.

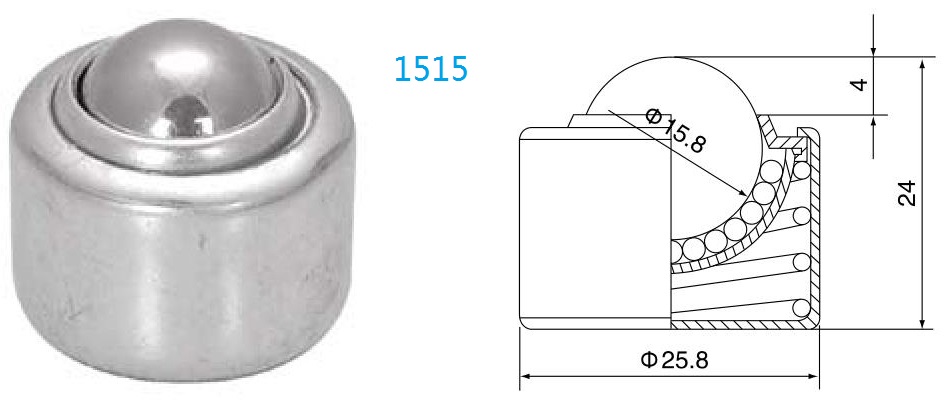

1515 CS/CS 8 15 40
PL/CS 4 6 30
SS/SS 5 8 40
PL/SS 4 6 30
