1138
RONWIN
HS Code: 8431390000

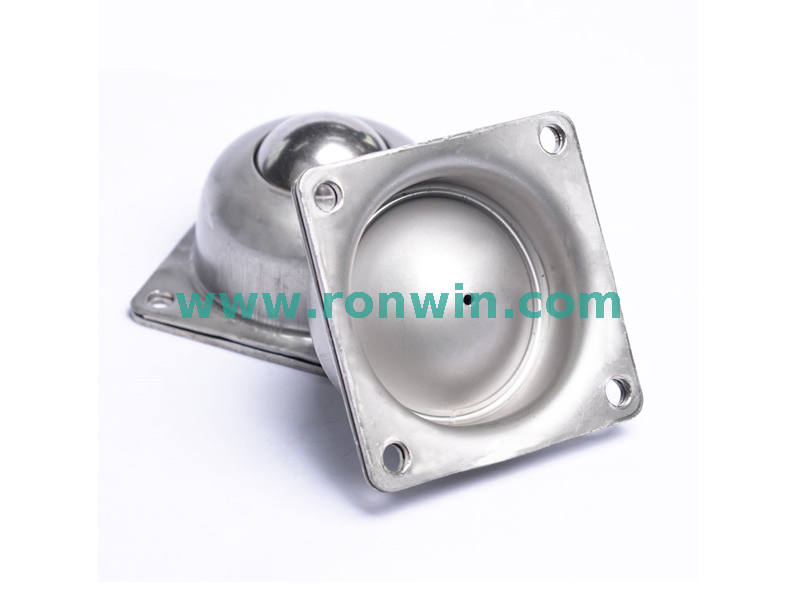

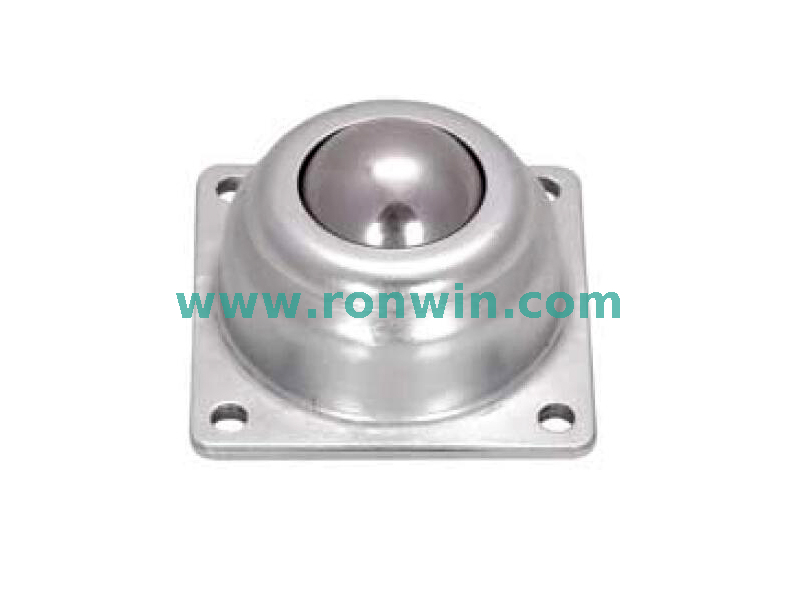

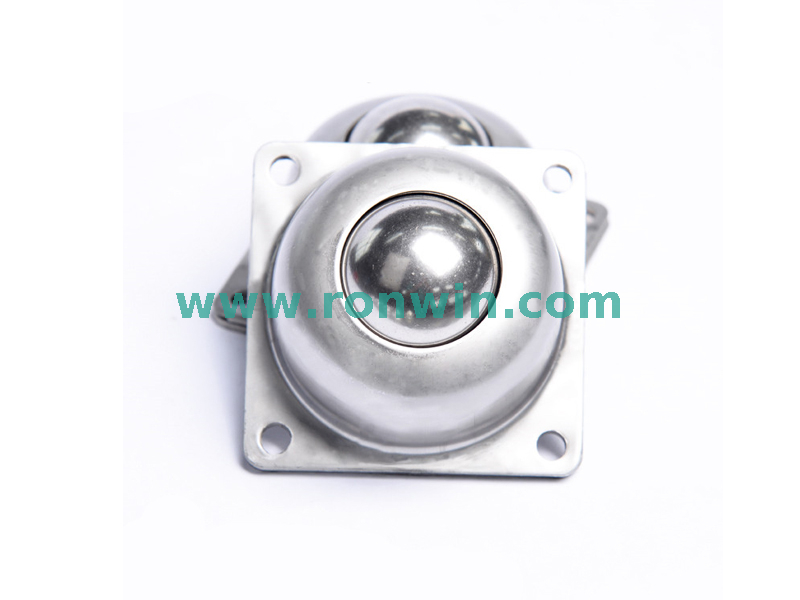

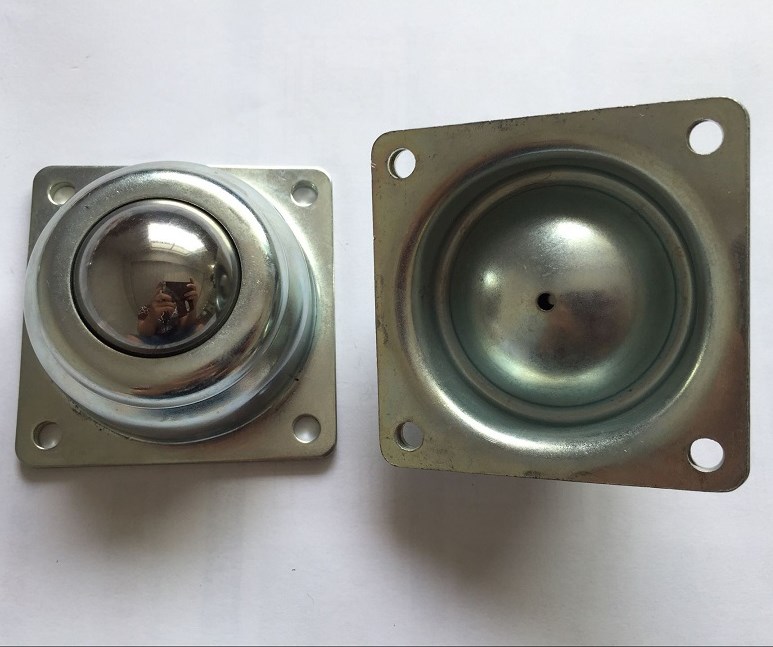

Base Fixing Ball Trasfer Unit
A multidirectional material handling system is a ball transfer unit. Ball transfer devices that move in all directions make it simple to transfer both small and large loads by instantly switching the direction of motion.
There are numerous scenarios in which loads must move in any direction with precision, ease, and minimal effort. The handling of freight and luggage, assembly lines, as a castor, machine loading, sliding-door systems, machine tables, etc. are some examples of typical applications.
1138
Features: Heavy duty, low profile, drill hole fixing, drain hole at the bottom, alternative material like plastic (nylon), steel and stainless steel.

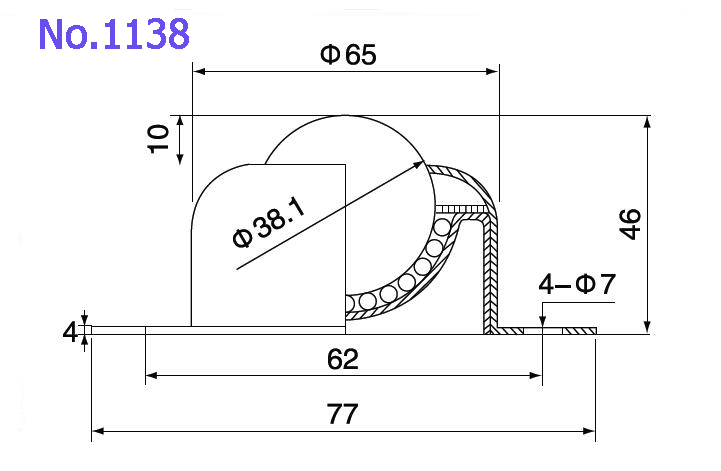

Specifications:
| ref no. | material | loading capacity (kg) | weight (g) | |
| suggest | max. | |||
| 1138 | CS/CS | 90 | 100 | 495 |
| PL/CS | 50 | 60 | 350 | |
| SS/SS | 65 | 85 | 495 | |
| PL/SS | 50 | 60 | 350 | |

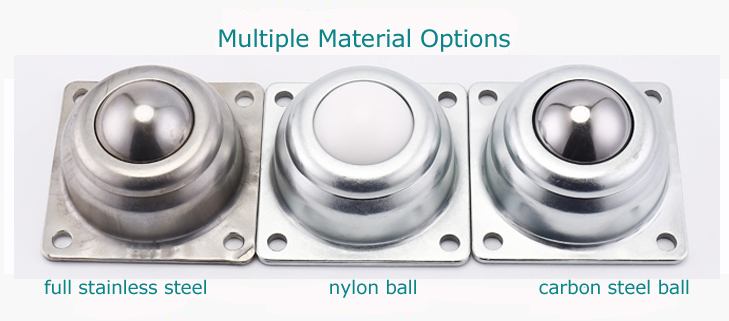

Alternative Materials
