1825
RONWIN
HS Code: 8431390000

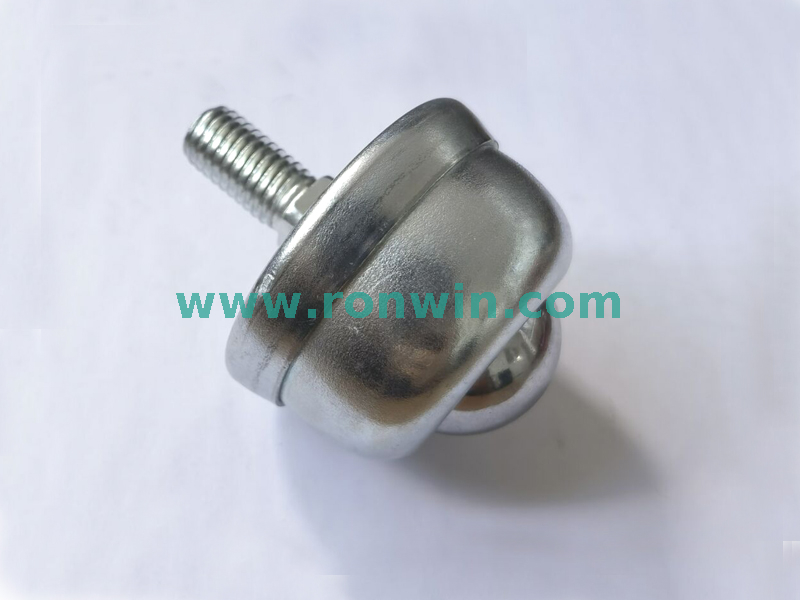

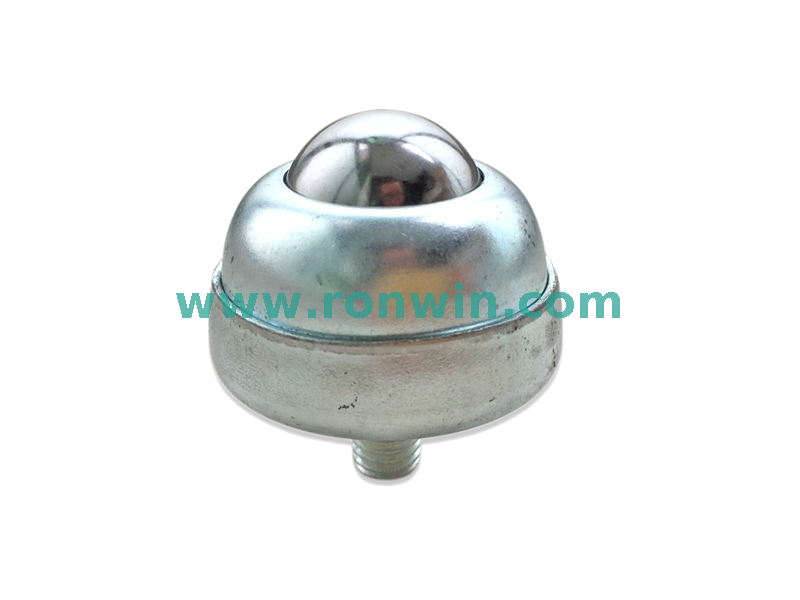

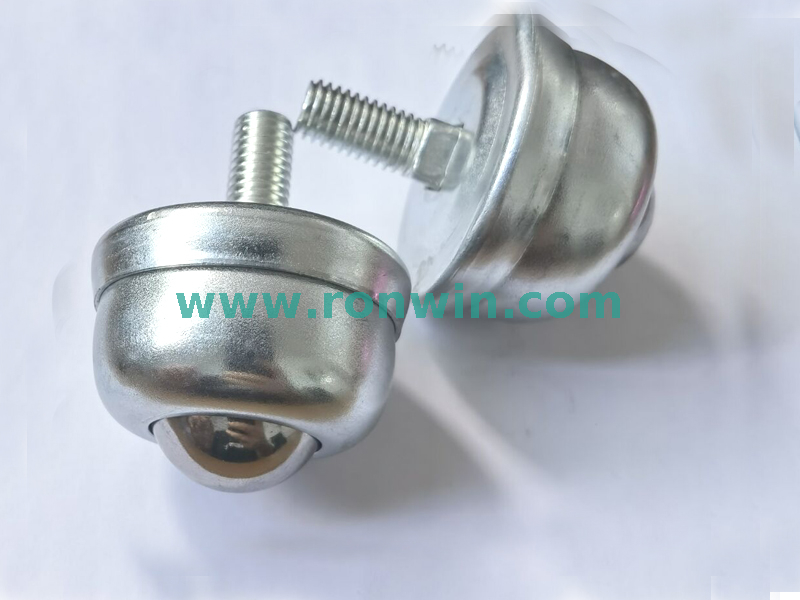

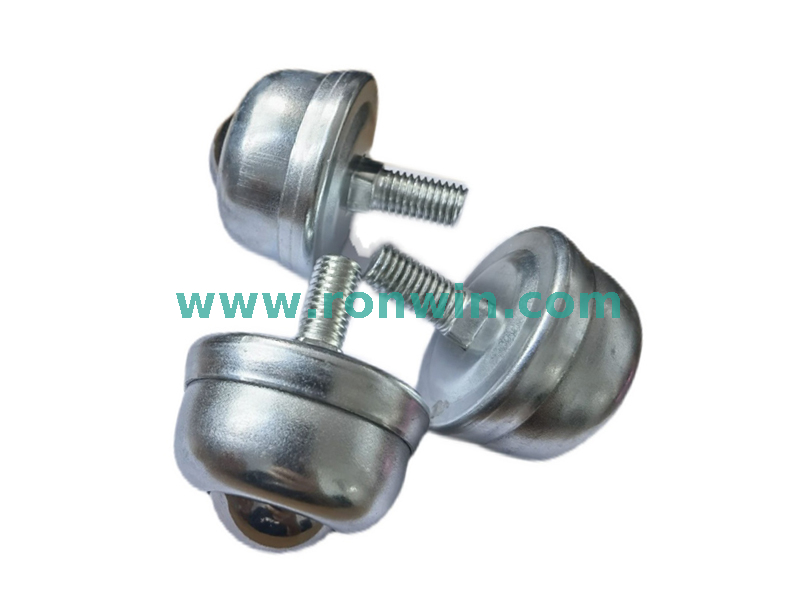

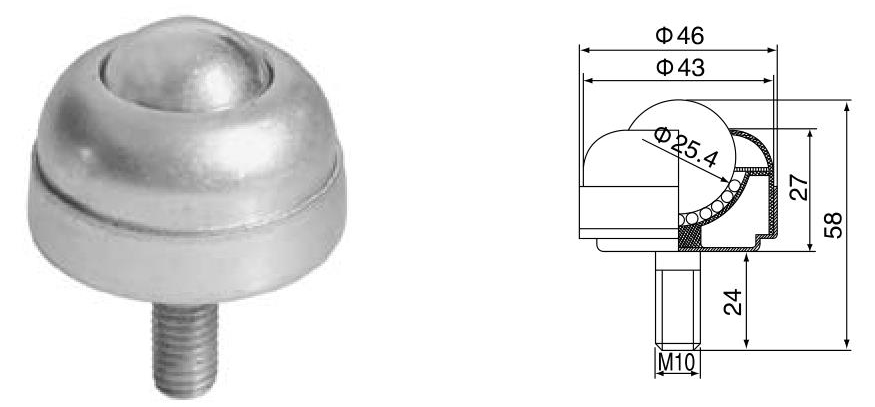

Stud Mount Type Ball Trasfer Unit
Model no.: 1825
Features: general light duty purpose, low profile stamped ball transfer unit body, thread bolt fixing, adjustable height, drilled hole mounting, alternative material like plastic (nylon), steel and stainless steel.
Specifications:
| ref no. | material | loading capacity (kg) | weight | |
| suggest | max. | |||
| 1825 | CS/CS | 30 | 40 | 170 |
| PL/CS | 15 | 20 | 110 | |
| SS/SS | 20 | 30 | 170 | |
| PL/SS | 15 | 20 | 110 | |
Advice Before Use of Ball Transfer Unit
It is recommended to add lubricant before use.
When calculating the maximum load weight of a single unit, it is recommended to use the "Suggested" load capacity. When the ball-to-up type unit is used downwards, it is recommended with 50% loading capacity data.
The material surface is better as flat as possible. It is recommender to use iron tray.
It is recommend to place at least 3 columns (rows) of units in contact with the material surface.
The arrangement method is generally horizontal and rhombic, and the rhombic arrangement needs to place one column (row) of units more than the horizontal arrangement.
You can use spring-loaded ball transfer units when the material surface is uneven.
The unit with spring needs to consider the load problem, and it is necessary to increase the number of units.
It is recommender to use it normally linear speed not exceed 2m/s.
When the linear speed is 1m/s, the dynamic friction coefficient is about 0.05-0.005μand the friction coefficient will vary according to the material of ball transfer unit.
Full steel or stainless steel material ball transfer units can used in maximum temperature of 1000 degrees Celsius, full plastic material type recommended not over than 60 degrees Celsius.
