B400
RONWIN

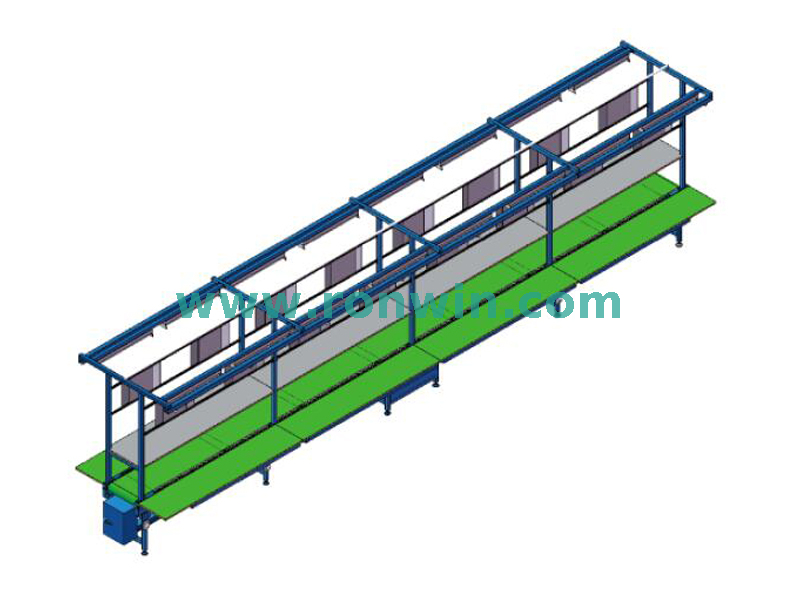

B400 Assembly Belt Conveyor
Application: assembly belt conveyor is applied to various industries such as household appliances, electronics, electrical appliances, machinery, tobacco, injection molding, post and telecommunications, printing, food, etc,
Features:
Economical, cost-effective.
Modular design, easy to assemble and maintain.
With workbench, anti-static surface treatment.
Operation station can be designed by customers' requirement.

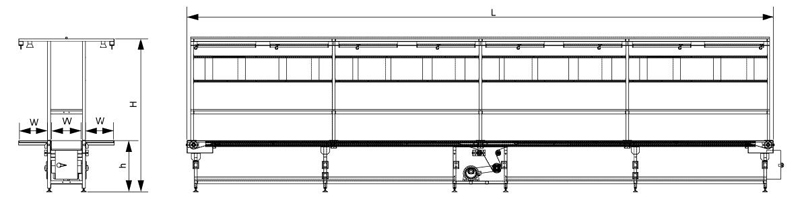

Model no. – belt width(W)- height(H)-length(L)- conveying speed(m/min)
Order no. example (unit mm): B400-600-700-5000-20
| lamp bracket height | 2000, 2100, 2200 |
| workbench height | 500-800 |
| length | max. 20m |
| belt width | 400, 500, 600, 700, 800 |
| workbench width | 300, 400, 500, 600 |
| rack material | steel folded-plate, Aluminium profile |
| support leg material | rectagular steel tube |
| driving type | head drive, middle drive |
| conveying speed | max 30m/min, speed is adjustable |
| motor power | 0.37kw, 0.55kw, 0.75kw, 1.5kw, 2.2kw |

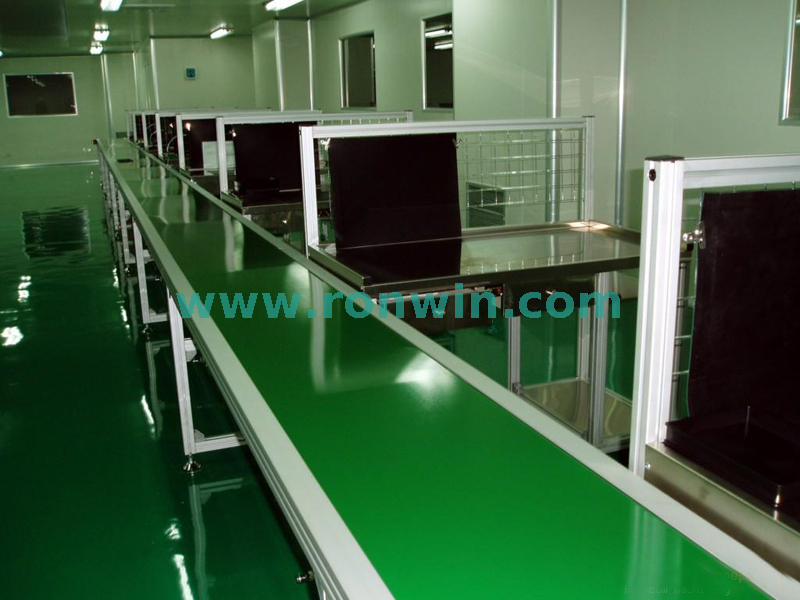

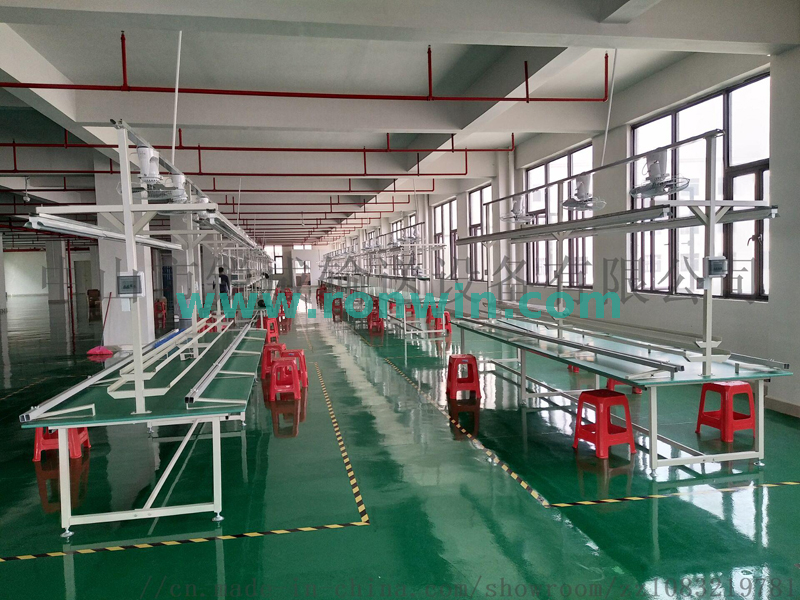

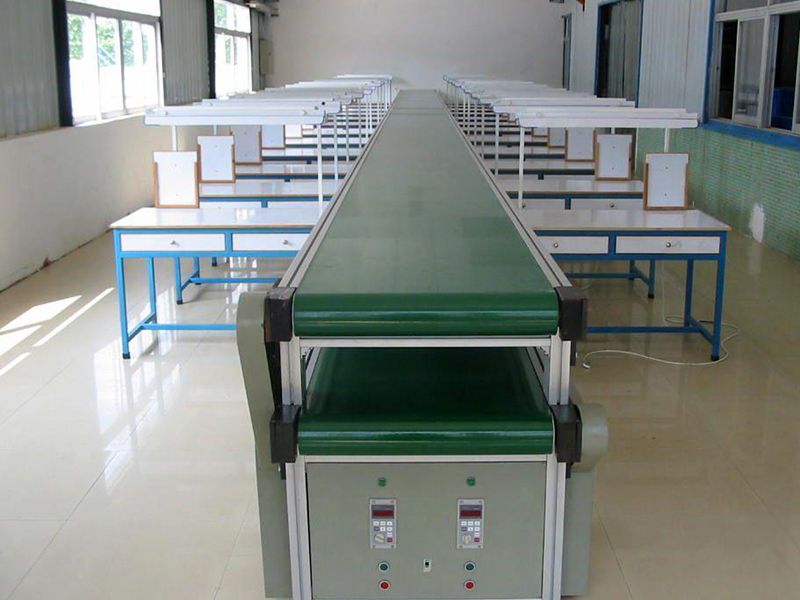

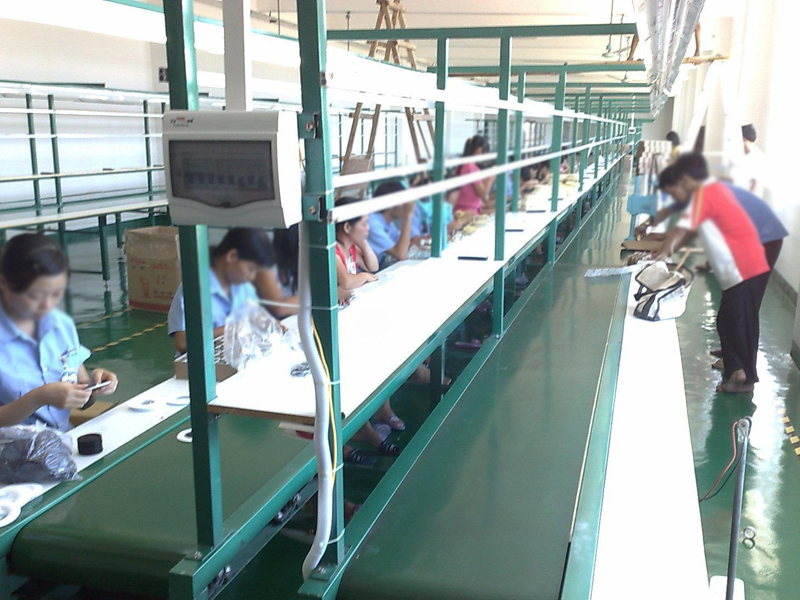

Some products and applications
B400 Assembly Belt Conveyor
Application: assembly belt conveyor is applied to various industries such as household appliances, electronics, electrical appliances, machinery, tobacco, injection molding, post and telecommunications, printing, food, etc,
Features:
Economical, cost-effective.
Modular design, easy to assemble and maintain.
With workbench, anti-static surface treatment.
Operation station can be designed by customers' requirement.
Model no. – belt width(W)- height(H)-length(L)- conveying speed(m/min)
Order no. example (unit mm): B400-600-700-5000-20
| lamp bracket height | 2000, 2100, 2200 |
| workbench height | 500-800 |
| length | max. 20m |
| belt width | 400, 500, 600, 700, 800 |
| workbench width | 300, 400, 500, 600 |
| rack material | steel folded-plate, Aluminium profile |
| support leg material | rectagular steel tube |
| driving type | head drive, middle drive |
| conveying speed | max 30m/min, speed is adjustable |
| motor power | 0.37kw, 0.55kw, 0.75kw, 1.5kw, 2.2kw |
Some products and applications
