In order to improve the working environment and aid raise load efficiency, LONGWEI AUTOMATIC, a leader and expert in domestic rapid loading and unloading equipment, has its products utilized extensively in ecommerce express logistics centers and industrial logistics centers. Vans and trucks come in a variety of configurations, and each has associated items and ideal solutions.

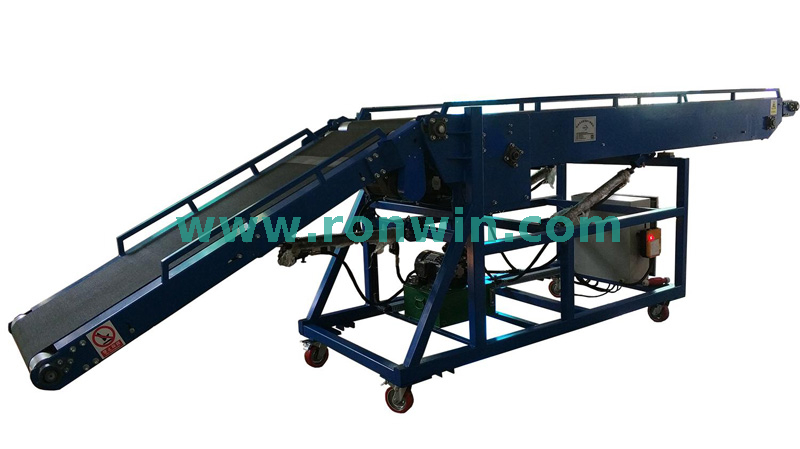

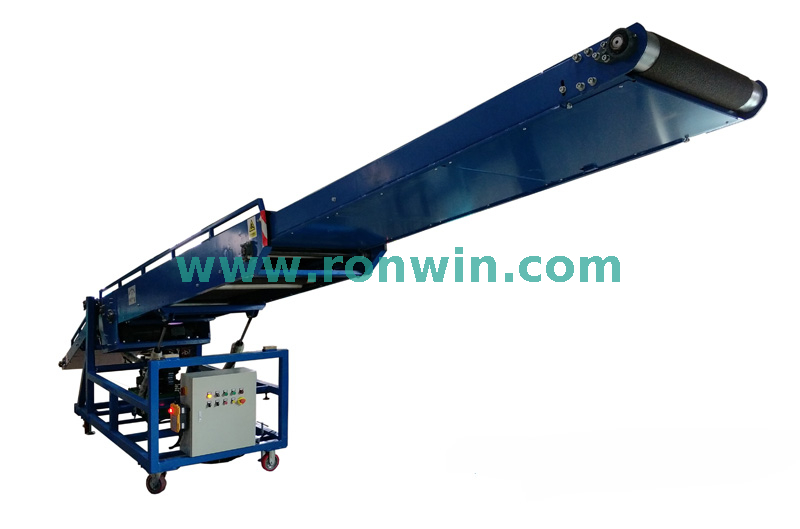

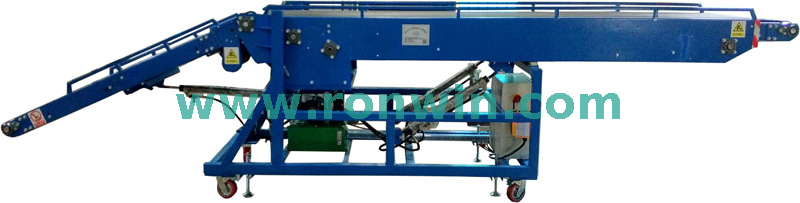

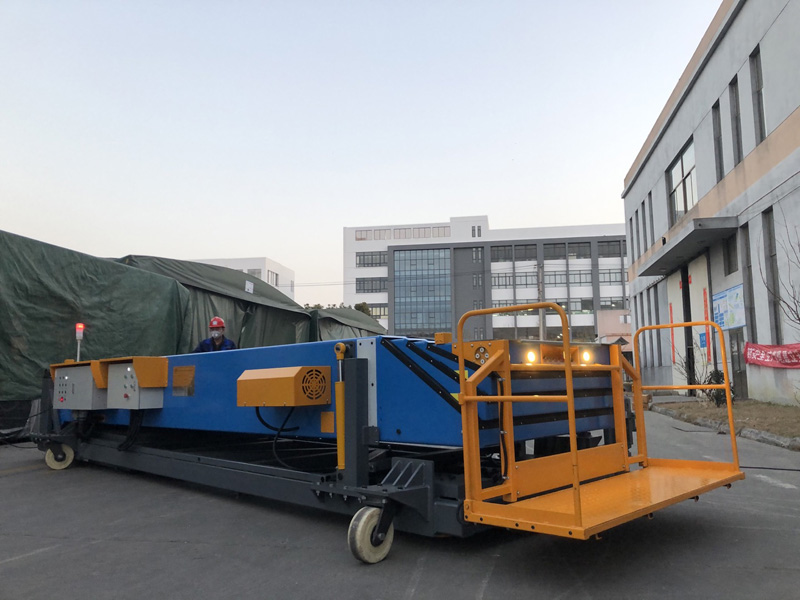

The conveyor is flexible and may be freely stretched in the length direction. The conveyor is mobile to match with the vans, which lessens labor intensity and complies with ergonomic design, and the operator can move the machine to the most comfortable distance depending on the needs of loading and unloading. The device is simple to use, secure, dependable, and long-lasting. It offers a variety of configuration options to satisfy your various loading and unloading requirements.
24VsafetyvoltageLEDlightisused toprovidesufficientbrightnessfor loadingandunloadingcargoinside ofcompartment.
Whentheanti-colisionrodtouches anobjectorperson,theequipment expandsandretreatsautomatically foracertain distance, so as to protect the cargo and personnel.
Control start, stop, emergency stop,lightingandotherfunctions.
The floating design can protect the loading and unloading personnel.

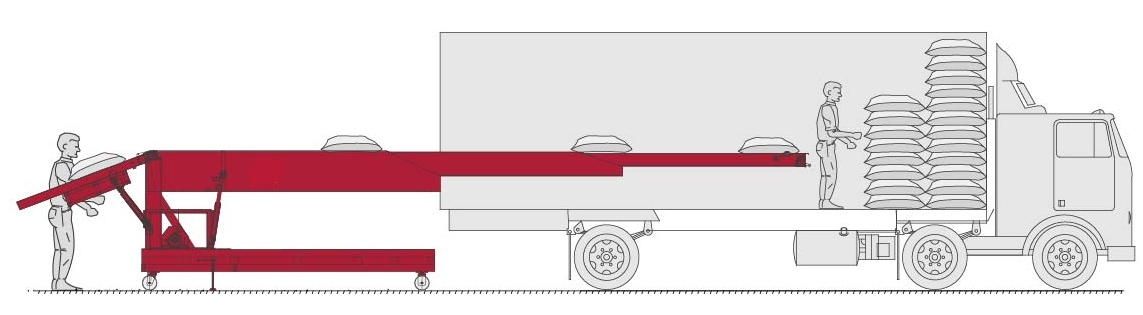

Freely adjust the extended length of the equipment to ensure the operator moves and discharges the goods in the most suitable position.
| Type | Section Number | Fixed Length(A) | Extended Length(B) | Total Length(C) | Belt Width(W) |
| LW-B-2-4/3-Y | 2 | 4000 | 3000 | 7000 | 600/800 |
| LW-A-3-5/7-Y | 3 | 5000 | 7000 | 12000 | 600/800 |
| LW-A-3-6/8.6-Y | 3 | 6000 | 8600 | 14600 | 600/800 |
| LW-XA-4-5/10-Y | 3 | 5000 | 10000 | 15000 | 600/800 |
| LW-XA-4-6/12.6-Y | 4 | 6000 | 12600 | 18600 | 600/800 |
| LW-XA-4-7/14.6-Y | 4 | 7000 | 14600 | 21600 | 600/800 |
| LW-B-4-7.5/16-Y | 4 | 7500 | 16000 | 23500 | 600/800 |
| LW-B-4-8/17-Y | 4 | 8000 | 17000 | 25000 | 600/800 |
| LW-XB-5-6/16-Y | 5 | 6000 | 16000 | 22000 | 600/800 |
| LW-XB-5-7/19-Y | 5 | 7000 | 19000 | 26000 | 600/800 |
| LW-XB-5-7.5/21-Y | 5 | 7500 | 21000 | 28500 | 600/800 |
| LW-XB-6-6/20-Y | 6 | 6000 | 20000 | 26000 | 600/800 |
Note: The above are our company's standard specifications, please contact our sales department if you need other specifications.
