| frame material: | |
|---|---|
| drive type: | |
| Quantity: | |
B100
RONWIN

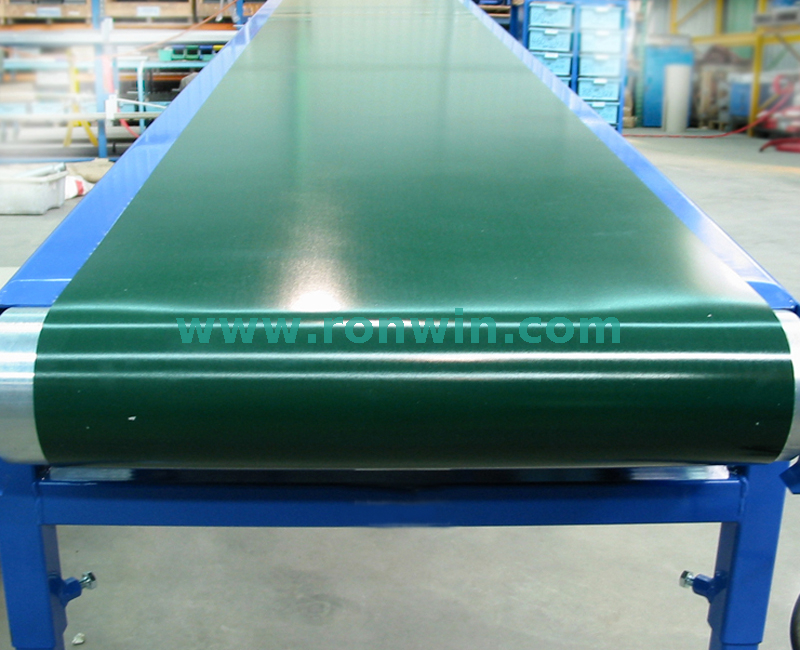

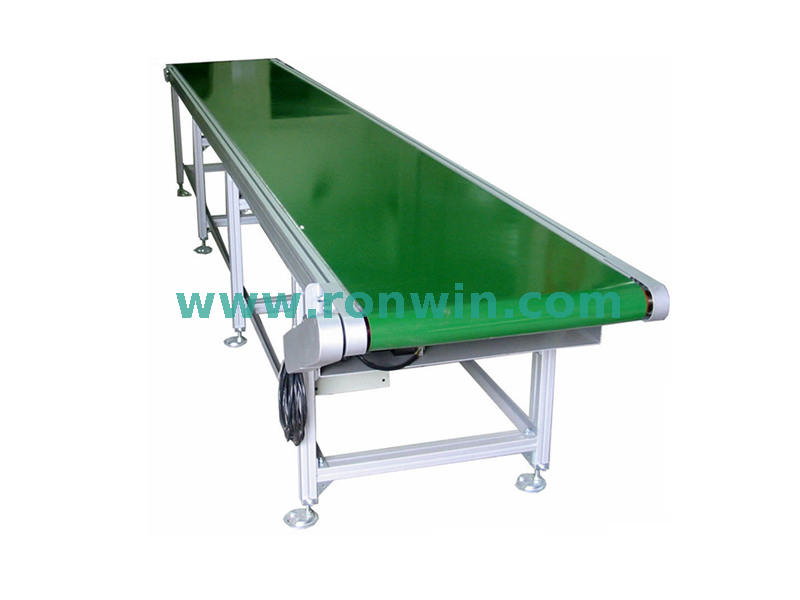

The belt conveyor is a highly efficient and reliable continuous conveying equipment widely used in material handling systems across various industries. By utilizing a cyclically operating conveyor belt, it smoothly transports materials from the starting point to the destination, making it an indispensable key component in modern production and logistics processes.
The belt conveyor primarily consists of a driving device (gear motor or drum motor roller), conveyor belt, support rollers (or idlers), tensioning device, and frame. Its core working principle involves using the drive drum to rotate the circled conveyor belt, which carries the materials while relying on the roller system for support, enabling efficient and continuous horizontal, inclined, or vertical transportation of materials. The conveyor belt material can be selected as needed, such as fabric core, rubber, or metal, to adapt to different working conditions and material characteristics.
1. High Conveying Capacity and Long Distance: Its flexible design allows for long-distance transportation ranging from several meters to several kilometers, handling various materials from lightweight to medium weight, with single-item typically under 100 kg.
2. Stable and Reliable Operation, Material Protection: There is no relative sliding between the materials and the conveyor belt, avoiding collision and friction damage during transportation. This makes it particularly suitable for fragile items, packaged goods (boxes or bags), and products with high surface requirements.
3. Simple Structure and Easy Maintenance: The modular design and high standardization of key components simplify installation, debugging, and daily maintenance, effectively reducing maintenance costs and downtime.
4. Low Energy Consumption and Economical Operation: Low operational resistance and high driving efficiency significantly save energy during continuous operation, offering clear long-term cost advantages.
5. Low Noise and Environmental Friendliness: Stable operation and minimal mechanical noise make it suitable for workshops, warehouses, and indoor environments that require a quiet working atmosphere.
6. Convenient Intelligent Control: Easily integrates with automatic systems such as PLCs and sensors to achieve automated programming control for start-stop, speed adjustment, quantity counting, and sorting, enhancing the intelligence level of production lines.
7. Strong Adaptability: Capable of horizontal, uphill, or downhill transportation by adjusting the inclination angle. Light and heavy designs cater to the needs of different industries, making it applicable to a wide range of scenarios.

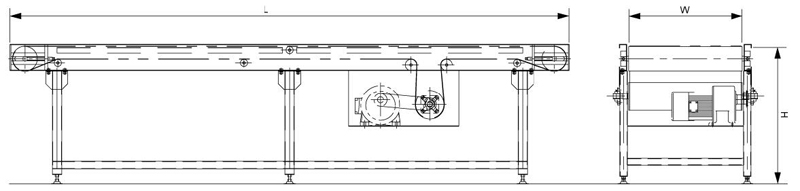

Model no. – belt width(W)- height(H)-length(L)- conveying speed(m/min)
Order no. example (unit mm): B100-600-700-5000-20
| support type | plate, carrier roller |
| length | max. 20m |
| belt widht | 500, 600, 700, 800, 900, 1000, 1500 |
| height | 500-1500 |
| belt material | PVC, PU |
| rack material | steel folded-plate, Aluminium profile |
| support leg material | rectagular steel tube |
| driving type | head drive, middle drive |
| conveying speed | max 30m/min, speed is adjustable |
| motor power | 0.37kw, 0.55kw, 0.75kw, 1.5kw, 2.2kw |
- Heavy-Duty Belt Conveyors: Primarily used in mining, metallurgy, coal, building materials, ports, and terminals for transporting bulk materials such as ores, coal, and sandstone. They feature robust structures and high loading capacity.
- Light-Duty Belt Conveyors: Widely applied in industries such as electronics assembly, plastic processing, food and beverage, daily chemicals, pharmaceutical production, and light manufacturing. They are commonly used to transport parts, finished products, packaged goods, bagged materials, and food ingredients, emphasizing hygiene, cleanliness, and precision.
- Bulk Materials: Granules, powders, debris, such as grains, fertilizers, plastic pellets, and cement.
- Packaged Goods: Cartons, parcels, bagged items, turnover boxes, and components.
With its exceptional versatility, stability, and cost-effectiveness, the belt conveyor has become the preferred solution for improving production efficiency and optimizing logistics processes. Whether for simple material transfer or complex automated production line integration, it provides reliable and efficient conveying support.

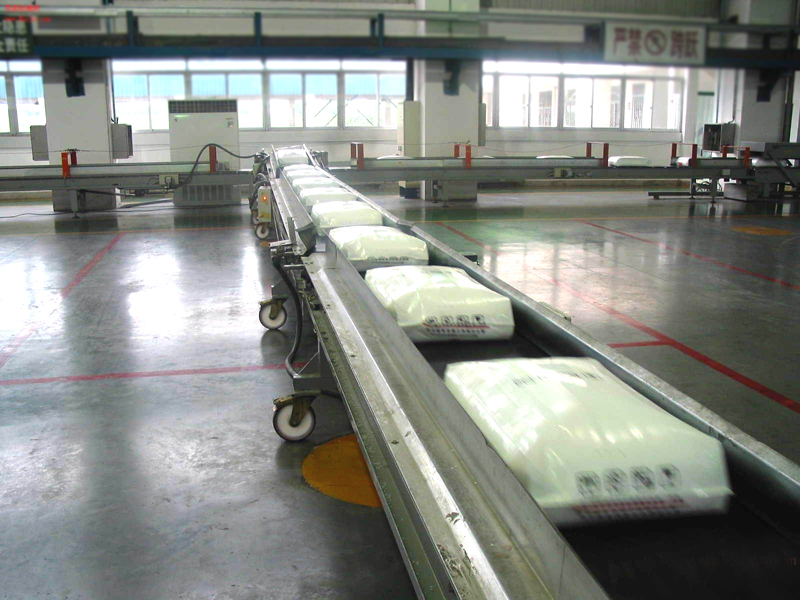

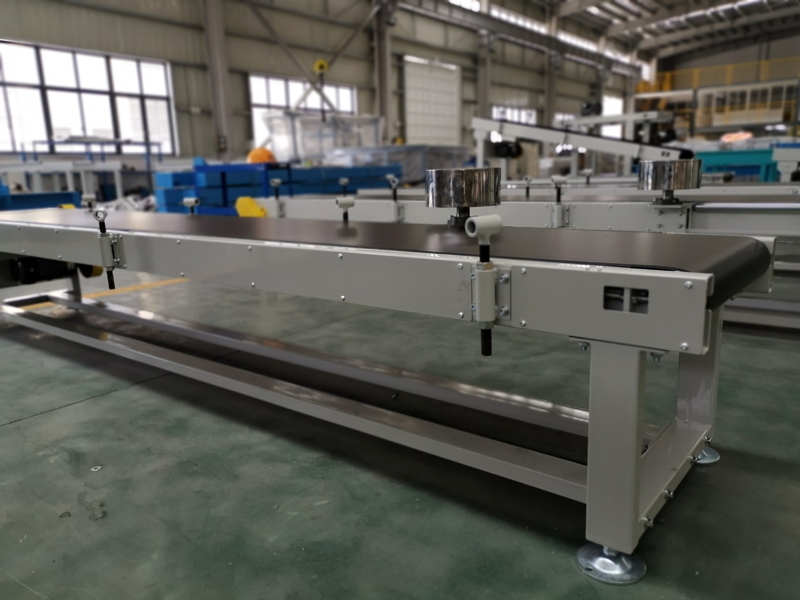

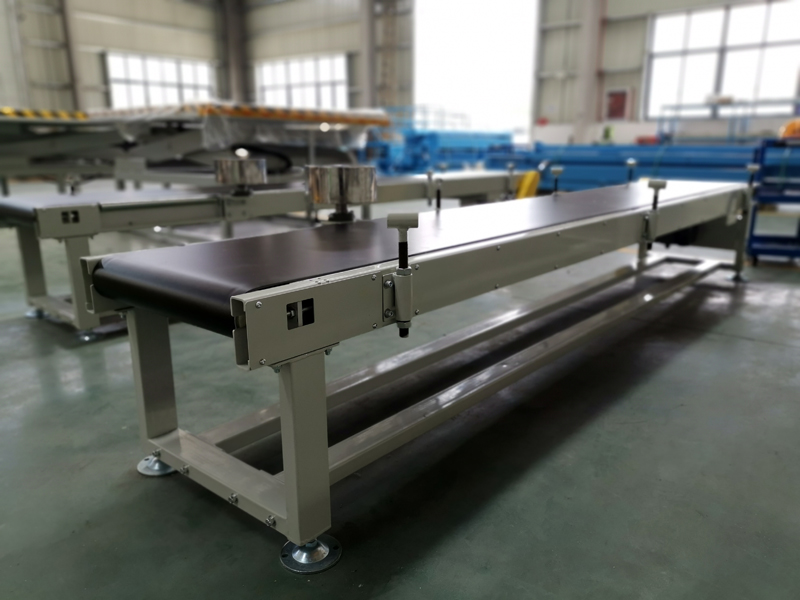

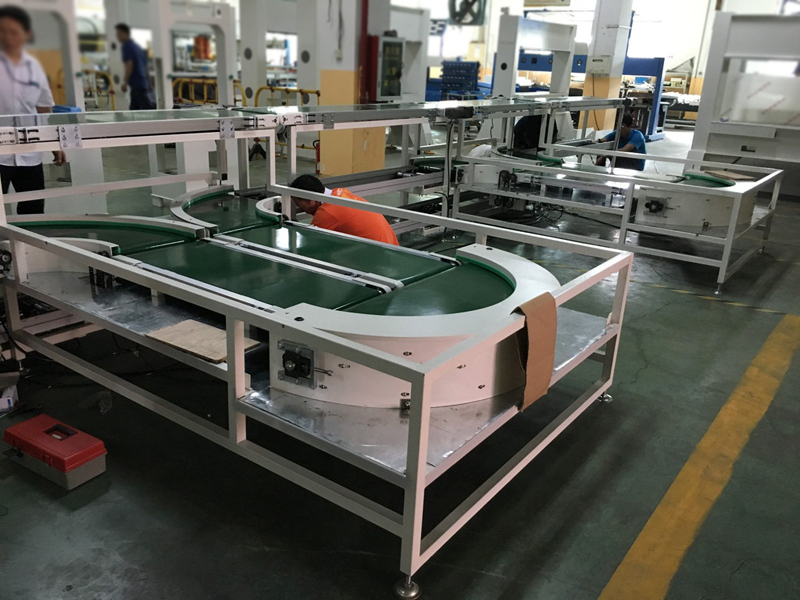

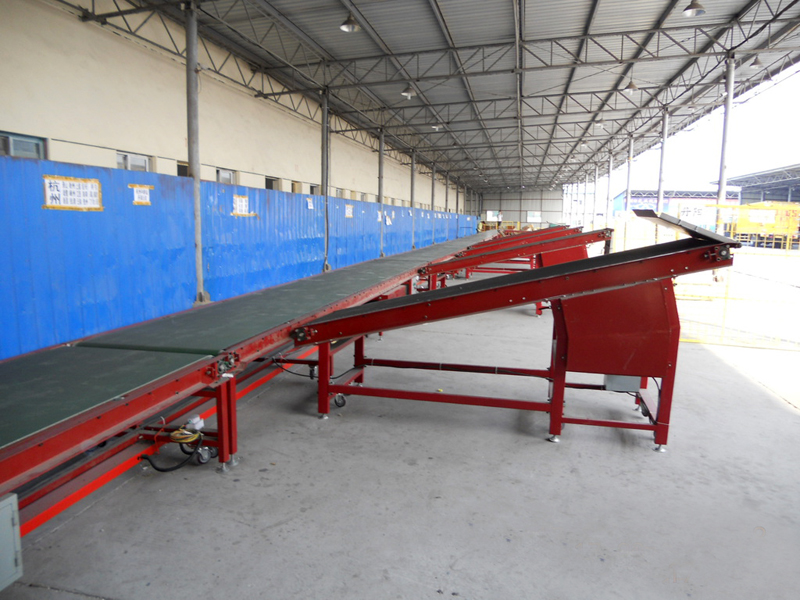

Some products and applications
The Custom Horizontal Belt Conveyor is not merely a product but an engineered solution to your unique bulk material flow challenges. Through professional design and configuration, it is dedicated to achieving maximized reliability, efficiency, and cost control in bulk material handling processes, making it an indispensable core component in modern industrial bulk material conveying systems.
