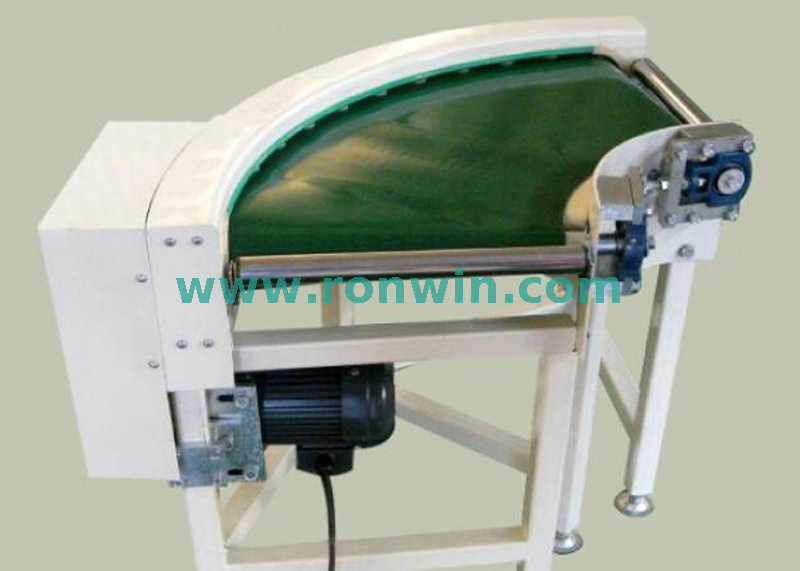

B300 Curved Belt Conveyor
Application: Belt conveyors are widely used in light industrial, electronics, food, pharmaceutical, chemical, wood, mechanical, and other industries for the delivery of all types of bulk materials, as well as boxed or bagged goods with light unit weights. In order to connect straight conveyors at a specific turning angle, a curbed belt conveyor is used.
Features: No relative movement exists between the conveying material and the conveyor belt as it moves along which prevents material destruction while conveying. Low noise, good for environments where workers need a quiet working environment. Straightforward design, reduced maintenance requirements, less energy usage, and affordable operation.

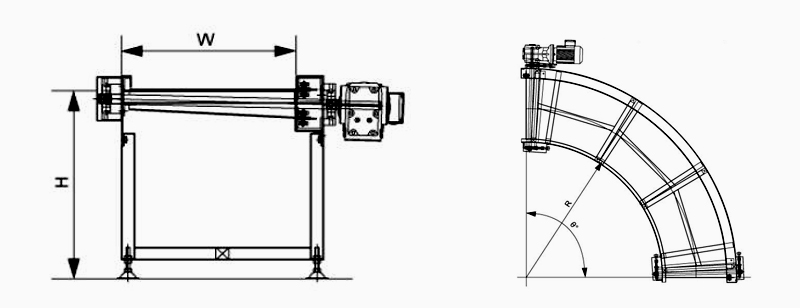

Model no. – belt width(W)- height(H) -turning radius(R)-turning angle(°)- conveying speed(m/min)
Order no. example (unit mm): B300-700-500-900-90-15
| roller diameter | 50 (small end) |
| turning inside radius | suggest 900 |
| turning angle | 45°, 60°, 90° |
| length | max. 20m |
| belt width | 500, 600, 700, 800, 900, 1000, 1500 |
| height | 500-1500 |
| belt material | PVC, PU |
| rack material | steel folded-plate, Aluminium profile |
| support leg material | rectagular steel tube |
| driving type | head drive, middle drive |
| conveying speed | max 30m/min, speed is adjustable |
| motor power | 0.37kw, 0.55kw, 0.75kw, 1.5kw, 2.2kw |

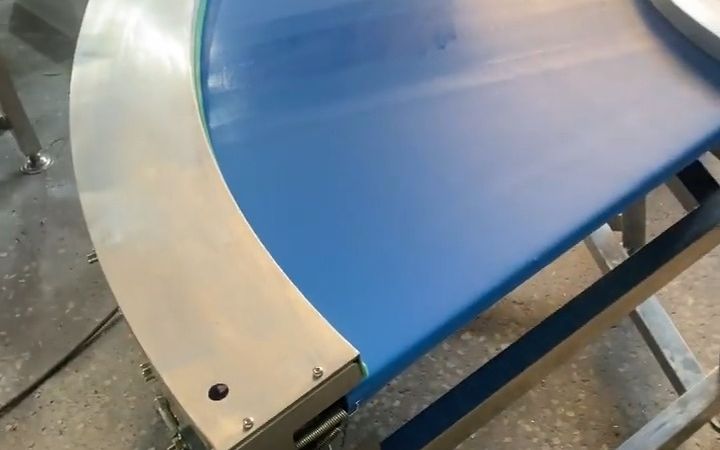

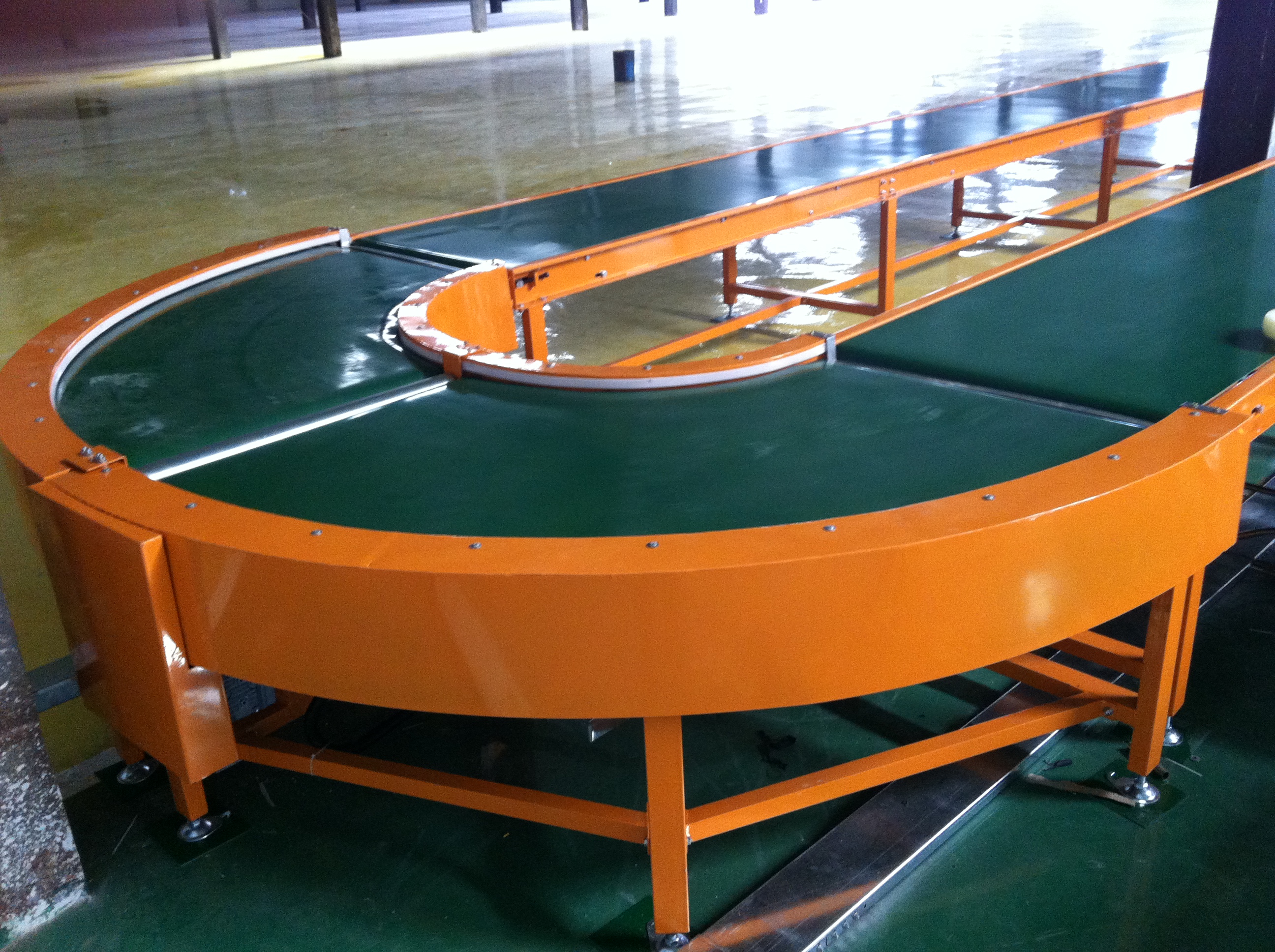

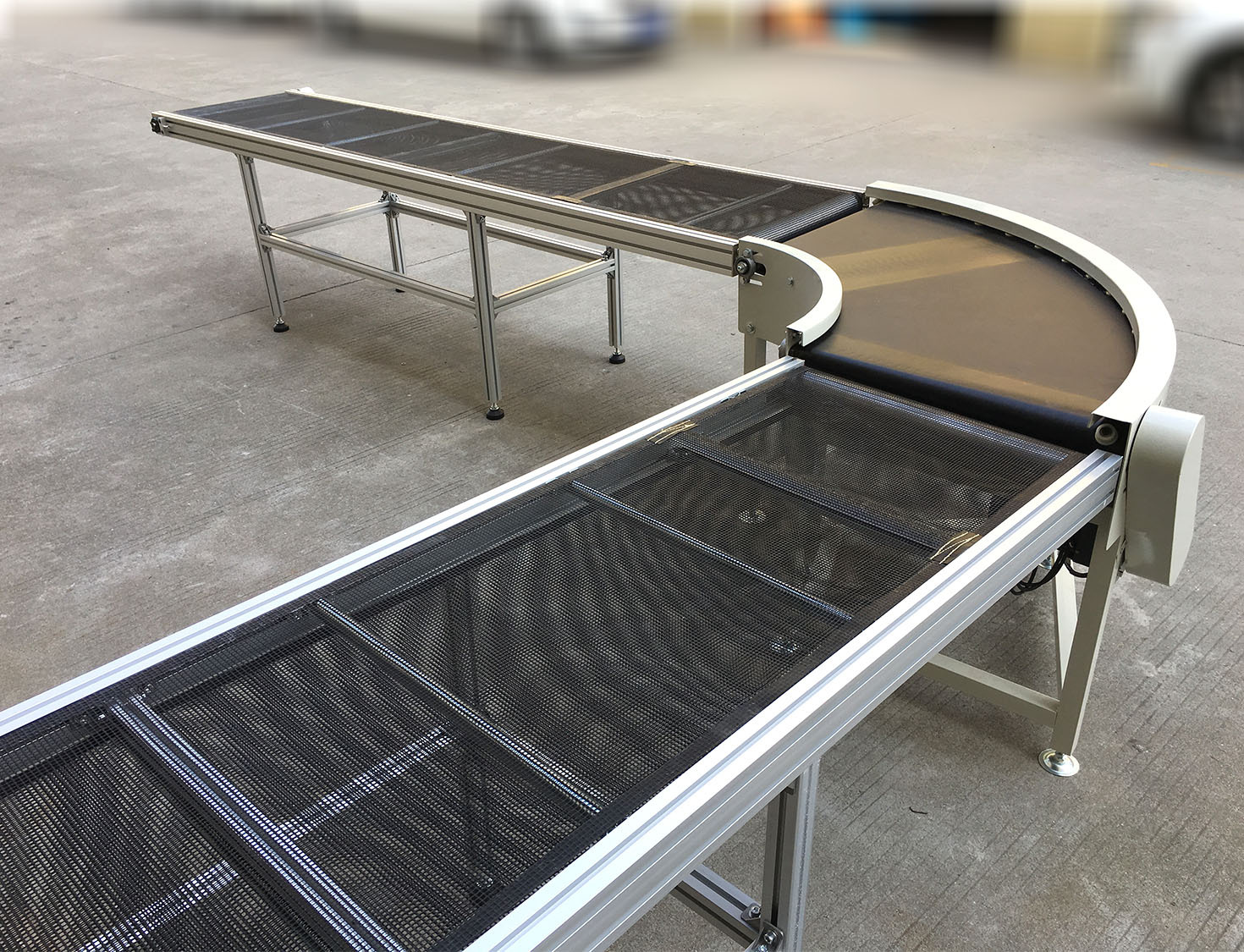

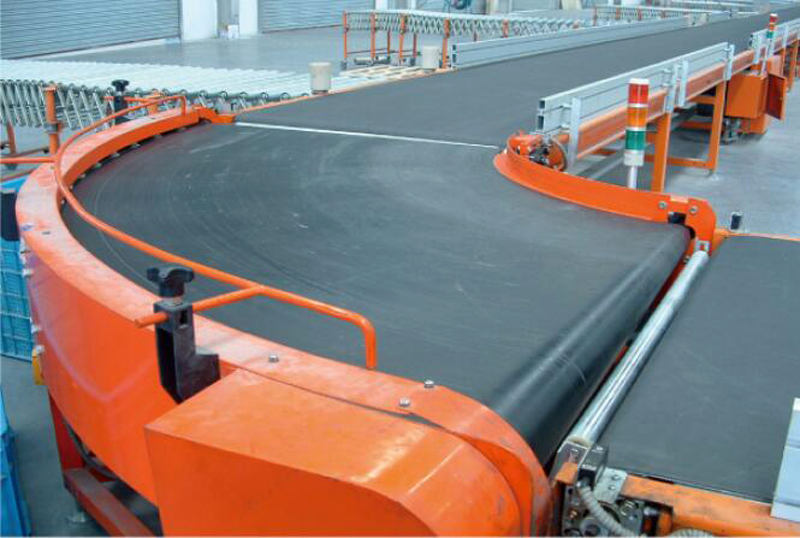

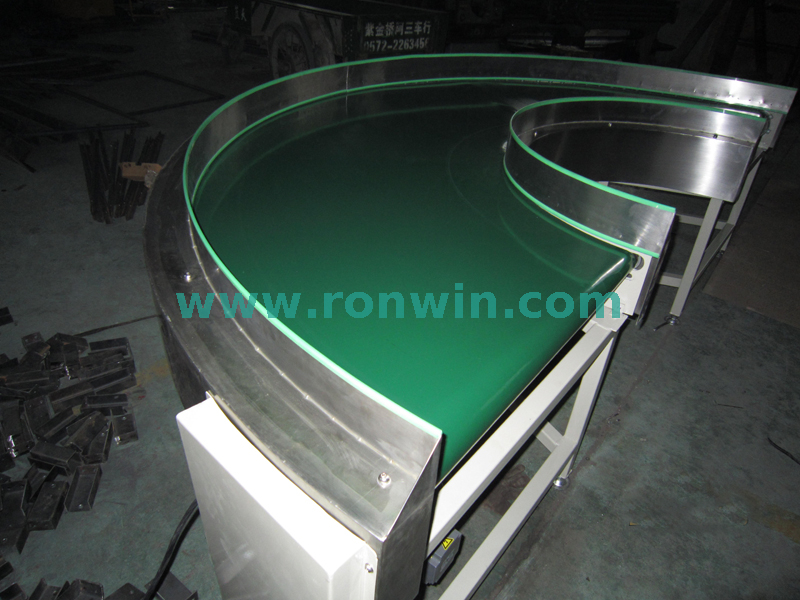

Some products and applications
