RONWIN
Streamline Logistics, Maximize Efficiency, and Enhance Safety
Our state-of-the-art Modular Loading/Unloading Conveyor System is an engineered solution designed to revolutionize the way your facility handles cargo. By seamlessly integrating three key conveyor types into a single, cohesive unit, we eliminate the most common bottlenecks and physical strains associated with truck and container loading/unloading. This system is the pinnacle of efficiency, safety, and adaptability for warehouses, distribution centers, manufacturing plants, and logistics hubs.

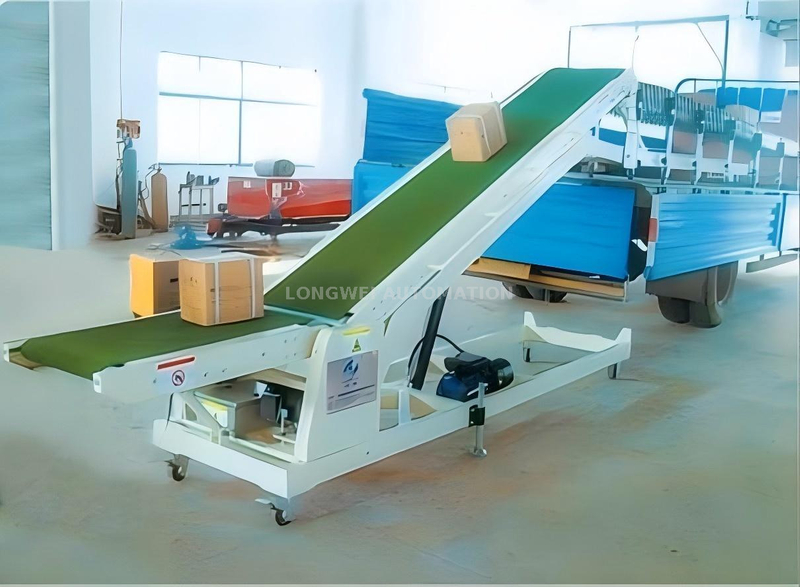

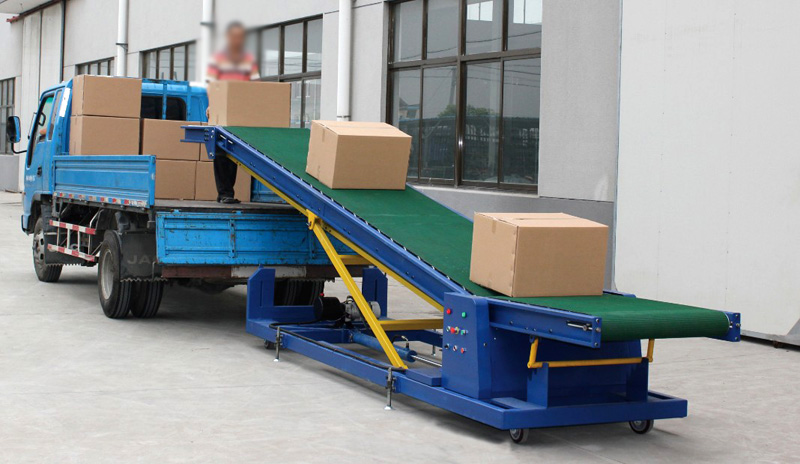

Main Features of Loading/Unloading Conveyor
It can be moved to the loading and unloading site at will for easy operation.
In order to adapt to different heights, can be in 0-28 degrees free rise and fall.
It can be started and stopped immediately, conveying in the forward or opposite direction and transported to the truck or warehouse directly.
The front end hanging motorized flexible expandable roller conveyor can be extended freely, so that the transporting goods is as far as possible closed to the cargo or loading and unloading position.
Conveying speed is adjustable in the range of 10-40m/min, it makes loading/unloading or material handling work more comfortable and fast.
The belt conveyor part and the flexible expandable roller conveyor part of the loading and unloading conveyor can be used combinedly or separately.
Standard dimensions makes early delivery time.
The system's power lies in the intelligent synergy of its three primary components, working in unison to create a continuous, effortless flow of goods.

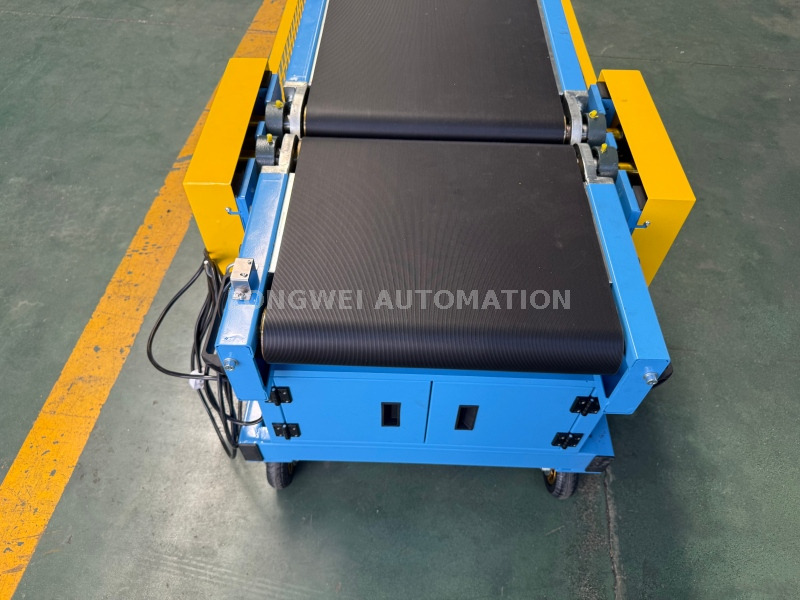

1. Horizontal Belt Conveyor (The Foundation)
Function: Serves as the stable receiving or dispatch point within your facility. It acts as the crucial link between your internal operations (e.g., staging areas, sortation systems, packaging lines) and the loading door.
Features
Sturdy Construction: Built with a rigid steel frame and a high-traction, durable belt suitable for a wide range of carton weights and sizes.
Consistent Power: Provides a reliable, constant speed for steady product intake or discharge, ensuring no gaps or jams in the workflow.
Standardized Lengths: Available in various lengths to perfectly fit your dock layout and operational requirements.

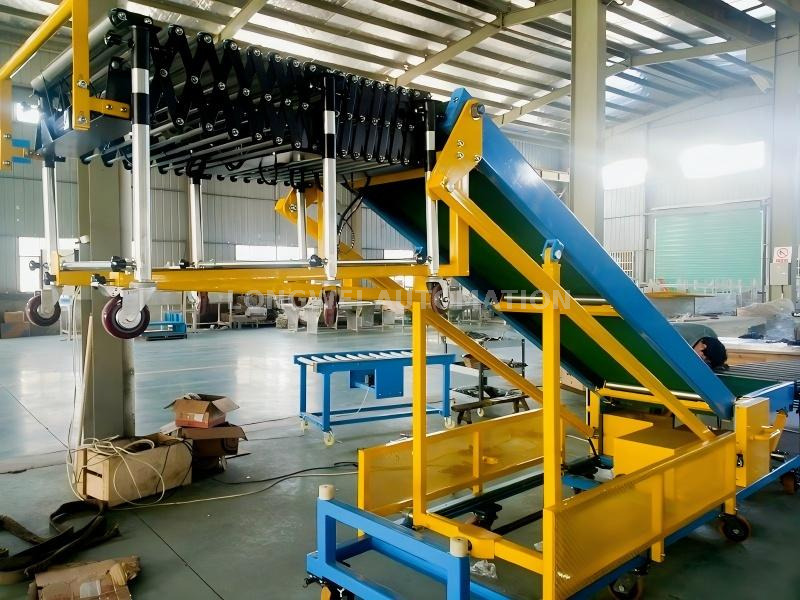

2. Inclined Belt Conveyor (The Bridge)
Function: Dynamically connects the facility floor to the truck or container bed, overcoming the critical height and distance gap. It is the workhorse that physically moves goods up and down.
Features
Adjustable Incline: A powered hydraulic or electrical system allows operators to easily raise, lower, and adjust the incline angle to match various truck bed heights effortlessly.
High-Capacity Belt: Engineered with a cleated or rough-top belt to prevent cargo from sliding backwards, even on steeper angles, ensuring secure transport.
Safety Mechanisms: Includes emergency stop cords along its entire length, non-slip walkways, and safety guards to protect personnel.

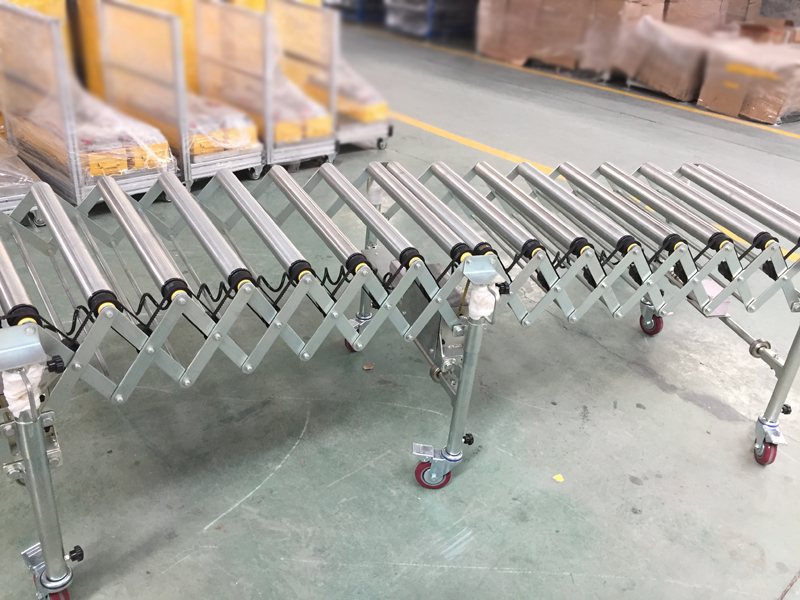

3. Flexible Expandable Roller Conveyor (The Reach)
Function: Extends deep into the truck or container, allowing workers to place or retrieve cargo from the very front without strenuous manual carrying. This is where significant time and labor savings are realized.
Features:
Telescopic Design: Extends and retracts smoothly on built-in rollers, capable of reaching up to 30 feet or more inside a trailer.
360° Maneuverability: Swivels left and right and features multi-directional casters for precise positioning within the truck, navigating around obstacles and maximizing space utilization.

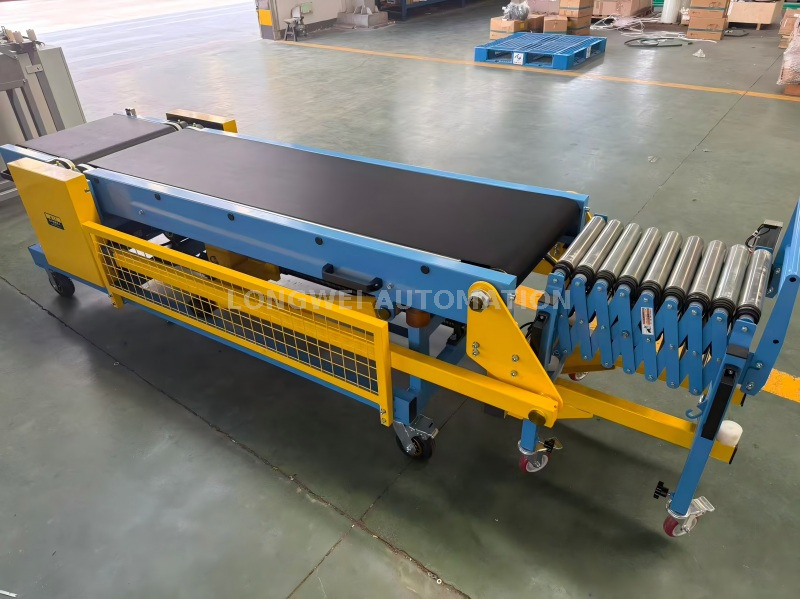

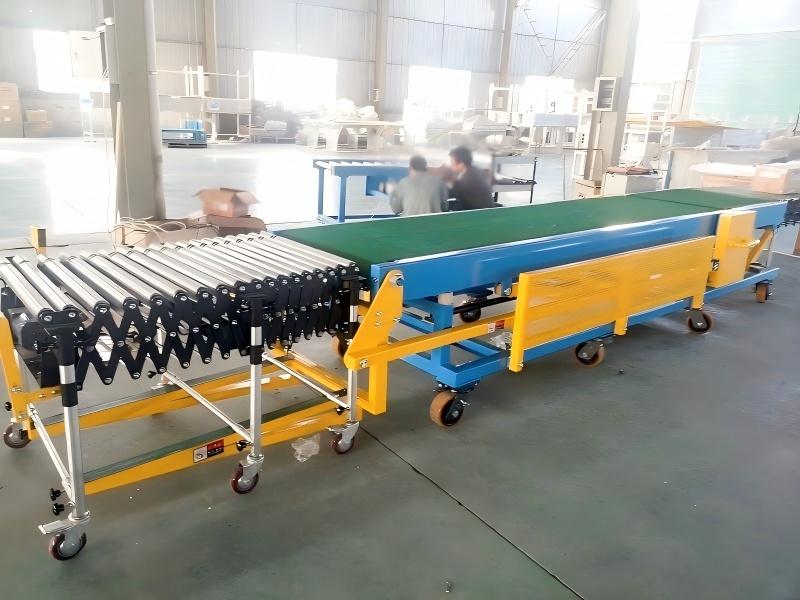

The belt conveyor part and the flexible expandable roller conveyor part of the loading and unloading conveyor system can be used combinedly or separately.
Flexible expandable roller conveyor at required length on the ground connecting the stocking site and loading/unloading site.

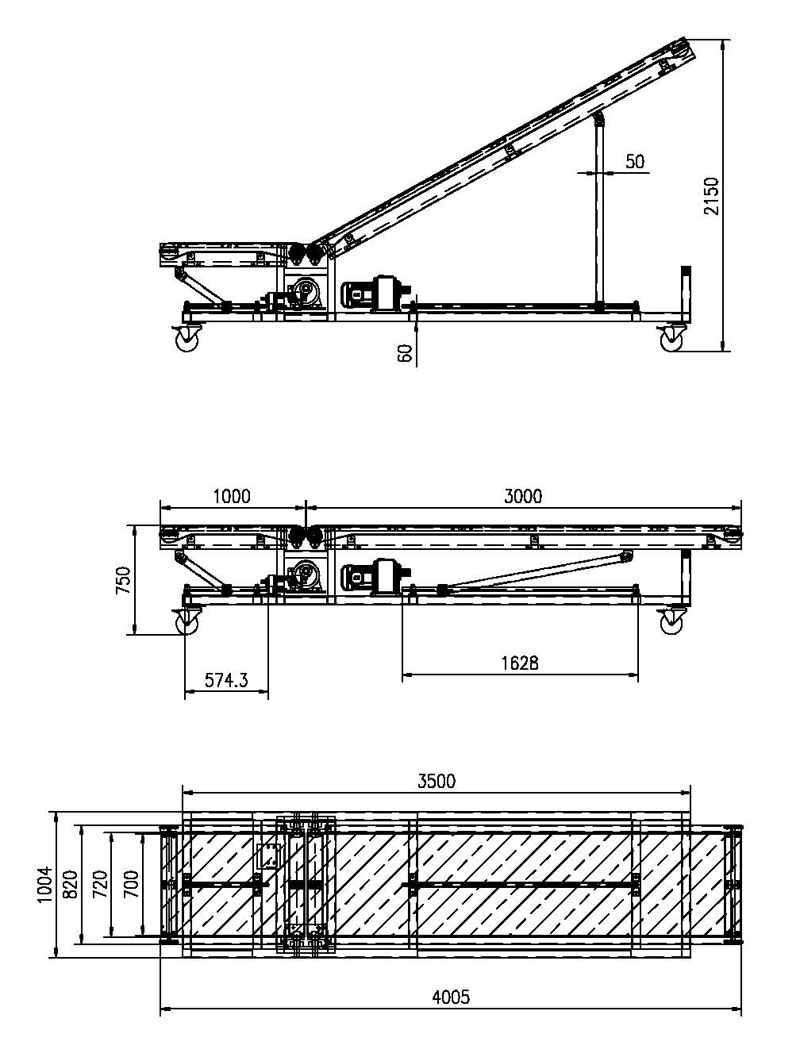

Specifications of Standard Horizontal Belt Conveyor and Inclined Belt Conveyor
The specifications of flexible expandable conveyor, please refer to the introduction of Motorised Flexible Expandable Poly-V Belt Drive Roller Conveyor, Motorized Flexible Expandable Toothed Belt Drive Roller Conveyor, and Flexible Expandable O-belt Motor Drive Roller Conveyor.
Dramatically Increased Productivity: Reduce truck turnaround time by over 50%. Move more cargo in less time, allowing you to handle more loads per day and optimize your fleet utilization.
Significant Labor Savings: Minimize the need for large crews. A single operator can manage the flow of goods, and manual carrying is virtually eliminated, reducing fatigue and required manpower.
Enhanced Worker Safety: Ergonomic design drastically reduces the risk of musculoskeletal injuries (e.g., back strains, shoulder injuries) from repetitive lifting, carrying, and reaching. The system does the heavy lifting.
Superior Cargo Protection: Gentle, controlled handling minimizes product damage from drops, impacts, or careless handling during the loading process.
Unmatched Versatility: Effortlessly handles a vast array of cargo types, including boxes, cartons, totes, bags, and bundled goods of various weights and dimensions.
Optimized Space Utilization: The flexible conveyor ensures every inch of the truck trailer is used effectively, leading to better cube utilization and potentially fewer trips.
Belt Widths: 700mm (Custom widths available)
Load Capacity: Up to 100 kg/meter (Standard; higher capacities available)
Incline Conveyor Angle: Adjustable from 0° to 30° (approx.)
Expandable Reach: Extendable length from 5m to 10m (16ft to 33ft) standard.
Power Supply: 380V/480V 3Phase or 220V/110V Single Phase options.

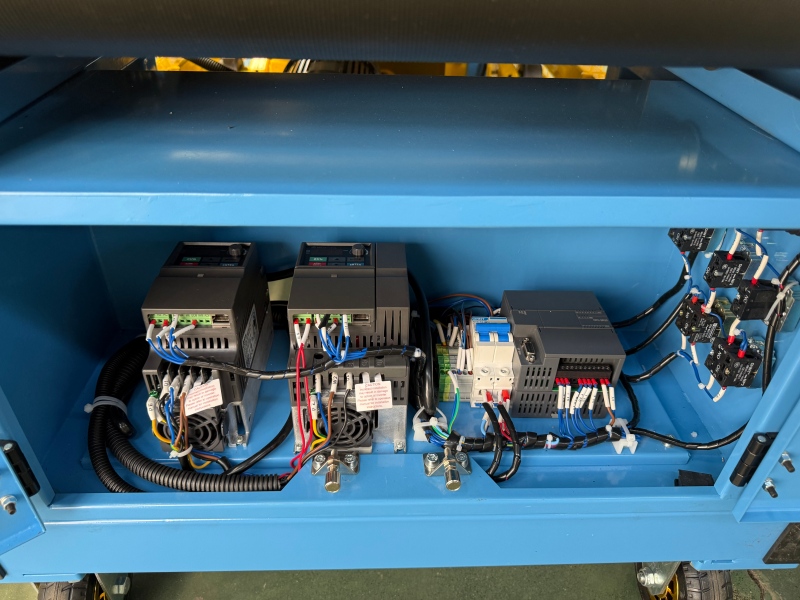

Control System: Simple and intuitive pendant control with forward/reverse and speed adjustment for effortless operation.
This system is perfect for a wide range of industries and operations, including:
Warehousing & Distribution Centers
Parcel and Postal Services
Freight and Logistics Companies
Food and Beverage Distribution
Manufacturing and Production Facilities
Retail and E-Commerce Fulfillment Centers
Moving and Storage Companies
Invest in Efficiency Today.
Transform your loading dock from a bottleneck into a powerhouse of productivity. Our Modular Loading/Unloading Conveyor System is a scalable investment that pays for itself through saved labor, time, and injury-related costs.
Contact us for a custom consultation and quote tailored to your specific facility layout and operational needs.
