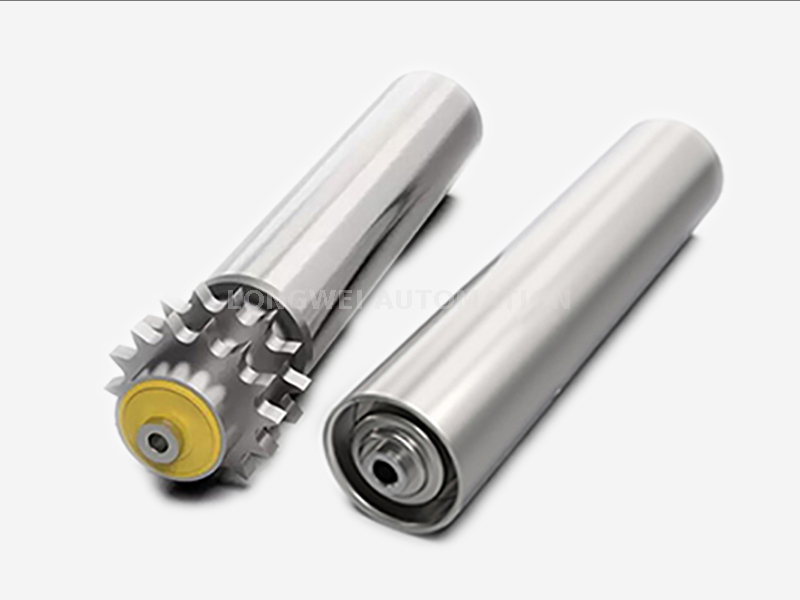

Heavy Load Pallet Handling Conveyor Roller

Heay Load Pallet Handling Conveyor Roller

Pallet handling roller is a type of conveyor roller specifically designed to transport palletized goods or heavy loads in material handling systems. These rollers are typically longer, more robust, and capable of handling heavier weights compared to standard conveyor rollers. They are commonly used in warehouses, distribution centers, manufacturing facilities, and other industrial settings where pallets need to be moved efficiently.

Key Features of Pallet Handling Rollers

1. Heavy-Duty Construction: Made from durable materials like carbon steel or stainless to withstand the weight of pallets and heavy loads.

2. Large Diameter: Typically have a larger diameter (e.g., 60mm, 76mm, 80mm and 89mm) to provide better support and reduce wear.

3. High Load Capacity: Designed to handle significant weights, often ranging from hundreds to thousands of kilograms.

4. Drive Options: Can be powered (motorized) or non-powered (gravity rollers), depending on the application.

5. Surface Finish: Often coated or treated to resist corrosion, abrasion, and other wear factors, the most common treatment method is zinc plated or chrome plated, if there is sprocket to do oxidation treatment

Types of Pallet Handling Rollers:

1. Gravity Roller: Rely on manpower or gravity to move pallets, typically used for inclined or declined conveyors.

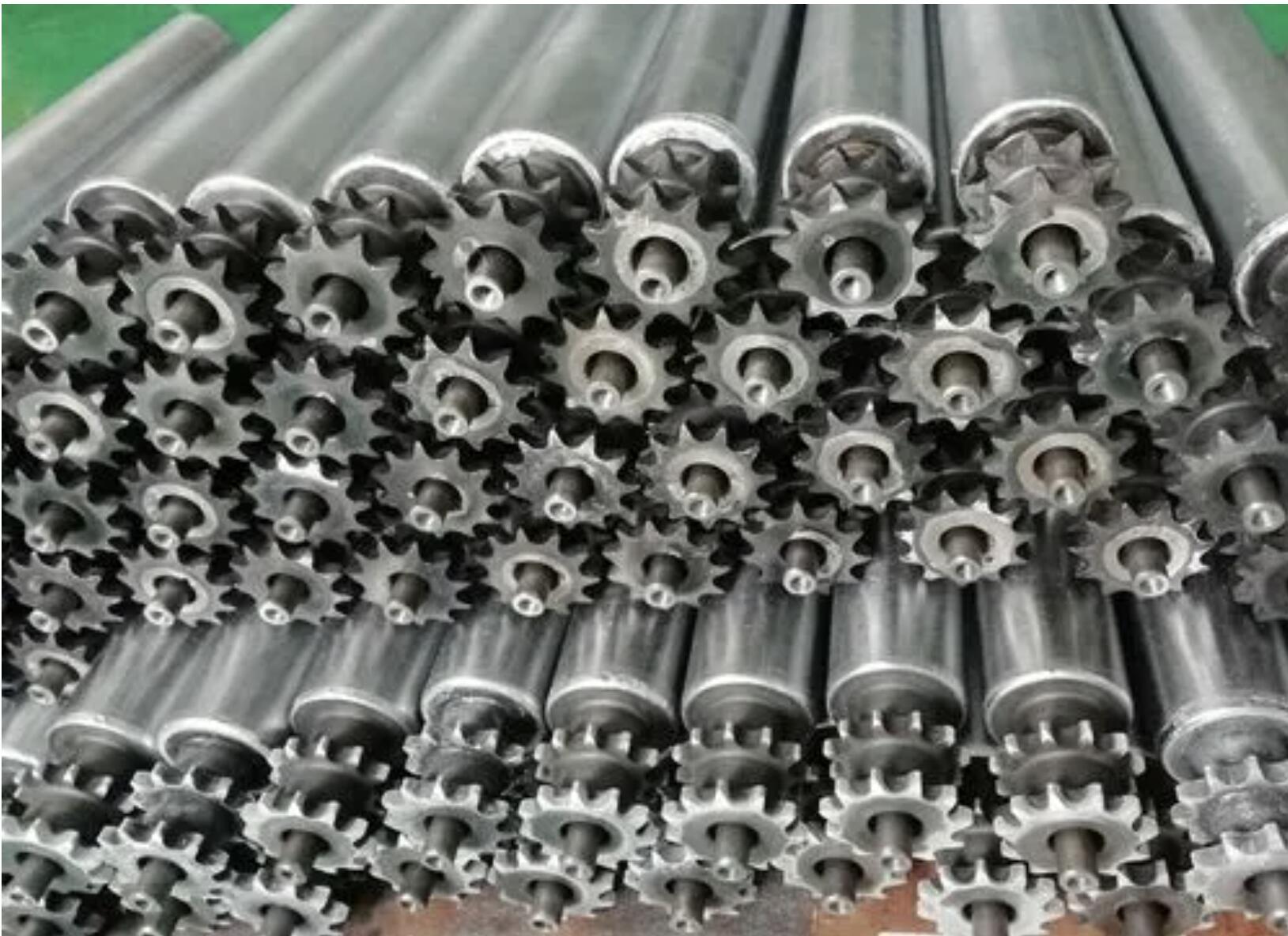

2. Powered Roller: Motorized roller is welded with a sprocket and connected to the gear motor by a chain.









Functional Characteristics of Pallet Handling Conveyor Roller

High reliability: precision ball bearing is secured in the steel pressed bearing shell to form the conveyor roller bearing assembly, which is tight, strong and durable. Able to withstand greater axial force than a plastic bearing unit.

Broad range of working temperature: steel bearing assembly makes the conveyor roller for use in a very broad temperature range from −30 to +80 °C (eg. oven or cold storage).

High load capacity: steel sprocket is permanently welded to steel tube of the conveyor roller, it can transmit greater torque. Precision ball bearings are fixed firmly into steel bearing housings for optimal endurance and to fulfill the requirements of the transportation of heavy load pallets.

Technical Specifications of Pallet Handling Conveyor Roller

Technical data

Diagram of R1800 Heavy Duty Gravity Conveyor Roller

Dimensions of series R1800 with female threaded installation

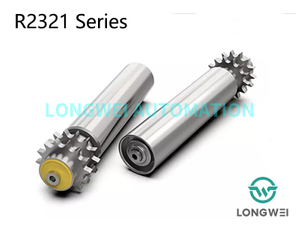

Diagram of R2321 Double-row Steel Sprocket Conveyor Roller

Dimension of series R2321 heavy duty steel driven conveyor roller by internal thread installation

Product Photograph

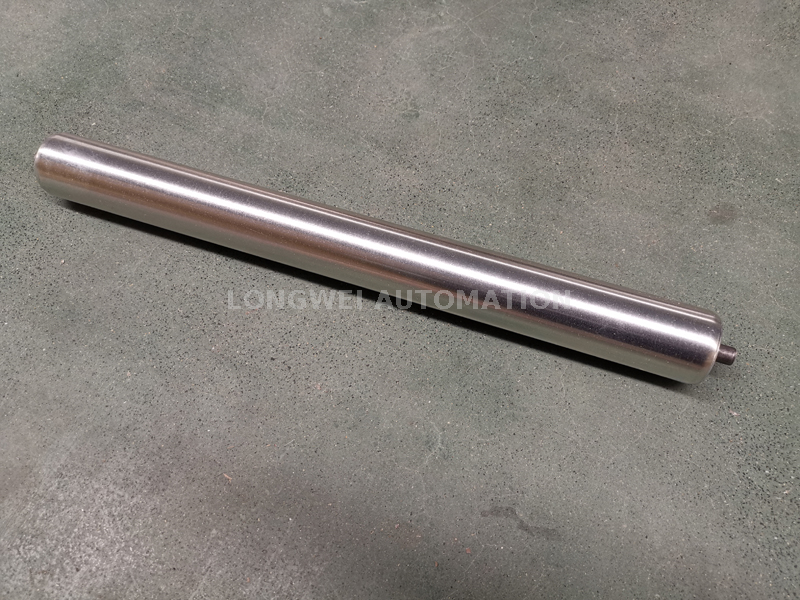

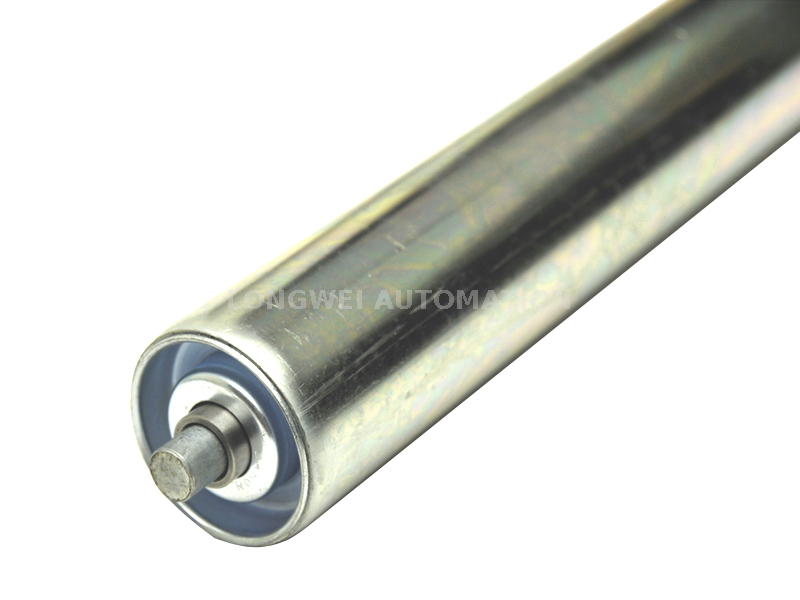

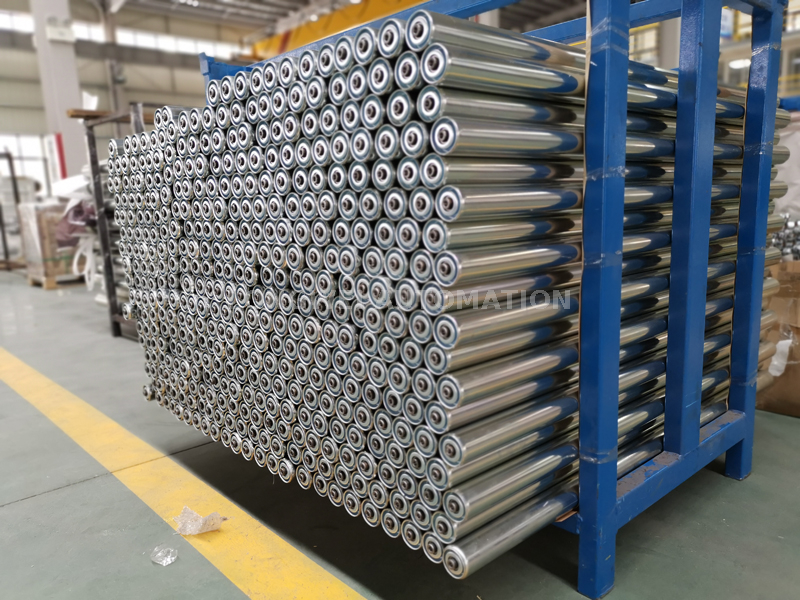

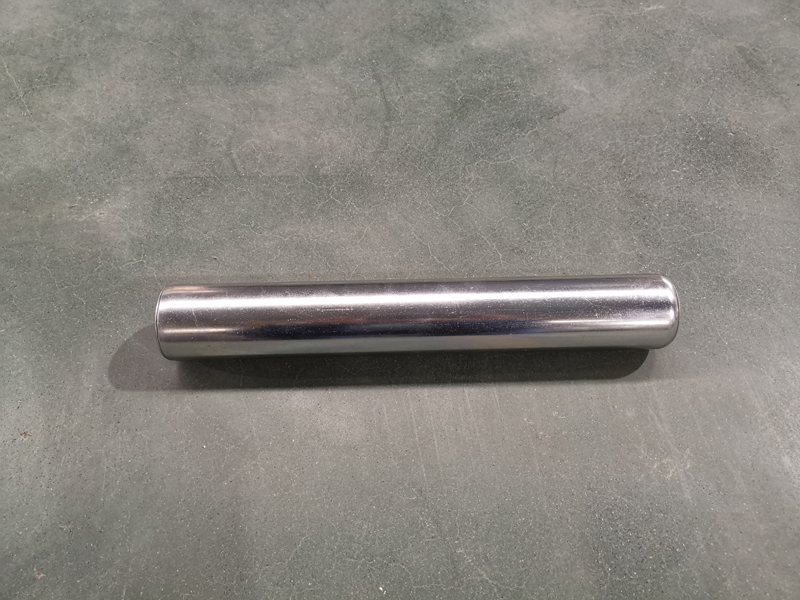

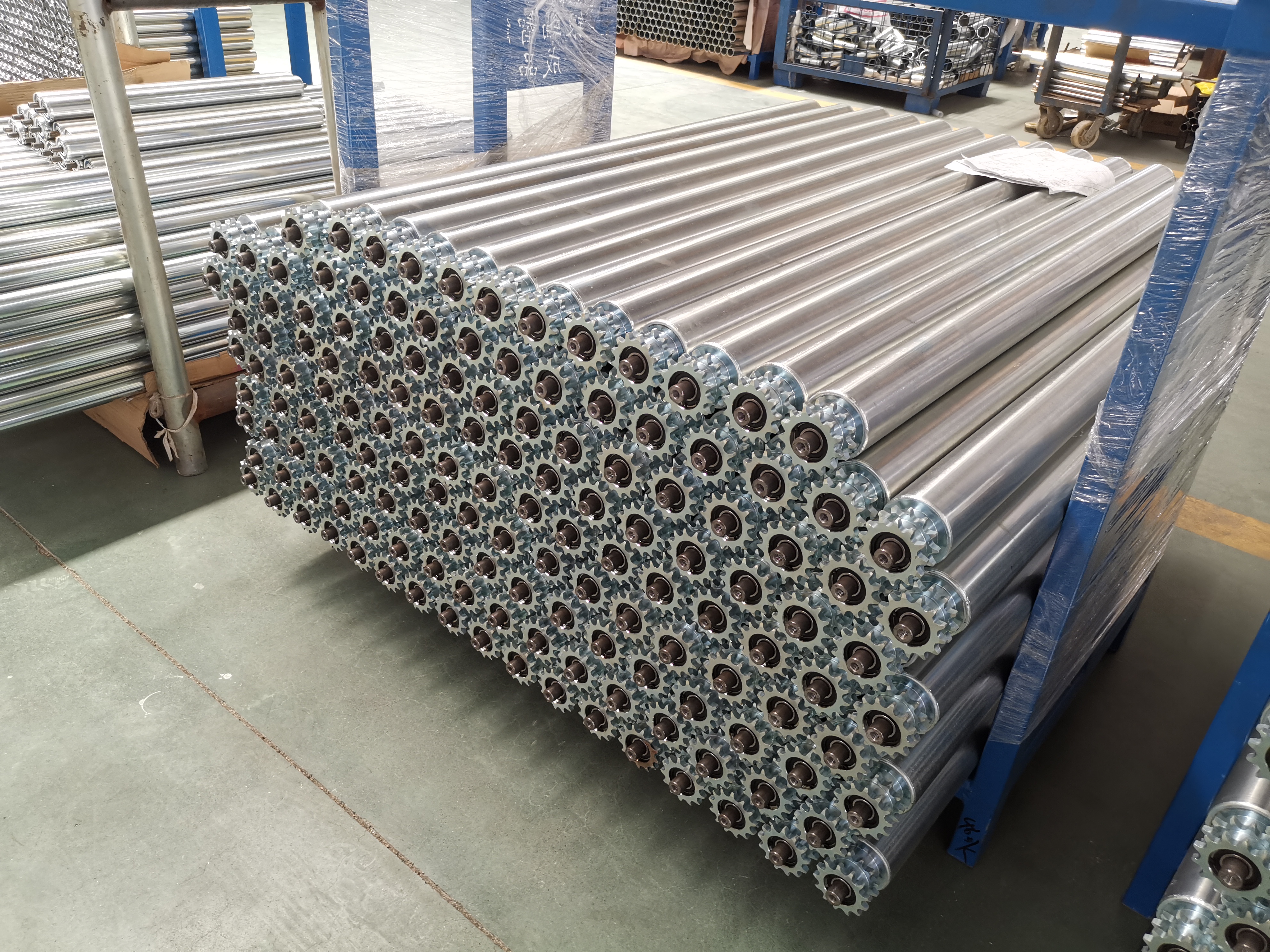

Heavy load gravity roller for pallet handling

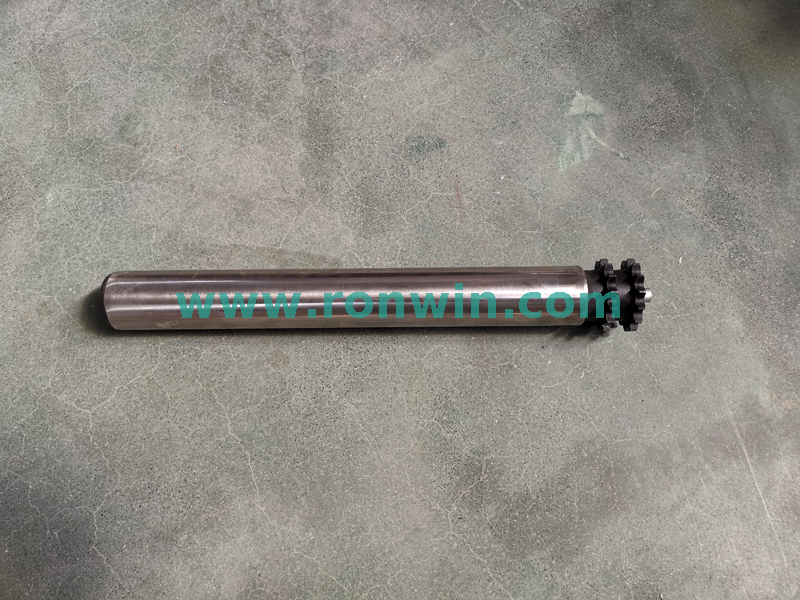

customized zinc-plated steel sprocket conveyor roller

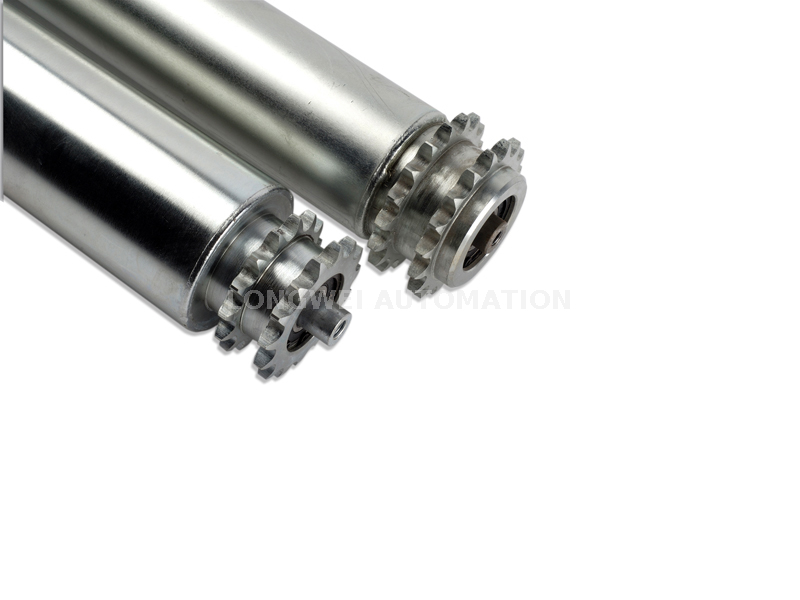

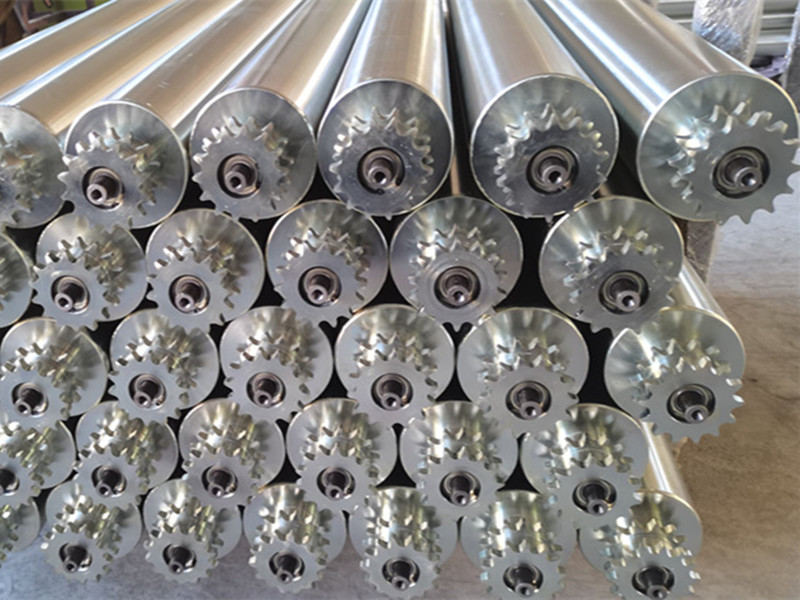

zinc-plated steel sprocket conveyor roller

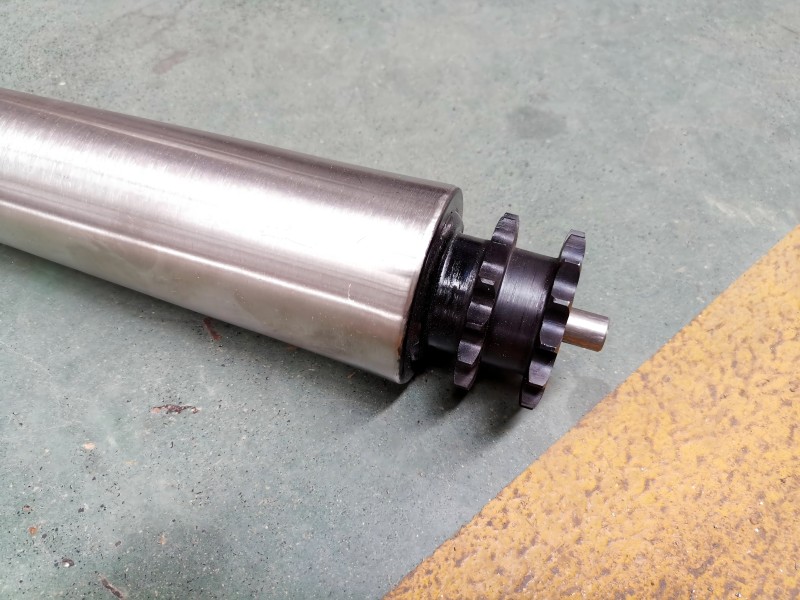

oxidation steel sprocket conveyor roller with PU coating increases wear resistance and anti-static properties

stainless steel chain driven conveyor roller with oxidation steel sprocket, rust-proof.

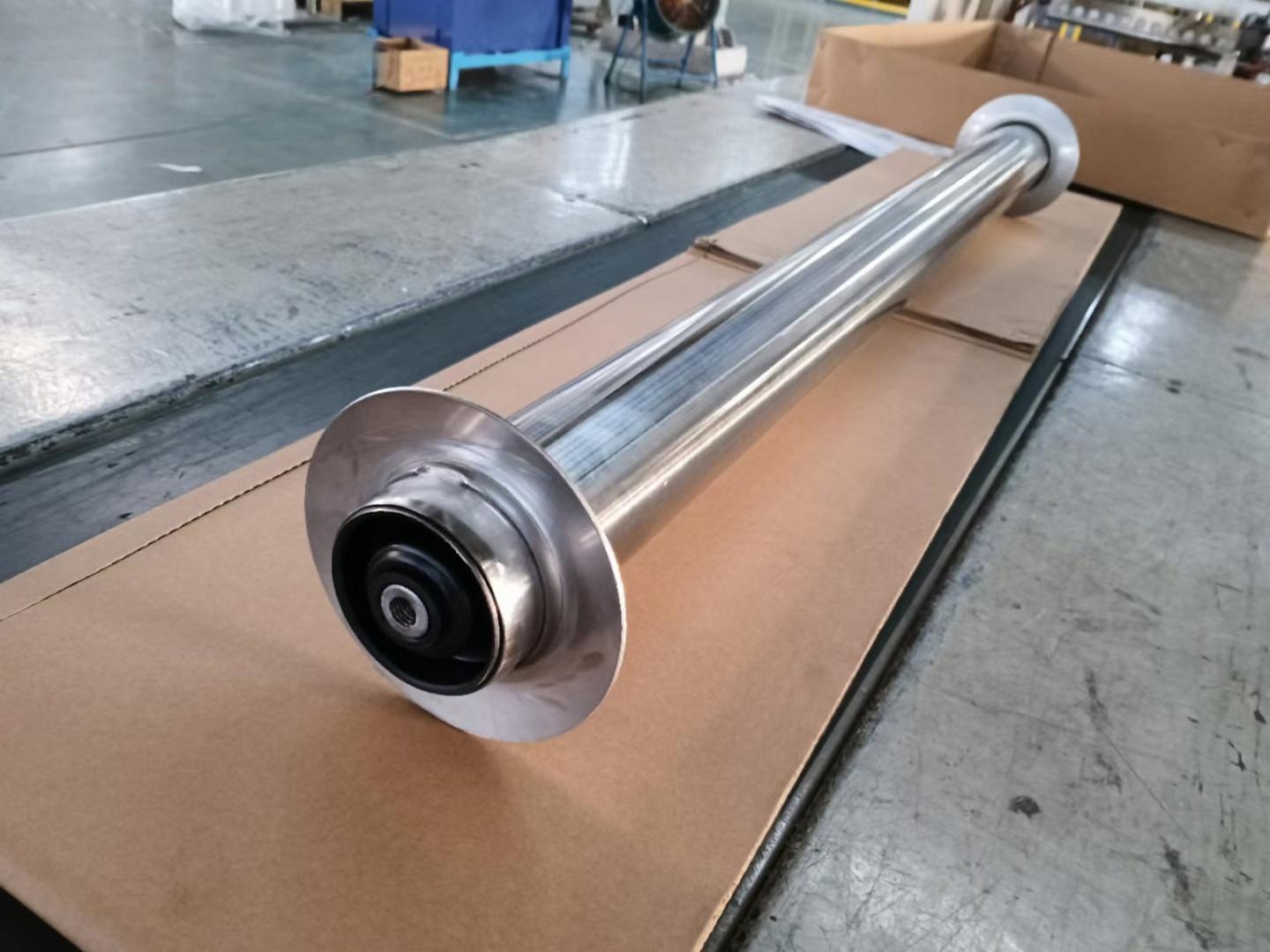

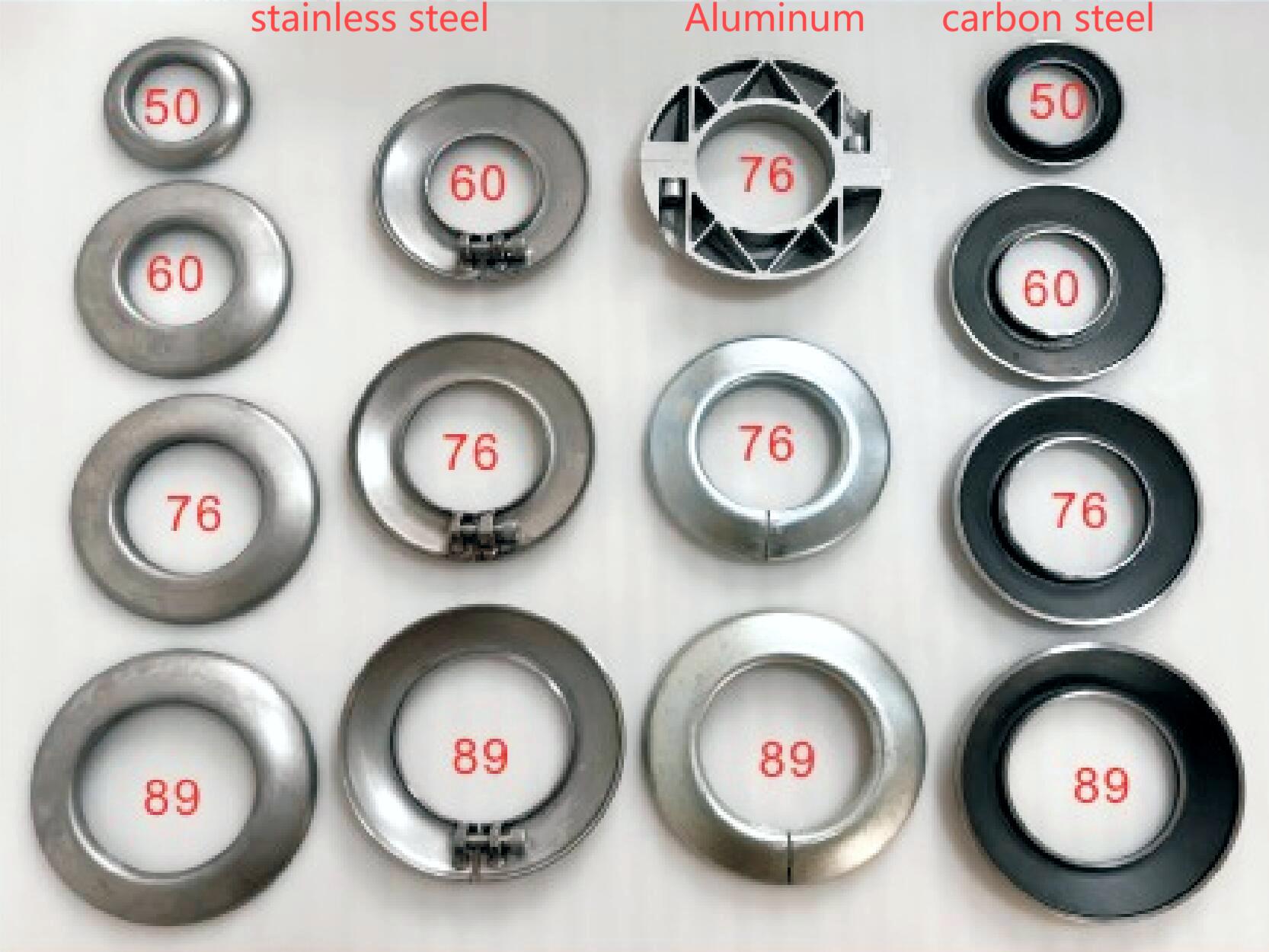

Accessories of conveyor roller - flange

Welded steel flange: steel flange and roller body are welded together makes it strong and durable, zinc-plated steel and stainless steel materials are available.

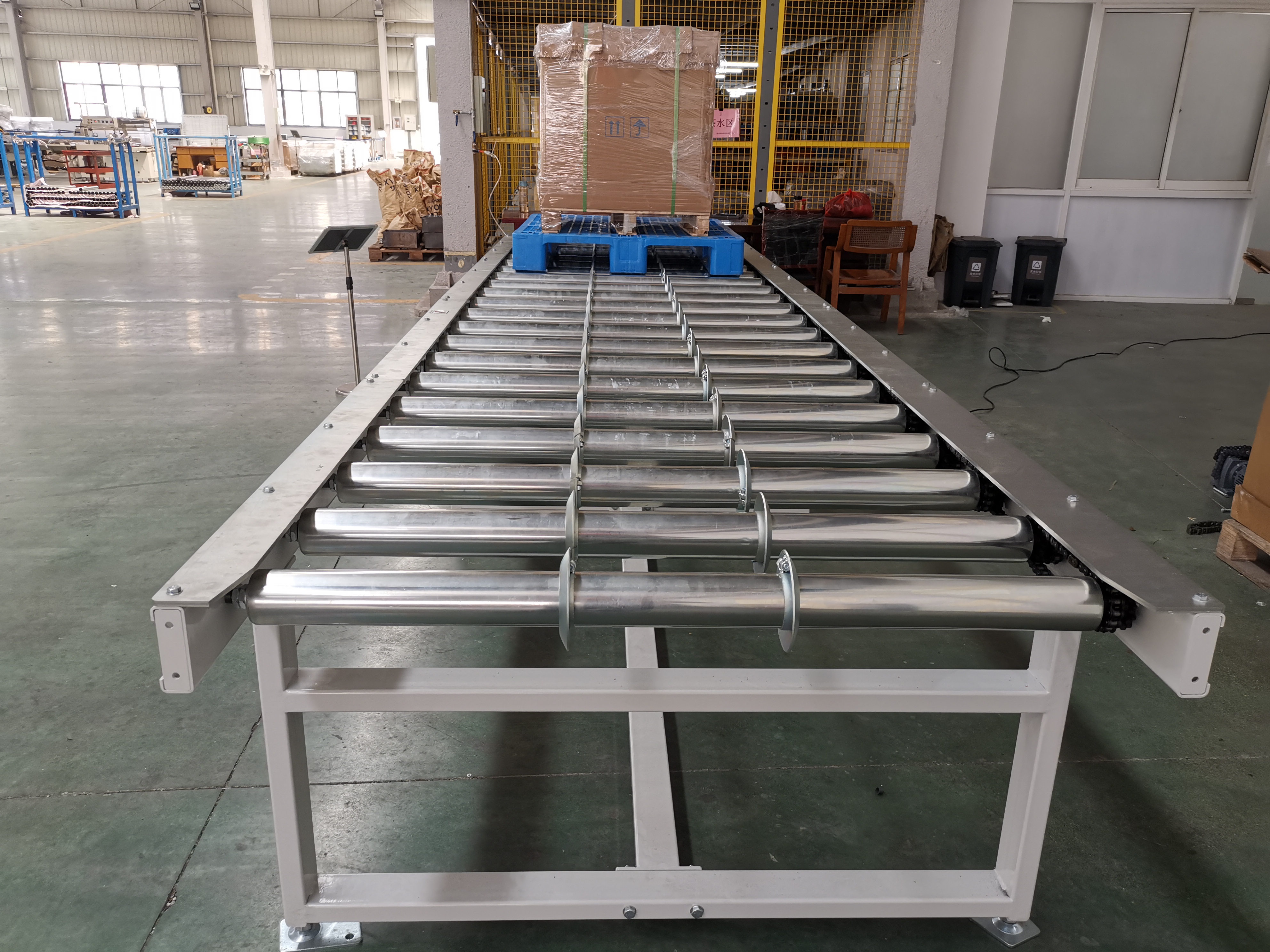

Locked flange: the flange is locked on the tube by bolt make it flexible for different types and sizes of pallets. Steel, stainless steel, aluminum alloy and plastic material are available.

Area of application

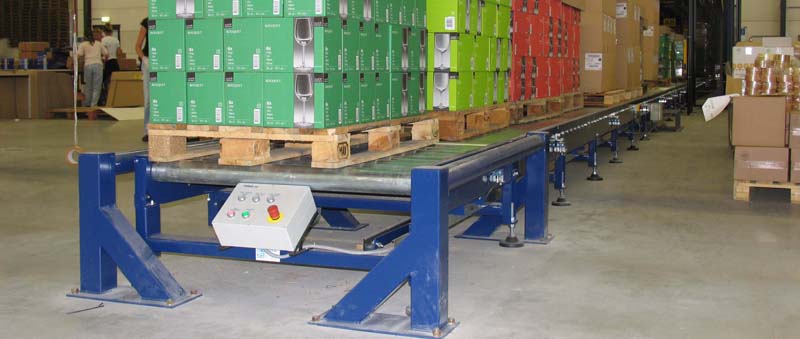

- Moving pallets in warehouses or distribution centers.

- Loading and unloading goods in manufacturing plants.

- Integration into automated storage and retrieval systems (AS/RS).

- Use in assembly lines or production facilities.

Pallet handling rollers are essential for improving efficiency, reducing manual labor, and ensuring the safe and smooth movement of heavy loads in industrial environments.
