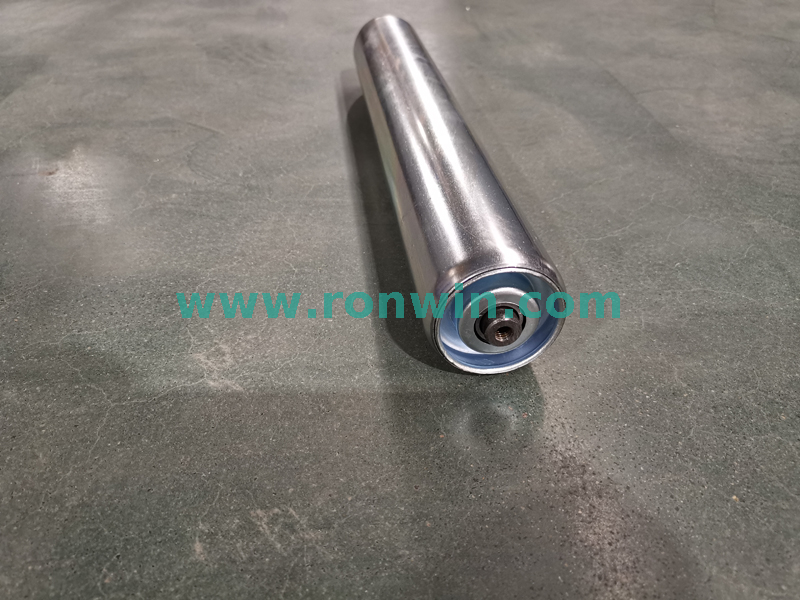

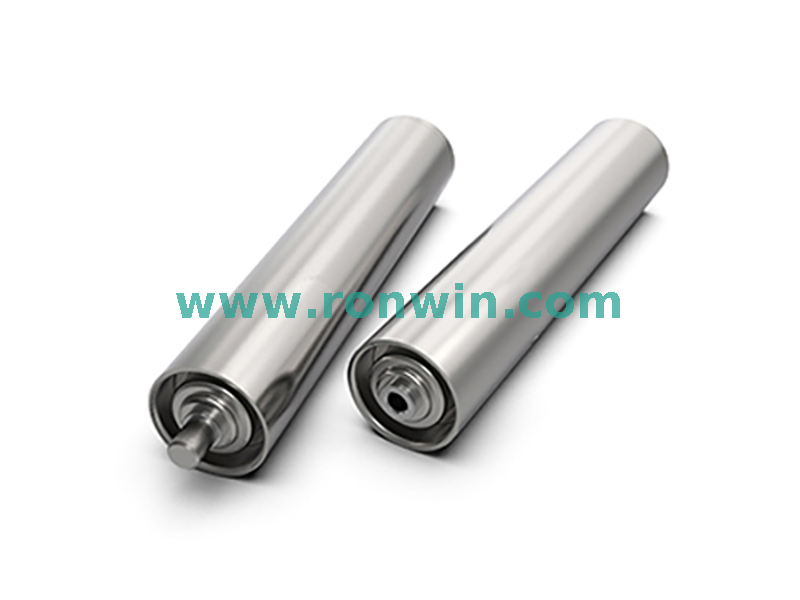

Heavy Duty Gravity Conveyor Roller with Steel Bearing Housing

Functional Characteristics of Series R1800 Gravity Steel Bearing Assembly Conveyor Roller

High reliability: precision ball bearing is secured in the steel pressed bearing shell to form the conveyor roller bearing assembly, which is tight, strong and durable. Able to withstand greater axial force than a plastic bearing unit.

Broad range of working temperature: steel bearing assembly makes the conveyor roller for use in a very broad temperature range from −30 to +80 °C (eg. oven or cold storage).

High load capacity: full range diameter of roller clinder and shaft, steel bearing housing ensure the roller is cable of being used in many arduous environment including pallet handling.

Lateral loading: the bearing housing is pressed into the roller clinder and the clinder ends are rounded, thereby allowing materials to be easily moved on from the side.

Technical data of series R1800 gravity steel bearing assembly conveyor roller

General technical data
Max. load capacity	600 KGS
Max. conveyor speed	50 m/min
Temperature range	−30 to +80 °C
Material
Tube	Carbon steel, stainless steel, aluminum
Shaft	Antirust oil coated steel, Zinc-plated steel, Stainless steel
Bearing housing	Zinc-plated steel, stainless steel
Bearing	Precision ball bearing
Design versions
Surface treatment	Zinc-plated, chrome-plated
Tube sleeves	PP sleeve, PU sleeve
Lagging	Rubber, PU

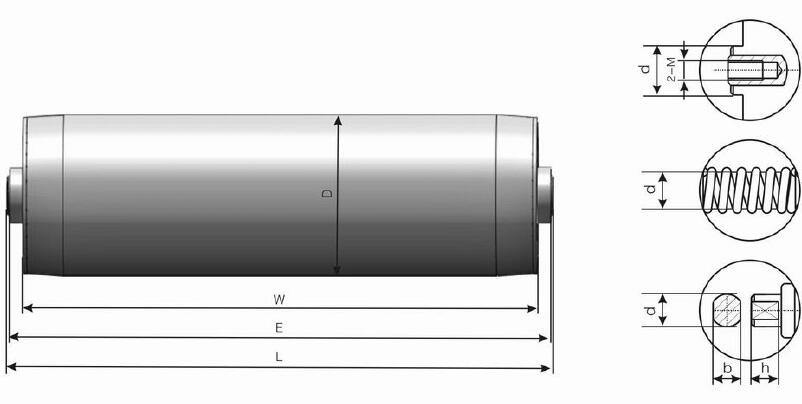

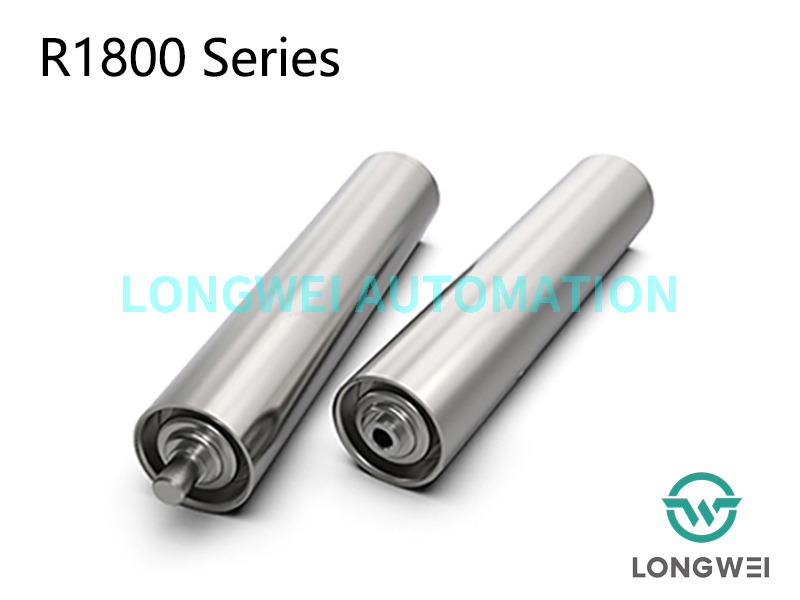

Diagram of R1800 Heavy Duty Gravity Conveyor Roller

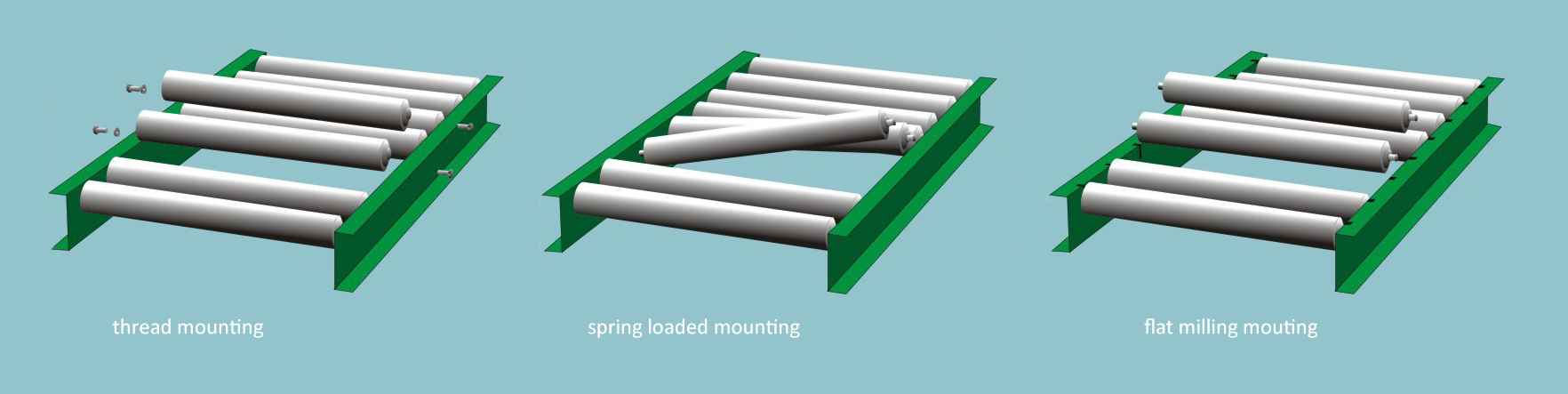

3 Popular Mounting Methods of R1800 Heavy Load Gravity Conveyor Roller

Dimension of series R1800 with spring loaded installation

Tube Material	D × T	Shaft	E	L
Steel, stainless steel, aluminum	25×1.0	Φ12	E=W+7	L=W+31
Steel, stainless steel, aluminum	32×1.2	Φ12	E=W+9	L=W+31
Steel, stainless steel, aluminum	38×1.2	Φ12	E=W+10	L=W+32
Steel, stainless steel, aluminum	50×1.5	Φ12	E=W+10	L=W+32
Steel, stainless steel, aluminum	60×2.0	Φ12/Φ15	E=W+10	L=W+32
Steel, stainless steel, aluminum	76×3.0	Φ20	E=W+10	L=W+40
Steel	80×3.0	Φ20	E=W+10	L=W+40
Steel	89×3.0	Φ20	E=W+10	L=W+40

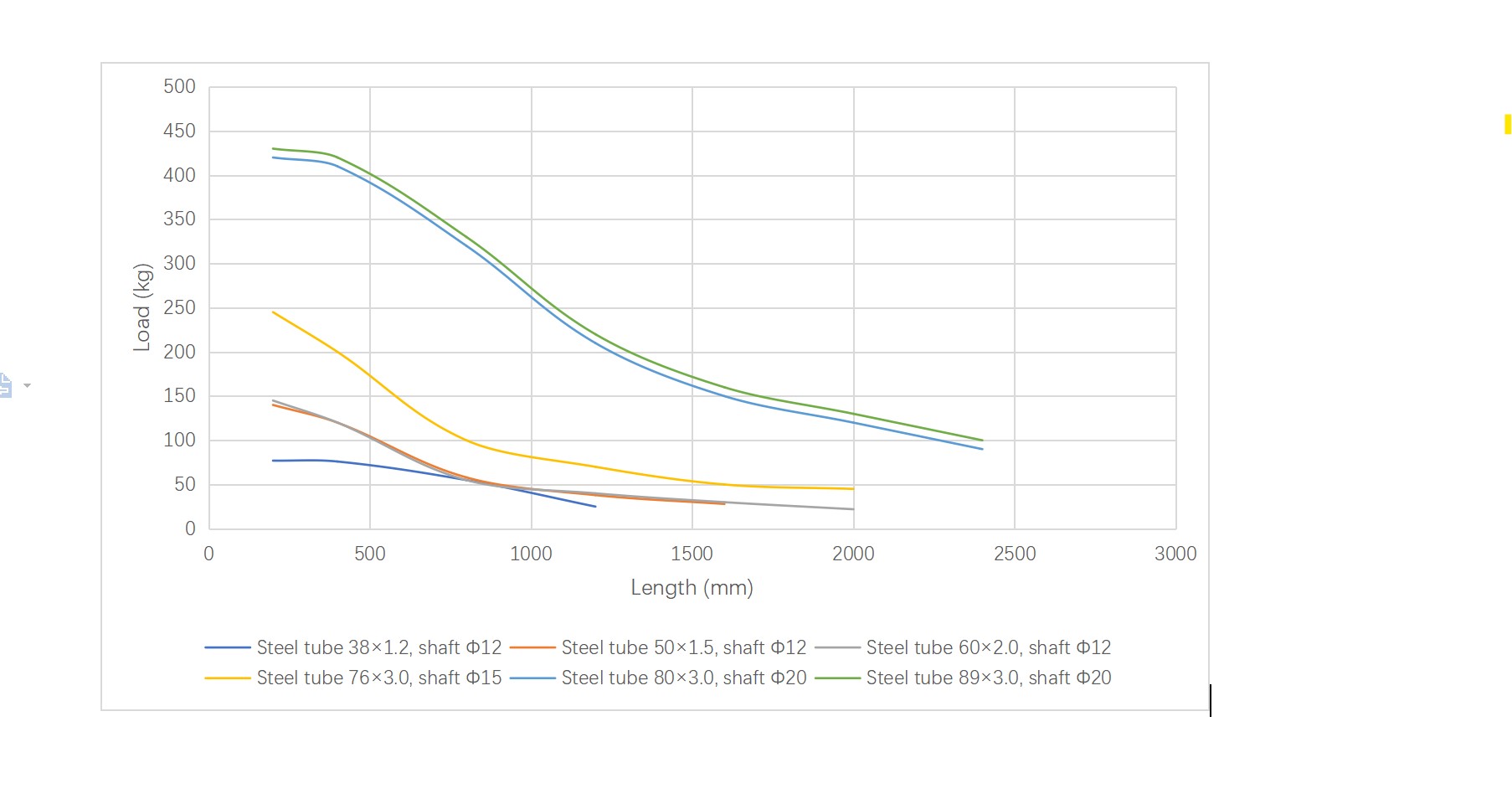

Load capacity of series R1800 with loose installation

The load capacity chart shows the static load capacity of the roller for a uniformly distributed load refers to a temperature range of −30 to +80 °C.

Valid for the following shaft designs: spring-loaded shaft or flatted shaft.

Dimensions of series R1800 with female threaded installation

Tube Material	D × T	Shaft	E	L
Steel, stainless steel, aluminum	25×1.0	Φ12	E=W+7	L=W+8
Steel, stainless steel, aluminum	32×1.2	Φ12	E=W+9	L=W+10
Steel, stainless steel, aluminum	38×1.2	Φ12	E=W+10	L=W+11
Steel, stainless steel, aluminum	50×1.5	Φ12	E=W+10	L=W+11
Steel, stainless steel, aluminum	60×2.0	Φ12/Φ15	E=W+10	L=W+11
Steel, stainless steel, aluminum	76×3.0	Φ20	E=W+10	L=W+12
Steel	80×3.0	Φ20	E=W+10	L=W+12
Steel	89×3.0	Φ20	E=W+10	L=W+12

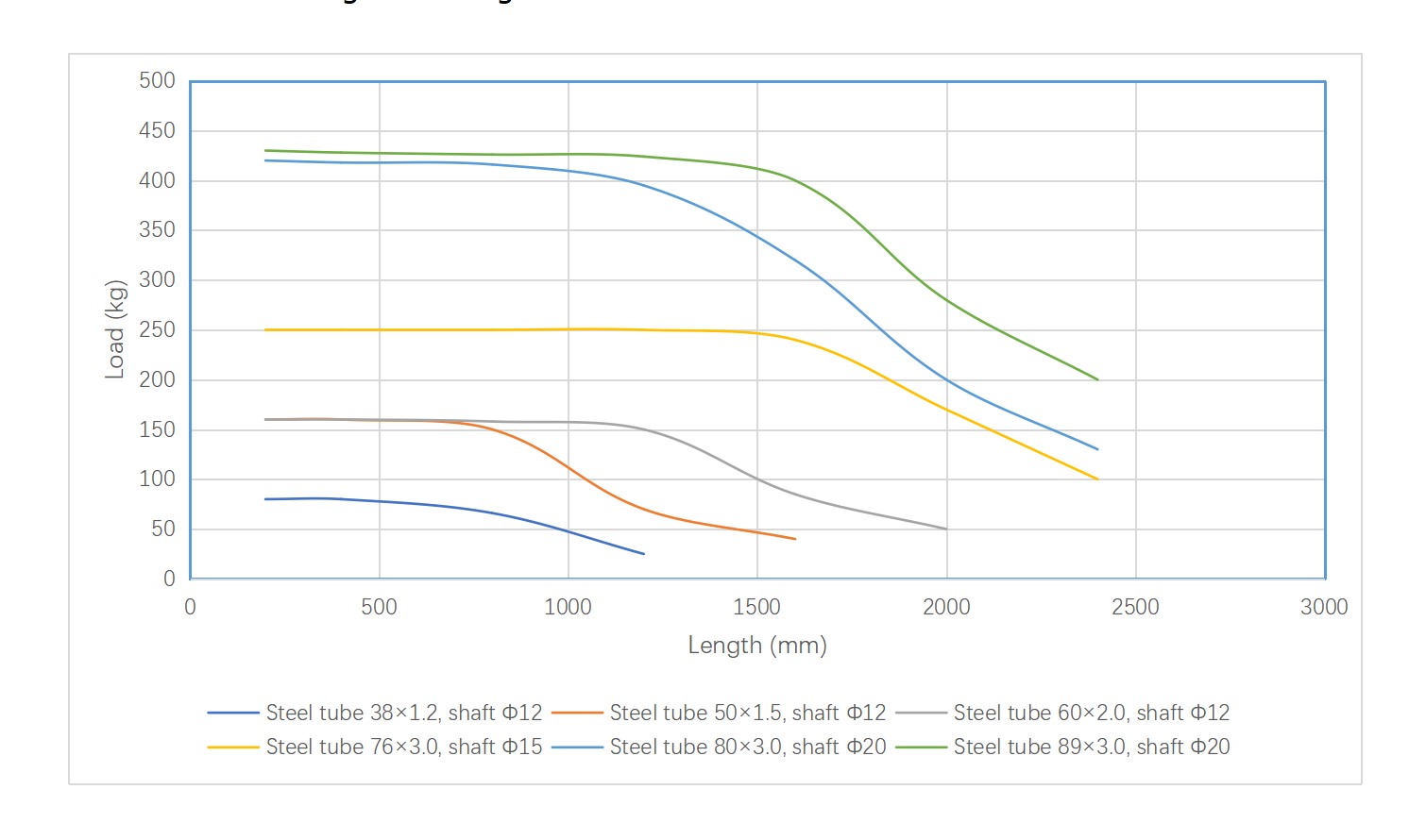

Load capacity of series R1800 with screw-connected installation

The load capacity chart shows the static load capacity of the roller for a uniformly distributed load refers to a temperature range of −30 to +80 °C.

Valid for the following shaft designs: female thread or male thread.

Application area

R1800 series heavy duty gravity roller is suitable for unit goods handling such as transport of carboards, containers, barrels, tires or pallets. Suited for cost-efficient implementation of gravity or push conveyors. The roller has a large range diameter of pipe and shaft for transport of light, medium and heavy goods.

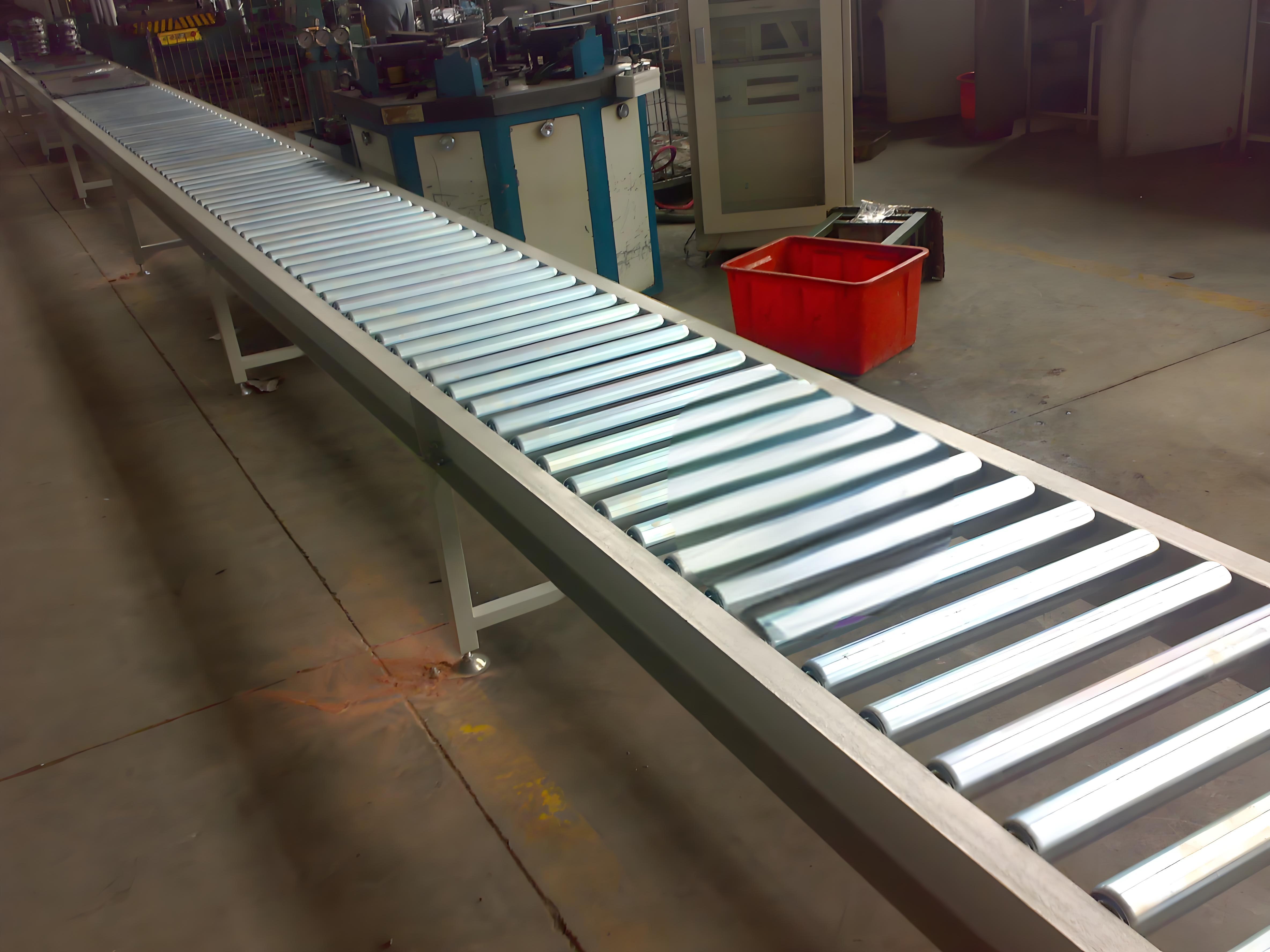

R1800 zinc-plated steel gravity roller used in gravity roller conveyor for transport of carton, barrel, box, container.

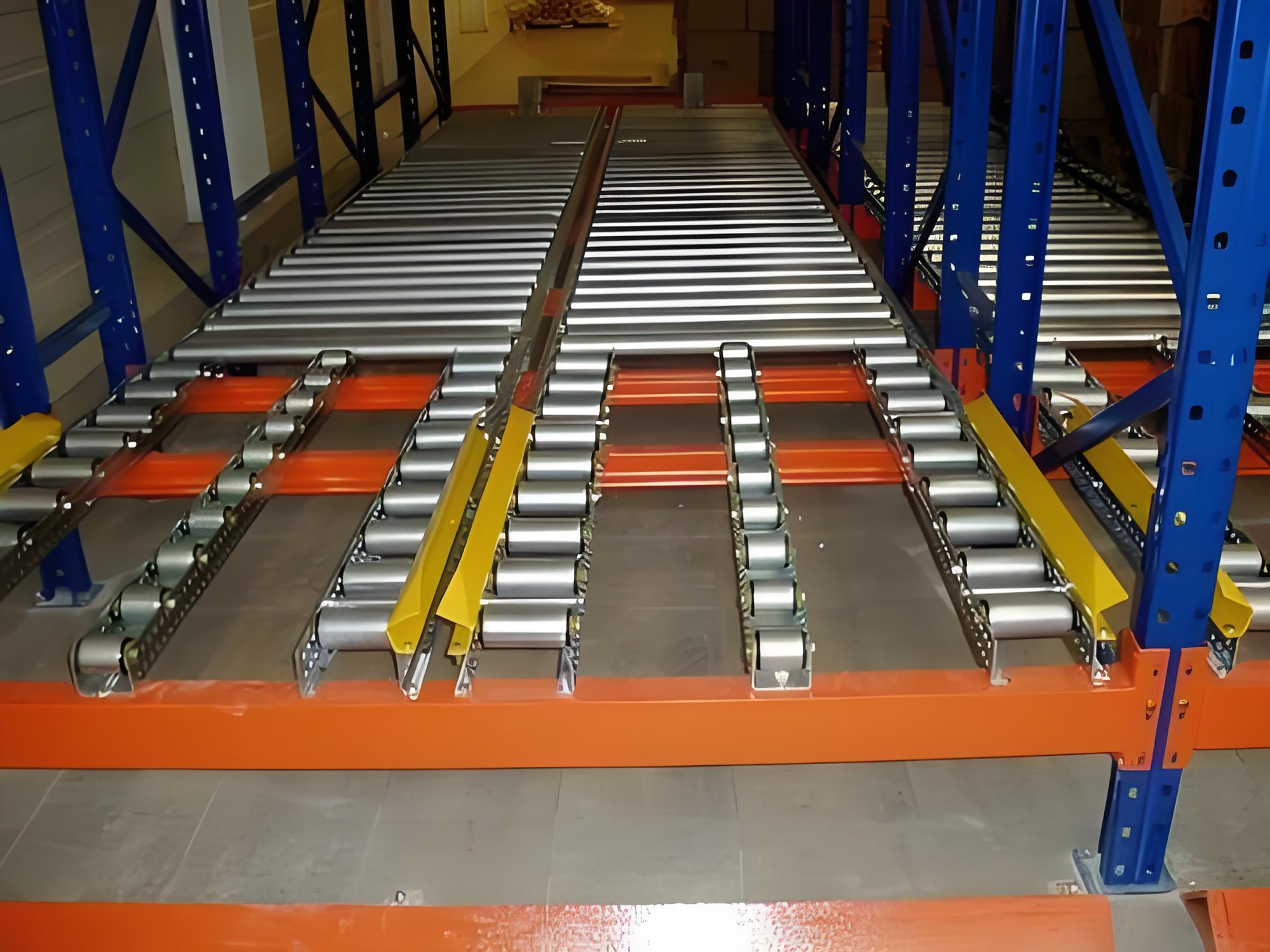

R1800 diameter 60mm/63mm zinc-plated steel gravity roller used in roller conveyor module of gravity rack for pallet handling.

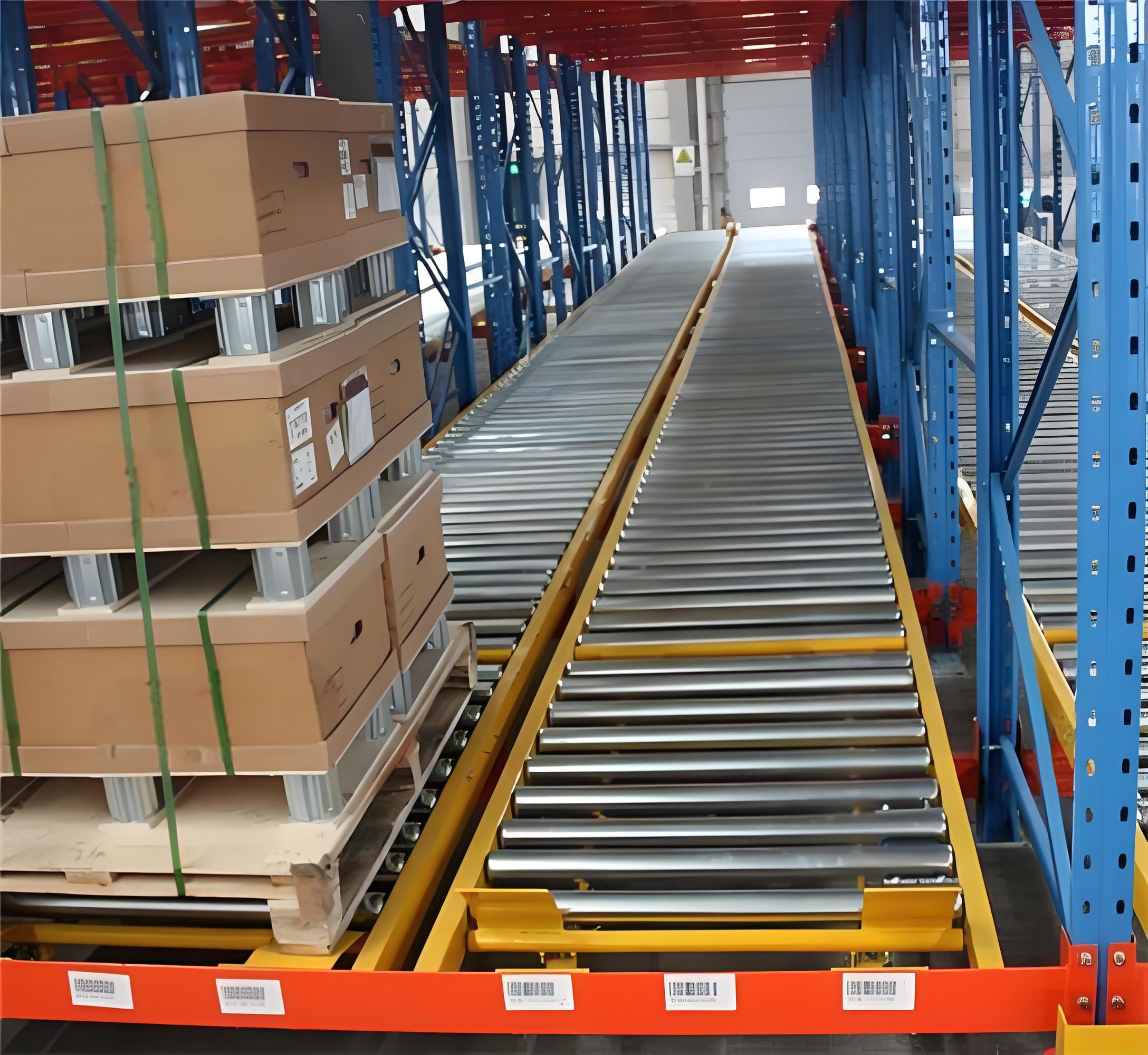

R1800 diameter 60mm/63mm/76mm zinc-plated steel gravity roller used in roller conveyor module of gravity rack for transport of pallet.
