Heavy duty pallet conveyor rollers are specifically designed for transporting palletized goods and heavy loads in industrial material handling systems. Compared with standard conveyor rollers, pallet conveyor rollers feature stronger structures, larger tube diameters, and higher load capacity to support demanding warehouse and production applications.
The Longwei Automation Heavy Duty Pallet Conveyor Roller is engineered for pallet conveyor systems, gravity conveyors, and powered material handling equipment. Available in both gravity roller and driven roller configurations, these rollers provide reliable pallet movement for warehouses, distribution centers, manufacturing facilities, and automated handling systems.
With robust steel construction, precision ball bearings, and customizable surface treatments, Longwei Automation conveyor rollers deliver stable operation, long service life, and dependable performance for heavy load transportation.
Item | Specification |
|---|---|
Product Type | Heavy Duty Pallet Conveyor Roller |
Application | Pallet Conveyor Systems / Material Handling |
Maximum Load Capacity | 3000 kg |
Maximum Conveyor Speed | 15 m/min |
Working Temperature | -30℃ to +80℃ |
Roller Diameter | 60 / 63.5/ 76 / 80 / 89 mm |
Roller Type | Gravity Roller / Sprocket Driven Roller |
Tube Material | Carbon Steel / Stainless Steel |
Bearing Type | Precision Ball Bearing |
Drive Element | Double Row Sprocket |
Surface Treatment | Zinc Plated / Chrome Plated |
Manufactured with durable materials including carbon steel and stainless steel, the rollers are designed to withstand the weight of pallets and heavy industrial loads.
The robust tube structure and steel bearing housing provide improved strength and durability for continuous material handling applications.
Heavy duty pallet conveyor rollers are available with larger diameter options including:
60 mm
63.5 mm
76 mm
80 mm
89 mm
The larger roller diameter provides better pallet support, reduces roller wear, and improves load distribution during transportation.
Designed for heavy pallet handling applications, the conveyor rollers can support loads up to 3000 kg depending on configuration and application requirements.
The combination of steel structure, precision bearings, welded sprocket and reinforced components ensures reliable performance under demanding working conditions.
Longwei Automation provides different roller configurations according to conveyor system requirements.
Gravity rollers move pallets through manual pushing or gravity-driven movement, typically used in inclined or declined conveyor systems.
Simple structure
Low maintenance requirements
No external power required
Suitable for gravity conveyor applications
Driven conveyor rollers use welded sprockets connected to a gear motor through a chain drive system.
Suitable for automated conveyor systems
Provides stable torque transmission
Designed for continuous pallet movement
Suitable for heavy load transportation
Zinc-plated steel sprocket rollers provide corrosion resistance and are suitable for industrial pallet conveyor applications requiring reliable chain transmission.
The zinc-plated surface improves corrosion resistance while maintaining stable performance in warehouse and material handling systems.
PU coating improves wear resistance and provides anti-static properties, making the roller suitable for applications requiring additional surface protection.
Precision ball bearings are secured inside steel pressed bearing housings to form a strong and durable roller bearing assembly.
Compared with plastic bearing units, the steel bearing structure provides higher strength and improved resistance to axial forces.
The steel bearing assembly enables the conveyor rollers to operate across a wide temperature range from:
-30℃ to +80℃
This makes them suitable for applications including:
Cold storage environments
Industrial production areas
Temperature-variable facilities
For driven conveyor rollers, the steel sprocket is permanently welded to the steel tube, allowing efficient torque transmission.
Precision ball bearings fixed in steel bearing housings provide reliable support for heavy pallet transportation.
Item | Specification |
|---|---|
Maximum Load Capacity | 3000 kg |
Maximum Conveyor Speed | 15 m/min |
Temperature Range | -30℃ to +80℃ |
Tube Material | Carbon Steel / Stainless Steel |
Shaft Material | Anti-rust Oil Coated Steel / Zinc-plated Steel / Stainless Steel |
Bearing Housing | Steel |
Bearing | Precision Ball Bearing |
Drive Element | Double Row Sprocket |
Sprocket Material | Zinc-plated Steel / Black Oxidation |
End Cap | Polypropylene, Yellow/Grey |
Surface Treatment | Zinc Plated / Chrome Plated |
Lagging | Rubber / PU |
The R1800 series is designed for heavy duty gravity conveyor applications.
Tube Material | D × T | Shaft | E | L |
|---|---|---|---|---|
Steel / Stainless Steel / Aluminum | 60×2.0 mm | Φ12 / Φ15 | E=W+10 | L=W+11 |
Steel / Stainless Steel / Aluminum | 76×3.0 mm | Φ20 | E=W+10 | L=W+12 |
Steel | 80×3.0 mm | Φ20 | E=W+10 | L=W+12 |
Steel | 89×3.0 mm | Φ20 | E=W+10 | L=W+12 |

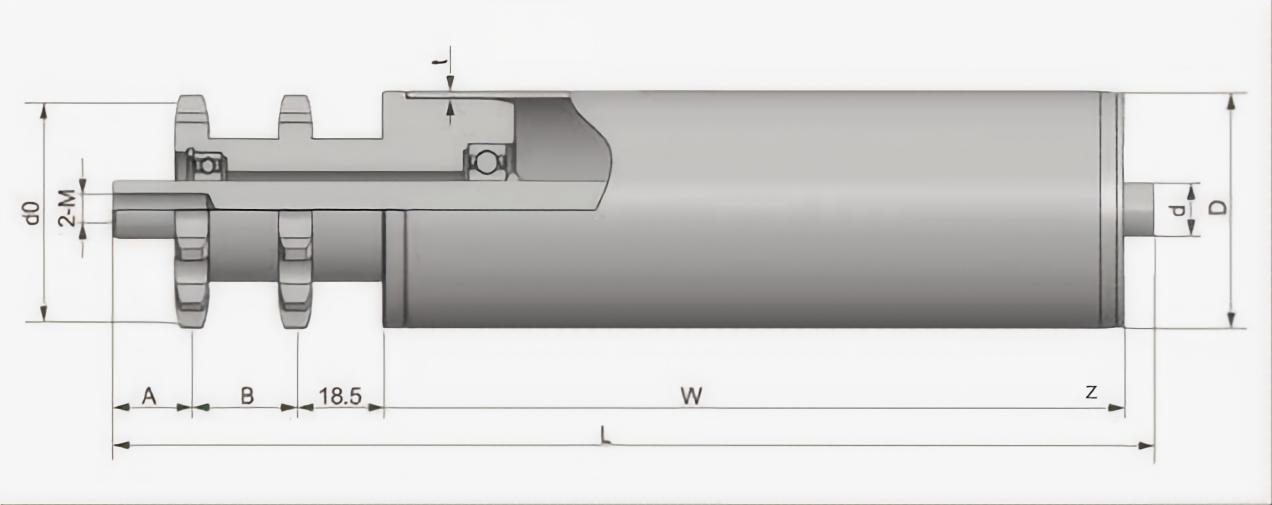

The R2321 series is designed for driven pallet conveyor applications with double-row sprocket transmission.
Tube Material | D × T | Shaft | L | Sprocket |
|---|---|---|---|---|
Steel / Stainless Steel | 60×2.0 mm | Φ12 / Φ15 | L=W+63 | 08B14T |
Steel / Stainless Steel | 76×3.0 mm | Φ15 | L=W+63 | 08B14T |
Steel / Stainless Steel | 76×3.0 mm | Φ20 | L=W+69 | 10A13T |
Steel | 80×3.0 mm | Φ20 | L=W+69 | 10B15T |
Steel | 89×3.0 mm | Φ20 | L=W+69 | 10B15T |
Longwei Automation provides different flange solutions for pallet conveyor roller installation.
The steel flange is welded directly with the roller body to provide strong and durable connection performance.
Available materials:
Zinc-plated steel
Stainless steel
The locked flange is fixed onto the tube by bolts, providing greater flexibility for different pallet sizes and conveyor applications.
Available materials:
Steel
Stainless steel
Aluminum alloy
Plastic
Heavy duty pallet conveyor rollers are widely used in industrial material handling systems.
Used for pallet transportation, storage movement, and warehouse logistics operations.
Supports loading, unloading, and material transfer between production processes.
Provides reliable pallet movement for automated warehouse systems.
Used for production line material transfer and workstation handling.
Suitable for heavy product transportation applications including tire conveyor systems.
20+ years of experience in conveyor roller manufacturing
In-house production for stable quality and delivery control
Customized roller solutions based on conveyor requirements
Professional support for gravity and driven conveyor applications
Longwei Automation controls key production processes to ensure reliable conveyor roller performance.
Quality inspection includes:
Inspection Item | Purpose |
|---|---|
Dimension Inspection | Ensure installation accuracy |
Bearing Inspection | Confirm smooth rotation |
Welding Inspection | Verify structural strength |
Surface Inspection | Check finishing quality |
Performance Testing | Verify operational reliability |
Longwei Automation provides customized conveyor roller solutions based on:
Roller diameter
Tube material
Shaft specification
Surface treatment
Drive configuration
Conveyor system requirements
Whether for gravity conveyors, powered pallet conveyors, or industrial material handling systems, we can provide suitable roller configurations according to application requirements.
A heavy duty pallet conveyor roller is a reinforced conveyor component designed to transport palletized goods and heavy loads in industrial material handling systems.
The maximum load capacity can reach 3000 kg depending on the roller configuration and application conditions.
Available diameters include 60 mm, 76 mm, 80 mm, and 89 mm.
Gravity rollers move pallets through gravity or manual force, while driven rollers use a motor and sprocket chain system for powered transportation.
Yes. Roller dimensions, materials, shaft specifications, surface treatment, and drive configurations can be customized according to project requirements.
