| Power: | |
|---|---|
| Voltage: | |
| roller material: | |
| drive head: | |
| Roller shape: | |
| Quantity: | |

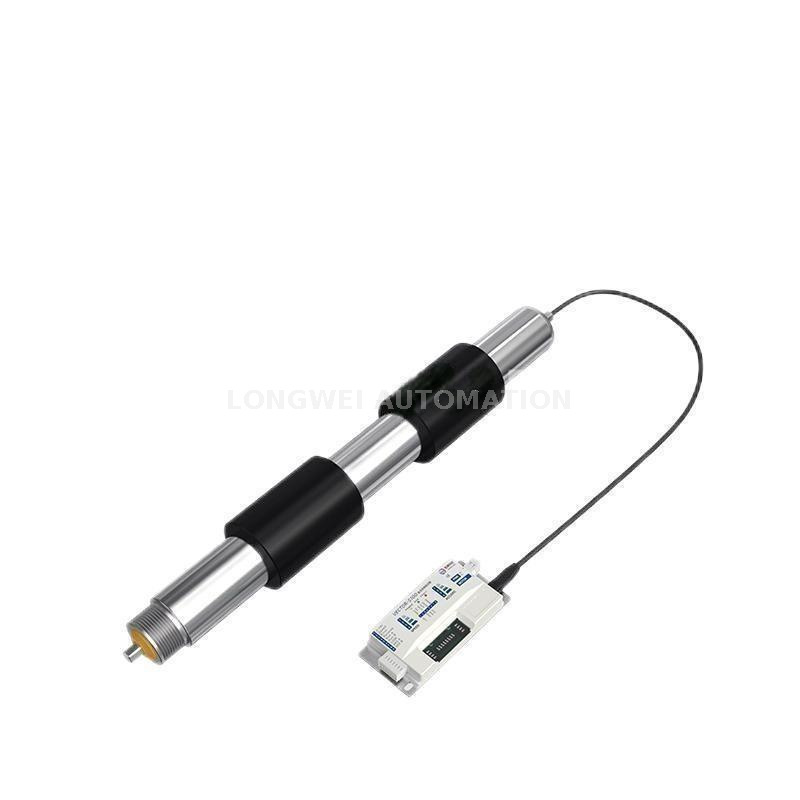

DGBL60A
RONWIN
HS Code: 8431390000

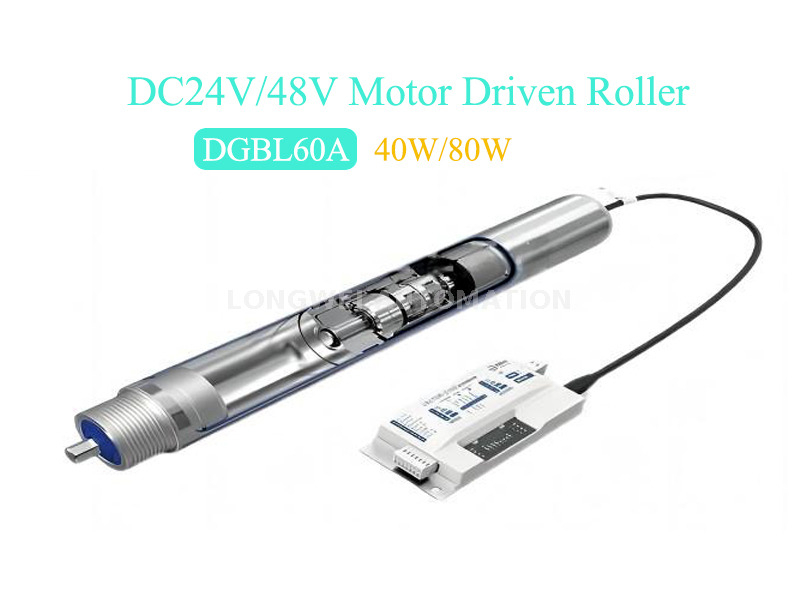

A motor drive roller (also called a motorized roller or driven roller) is a type of roller used in conveyor systems that integrates an electric motor directly inside the roller. Unlike traditional conveyor systems where an external motor drives the rollers via belts or chains, a motor drive roller has a built-in motor, making the system more compact, efficient, and easier to maintain.
To address the growing demand for automation and customized conveying, industries from food processing and pharmaceuticals to electronics and logistics (encompassing airports, postal services, and distribution centers) widely utilize Motor Driven Roller (MDR). These solutions play a vital role in enabling efficient and adaptable material handling across various applications.
The DGBL60A series motor drive roller offers easy speed adjustment and high performance, making it suitable for heavy, medium, and light load applications.
It features a built-in high-efficiency brushless gear reduction motor that delivers strong power and smooth operation. With the matching controller, precise speed control is achieved for more convenient use.
Multiple output torque options are available—standard power, high power, and high torque—to meet various load requirements.
The roller operates on safe DC voltages of 24V or 48V.
Speed ranges from 1.04 m/min to 144 m/min, with an adjustable range of 8.7% to 100%.
Compatible with multiple intelligent controllers, it supports I/O control and ZPA functions, and offers communication interfaces such as RS485, Profinet, Ethernet, CC-Link, and Modbus TCP.
Its simple installation enables easy integration for intelligent control systems.
| 1. cable | 3. front bearing housing | 5. gear box | 7. tube wall | 9. end shaft |
| 2. outlet end shaft | 4. motor | 6. fixture | 8. rear bearing housing | 10. Hall chip |
linear speed | speed adjustable range 8.7%-100% m/min | S1 working mode (40W) | S2 working mode (50W) | ||||||
| torque (N.m) | traction (N) | torque (N.m) | traction (N) | ||||||
| rated | start | rated | start | rated | start | rated | start | ||
| 12 | 1.04-12 | 5.5 | 30.3 | 183 | 1008 | 7.11 | 39 | 237 | 1304 |
| 16 | 1.39-16 | 3.98 | 21.9 | 132 | 729 | 5.12 | 28.2 | 170 | 935 |
| 26 | 2.26-26 | 2.8 | 15.4 | 93 | 511 | 3.48 | 19.1 | 116 | 638 |
| 30 | 2.61-30 | 2.4 | 13.2 | 80 | 440 | 2.98 | 16.4 | 99 | 545 |
| 43 | 3.74-43 | 1.7 | 9.4 | 56 | 311 | 2.15 | 11.8 | 72 | 396 |
| 61 | 5.31-61 | 1.20 | 6.6 | 40 | 220 | 1.50 | 8.3 | 50 | 275 |
| 72 | 6.26-72 | 1.02 | 5.6 | 34 | 187 | 1.29 | 7.1 | 43 | 237 |
| 100 | 8.7-100 | 0.74 | 4.1 | 25 | 135 | 0.92 | 5.1 | 31 | 171 |
| 144 | 12.5-144 | 0.51 | 2.8 | 17 | 93.5 | 0.64 | 3.5 | 21 | 115 |
linear speed | speed adjustable range 8.7%-100% m/min | S1 working mode (40W) | S2 working mode (50W) | ||||||
| torque (N.m) | traction (N) | torque (N.m) | traction (N) | ||||||
| rated | start | rated | start | rated | start | rated | start | ||
| 12 | 1.04-12 | 9.5 | 52.5 | 31.6 | 1741 | 10.6 | 53 | 380 | 2090 |
| 16 | 1.39-16 | 6.8 | 37.4 | 226 | 1243 | 7.68 | 38.4 | 272 | 1496 |
| 26 | 2.26-26 | 4.7 | 25.8 | 156 | 858 | 5.36 | 26.8 | 188 | 1034 |
| 30 | 2.61-30 | 4.1 | 22.6 | 136 | 748 | 4.6 | 23 | 164 | 902 |
| 43 | 3.74-43 | 2.9 | 16 | 96 | 528 | 3.3 | 16.5 | 116 | 638 |
| 61 | 5.31-61 | 2.0 | 11 | 66 | 363 | 2.3 | 11.5 | 80 | 440 |
| 72 | 6.26-72 | 1.75 | 9.6 | 58 | 319 | 1.97 | 9.85 | 70 | 385 |
| 100 | 8.7-100 | 1.3 | 7.2 | 43 | 236 | 1.42 | 7.1 | 52 | 286 |
| 144 | 12.5-144 | 0.88 | 4.8 | 29 | 159 | 0.98 | 4.9 | 35.2 | 193.6 |
Note: █3-STAGE gear reduction █ 2-STAGE gear reduction
S1 working mode—suitable for continuous material transportation, such as belt conveyors.
S2 working mode—suitable for intermittent material transportation, such as box-type transfer.
Switch the S1/S2 working mode through the controller DIP switch function.
※1. 1N=0.1 kgf, 1N·m=0.1 kgf·m.
※2. The values in this table are for reference only. Single drive segment load shall not exceed 200kg by poly-v driven mode.
※3. Constant speed closed loop control, no load or rated load, the same speed.
※4. The adjustable speed range is 8.7%-100% of the rated speed.
※5. Other speed could be customized. For faster speed please refer to DGDD direct drive roller.
※6. This table is applicable for sprocket driven mode.
Single drive segment load shall not exceed 200kg by poly-v driven mode.
Single drive segment load shall not exceed 35kg by O-belt driven mode.

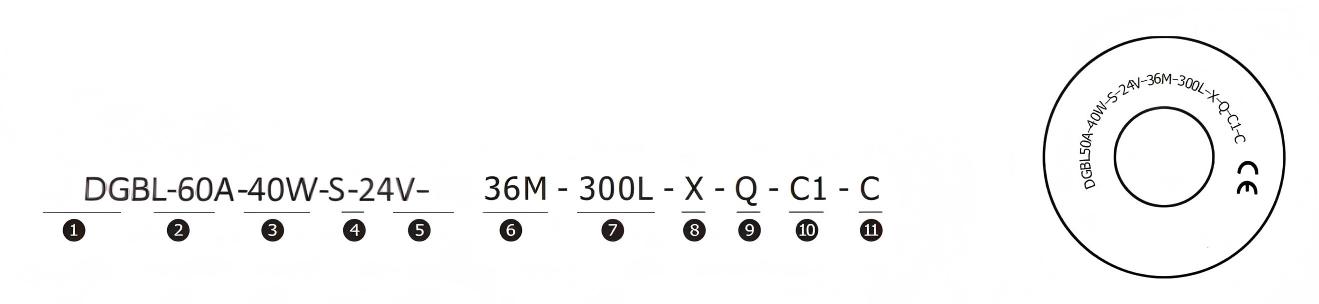

| ① Roller Type: Direct current motor drive roller | ⑦ Roller Body Length: 300mm (customized) |
| ② Roller Diameter: Diameter 60mm | ⑧ Roller Body Material: X: carbon steel, zinc-plated P: PU coating JT: rubber sleeve JZ: rubber lagged S3: SUS304 JP: PVC sleeve JG: silicone sleeve |
③ Motor Power: 40W, 50W (standard motor) 80W, 100W (enhanced motor) | ⑨ Drive Mode: Q: poly-V V: V-shaped T: timing belt E: O-ring belt O: grooved L: sprocket #: knurling I: plain U: drum-shaped ZT: tapered sleeve |
④ Controller Type: S100, P100, K100, H100 | ⑩ Outlet End: C1: Φ12 hex 11 C2: M12 hex 11 |
| ⑤ Power Voltage: DC24V, DC48V | ⑪ Shaft End: C1: Φ12 hex 11 N: M8 female thread |
| ⑥ Linear Speed: 10, 14, 22, 26, 36, 51, 60, 83, 120 |
Note:
※ Other voltage or roller shape is customized.
※ Special requirement: dustproof and waterproof (IP65)—HS, electronic brake or mechanical brake—Z,
spring loaded shaft—TX.
※ The roller body of tapered roller is carbon steel or stainless steel.
※RL=roller length EL=mounting length AGL=shaft length

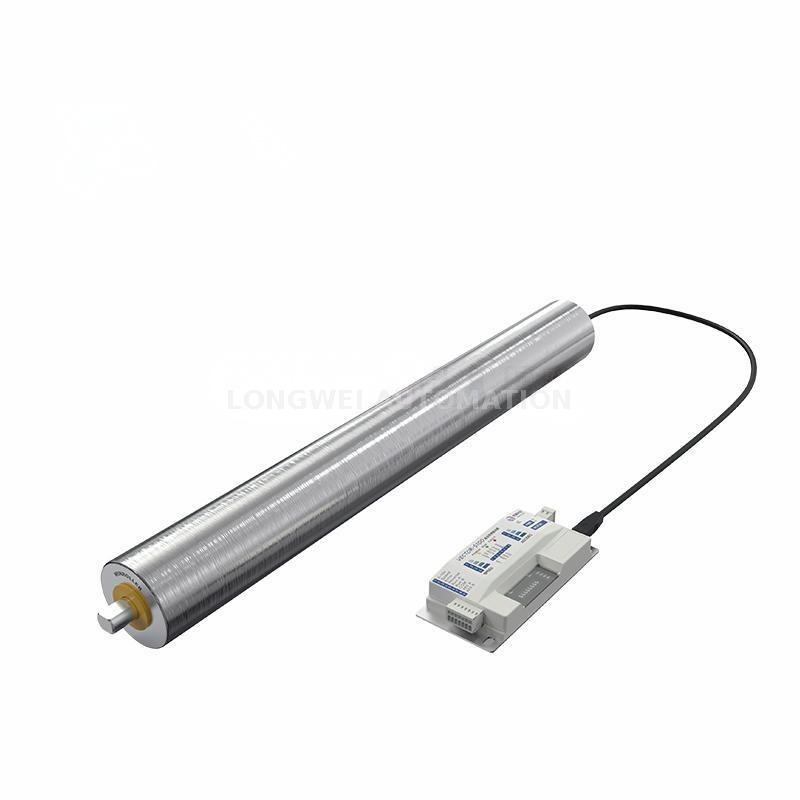

★Plain Roller: 50*1.5mm steel tube, carbon steel, chrome plated and stainless steel 304 are optional.
End shaft: C type default spring loaded shaft, without waterproof function.
★Poly-v :
① SUS304 pulley, alloy steel pulley and polymer pulley are optional, 9 grooves for PJ belt.
② The load capacity of the roller depends on the transmission arrangement and the type of poly-v belt. When there are fewer driven rollers or when a 3PJ or even a 4PJ poly-v belt is used, the load capacity is high; conversely, it is low.
③ The max. load capacity can reach 200kg. If the load exceeds 100kg, an alloy pulley needs to be selected. Note: OD50 default spring loaded shaft, without waterproof function.

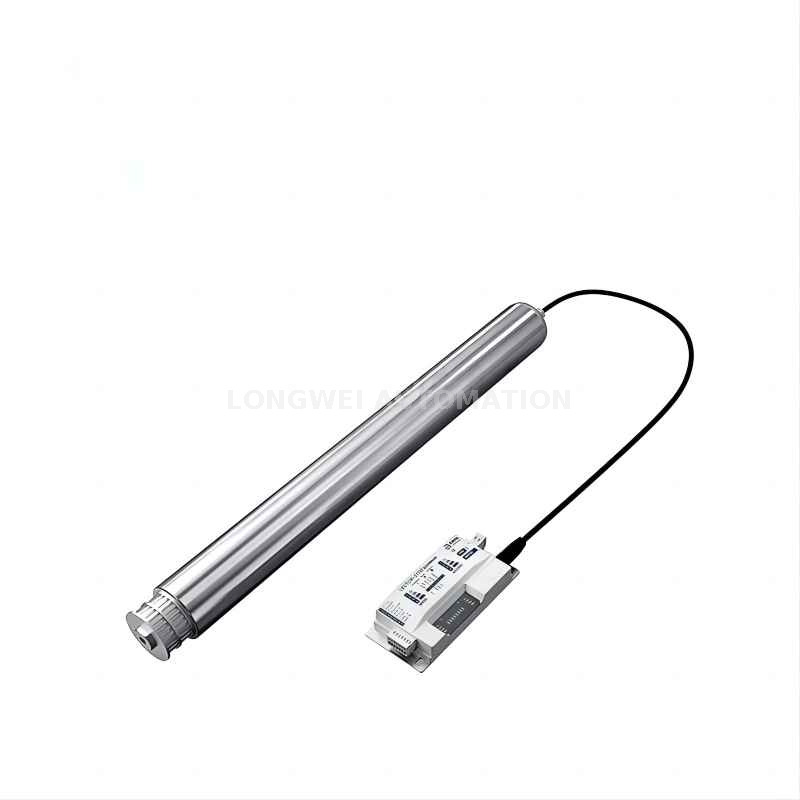

★Toothed Belt:
① Toothed belts can effectively prevent slipping. The above figure shows a molded nylon toothed belt pulley, with 2 grooves, T5 type with 26 teeth. Special requirements can be customized for the specifications. The materials available include aluminum alloy, stainless steel, and engineer plastic pulleys.
② The load capacity of the roller is determined by the transmission arrangement and the type of toothed belt. Generally, the load capacity for a conveying zone can reach up to 100 kg.
★Grooved:
① Grooved rollers are connected by PU O-ring belt, so it is very quite and suitable for light conveying application.
② The torque decays rapidly. A single motor dirve roller can only drive 7-8 passive rollers. In a single conveying unit, the weight of a single piece of goods should not exceed 35kg.
Note: When the end shaft of the grooved roller is spring loaded type, please contact our company for the grooved dimensions.
★O-ring belt pulley:
① The O-ring belt pulley produced by the mold are connected by PU O-ring belt, so it is very quite and suitable for light conveying application.
② The torque decays rapidly. A single motor dirve roller can only drive 7-8 passive rollers. In a single conveying unit, the weight of a single piece of goods should not exceed 35kg.
★Sprocket:
① Be suitable for heavy conveying, general the sprocket model number is 08B14T, single-row or double-row. Carbon steel or stainless steel 304 are optional.
② The torque attenuation is significant. To achieve the best transmission performance, the double-row drive should be arranged in the middle section of the conveyor.
★Tapered Sleeve:
① The plastic tapered sleeve has a cone angle of 3.6 degrees and is suitable for curved transportation. It can be composed of multiple sections of conical plastic sleeves to form a cone shape.
② Use the dedicated tapered motor drive roller mounting bracket. It is not recommended to use external threads for installation.
Fixing shaft to cable outlet end by standard terminal box base plate and fixing plate.
Axial fixing bracket -Compact type
◇Material: 3.2mm thick galvanized steel plate
◇Cable outlet end axial should be locked tightly
Axial fixing bracket - Standard type
◇Material: 3.2mm thick galvanized steel plate
◇Cable outlet end axial should be locked tightly
Multiple Intelligent Controllers supports interfaces such as IO control and RS485, enabling precise and efficient remote control. This makes the operation more intelligent and convenient.
Poly-v pulley direct current galvanized steel motor driven roller

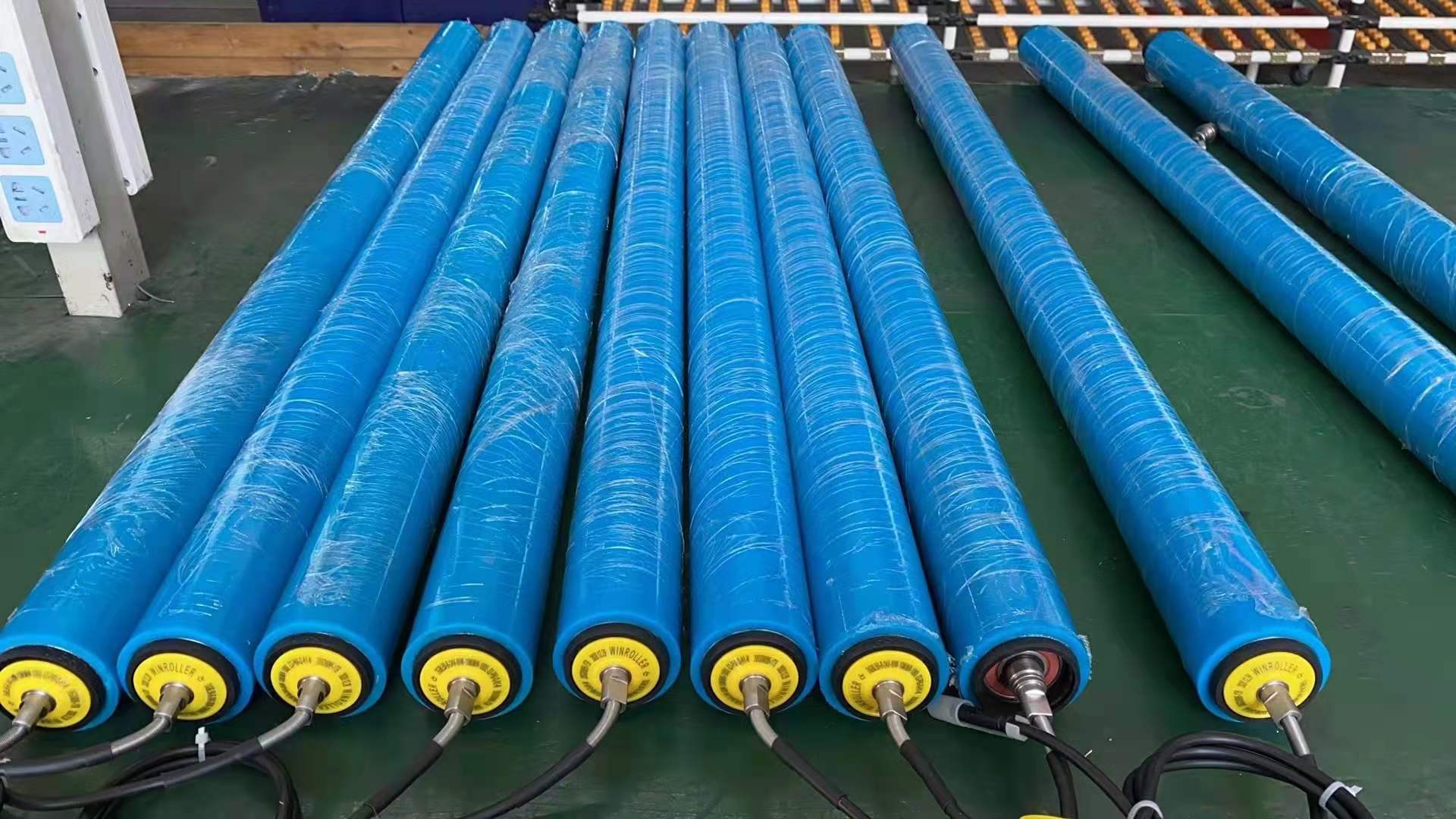

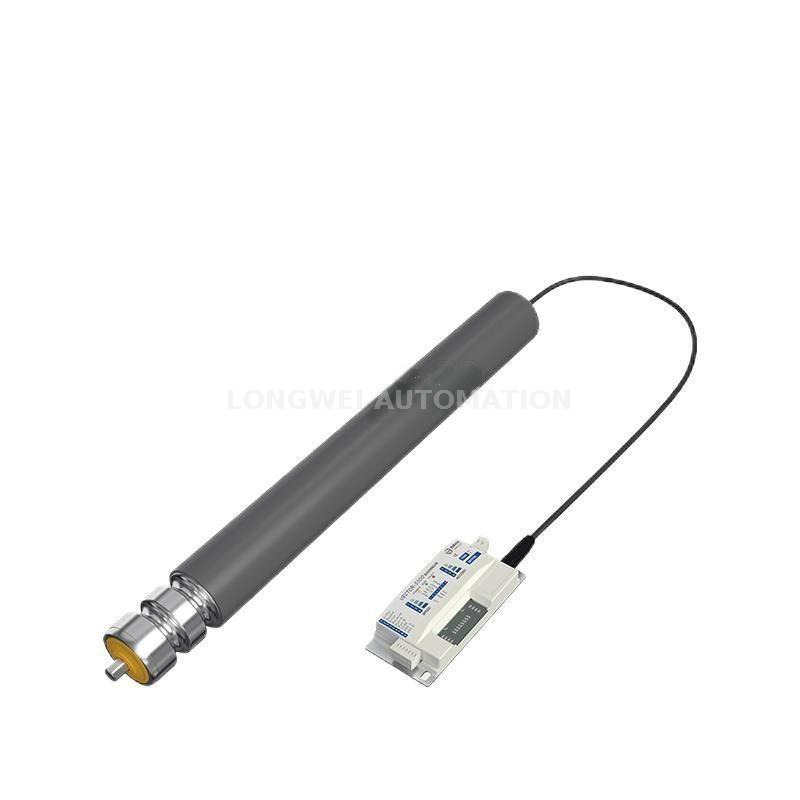

Poly-v pulley direct current steel motor driven roller with PU coating

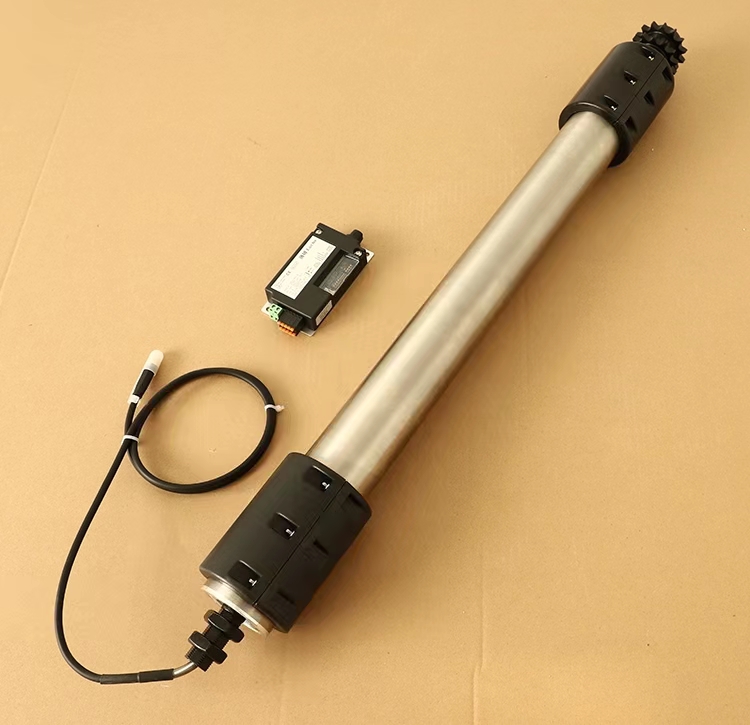

Sprokcet chain drive pulley direct current steel motor driven roller
