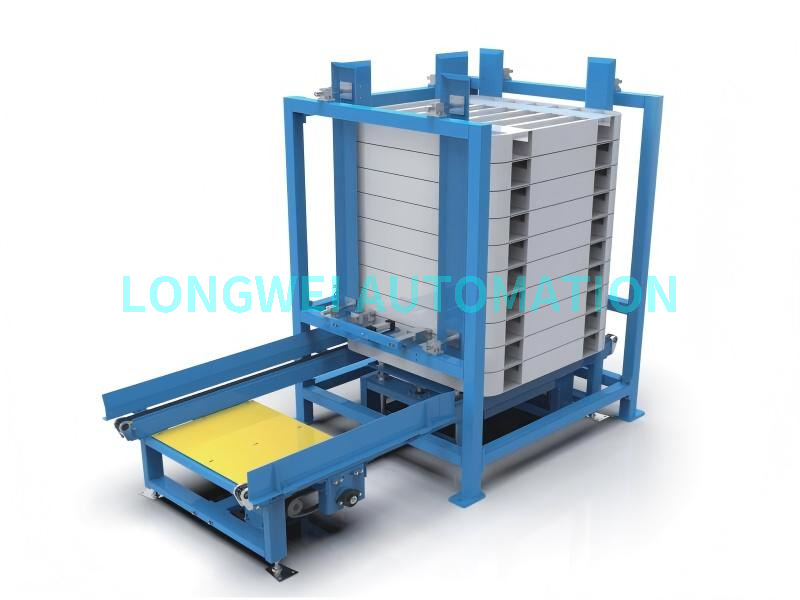

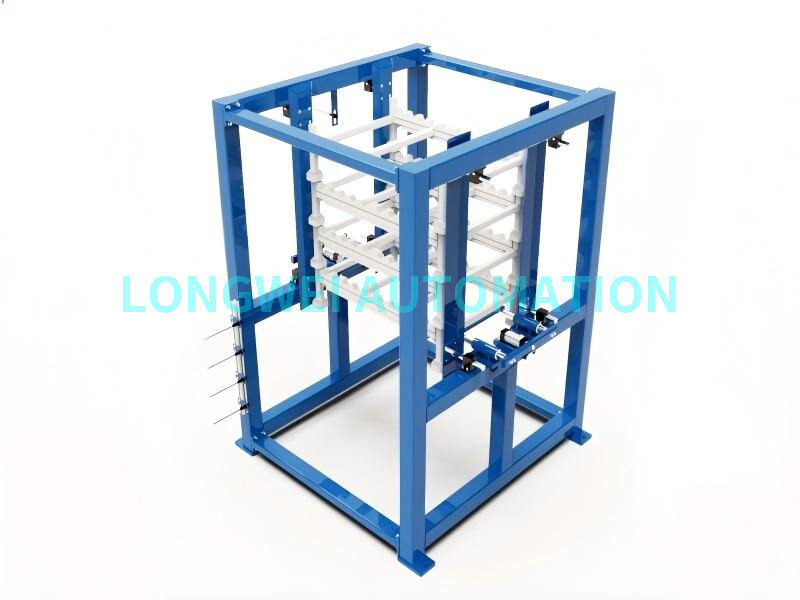

Pallet Stackers and Destackers are core equipment in automated pallet conveying systems, specifically designed for the automatic stacking, retrieval, distribution, and separation of empty pallets. They are typically integrated with various types of conveyors to achieve efficient, automated stacking and destacking operations for pallets or containers.
The equipment utilizes a lifting mechanism to drive the fork assembly in vertical movement. When the forks extend, they securely grip the pallets or containers, and upon retraction, they release and place them with precision, thereby accomplishing the automatic stacking and separation of pallets. This design not only ensures stable and reliable operation but also significantly enhances the level of automation in logistics processes.
| effective width | pallet size +10mm | working efficiency | 15s |
| conveying height | H≥500mm(Coordinated project delivery height) | motor power | Fork 0.18 kW (with brake) / Cylinder, Lifting 0.75-2.2 kW (with brake) |
| stackable pallet quantity | 5-12 | load capacity | 500-1000KG |
| effective width (W) | W≥800mm |
| conveying surface height (HS) | HS≥500mm |
| container height (PH) | refer to the tray (customizable) |
| container total quantity (PN) | customized |
| lifting speed | 8M/Min |
| stacking/destacking time | 15 second/container (based on 1200 containers at conveying speed 12M/Min) |
| load capacity | ≤300 KGS |
In the field of logistics automation, Pallet Stackers and Destackers are widely used in warehousing, distribution, and production line scenarios. They seamlessly integrate with conveying systems, substantially improving material handling efficiency, reducing manual intervention, and lowering operational costs. As such, they are key equipment driving the intelligent upgrade of enterprise logistics.
Pallet Stackers and Destackers are core equipment in automated pallet conveying systems, specifically designed for the automatic stacking, retrieval, distribution, and separation of empty pallets. They are typically integrated with various types of conveyors to achieve efficient, automated stacking and destacking operations for pallets or containers.
The equipment utilizes a lifting mechanism to drive the fork assembly in vertical movement. When the forks extend, they securely grip the pallets or containers, and upon retraction, they release and place them with precision, thereby accomplishing the automatic stacking and separation of pallets. This design not only ensures stable and reliable operation but also significantly enhances the level of automation in logistics processes.
| effective width | pallet size +10mm | working efficiency | 15s |
| conveying height | H≥500mm(Coordinated project delivery height) | motor power | Fork 0.18 kW (with brake) / Cylinder, Lifting 0.75-2.2 kW (with brake) |
| stackable pallet quantity | 5-12 | load capacity | 500-1000KG |
| effective width (W) | W≥800mm |
| conveying surface height (HS) | HS≥500mm |
| container height (PH) | refer to the tray (customizable) |
| container total quantity (PN) | customized |
| lifting speed | 8M/Min |
| stacking/destacking time | 15 second/container (based on 1200 containers at conveying speed 12M/Min) |
| load capacity | ≤300 KGS |
In the field of logistics automation, Pallet Stackers and Destackers are widely used in warehousing, distribution, and production line scenarios. They seamlessly integrate with conveying systems, substantially improving material handling efficiency, reducing manual intervention, and lowering operational costs. As such, they are key equipment driving the intelligent upgrade of enterprise logistics.
