RVE Reciprocating Vertical Elevator
Application
Reciprocating vertical conveyor has a total of four sets of chain lifting systems, with a vertical conveying speed of up to 90m/min and a maximum conveying stroke of 40m. They can meet the multiple entry and multiple exit handling of various shapes of pallet items, sorting cage trucks, and logistics trolleys between multiple high-rise buildings. This reciprocating elevatlor is suitable for deployment in large factories, warehouses, and e-commerce centers with higher floors.
Features
Various forms, flexible layout.
Customized conveying solution according to the process requirements.
Lifting car can be equipped with different kinds of conveying equipment ancdo operate with the entrance and exit conveying equipment to fully automate the conveying process.
Big lifting distance.
Various safety devices can · be set to improve the safety of equipment operation.
| Specifications (unit: mm) | |
|---|---|
| conveying type | C type, Z type, E type |
| conveying direction | up, down, bothway |
| loading capacity | max. 3000kg |
| lifting distance | max 40m |
| drive mode | chain drive |
| control mode | PLC |
| lifting speed | max. 90m/min |
| motor power | 3.0mkw, 4.0kw, 5.5kw, 7.5kw |

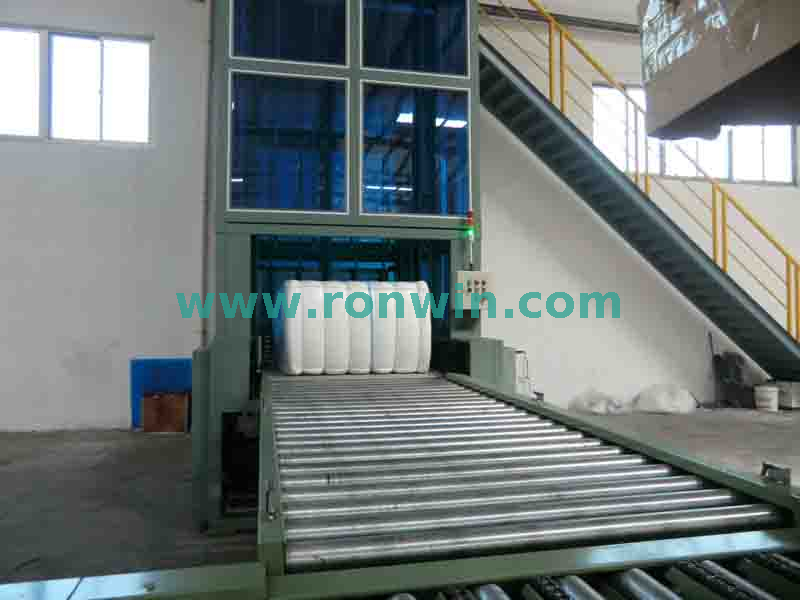

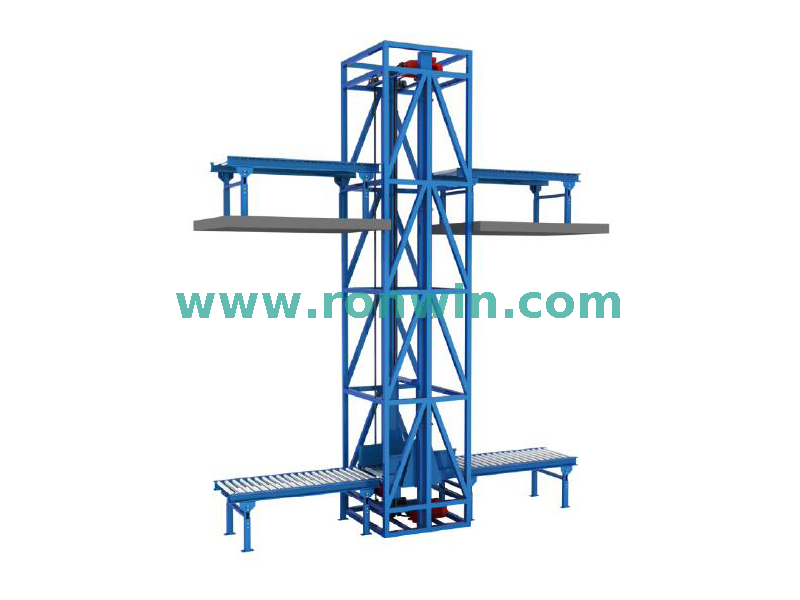

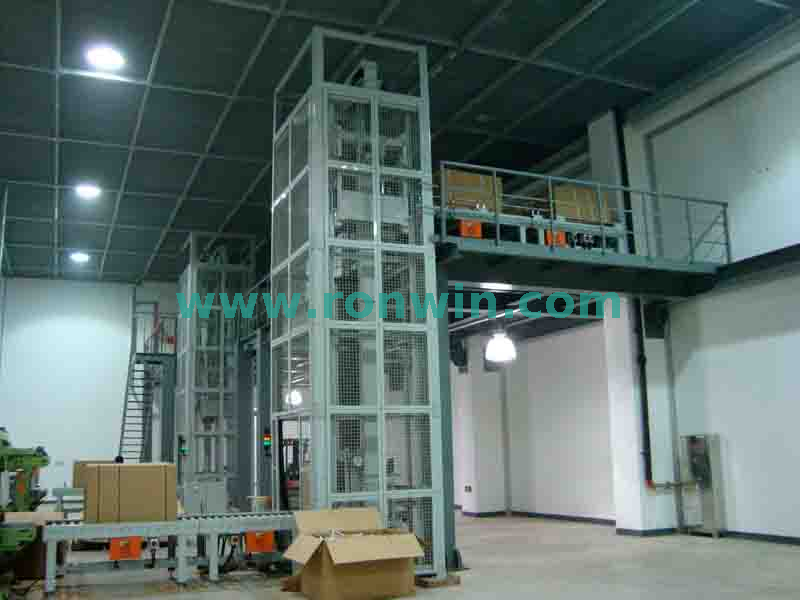

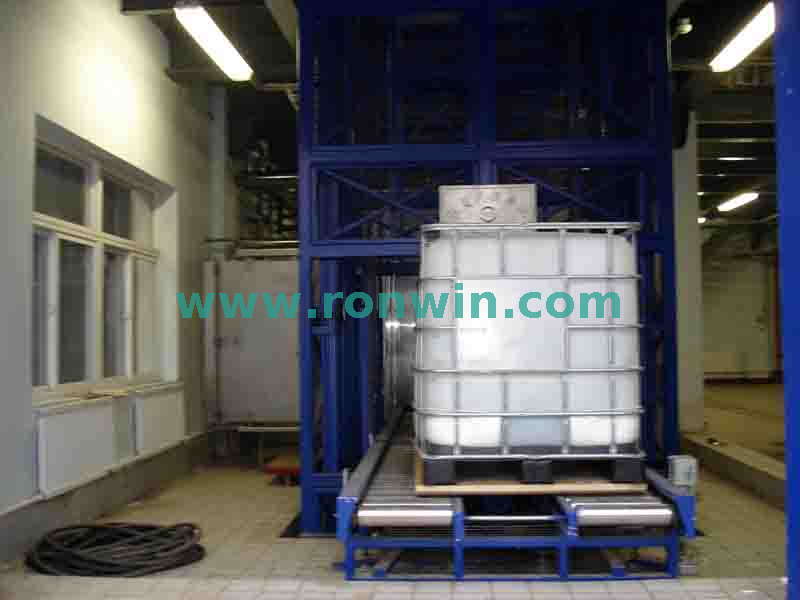

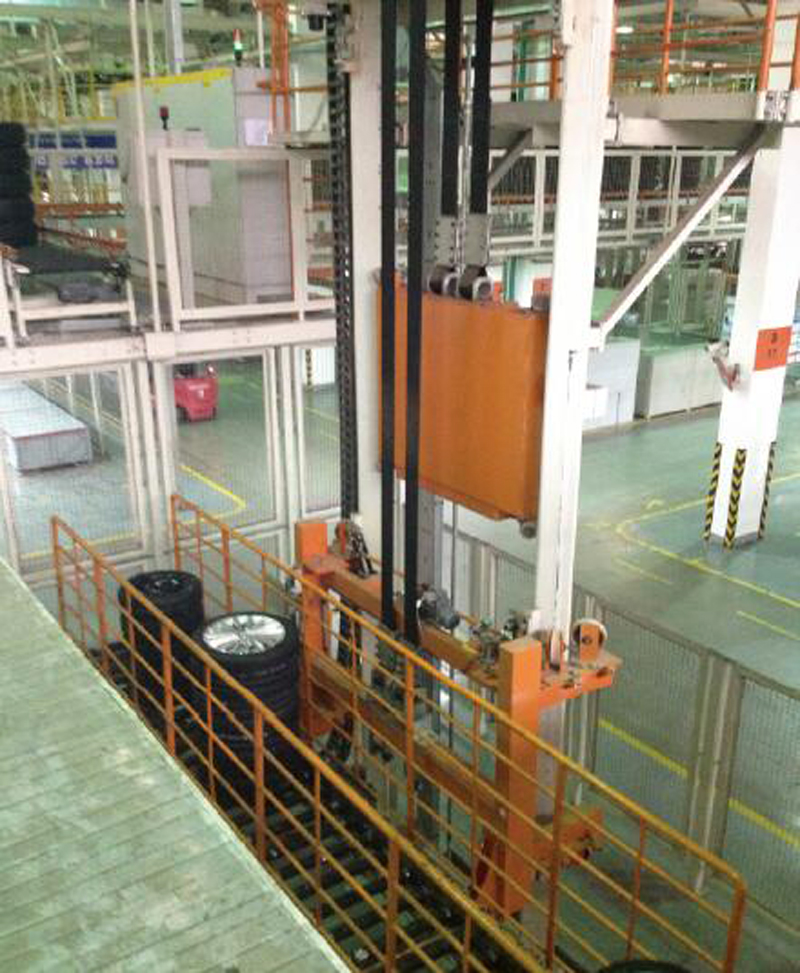

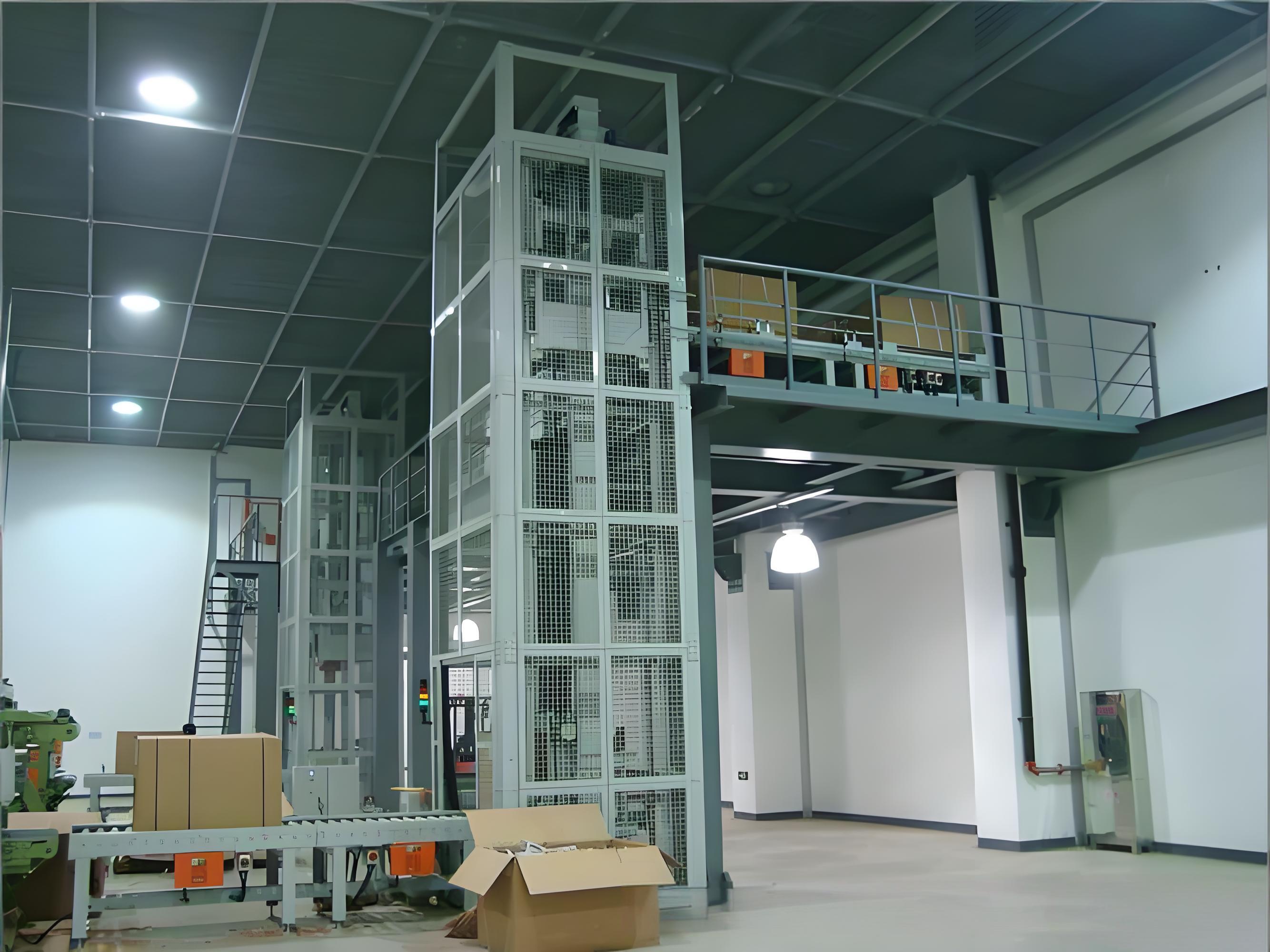

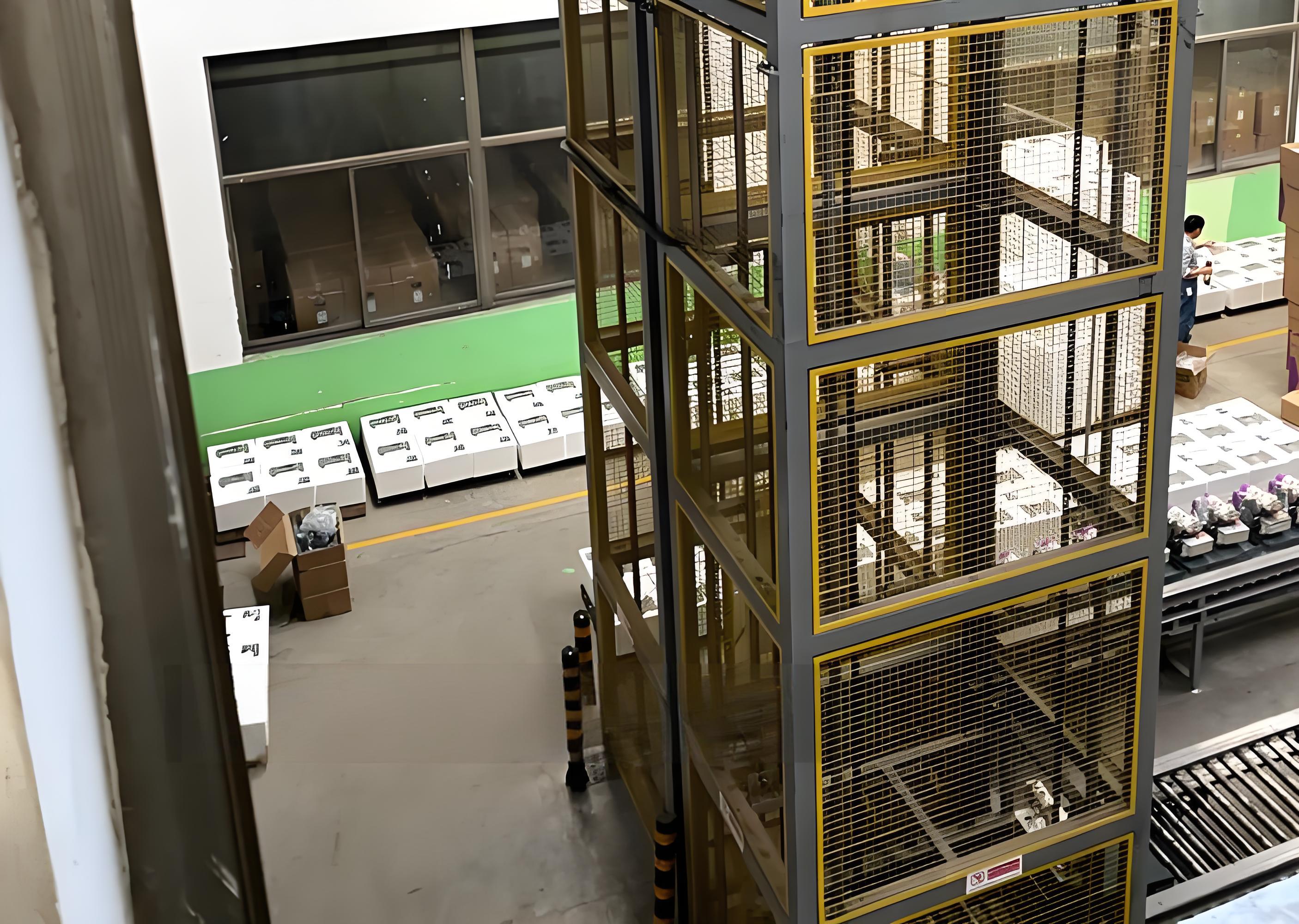

Some product pictures or applications
