C100 Indoor Heavy Load Pallet Chain Conveyor
Pallet chain conveyor is applicable to indoor delivery of all palletized goods. The chain conveyor is adopted modular design, it is easy to assembly and maintain. The loading capacity is large, the goods and the chain are relatively stationary when conveying.
Order no. example (unit mm): C100-1000-600-3000-15
C100: series number
1000: chain centre distance 1000mm
600: height 600mm
3000: length 3000mm
15: conveying speed 15m/min.
| Specifications (unit: mm) | |
|---|---|
| length | max. 40m |
| height | 500-1500 |
| chain center distance | 500, 600, 700, 800, 900, 1000, 1100 |
| rack material | steel folded-plate, U-steel, Aluminium profile |
| support leg material | rectangular tube, U-steel, Aluminium profile |
| chain model number | 08B, 10A, 12A, 16A |
| conveying speed | max 30m/min, speed is adjustable |
| motor power | 0.37kw, 0.55kw, 0.75kw, 1.5kw, 2.2kw, 3.0kw |
| motor power | 0.37kw, 0.55kw, 0.75kw, 1.5kw |

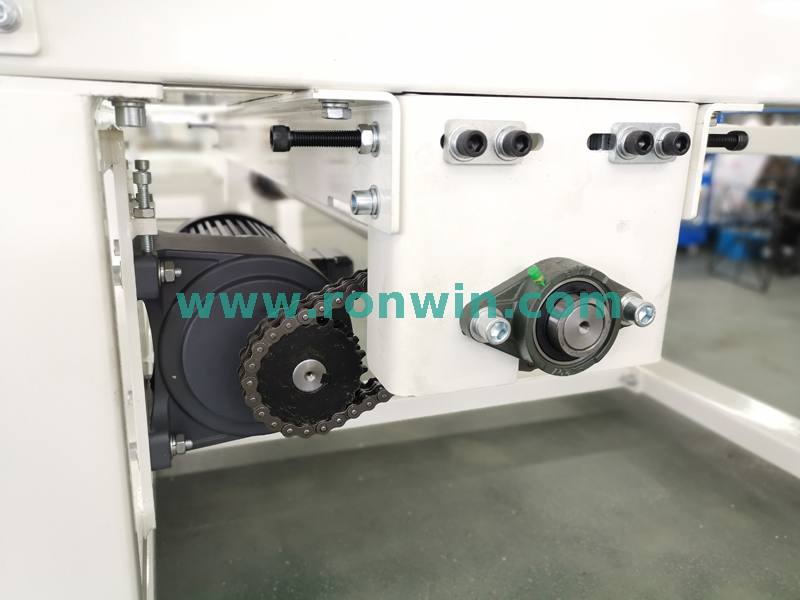

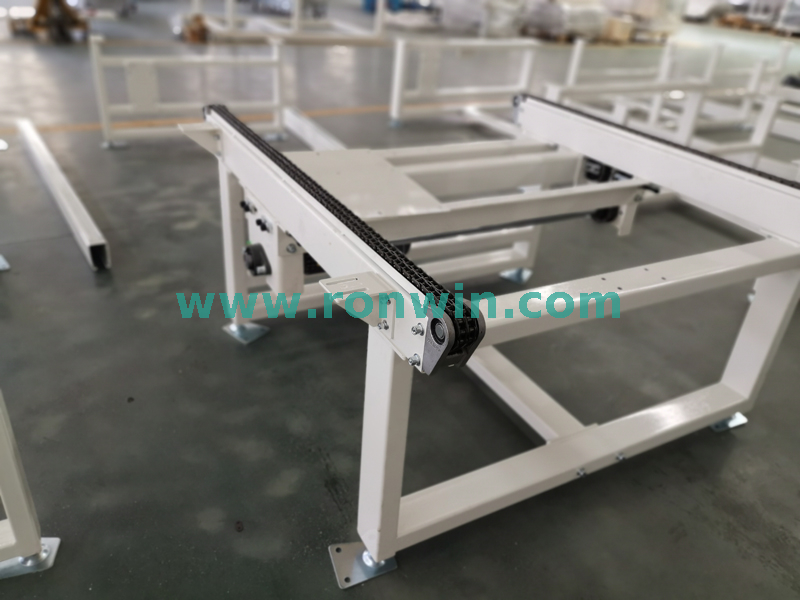

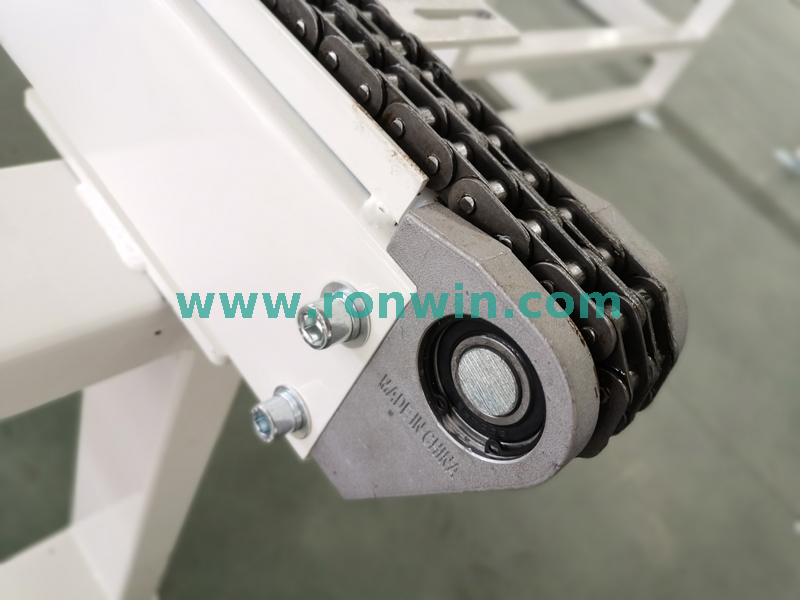

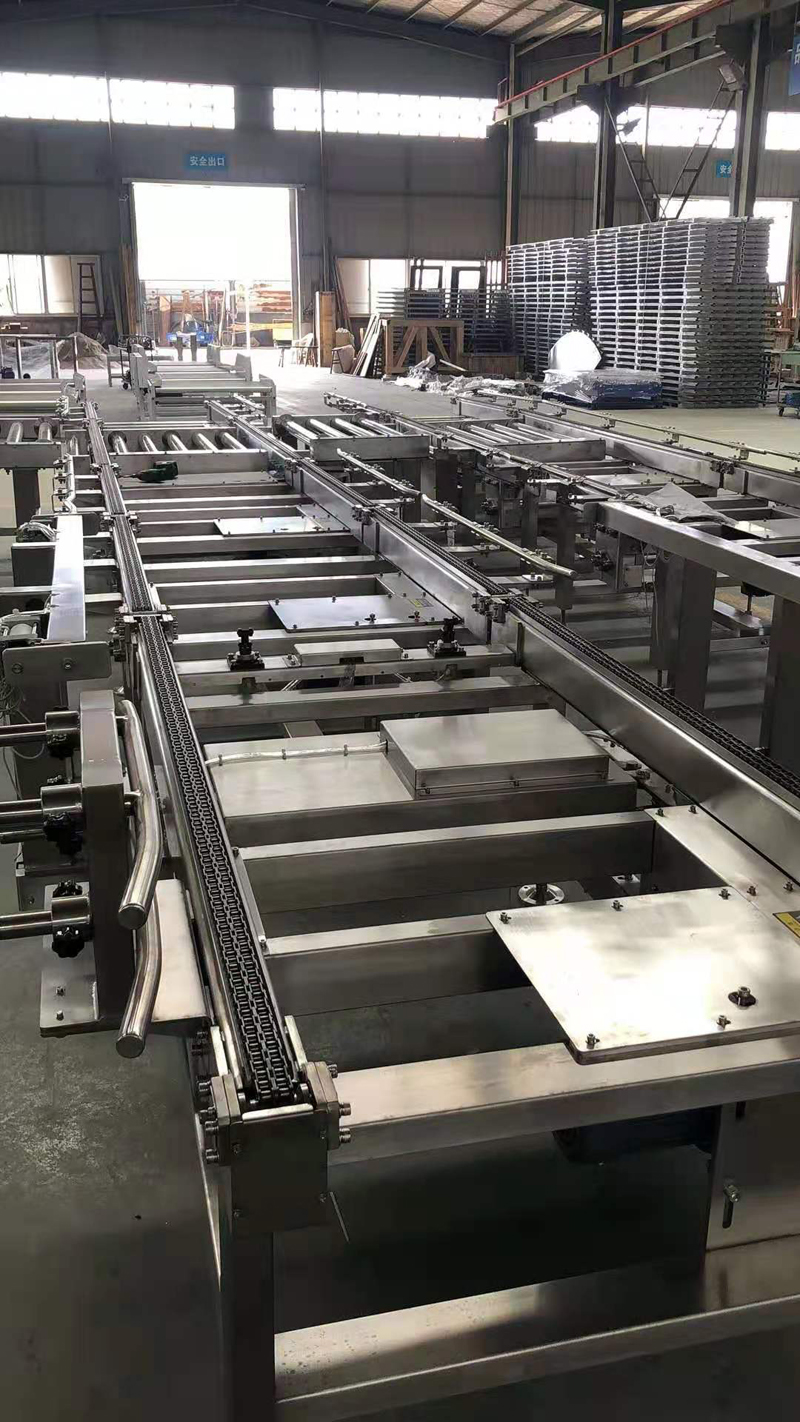

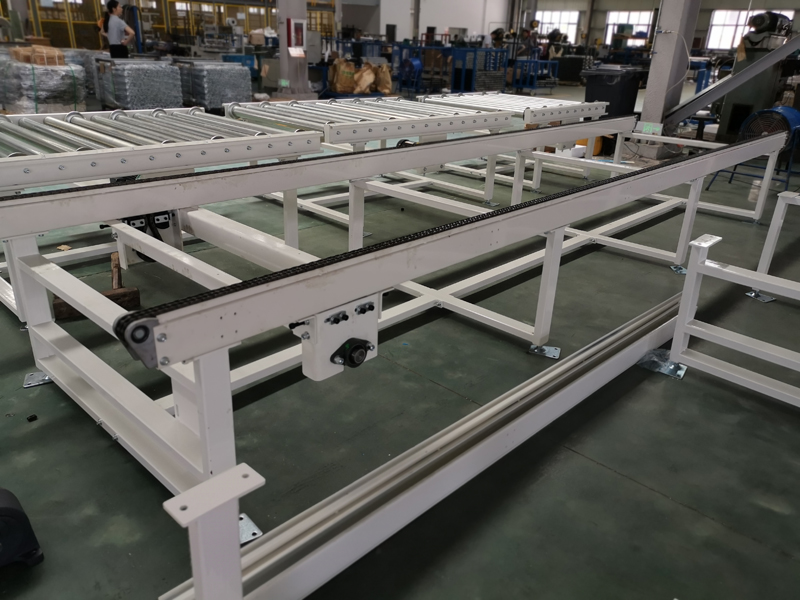

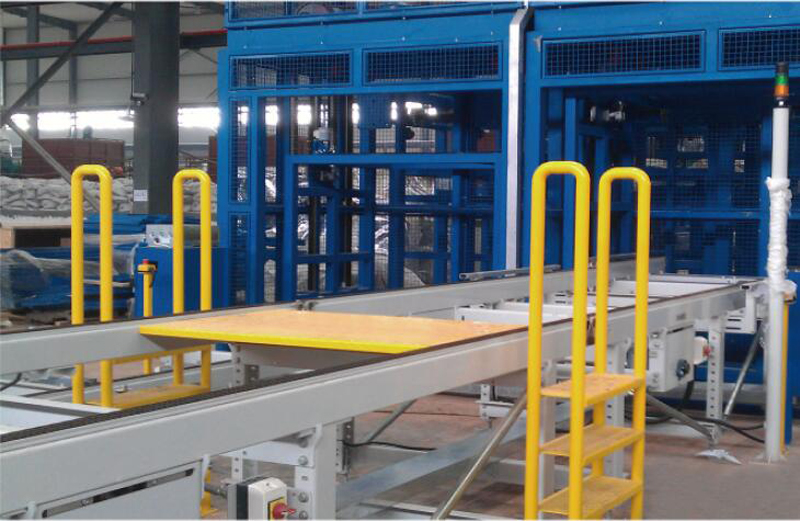

Some product pictures or applications
