SR610
RONWIN

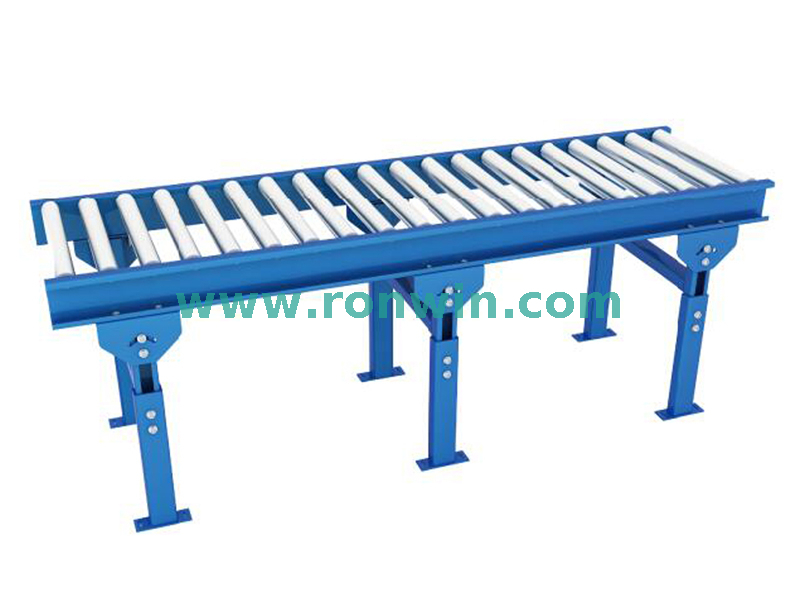

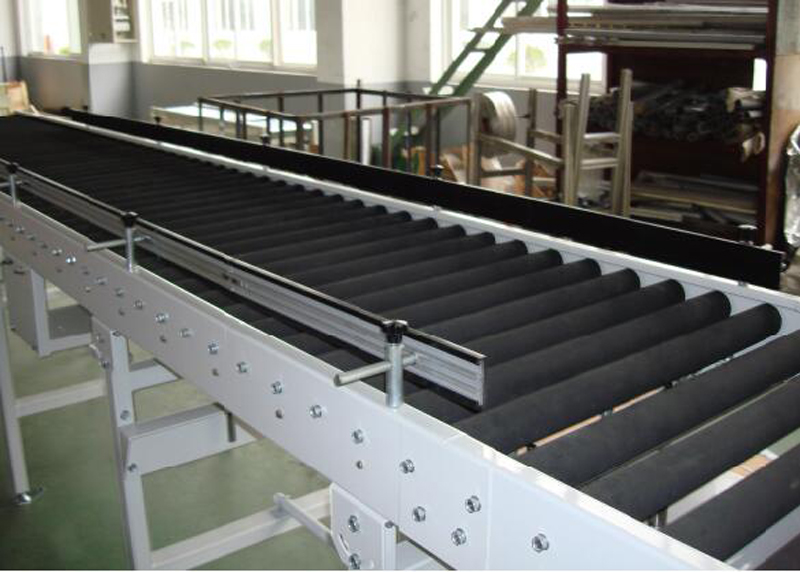

The single sprocket accumulating chain-driven roller conveyor is a high-efficiency conveying equipment that uses an endless chain to drive all rollers. The chain runs on specially designed guide rails, with the motor mounted in a central position. This product features high conveying capacity, smooth and effortless operation, accumulating functionality, and low noise. It is widely used for conveying various boxed, bagged, and palletized goods.

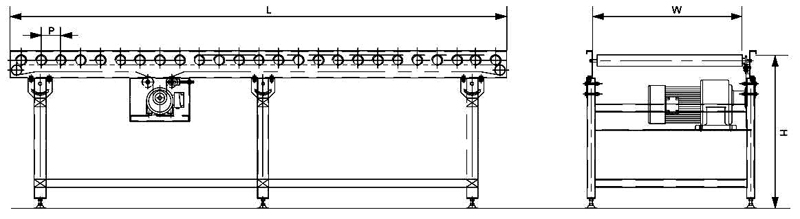

Model no. -rack inner width(W)-rack height(H)-rack length(L)-roller diameter(D)-roller pitch(P)- conveying speed(m/min)
Order no. example (unit mm): SR610-1000-700-5000-50-100-10
| Specifications (unit: mm) | |
|---|---|
| roller diameter | 50, 60, 76, 89 |
| roller pitch | 75, 100, 150 |
| rack length | max. 20 meters |
| rack inner width | 500, 600, 700, 800, 900, 1000, 15000 or on customer's request |
| rack height | 500-1500, suggest 500 min. |
| rack material | steel folded-plate, Aluminium profile |
| support leg material | rectagular steel tube, Aluminium profile |
| conveying speed | max. 30m/min, speed is adjustable |
| motor power | 0.37kw, 0.55kw, 0.75kw, 1.5kw |
All-Roller Drive Design: All rollers are synchronously driven by an endless chain, ensuring stable and reliable conveying.
Professional Guide Rail System: The chain runs on specially designed guide rails, reducing wear and noise while extending service life.
Central Motor Layout: Compact structure, convenient maintenance, and efficient power transmission.
Efficient Accumulating Function: Goods in transit can be temporarily stored and accumulated on the line, enabling flexible production pacing.
High Conveying Capacity: Suitable for high-volume continuous conveying operations.
Low-Noise Operation: Optimized chain and guide rail design significantly reduces operating noise.
Suitable for conveying various boxed, bagged, and palletized goods.
Bulk materials, small items, or irregular objects need to be placed on pallets or totes for conveyance.
Particularly suitable for processes requiring online temporary storage, accumulation, or buffering.

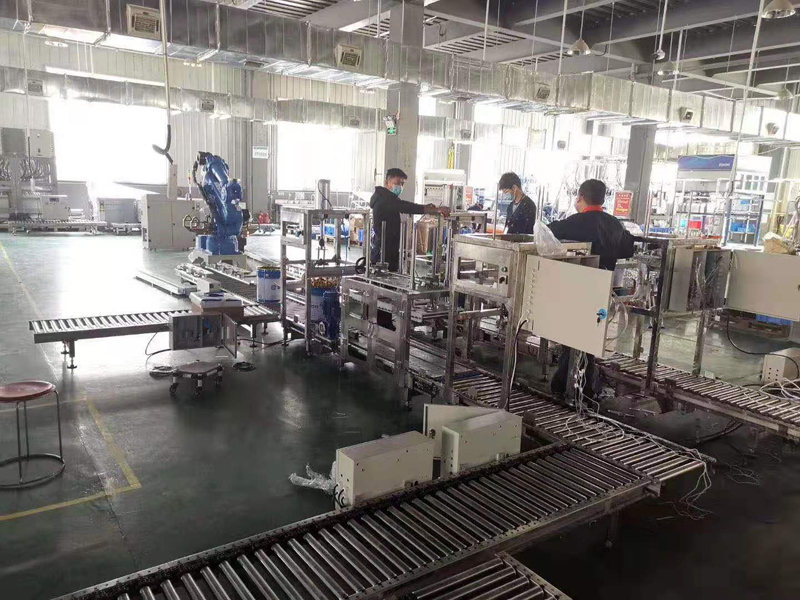

Widely used in scenarios such as warehousing and logistics, production assembly, packaging and sorting, and distribution centers.
Flexible Customization: Frame width, length, and height can be customized according to on-site customer requirements.
Stable and Reliable: Optional steel or aluminum alloy materials meet different load-bearing and environmental requirements.
Energy Efficient: Multiple motor power options, adjustable speed to adapt to different conveying paces.
Easy Maintenance: Modular design allows key components to be easily inspected and replaced.
For heavy goods or high-frequency usage scenarios, it is recommended to select rollers with larger diameters and higher-power motor configurations. If the conveying environment requires corrosion resistance, aluminum alloy frame and legs are recommended.
This conveyor is an ideal choice for enhancing production line automation and optimizing logistics efficiency. We can provide professional design solutions and technical support based on your specific needs. Inquiries and customization are welcome.
